MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Model:
  • 022394 - LIP PLTH 300
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

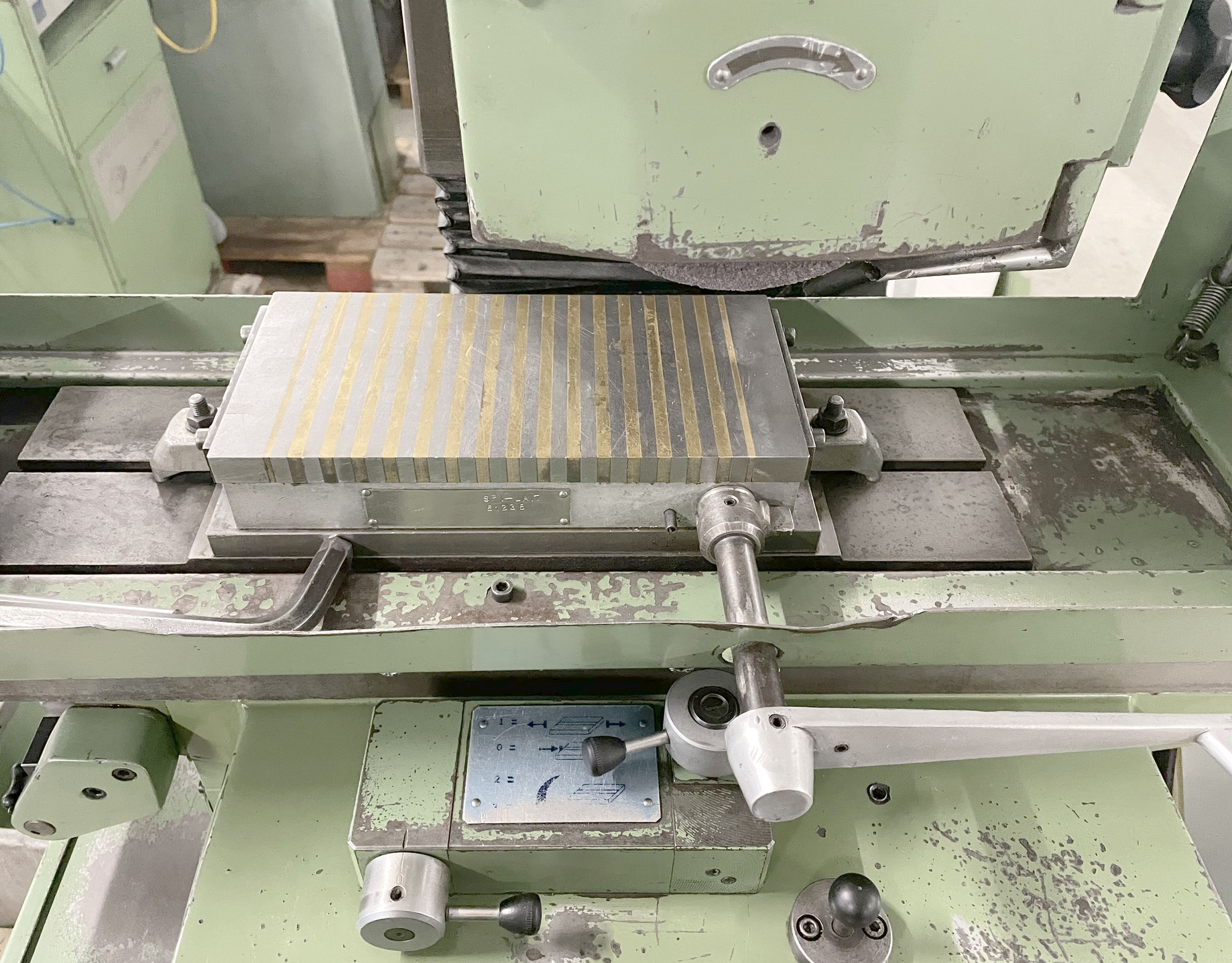

Table length: 300 mm.
Table width: 135 mm.
Number of T-channels: 1.
T-channel width: 8 mm.
to spindle-centreline: 315 mm.
Longitudinal travel (X-axis): 330 mm.
Cross travel (z-axis): 160 mm.
Vertical travel (Y-axis): 240 mm.
from: 0 m/min.
up to: 18 m/min.
Grinding wheel speeds fix: 3000 t/min.

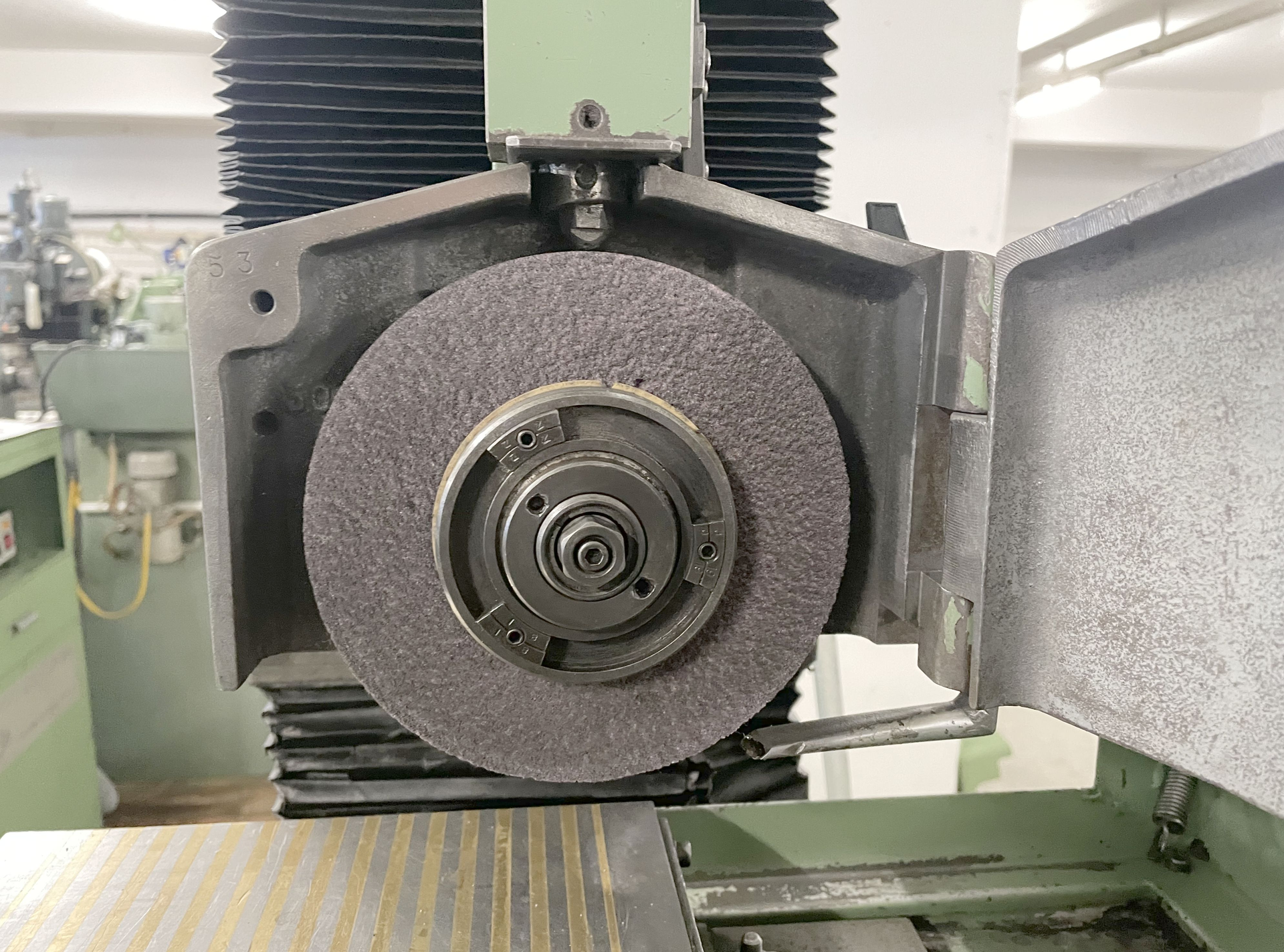

Diameter of grinding wheel: 180 mm.
Width of the grinding wheel: 16 mm.
Drilling cap. of grind.wheel: 32 mm.
Voltage 50 Hz 3x: 380 Volt.
Grinding spindle motor: 1.1 kW.
Machine's weight about: 400 kg.
Length: 255 mm.
Width: 130 mm.
Height: 1680 mm.
