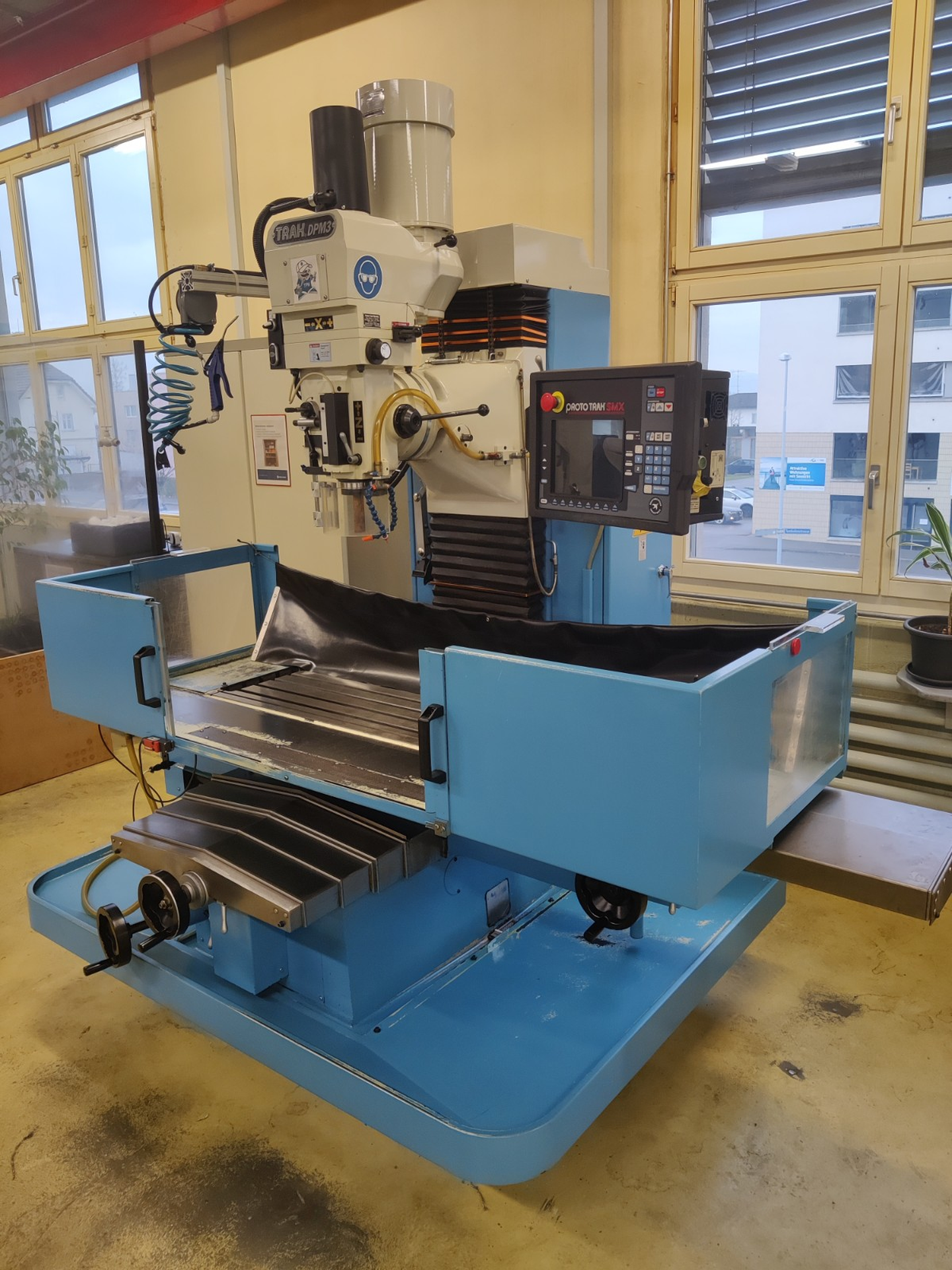

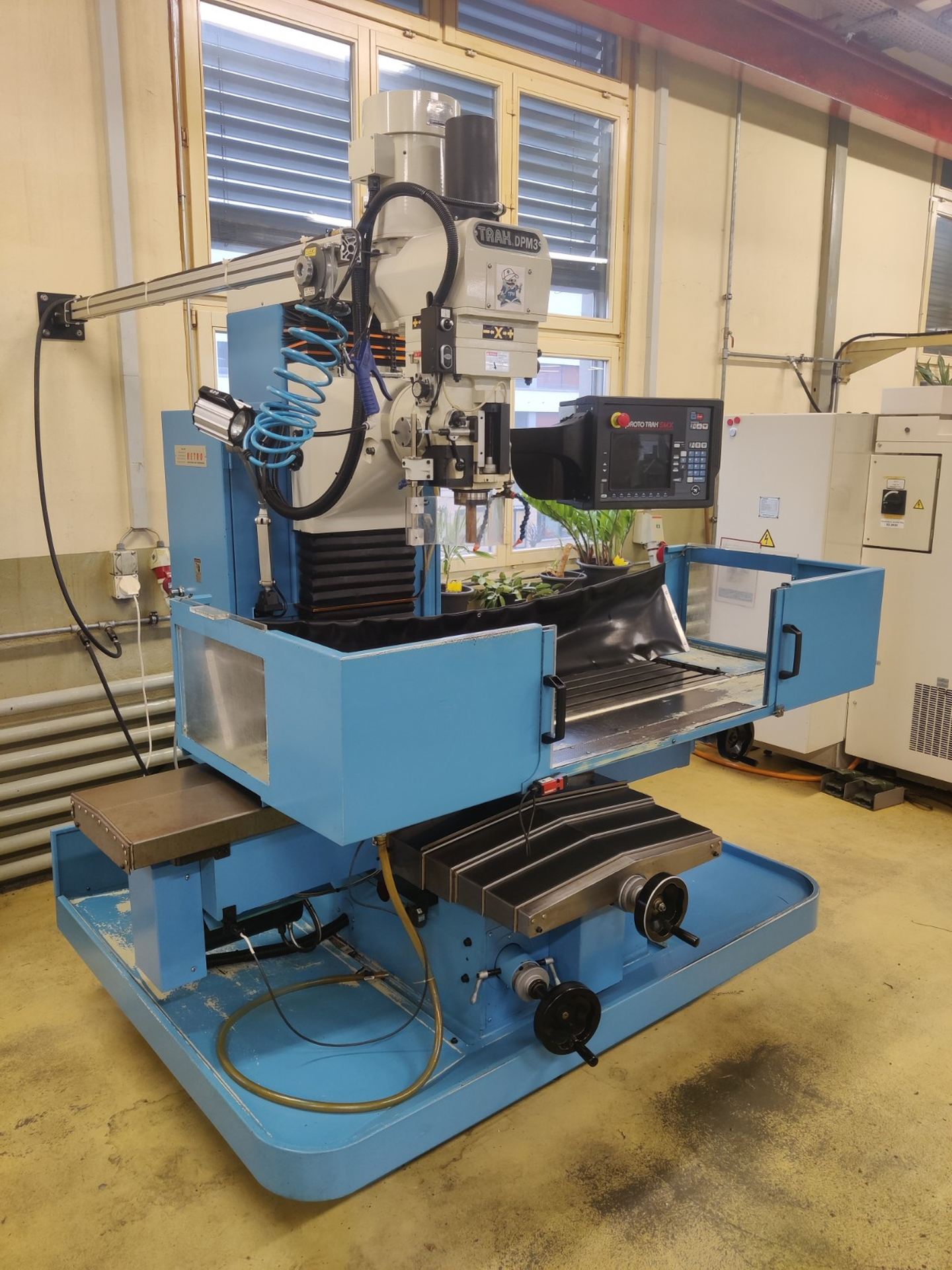

MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • TRAK DPM
  • Model:
  • 022380 - TRAK DPM 1300
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Number of axis total: 3.
Table length: 1300 mm.
Table width: 400 mm.
Number of T-channels: 5.
T-channel width: 16 mm.
Distance of the T-slots: 63 mm.
Table load max.: 800 kg.
Longitudinal travel (X-axis): 1340 mm.
Transversal travel (y axis): 430 mm.
Vertical travel (z axis): 590 mm.
spindle to table: 600 mm.
Taper in spindle: 40 ISO.
from: 70 t/min.
up to: 3600 t/min.
Swivel range Vertical milling head: +90 / -90 °.
Feeds (X, Y, Z): 25 - 3800 mm/min.
Rapid traverse:: 3.8 m/min.
Vertical quill travel: 120 mm.
Drill capacity in steel: 35 mm.
Threat cutting in steel M: 36.
Milling capacity in steel: 100 cm3/min.
Voltage 50 Hz 3x: 400 Volt.
Milling spindle motor: 5.5 kW.
Machine's weight about: 2400 kg.
Length: 3790 mm.
Width: 1800 mm.
Height: 2500 mm.
