MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Model:

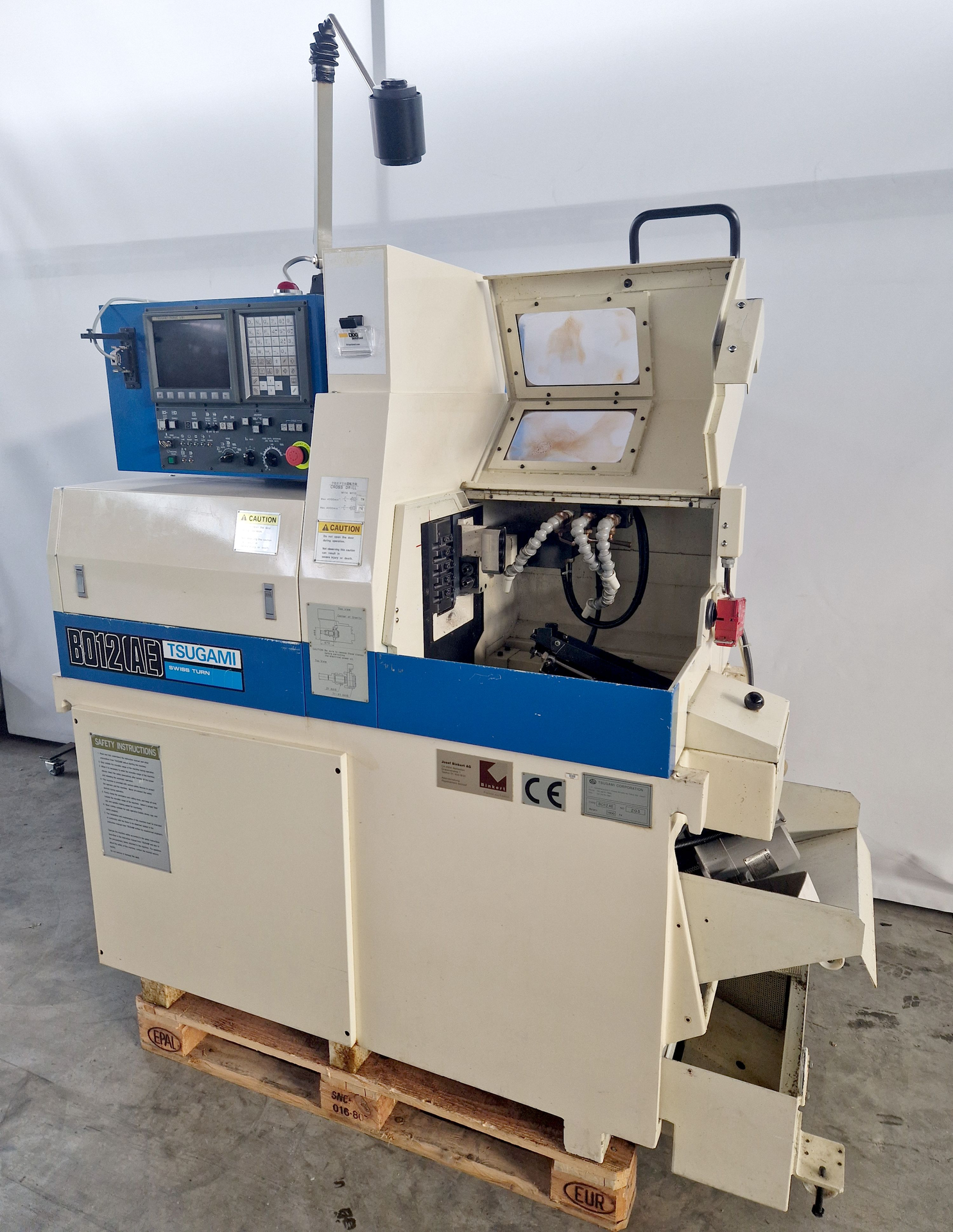

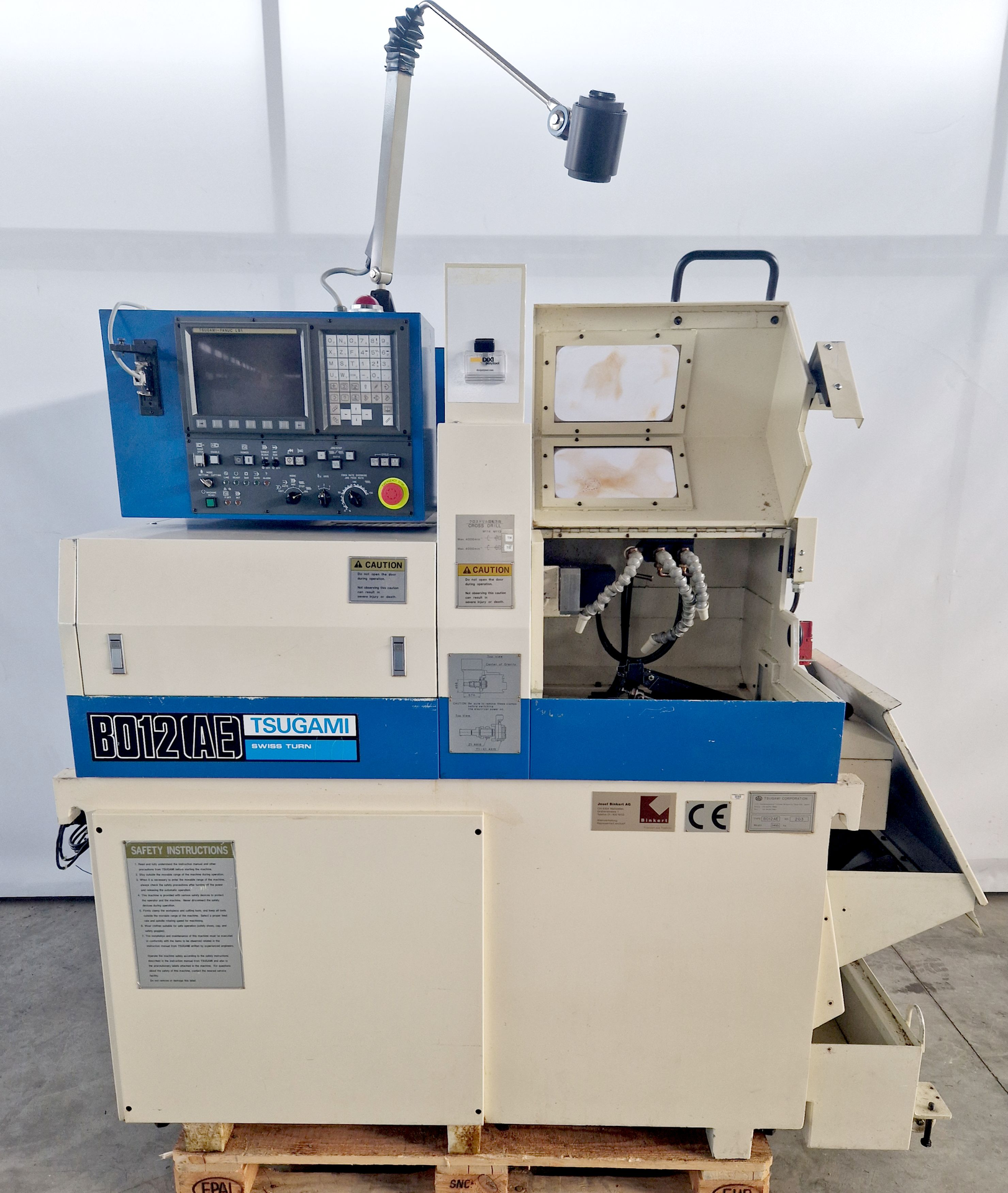

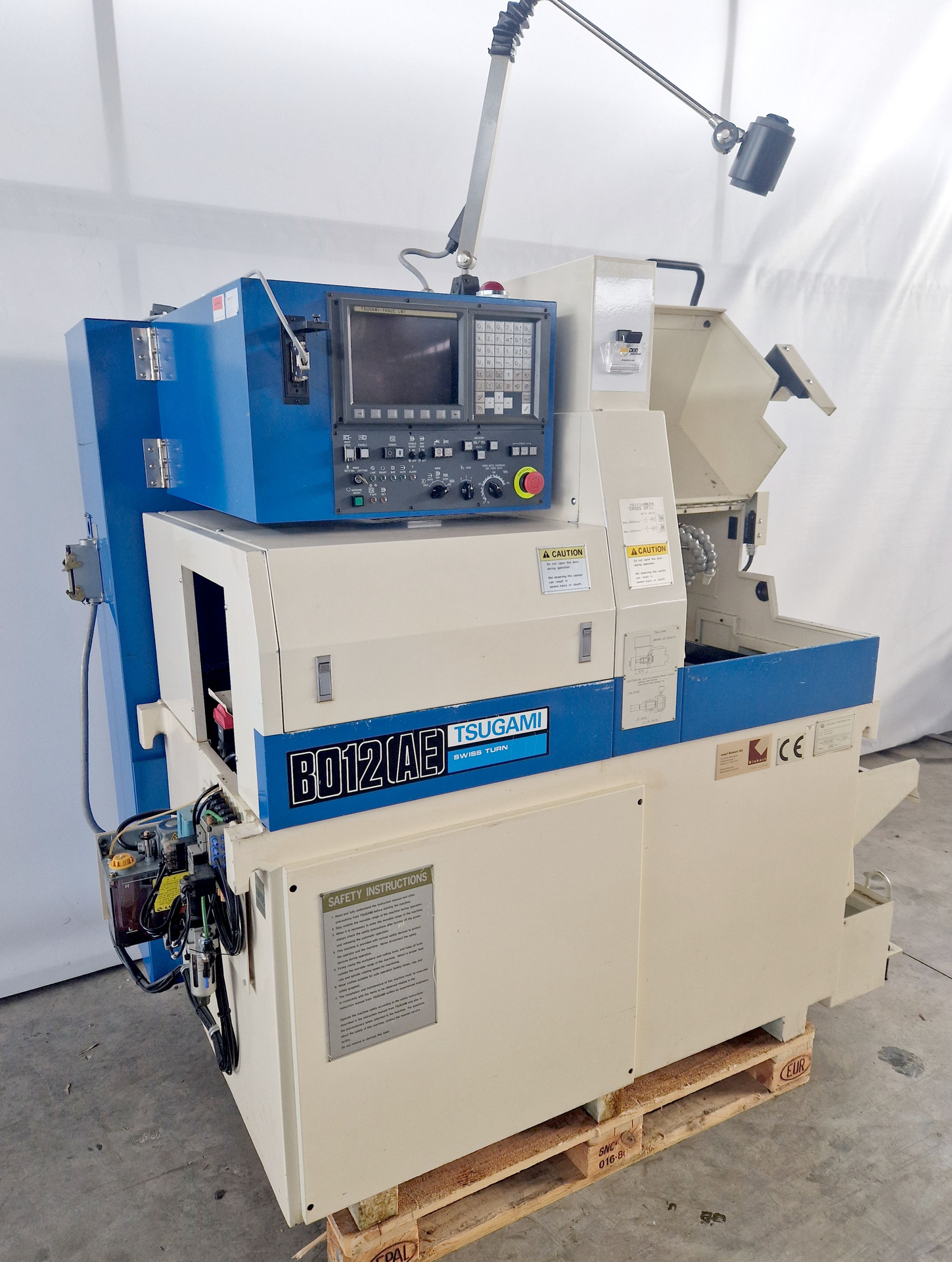

  • 022272 - TSUGAMI-MORI B012 AE
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Number of axis total: 3.
Number of spindles: 1.
Machining diameter max.: 12 mm.
Maximum turning length: 140 mm.
Max. drilling diameter: 7 mm.
Max. threading diameter: 6 M.
Max. bar diameter: 3 - 12 mm.
from: 200 t/min.
up to: 12000 t/min.

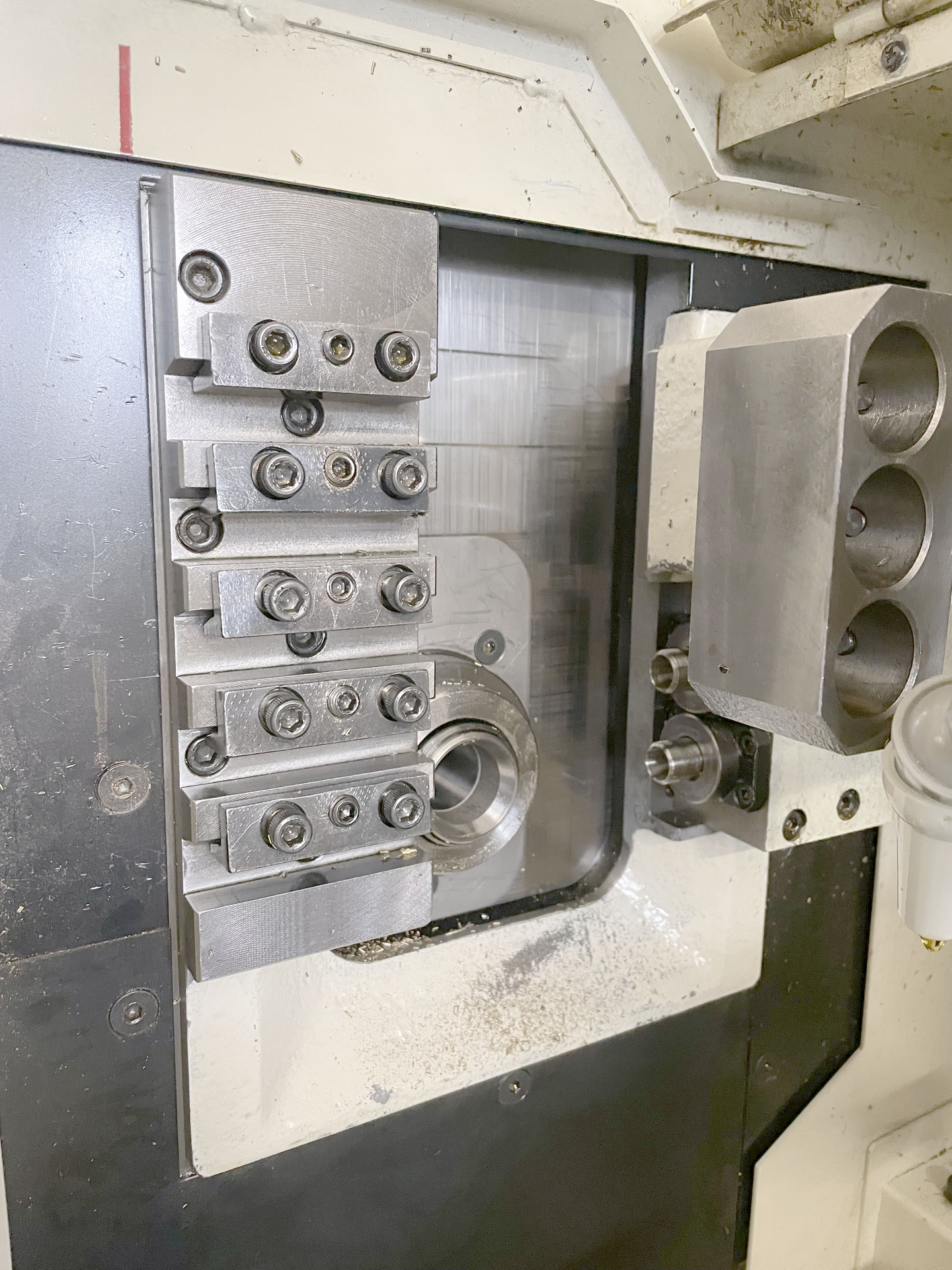

Number of stations: 10.
Turning tools: 5 pce.
Drilling tools: 3 pce.
Transverse processing tools: 2 pce.
Rapid traverse:: 18 m/min.
Voltage 50 Hz 3x: 200 Volt.
Spindle motor: 1.5 / 2.2 kW.
Air connect: 5 bar.
Total power required: 7 kVA.
Machine's weight about: 1400 kg.
Length: 1700 mm.
Width: 900 mm.
Height: 1660 mm.
