MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Makino
  • Model:

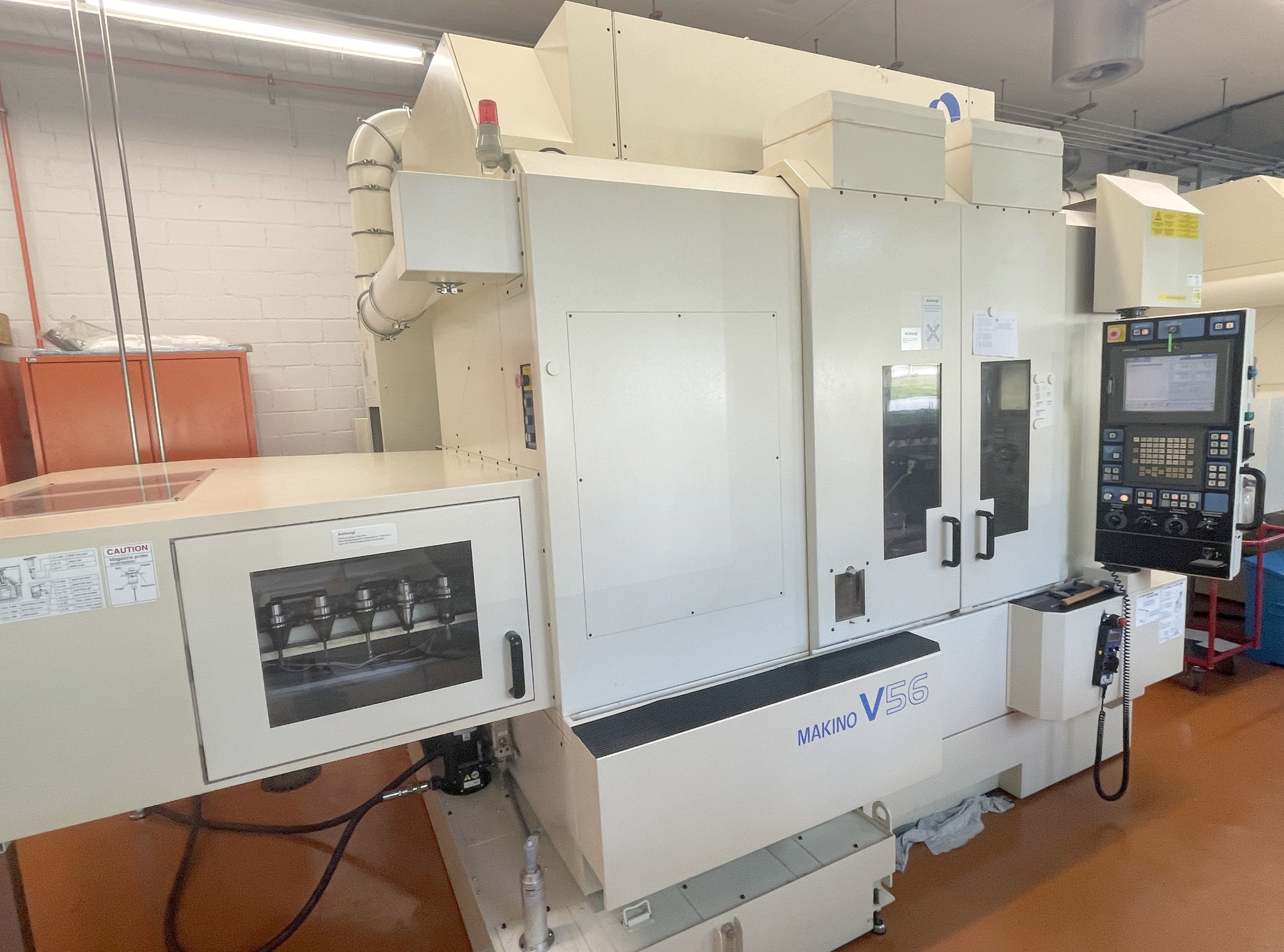

  • 022253 - MAKINO V56 A-60
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Spindle run time: 3627 Heures.
Number of axis total: 3.

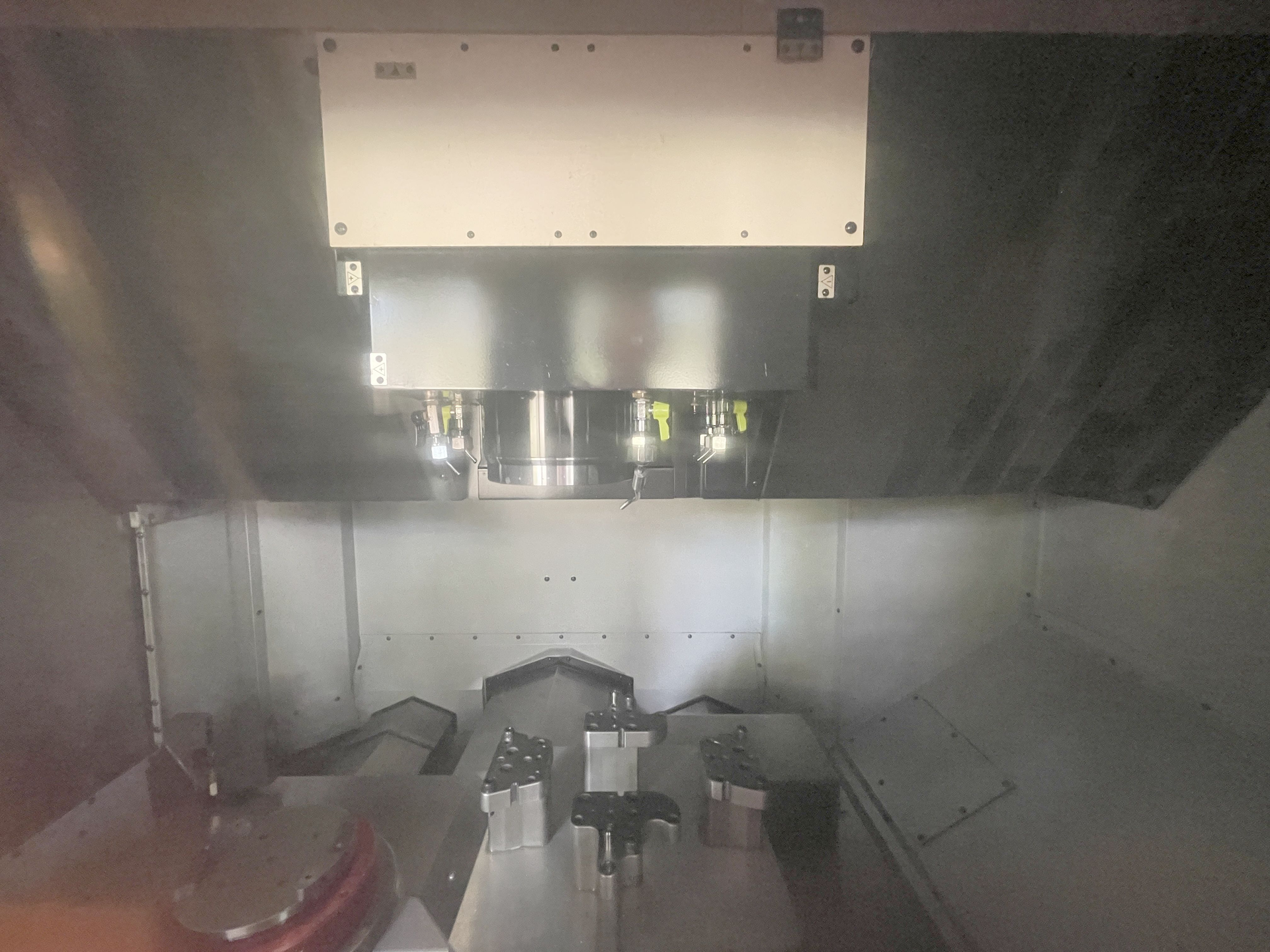

Table length: 1050 mm.
Table width: 550 mm.
Table load max.: 800 kg.
Longitudinal travel (X-axis): 900 mm.
Transversal travel (y-axis): 550 mm.
Vertical travel (z axis): 450 mm.

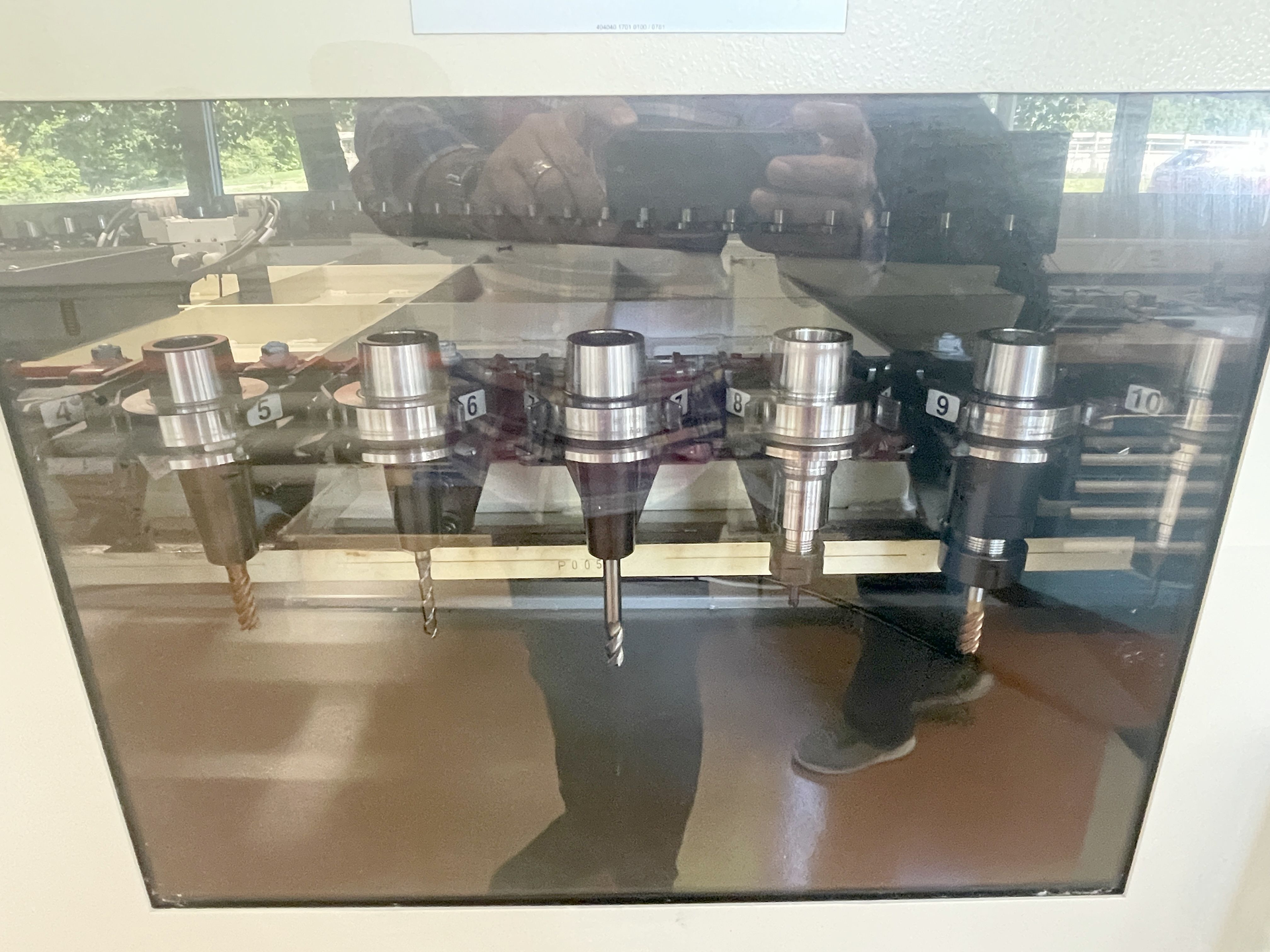

Number of tools: 60.
Tool diameter: 80 mm.
Tool lenght: 300 mm.
Max. tool-weight: 8 kg.
Time of tool changing: 6.5 s.
Spindle nose: HSK: F63.
from: 0 t/min.
up to: 30000 t/min.
Feed range: 1 - 20000 mm/min.
Rapid traverse:: 20 m/min.
Voltage 50 Hz 3x: 220 Volt.
Spindle motor: 18.5 / 15 kW.
Total power required: 52 kVA.
Machine's weight about: 11500 kg.
Length: 2500 mm.
Width: 2450 mm.
Height: 2750 mm.
Spindle refurbished: 2019.
