MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Aciera
  • Model:
  • 022205 - ACIERA F 5
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Number of axis total: 3.

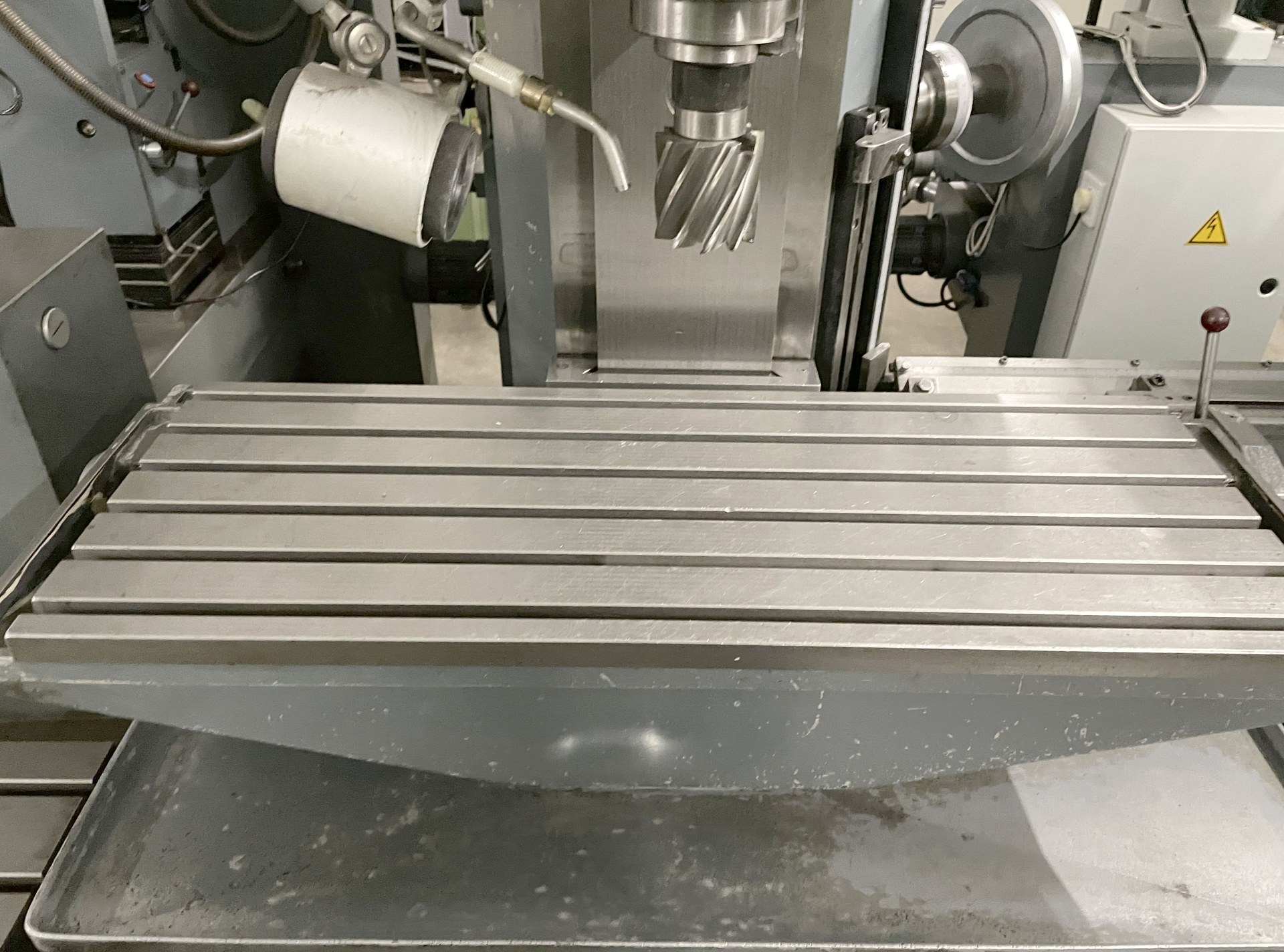

Table length: 800 mm.
Table width: 300 mm.
Number of T-channels: 6.
T-channel width: 12 mm.
Distance of the T-slots: 55 mm.
Longitudinal travel (X-axis): 500 mm.
Transversal travel (y axis): 325 mm.
Vertical travel (z axis): 420 mm.
Distance from vertical spindle to table: 365 mm.
from: 50 t/min.
up to: 600 mm/min.
Taper in spindle: 40 ISO.

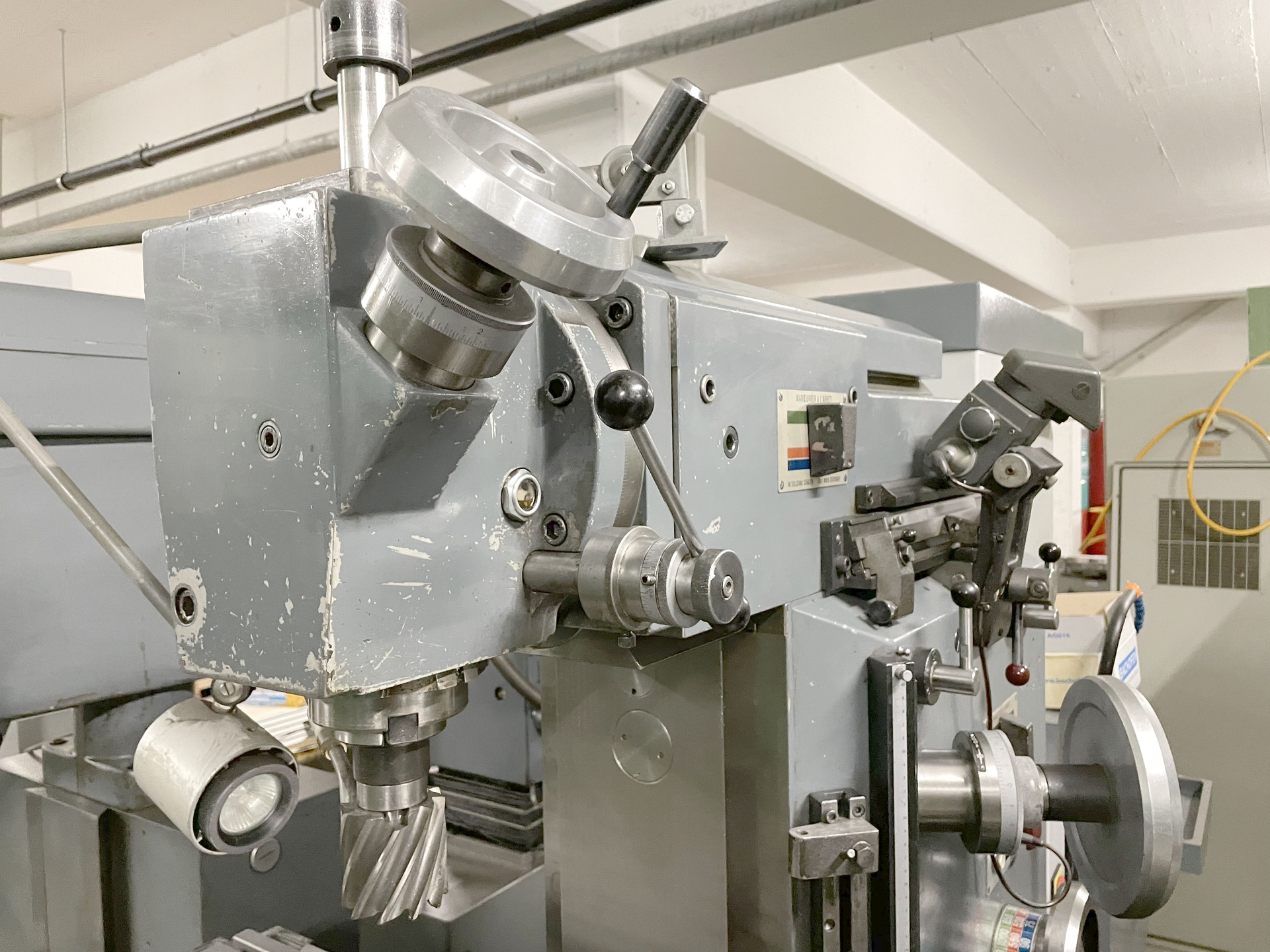

Head inclining + -: 90 °.
longitudinal from: 10 mm/min.
transversal from: 10 mm/min.
vertical from: 10 mm/min.
Vertical quill travel: 60 mm.
longitudinal: 1.5 m/min.
transversal: 1.5 m/min.
vertical: 1.5 m/min.
Voltage 50 Hz 3x: 380 Volt.
Motor power: 3 kW.
Total power required: 5 CV.
Machine's weight about: 1600 kg.
Length: 1200 mm.
Width: 1600 mm.
Height: 1800 mm.
