MACHINE INFORMATION AND SPECIFICATION

Category:
Miscellaneous

Manufacturer:
SCHAUBLIN

Model:
021975 - SCHAUBLIN 180 CCN R-T

Condition:
1

YOM:
NA

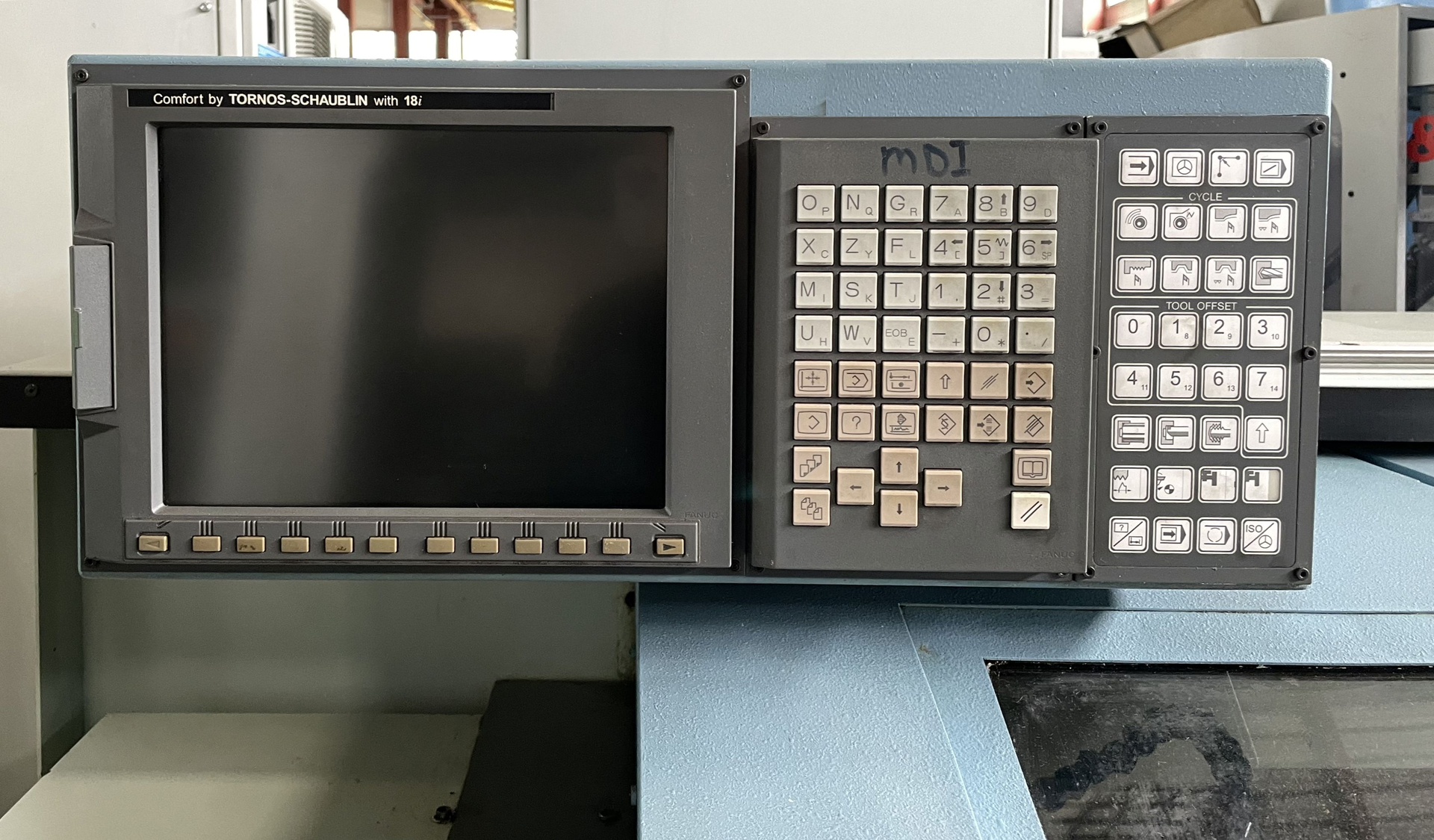

Control:
NA

Price:
POA

Seller:
Muller Machines SA

Country:

DESCRIPTION

Centre height: 275 mm.
Distance between centres: 600 mm.
Swing over cross-slide: 150 mm.
Swing over bed: 600 mm.
Maximum turning length: 630 mm.
Bar passage: 60 mm.
Longitudinal travel (Z-axis): 672 mm.
Transversal strocke (X axis): 230 mm.
Resolution: mm.

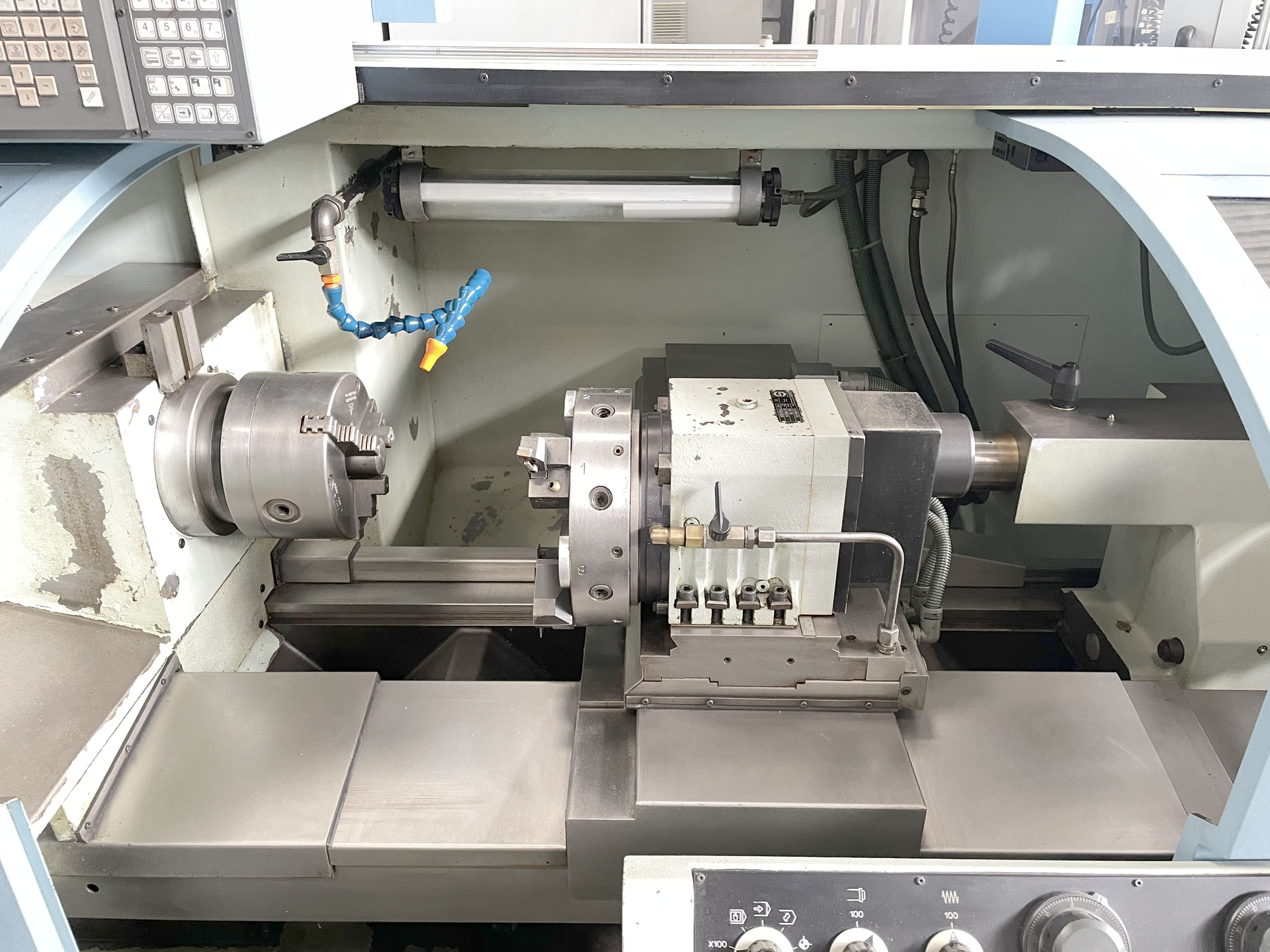

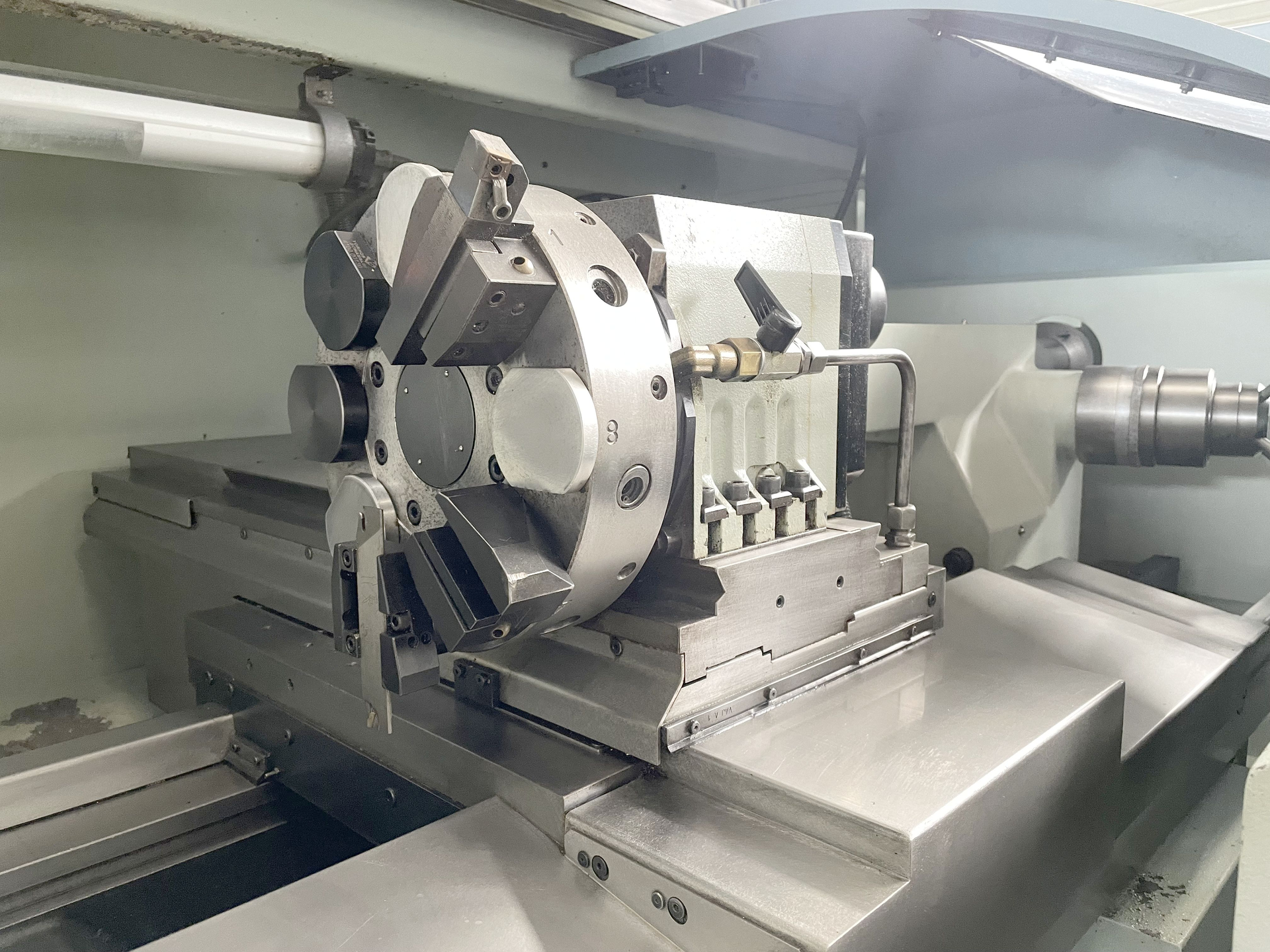

Number of positions turret 1: 12.
Fixed tools turret 1: 12.
Inner cone diameter: 20 x 20 mm.

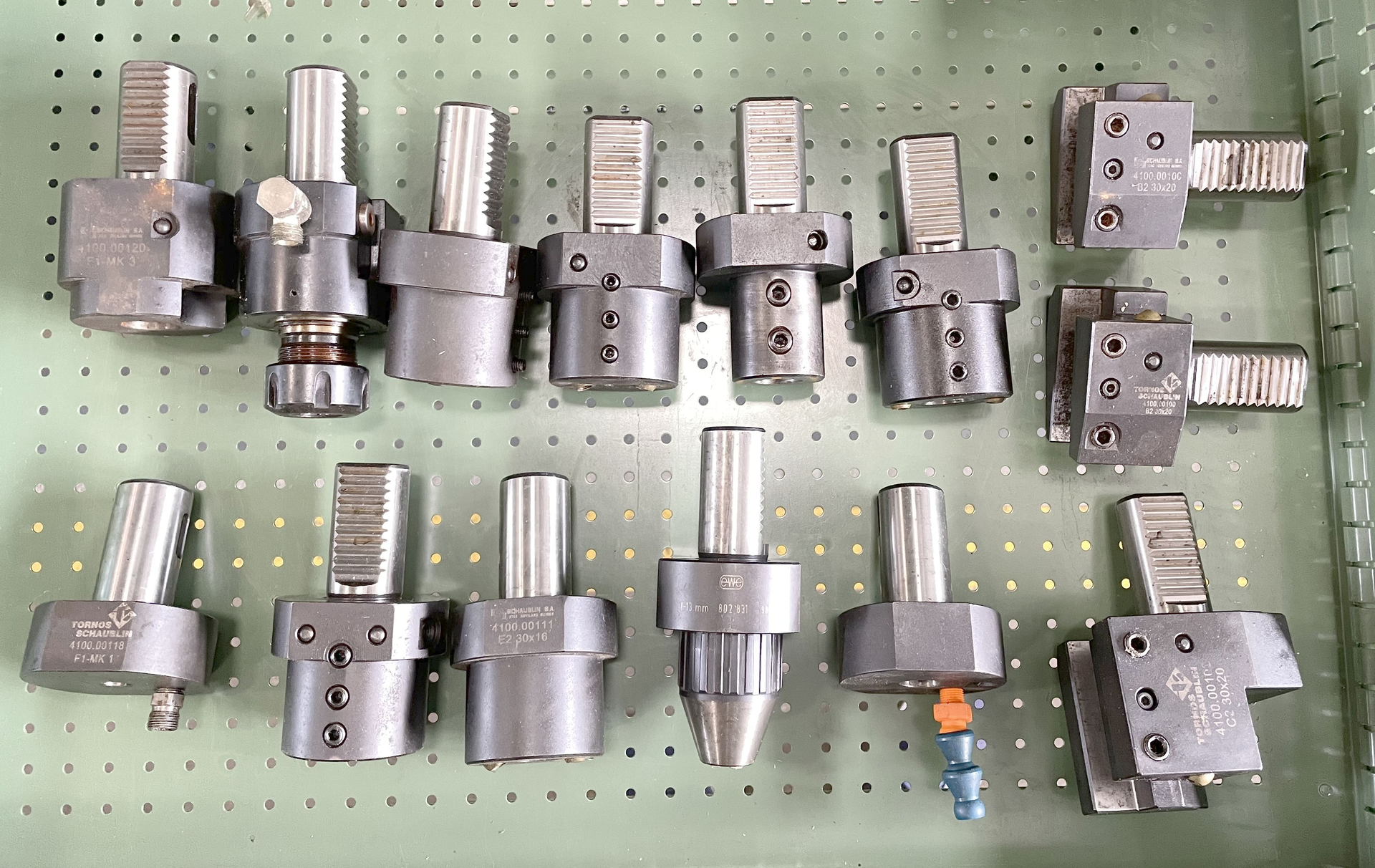

Inner cone DIN: VDI 30.
Camlock: A2-6.
C axis (spindle,resolution): 0.001 °.
from: 30 t/min.
up to: 4000 t/min.
Internal spindle diameter: 60 mm.
Feeds: 0 - 5000 mm/min.
Rapid traverse X: 8 m/min.
Rapid traverse Y: 10 m/min.
Spindle motor: 15 / 18.5 kW.
Air connect: 5 - 7 bar.
Flow rate cooling water pump: 10 l/min.
Voltage 50 Hz 3x: 400 Volt.
Noise level: 75 dB (A).
Total power required: 24 kVA.
Machine's weight about: 2460 kg.
Length: 2301 mm.
Width: 1460 mm.
Height: 1676 mm.

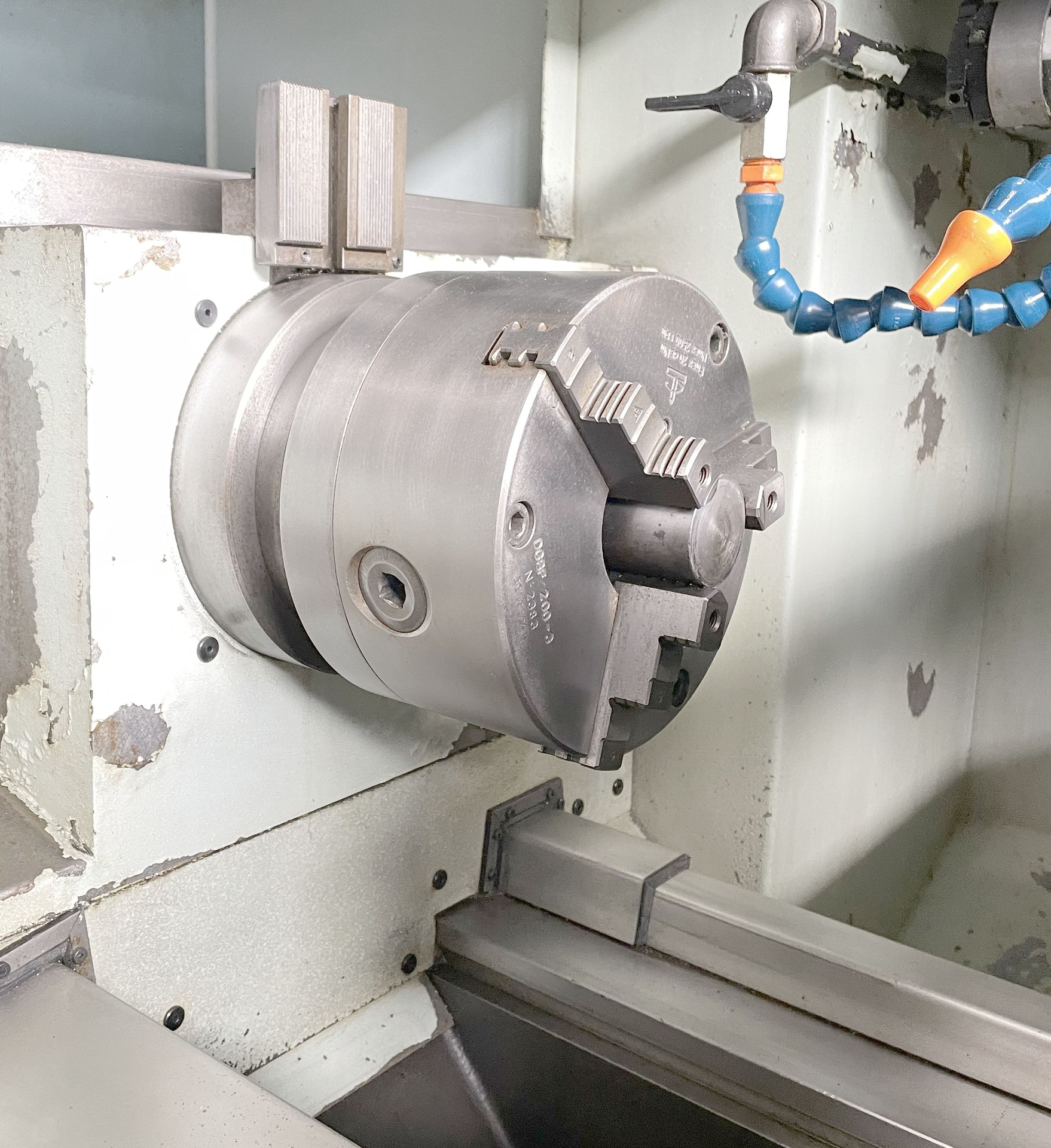

3-jaw chuck diameter: 200 mm.

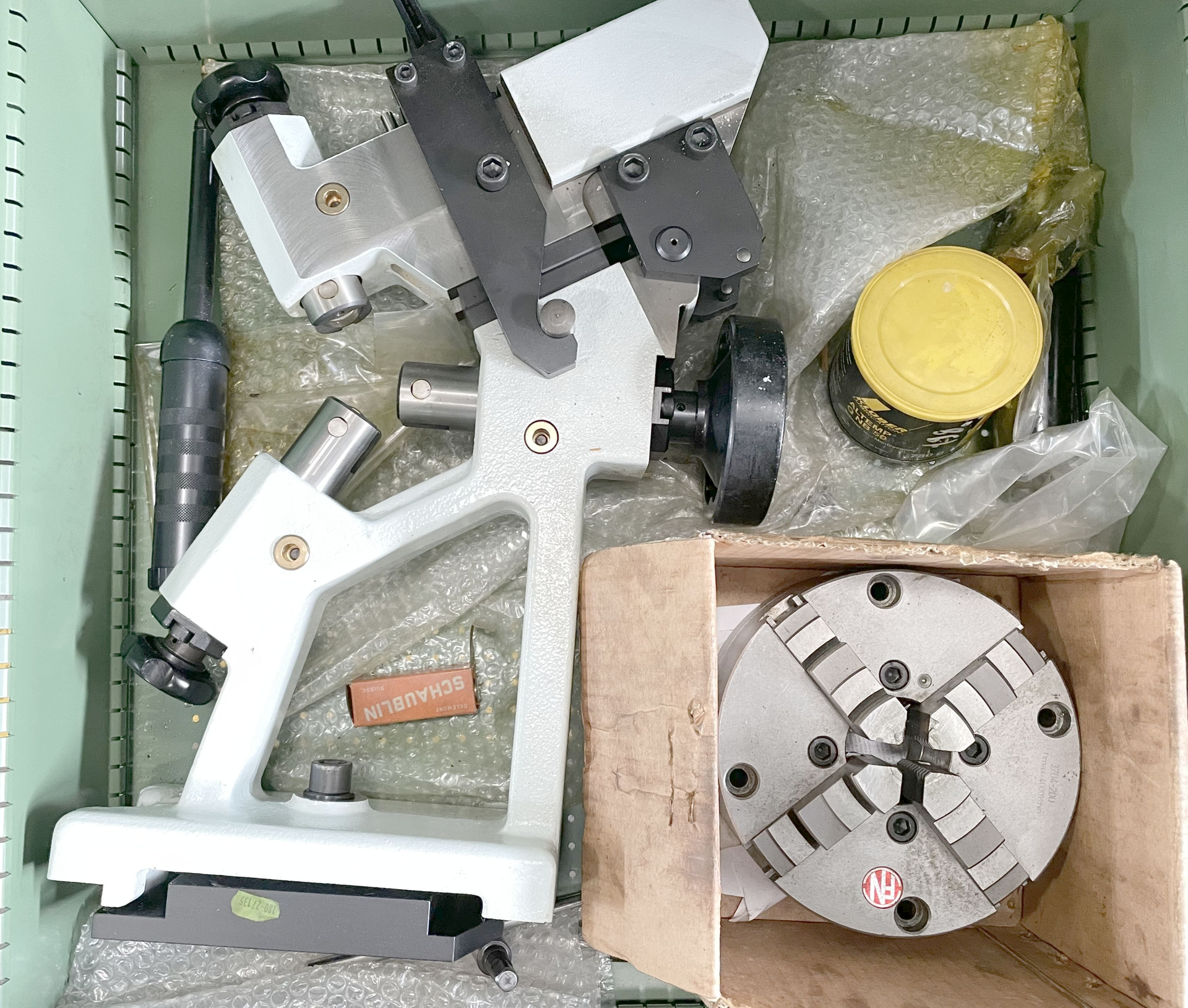

4-jaw chuck diameter: 200 mm.

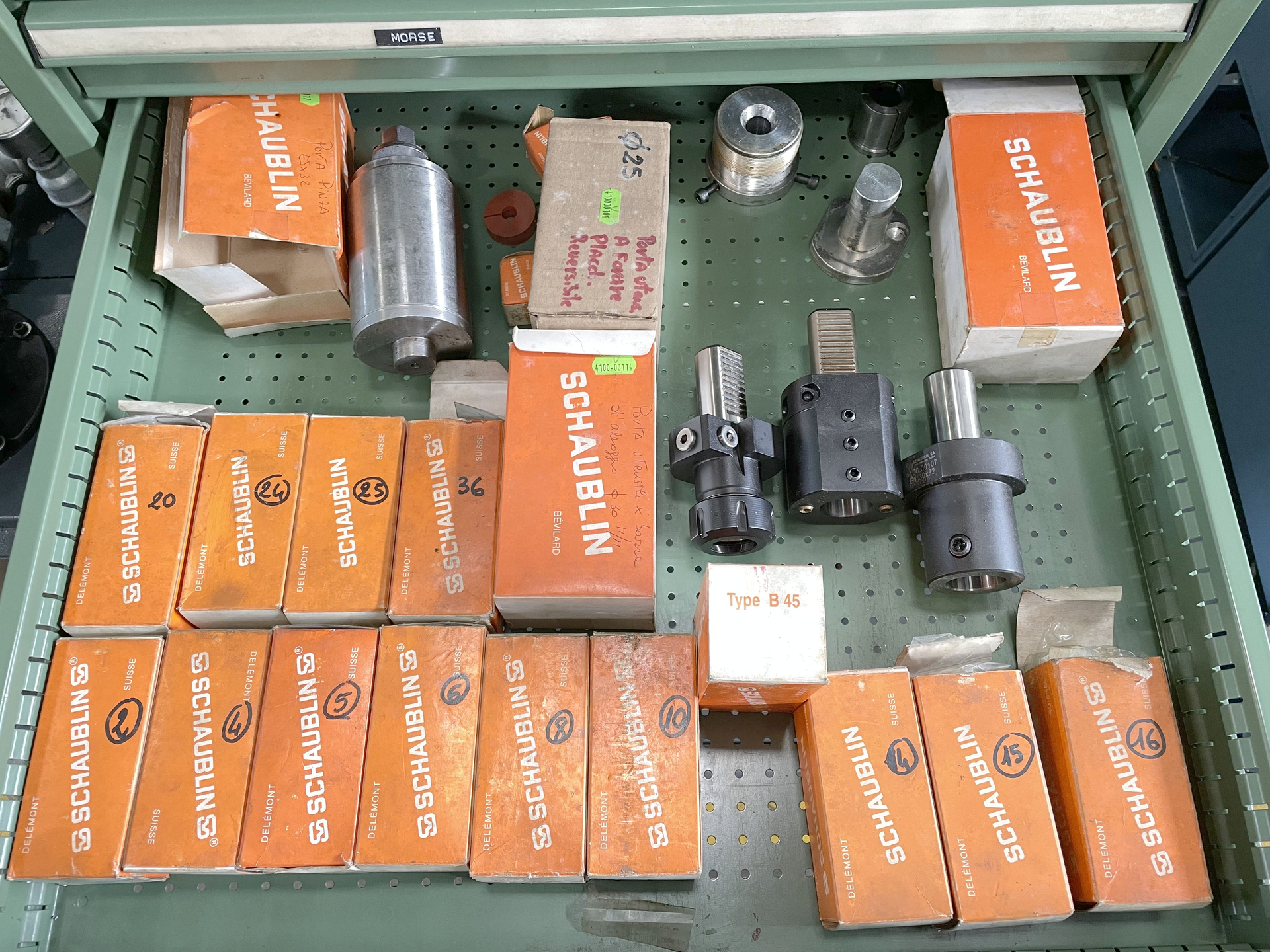

Set of collets: B45.
