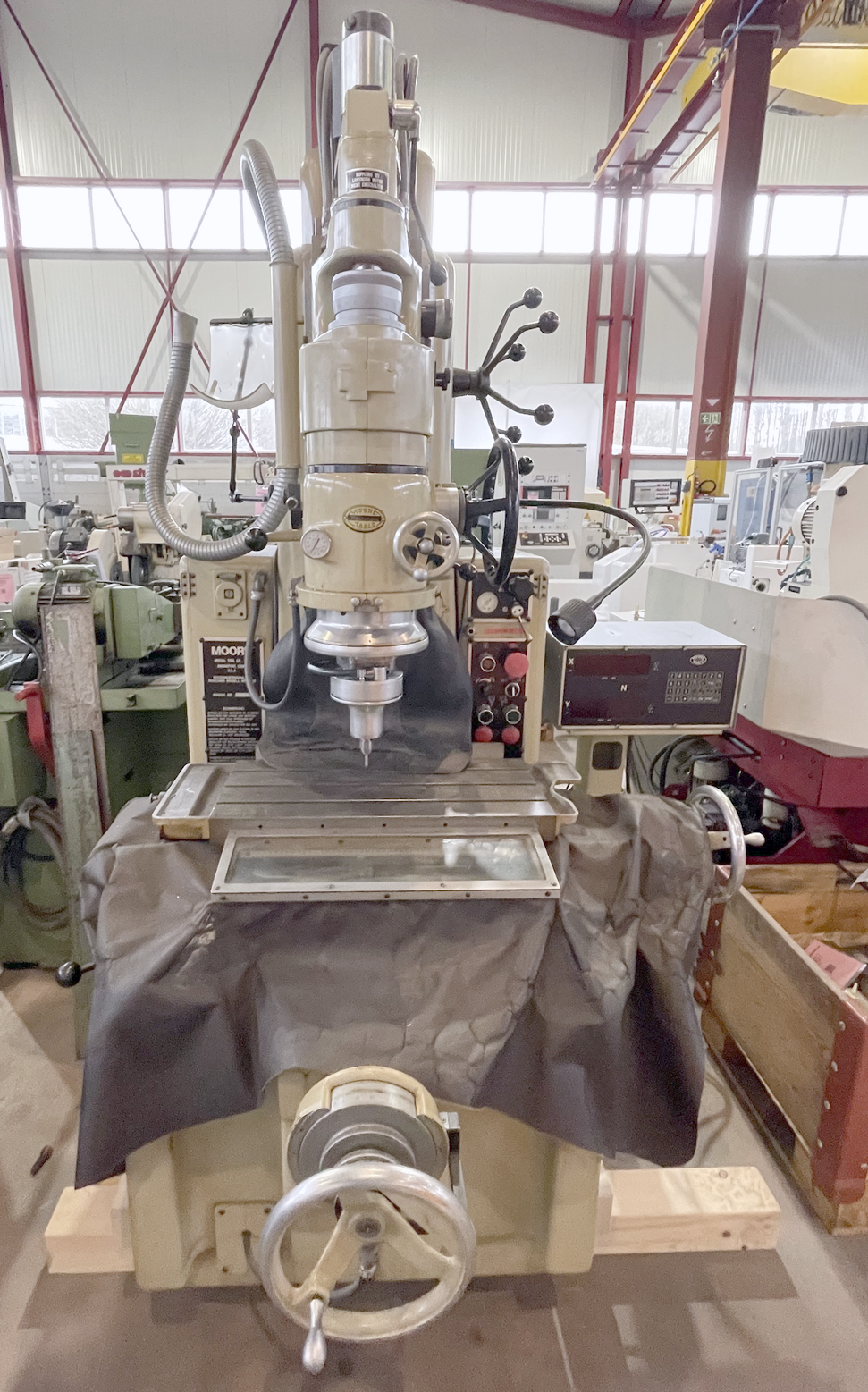

MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • MOORE
  • Model:
  • 021822 - MOORE G 18
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

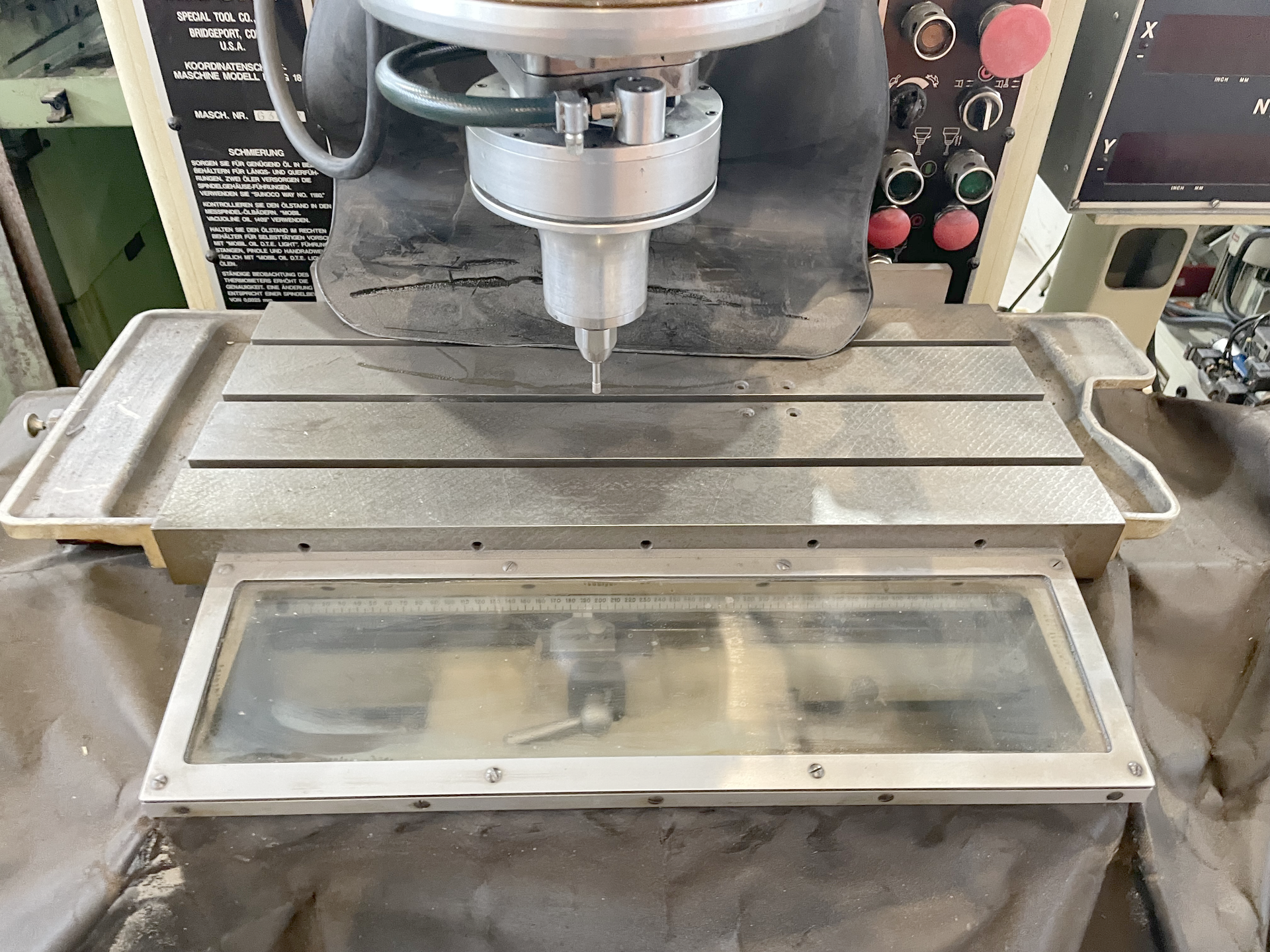

Table length: 610 mm.
Table width: 280 mm.
Longitudinal travel (X-axis): 450 mm.
Transversal travel (y-axis): 280 mm.
Vertical travel (z axis): 320 mm.
Spindle stroke: 92 mm.
Regolazione angolare del cannotto: 2 °.
Distance from spindle-center to vertical slide: 250 mm.
Max. grinding diameter: 127 mm.
with display-plate: 304 mm.
Stroke of spindle-nose: 340 mm.
Spindle speeds: 25 - 225 t/min.
from: 6000 t/min.
up to: 175000 t/min.
Grinding range: 0.4 - 90 mm.
Air connect: 7 bar.
Voltage 50 Hz 3x: 380 Volt.
Machine's weight about: 1900 kg.
Length: 2200 mm.
Width: 1800 mm.
Height: 2600 mm.

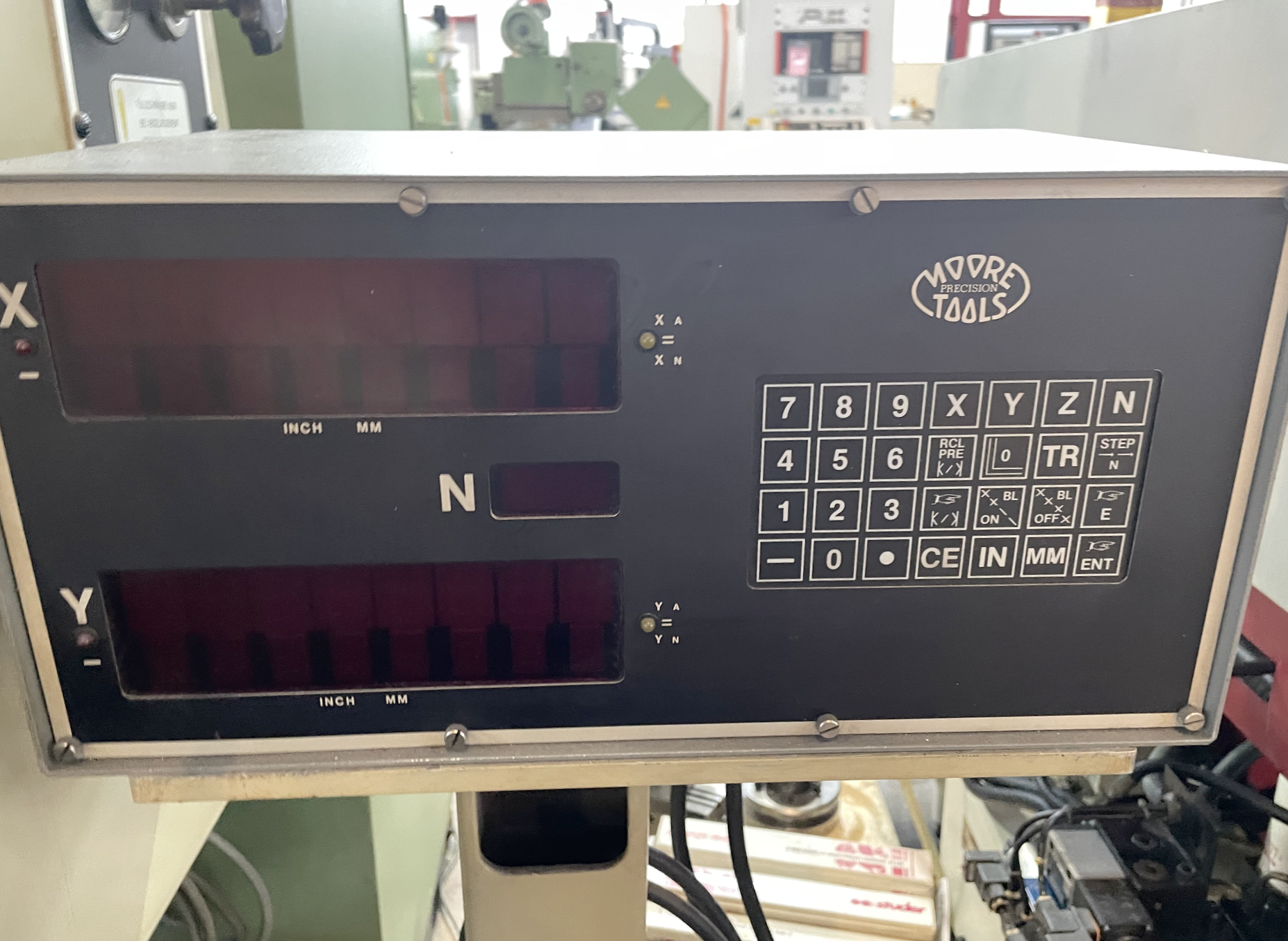

Digital readout number of axis:: 2.
