MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • MIKRON
  • Model:

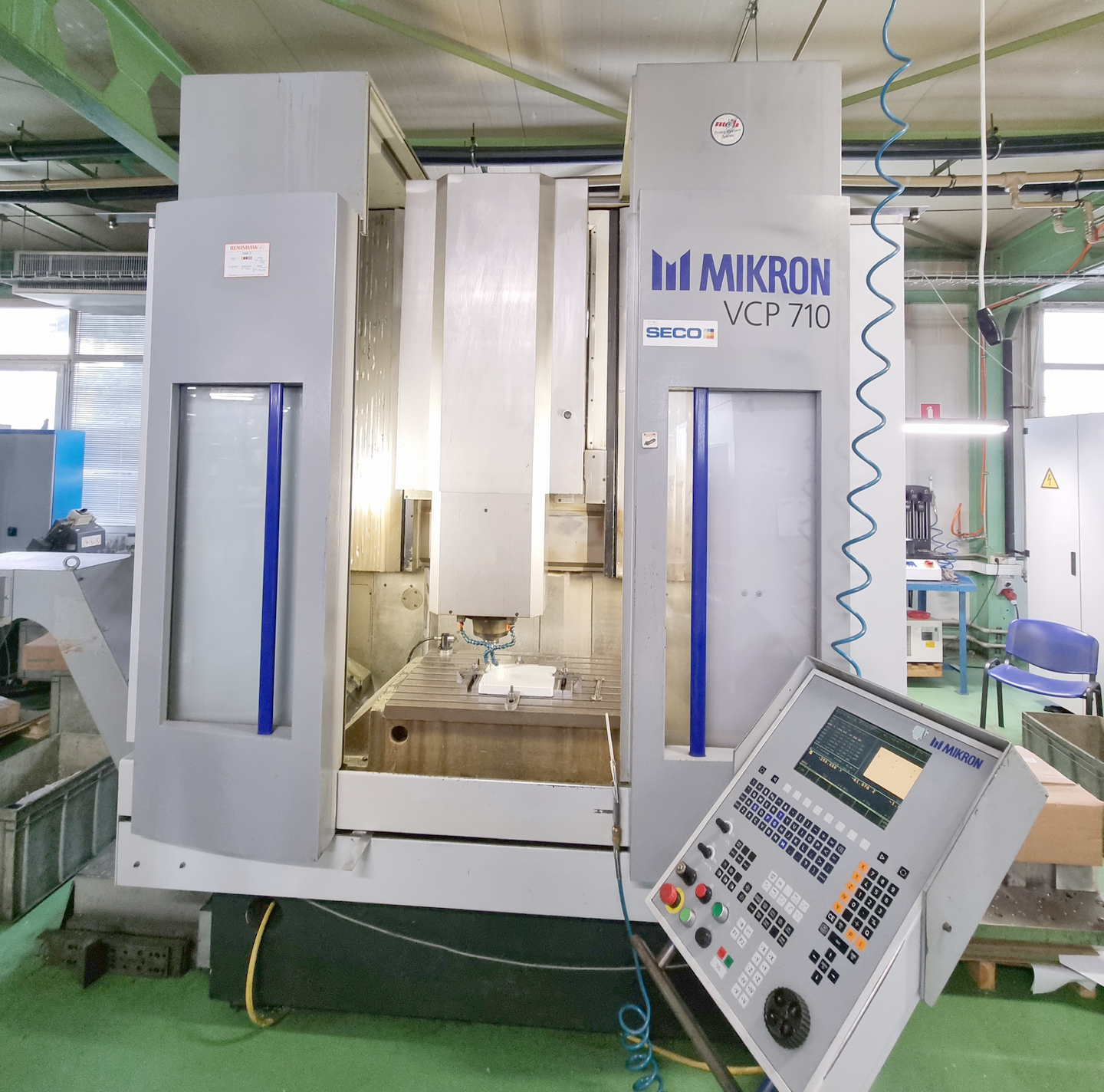

  • 021763 - MIKRON VCP 710
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Number of axis total: 3.
Table length: 900 mm.
Table width: 600 mm.
Longitudinal travel (X-axis): 710 mm.
Transversal travel (y-axis): 550 mm.
Vertical travel (z axis): 500 mm.
Table load max.: 1600 kg.
Number of tools: 30.
Tool diameter: 90 mm.
Diameter with free adjacent pockets: 140 mm.
Tool lenght: 300 mm.
Max. tool-weight: 8 kg.
Time of tool changing: 5 s.
Spindle nose: ISO: B40.
from: 100 t/min.
up to: 1 mm/min.
longitudinal from: 1 mm/min.
transversal from: 1 mm/min.
vertical from: 1 mm/min.
Feed range: 10000 mm/min.
Rapid traverse: long.: 30 m/min.
Rapid traverse: transversal: 30 m/min.
Rapid traverse: vertical: 20 m/min.
Voltage 50 Hz 3x: 400 Volt.
Spindle motor: 12 kW.
Total power required: 40 kW.
Noise level: 75 dB (A).
Machine's weight about: 10000 kg.
Length: 3085 mm.
Width: 2270 mm.
Height: 3055 mm.
