MACHINE INFORMATION AND SPECIFICATION

Category:
Miscellaneous

Manufacturer:
Kellenberger

Model:

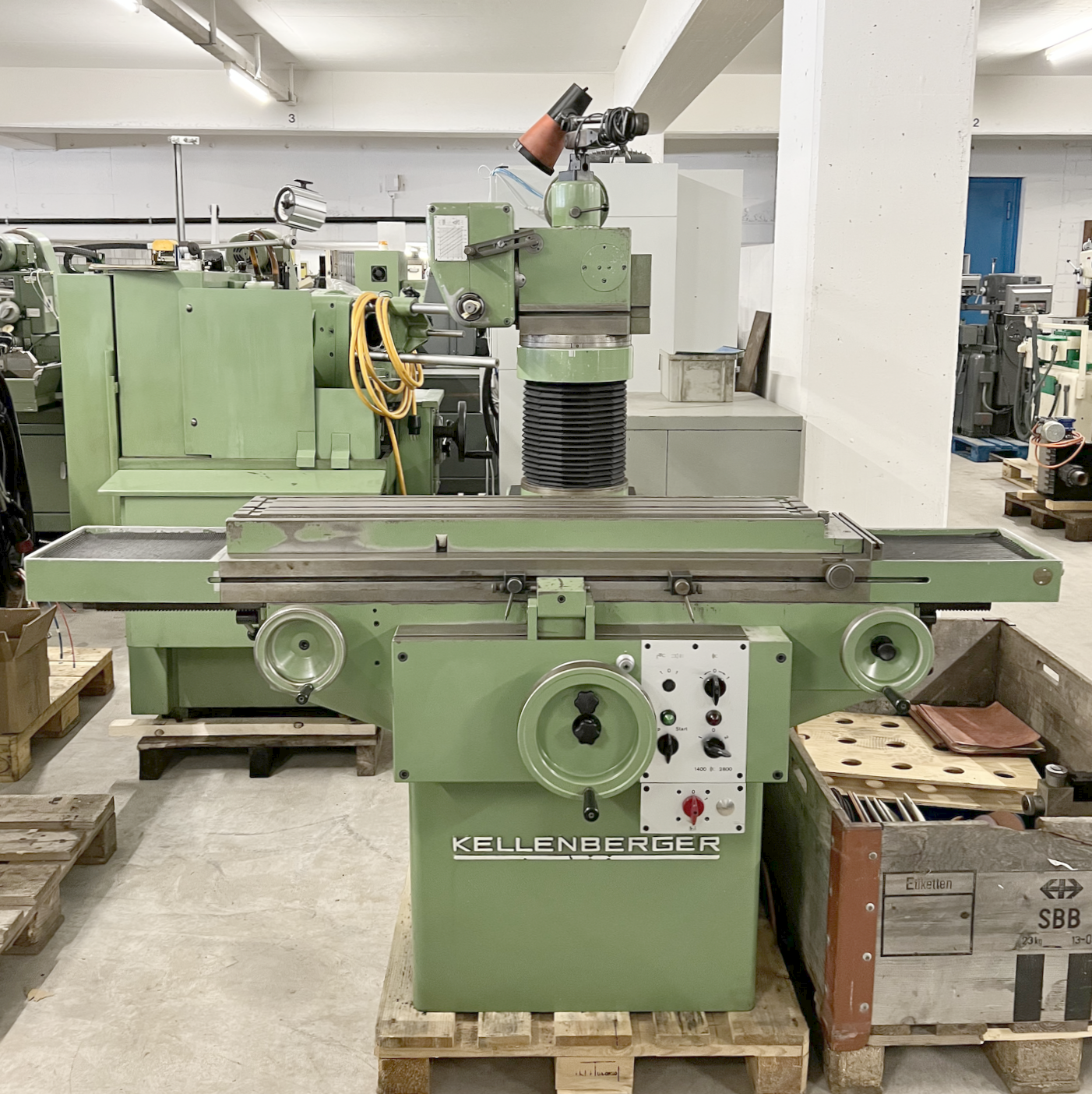

021754 - KELLENBERGER 57 W

Condition:
1

YOM:
NA

Control:
NA

Price:
POA

Seller:
Muller Machines SA

Country:

DESCRIPTION

Centre height: 125 mm.
Distance between centres: 780 mm.
Table length: 1030 mm.
Table width: 214 mm.
Max. grinding diameter: 250 mm.
Grinding-wheel diameter: 250 mm.
Longitudinal way of table: 600 mm.
Longitudinal: mm.
Vertical adjustment of grinding head: 300 mm.
Transversal way of grinding head: 300 mm.
Table swivels: 90 °.
horizontal: 360 °.
vertical: 350 °.
number (steps): 6.
from: 2000 t/min.
up to: 6000 t/min.
Voltage 50 Hz 3x: 380 Volt.
Grinding spindle motor: 1 CV.
Machine's weight about: 1250 kg.
Length: 1750 mm.
Width: 1550 mm.
Height: 1900 mm.
