MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Kasto
  • Model:

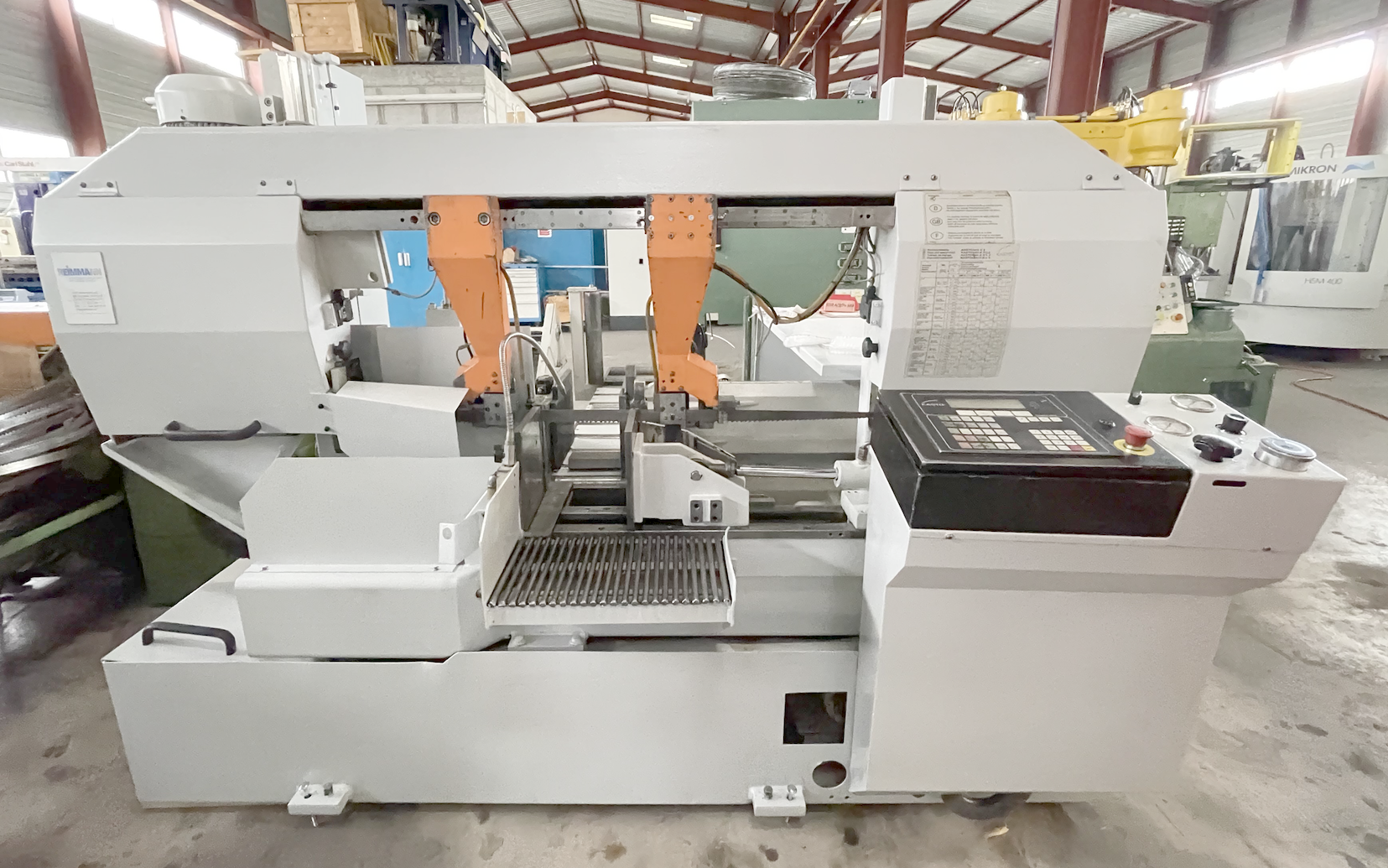

  • 021545 - KASTO KASTOtwin A 4
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Cut range: round up to: 400 mm.
Square: 400 x 400 mm.
diameter min.: 10 mm.
Outstanding length min.: 15 mm.
min.: 6 mm.
max: 750 mm.
feed length: 750 mm.
from: 20 m/min.
up to: 110 m/min.
Band length: 5090 mm.
Band width: 34 mm.
Sheet thickness: 1 mm.
Vice pressure max.: 20 - 60 bar.
Voltage 50 Hz 3x: 400 Volt.
Saw motor driving power: 4 kW.
Power: 6.5 kW.
Machine's weight about: 2150 kg.
Length: 2420 mm.
Width: 2240 mm.
Height: 1915 mm.
Coolant system: 100 l.
+ request more information
