MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Model:

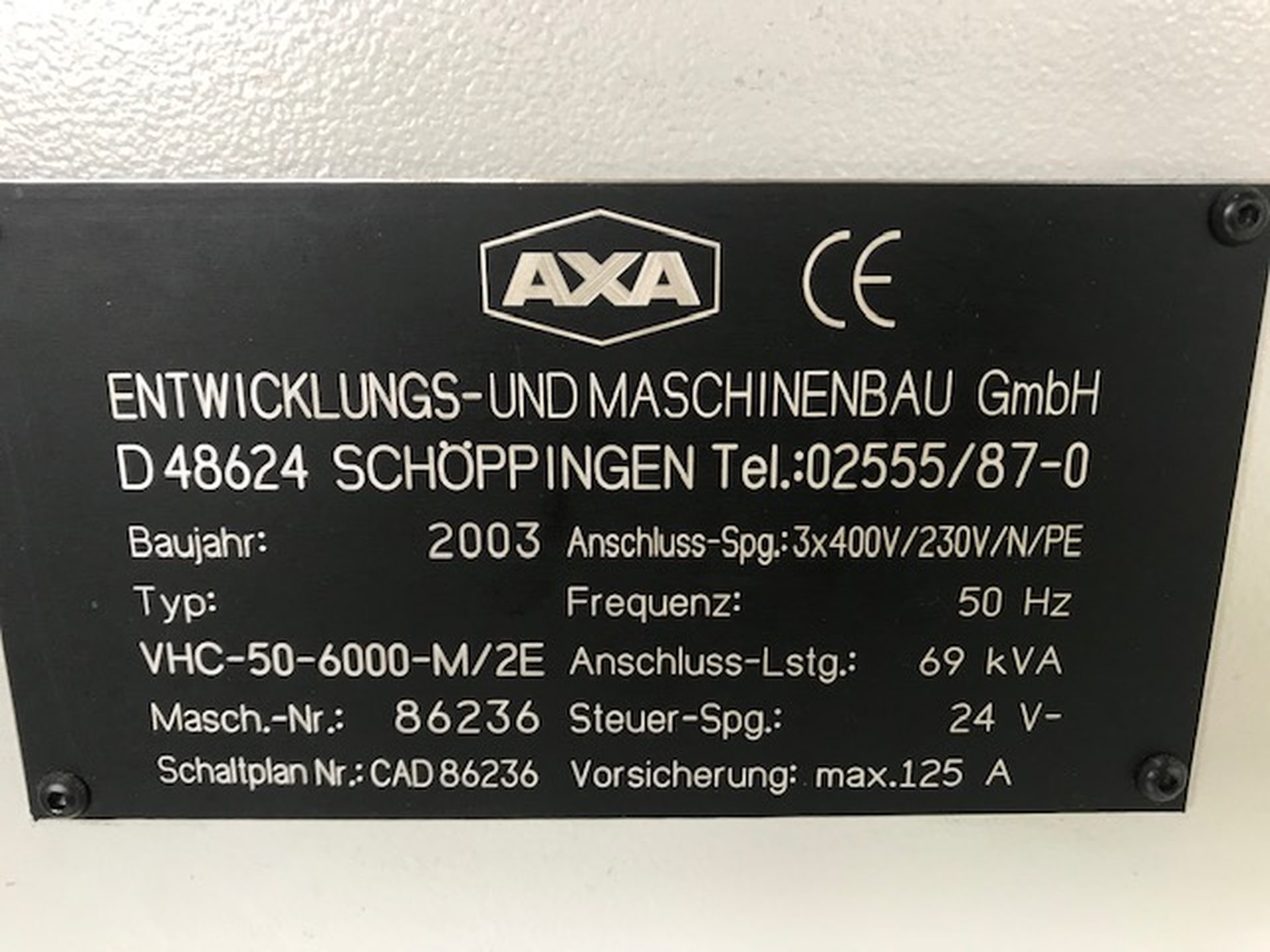

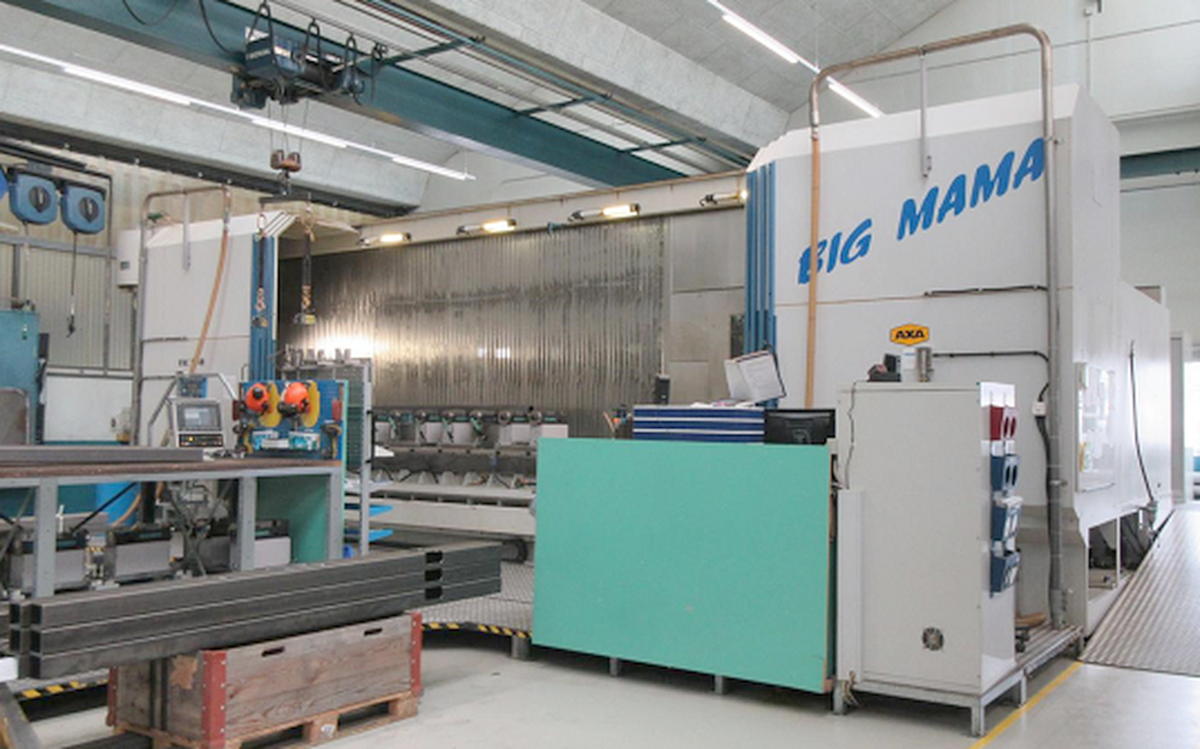

  • 020708 - AXA VHC-50-6000-M/2E
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Number of axis total: 4.

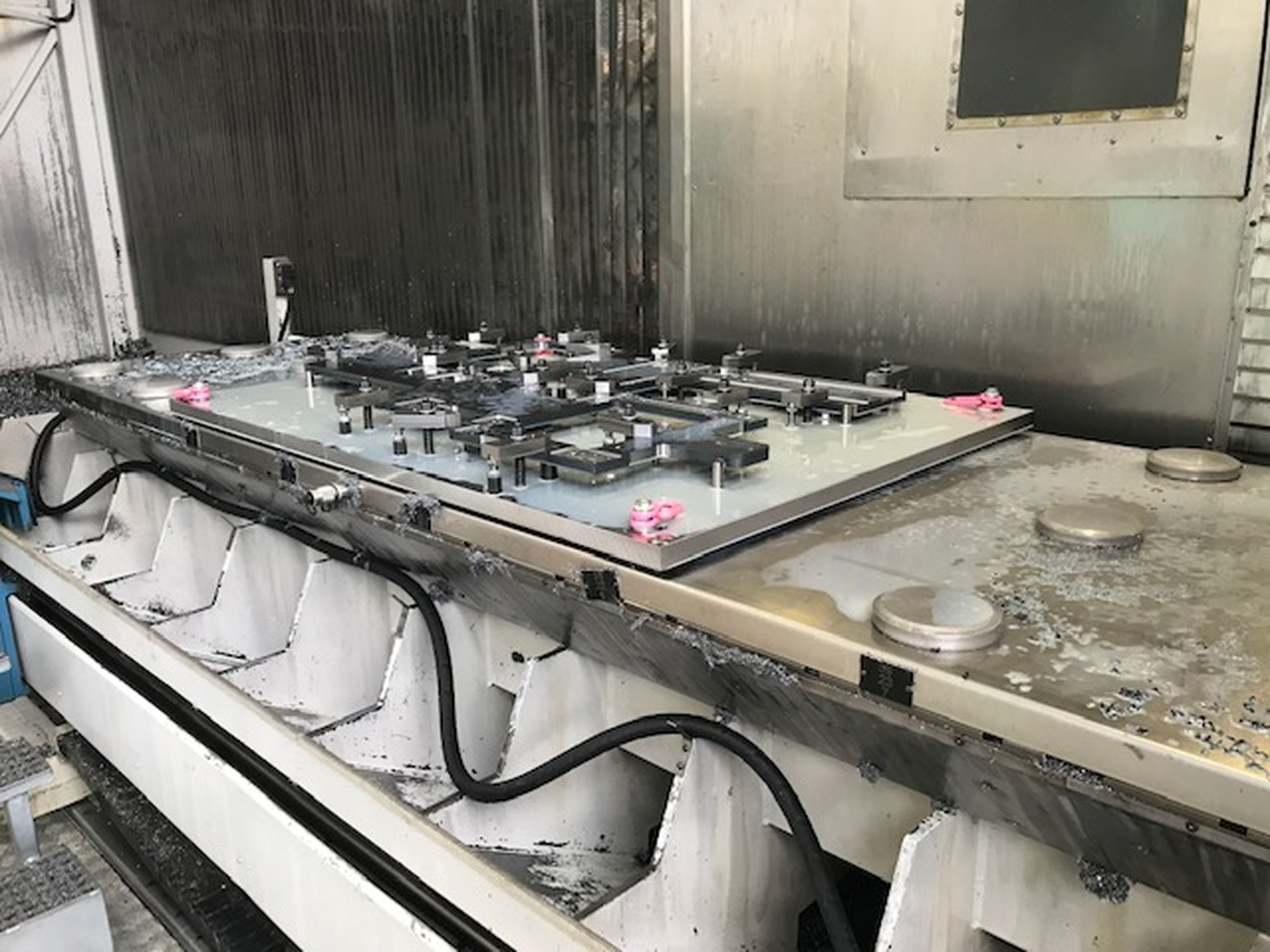

Table length: 6400 mm.
Table width: 1000 mm.
Table load max.: 1500 kg.
Longitudinal travel (X-axis): 6000 mm.
Transversal travel (y-axis): 1000 mm.
Vertical travel (z axis): 1140 / 1200 mm.

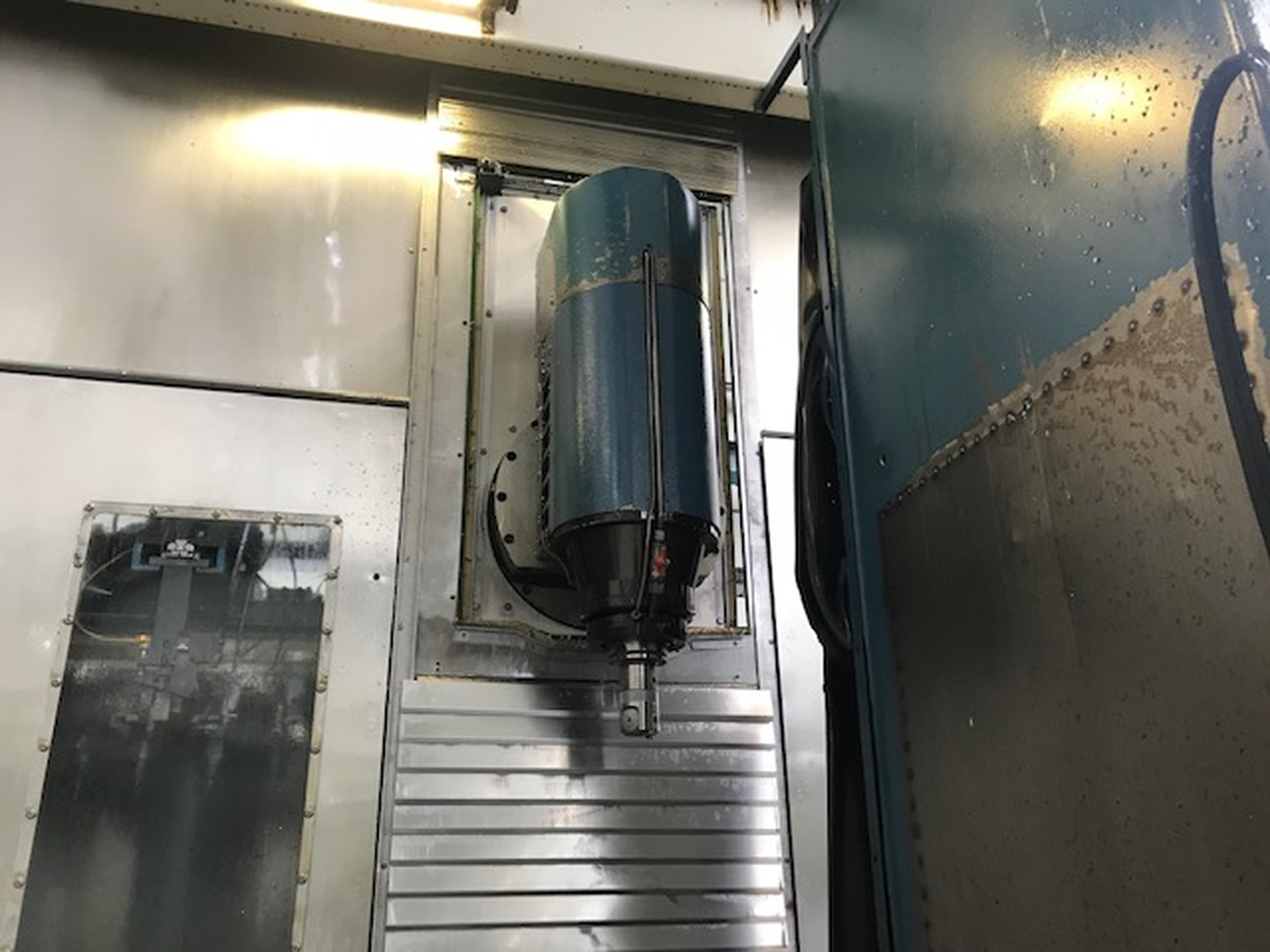

B axis swivelling range: +/-90 °.
Milling head divisions (B): 0.001 °.

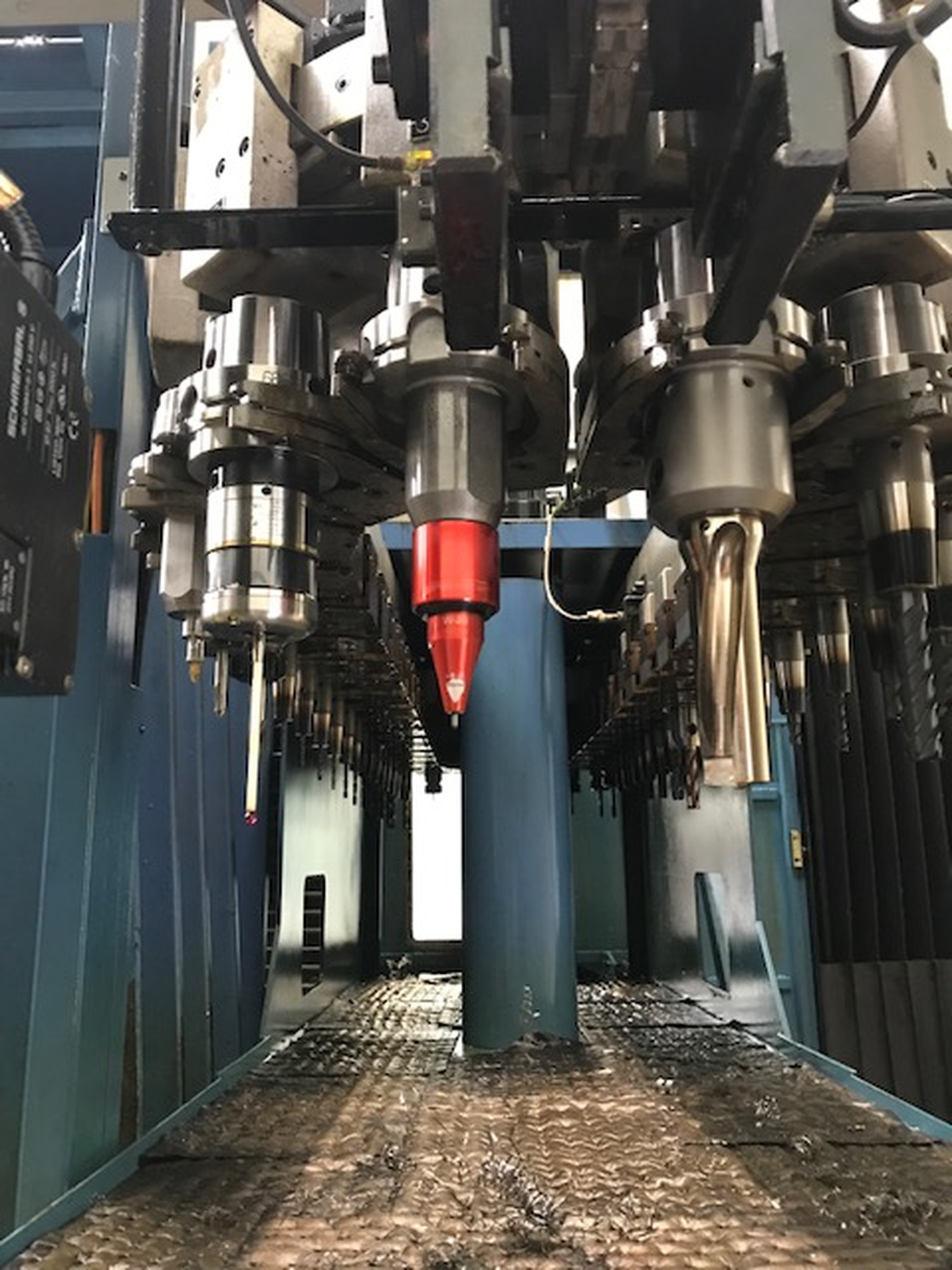

Tool magazine number of tool places: 80.
Tool diameter max.: 100 mm.
Diameter with free adjacent pockets: 180 mm.
Tool lenght: 400 mm.
Max. tool-weight: 15 kg.
Time of tool changing: 6 s.
Spindle nose: HSK-A: 100.
from: 45 t/min.
up to: 9999 mm/min.
longitudinal from: 1 mm/min.
transversal from: 1 mm/min.
vertical from: 1 mm/min.
Rapid traverse: long.: 20 m/min.
Rapid traverse: transversal: 20 m/min.
Rapid traverse: vertical: 15 m/min.
Air connect: 6 bar.
Voltage 50 Hz 3x: 400 Volt.
Spindle motor: 24 / 45 kW.
Total power required: 80 kVA.
Machine's weight about: 42000 kg.
Length: 11500 mm.
Width: 4300 mm.
Height: 4500 mm.
