MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Aciera
  • Model:

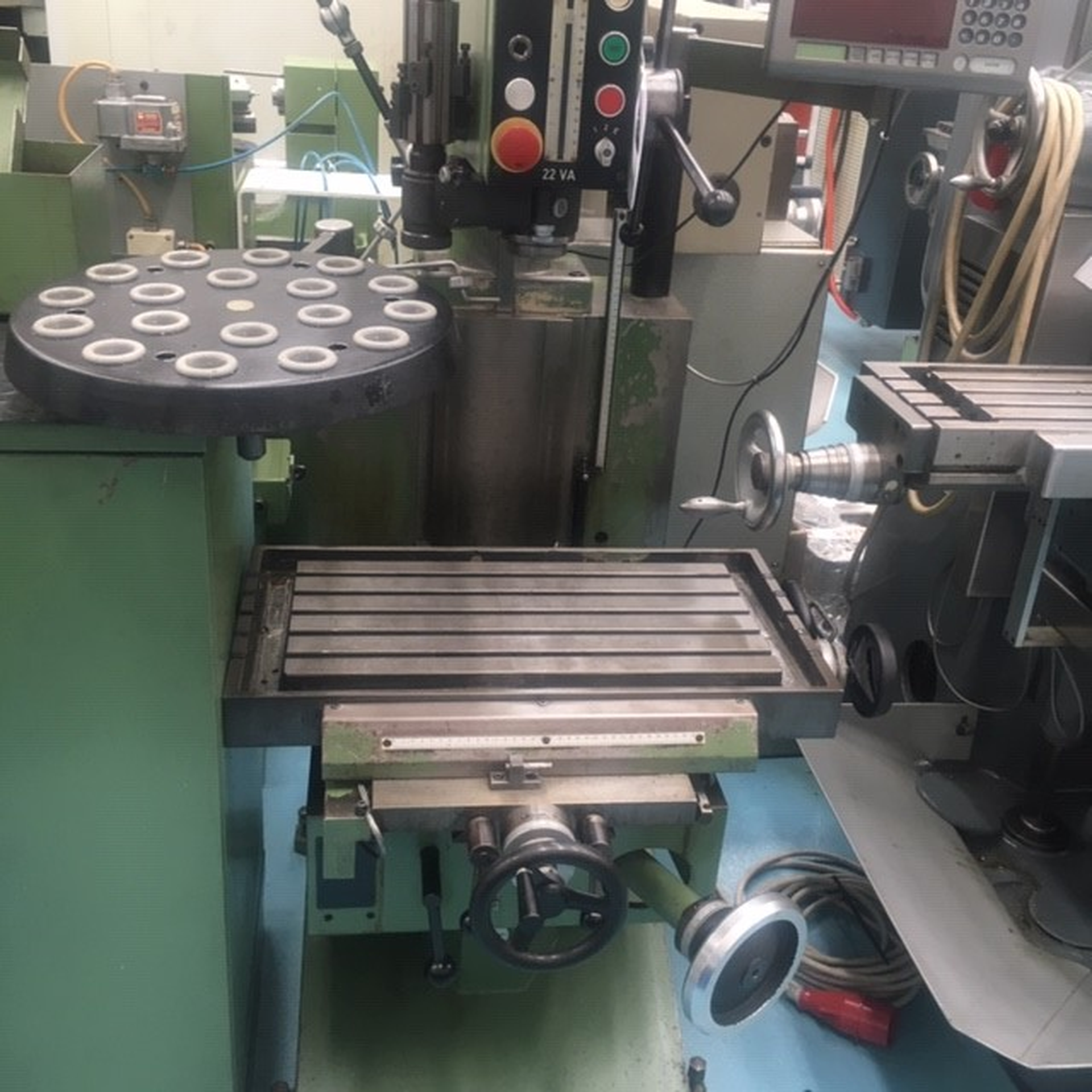

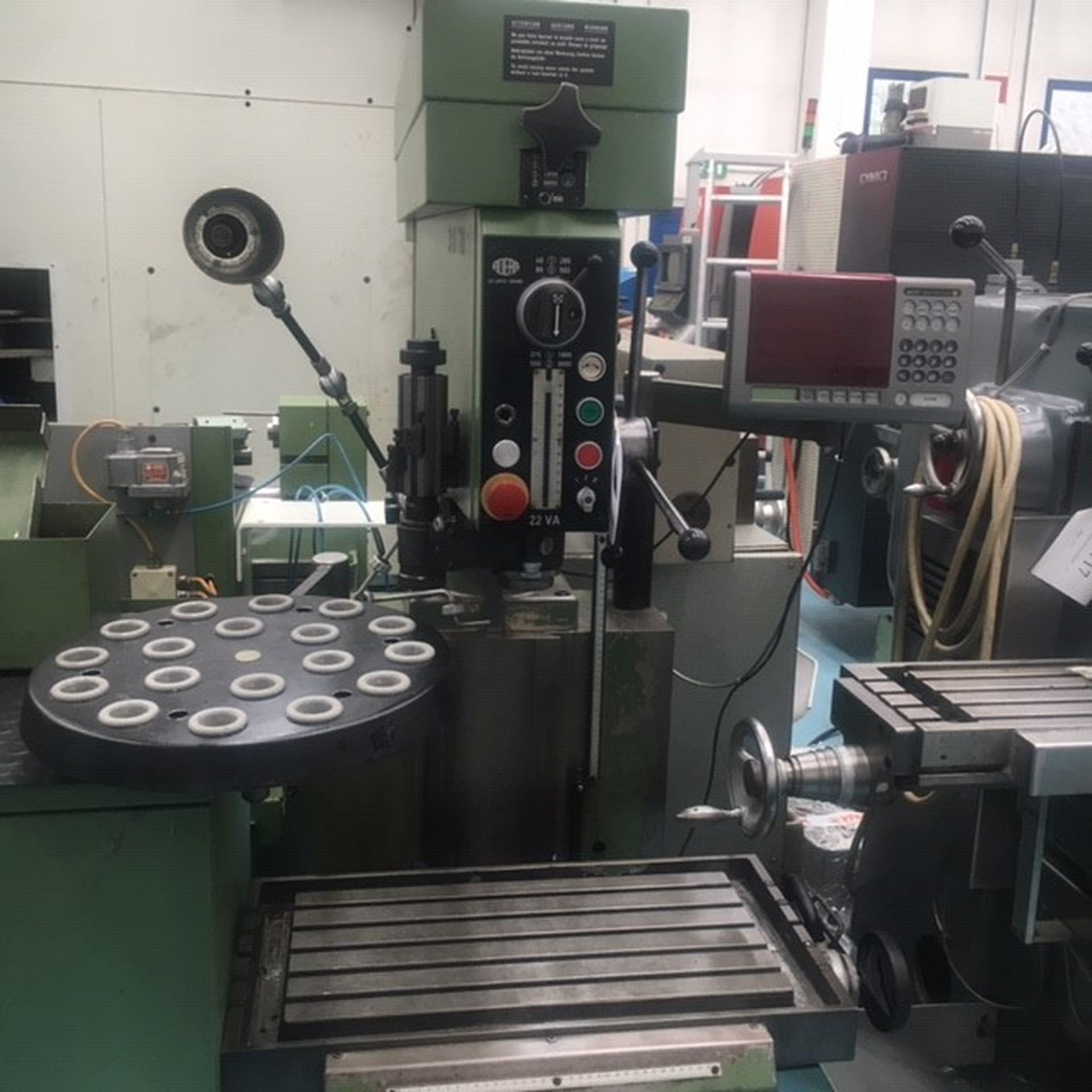

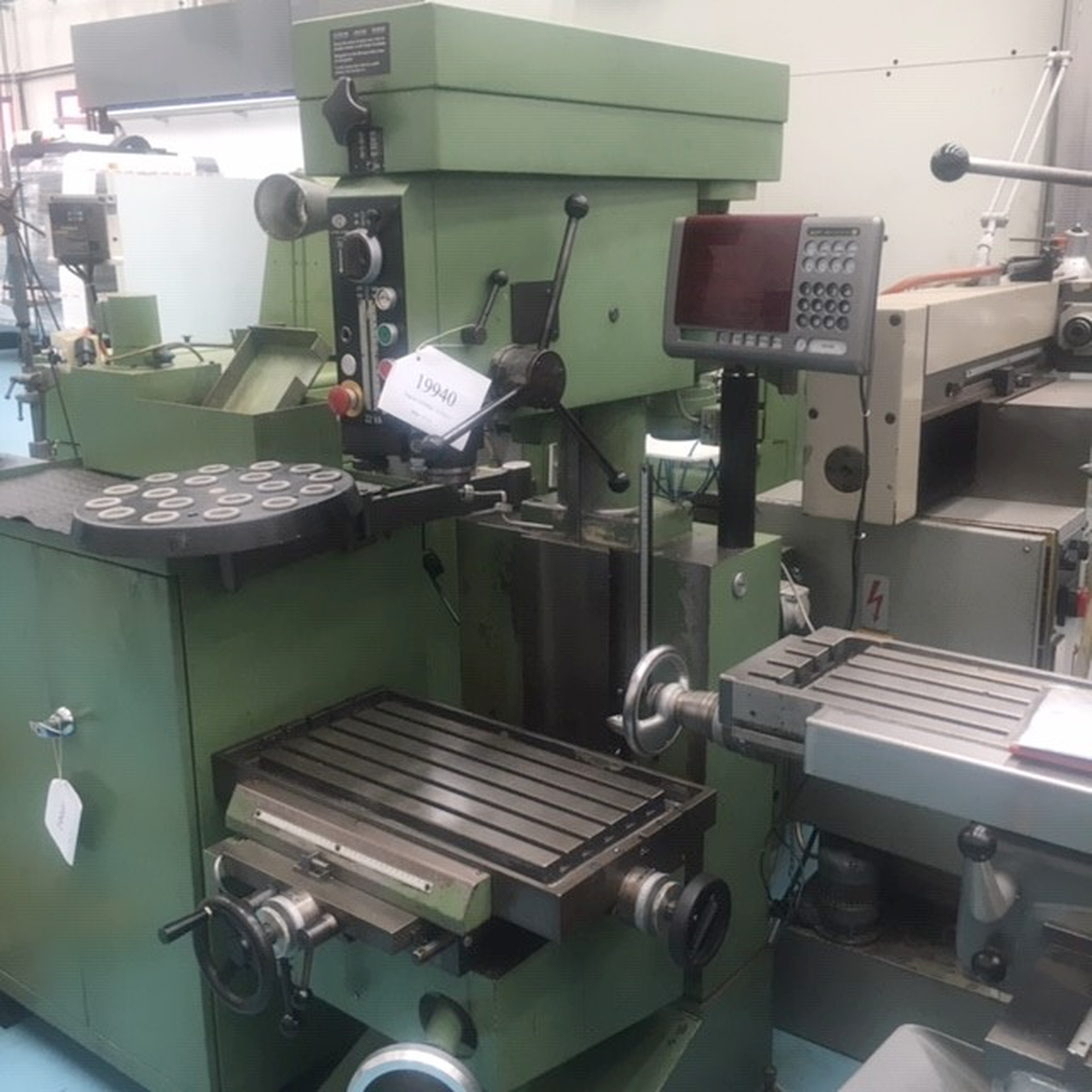

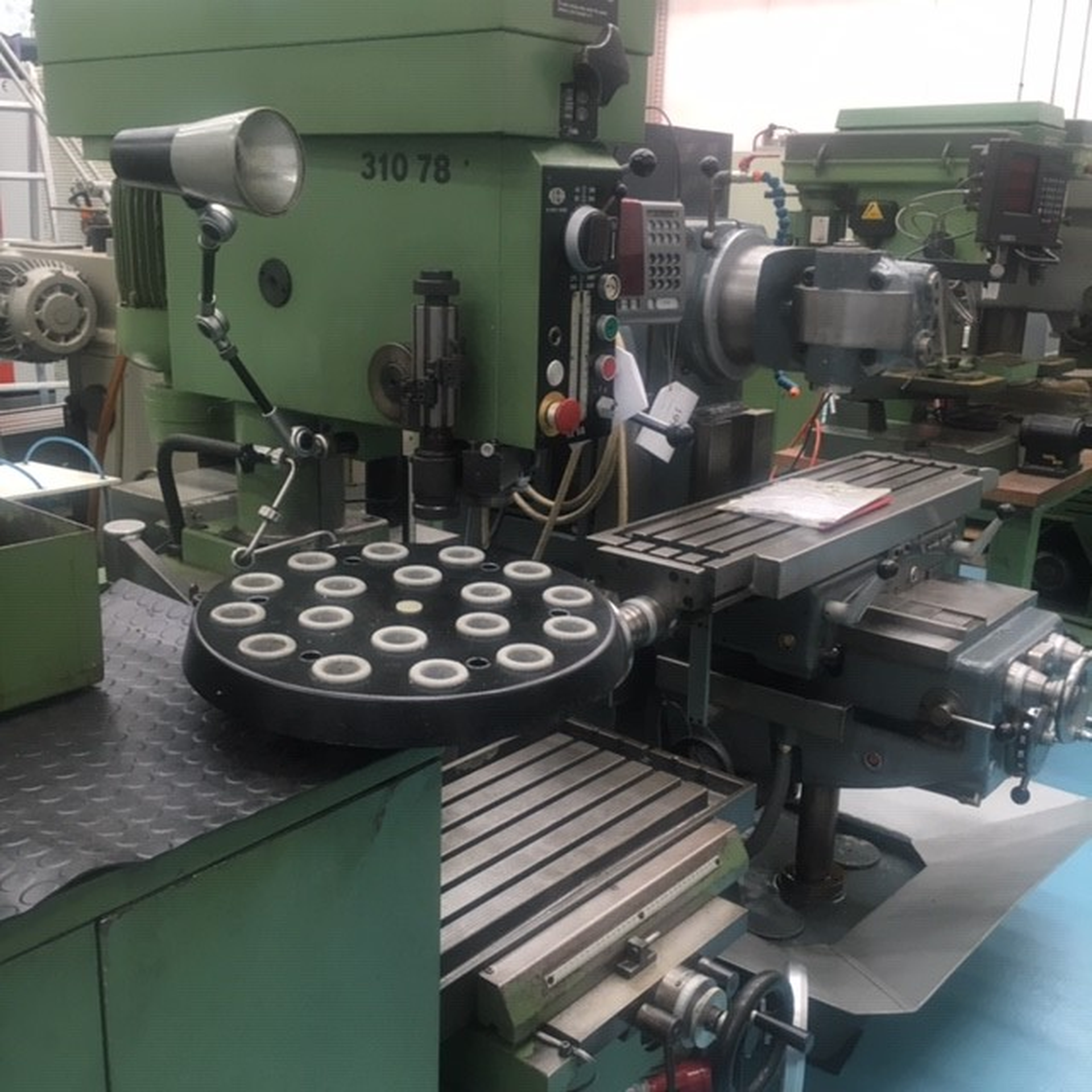

  • 019940 - ACIERA 22 V
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Table length: 700 mm.
Table width: 370 mm.
Drill capacity in steel: 22 mm.
Drill capacity in cast-iron: 24 mm.
Depth of throat: 300 mm.
Drill depth (spindle stroke): 120 mm.
from: 250 t/min.
up to: 4000 t/min.
Voltage 50 Hz 3x: 380 Volt.
Spindle motor: 2 CV.
Machine's weight about: 990 kg.
Length: 1100 mm.
Width: 600 mm.
Height: 2100 mm.

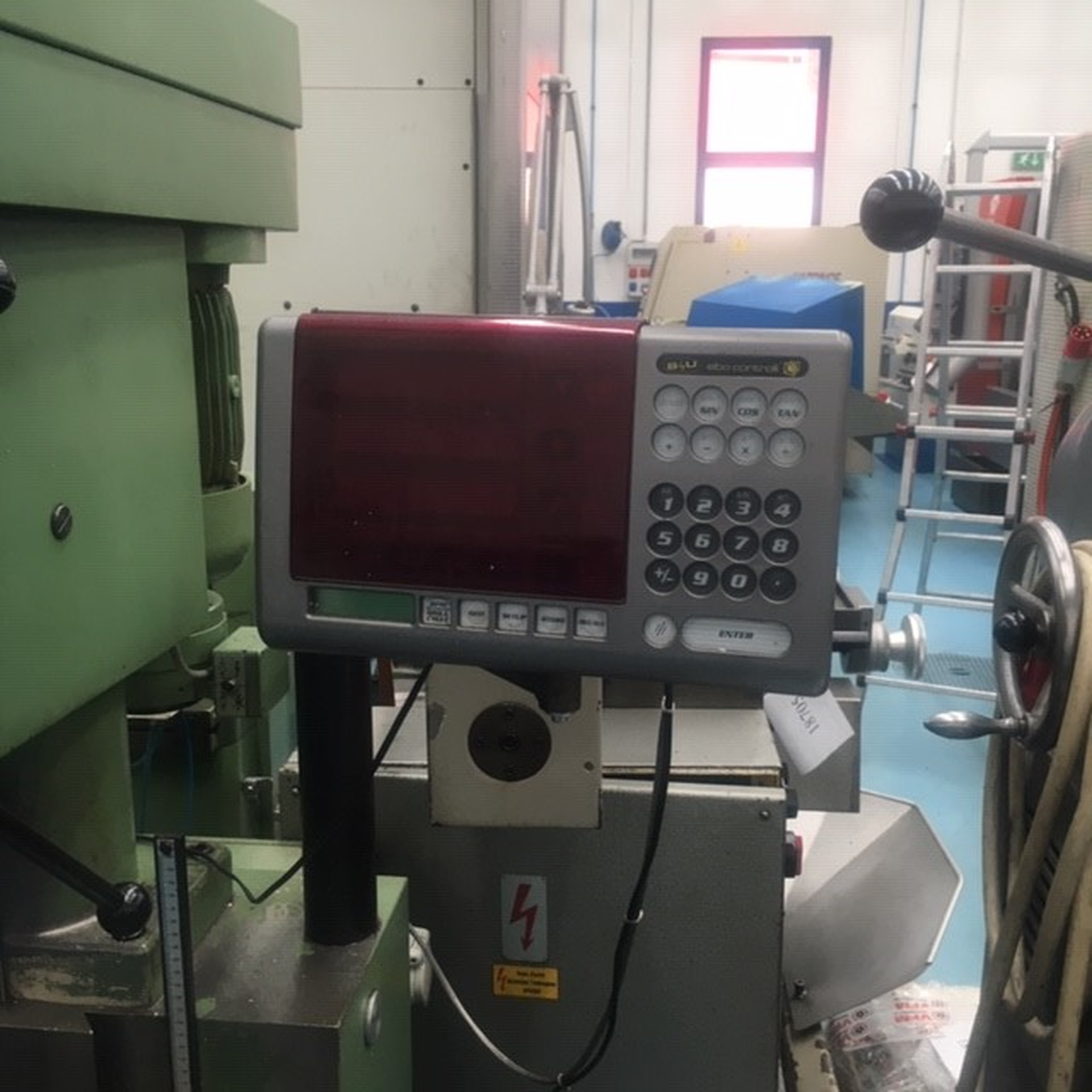

Digital readout number of axis:: 2.
