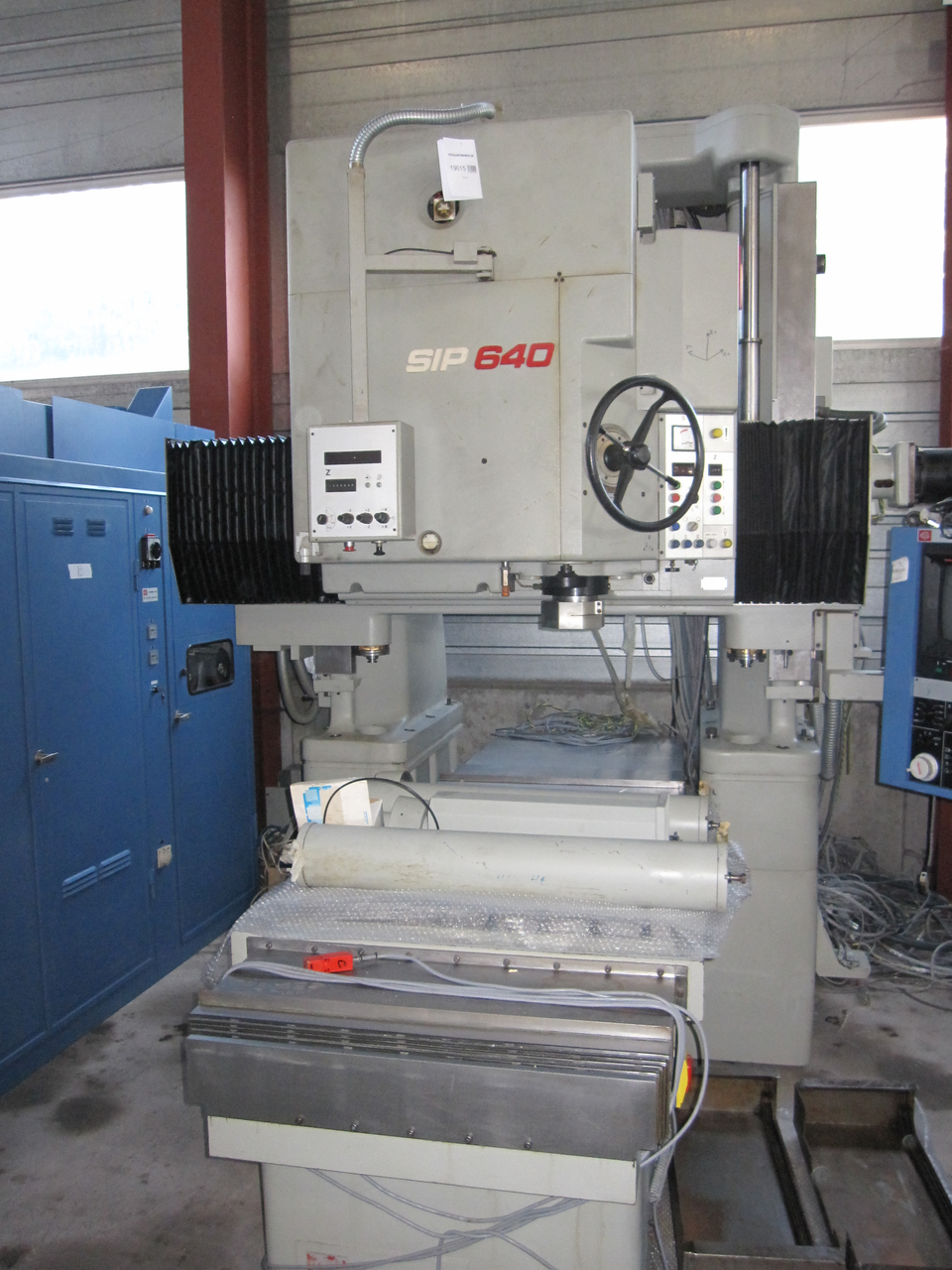

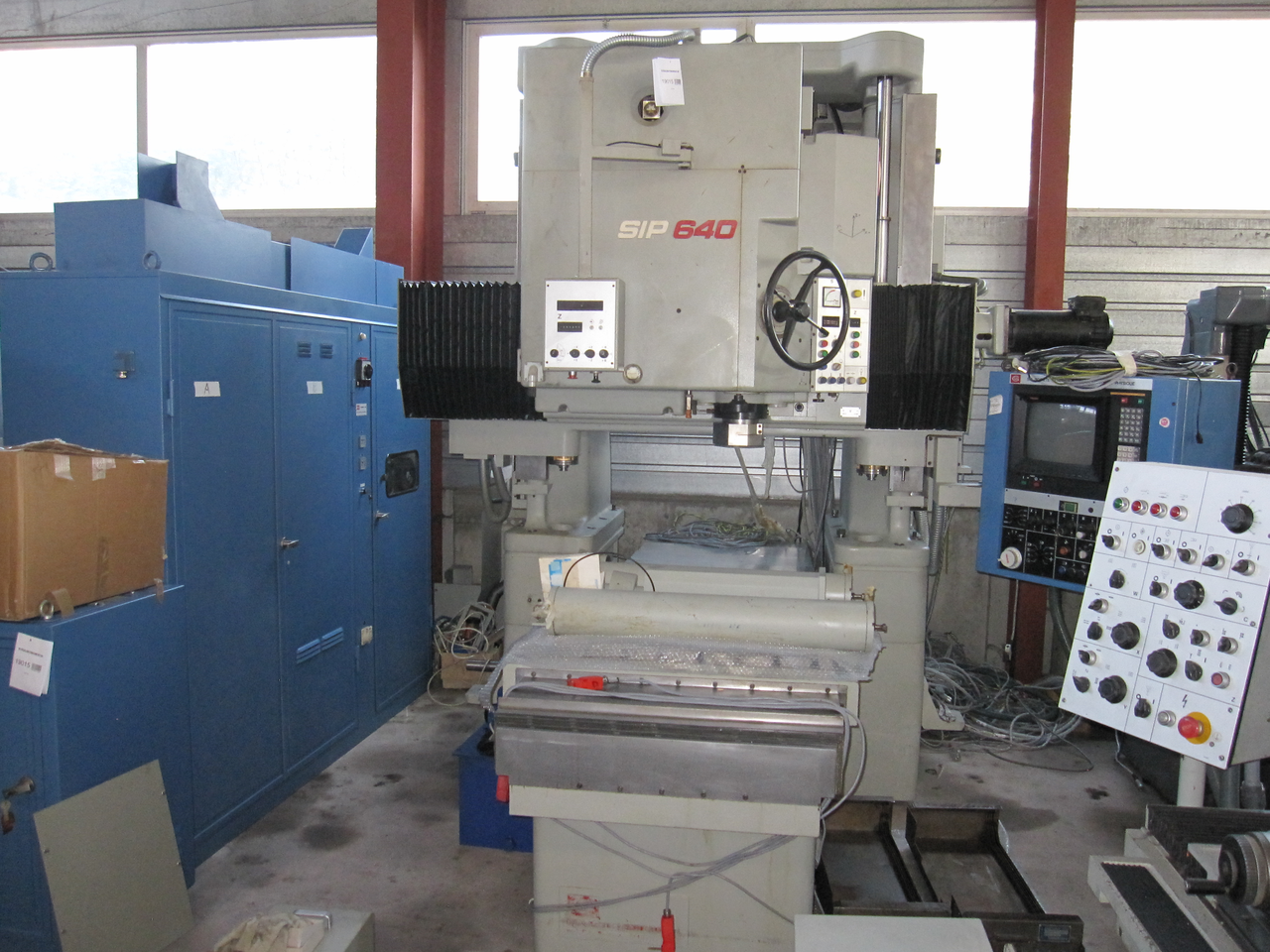

MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • SIP
  • Model:
  • 019015 - SIP 640
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Table length: 1100 mm.
Table width: 842 mm.
Table load max.: 1500 kg.
Longitudinal travel (X-axis): 1000 mm.
Transversal travel (y-axis): 700 mm.
Vertical travel (z axis): 780 mm.
Drill capacity in steel: 60 mm.
Taper in spindle: ISO: 4 B.
Diameter of drilling spindle: 135 mm.
Stroke of drilling spindle (Z-axis): 300 mm.
Bore diameter min.: 60 mm.
Bore diameter max.: 300 mm.
Distance table to spindle: 1000 mm.
number (steps): 6.
from: mm/t.
up to: mm/t.
Table:longitudinal: 6000 mm/min.
transversal from: 6000 mm/min.
vertical: 6000 mm/min.
Distance between columns: 1100 mm.
Voltage 50 Hz 3x: 380 Volt.
Spindle motor: 9 CV.
Machine's weight about: 10600 kg.
Length: 3280 mm.
Width: 2335 mm.
Height: 3205 mm.
