MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Voumard
  • Model:

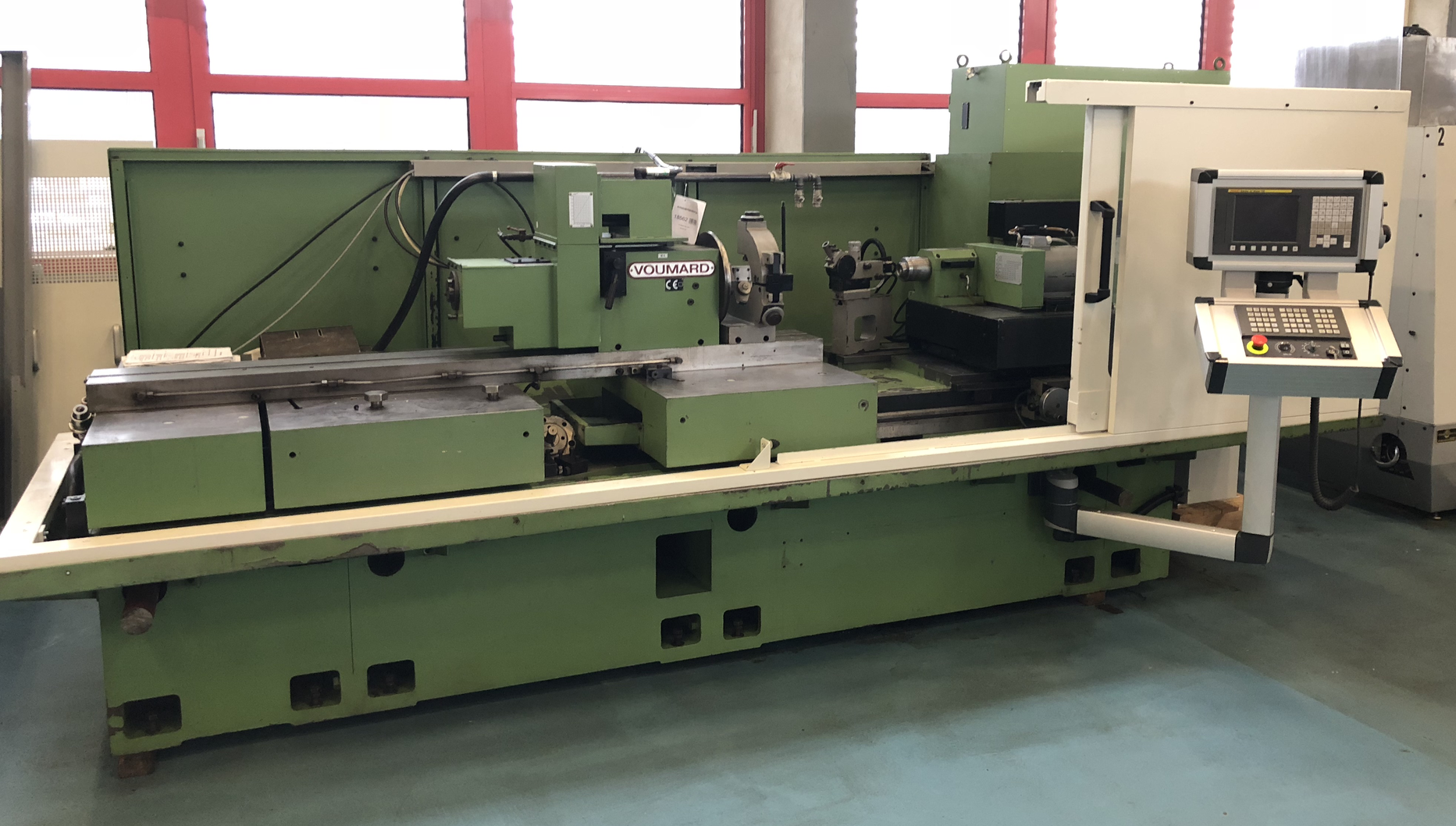

  • 018562 - VOUMARD 400 CNC
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Min. grinding diameter: 20 mm.
Max. grinding diameter: 300 mm.
Max. grinding depth: 300 mm.
Max.workpiece length + steady: 1200 mm.
Centre height: 300 / 430 mm.
Longitudinal travel (Z-axis): 650 mm.
Cross travel (x-axis): 150 mm.
Spindle head (u axis): 500 mm.
Work piece spindle head (B-axis): +/- 20 °.
Z axis (longitudinal travel): 12000 mm/min.
Grinding spindle motor: 6.5 / 7.8 kW.
Machine's weight about: 9500 kg.
Length: 5000 mm.
Width: 2300 mm.
Height: 2400 mm.

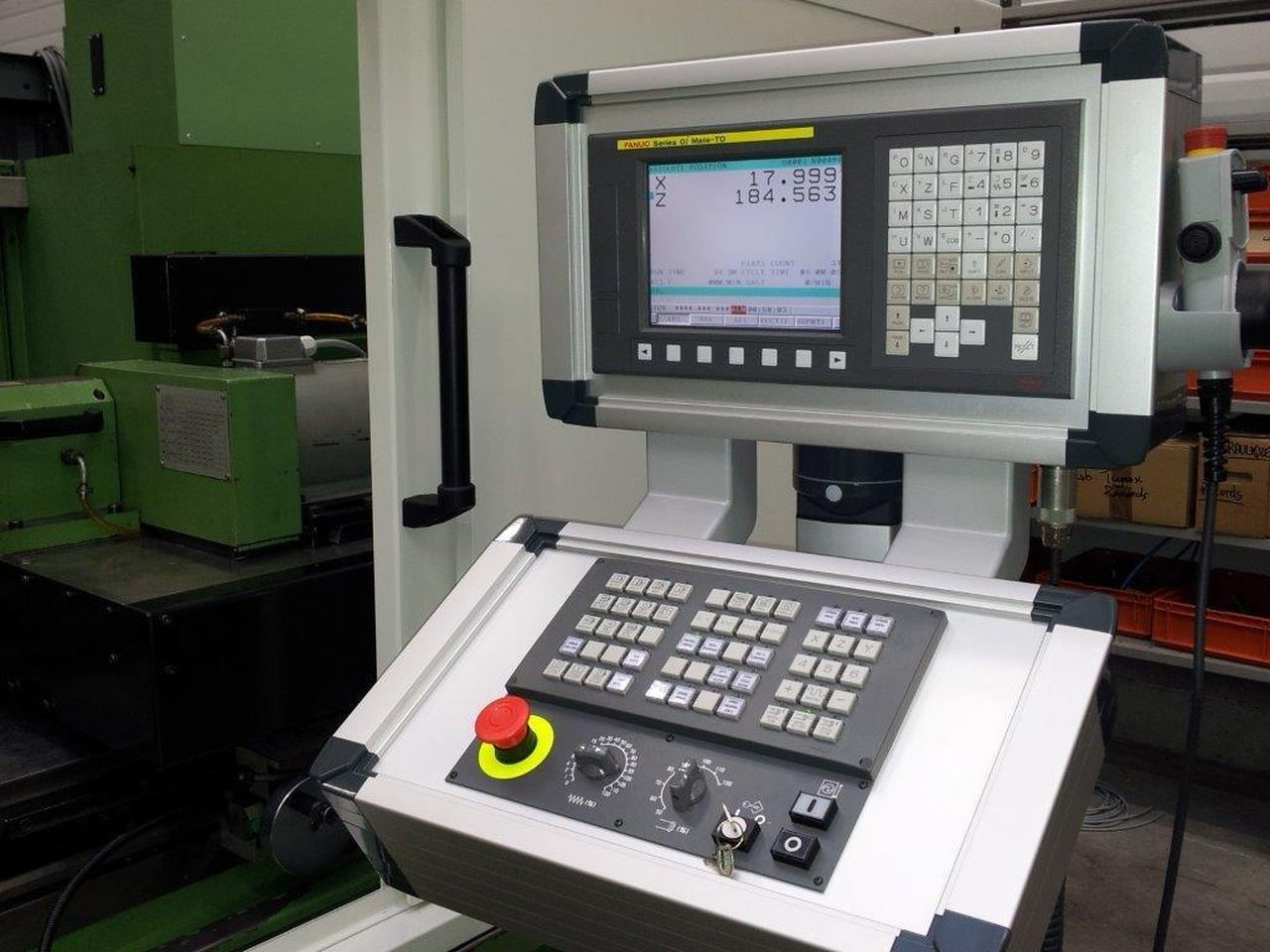

New control system: FANUC.
