MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Maho
  • Model:

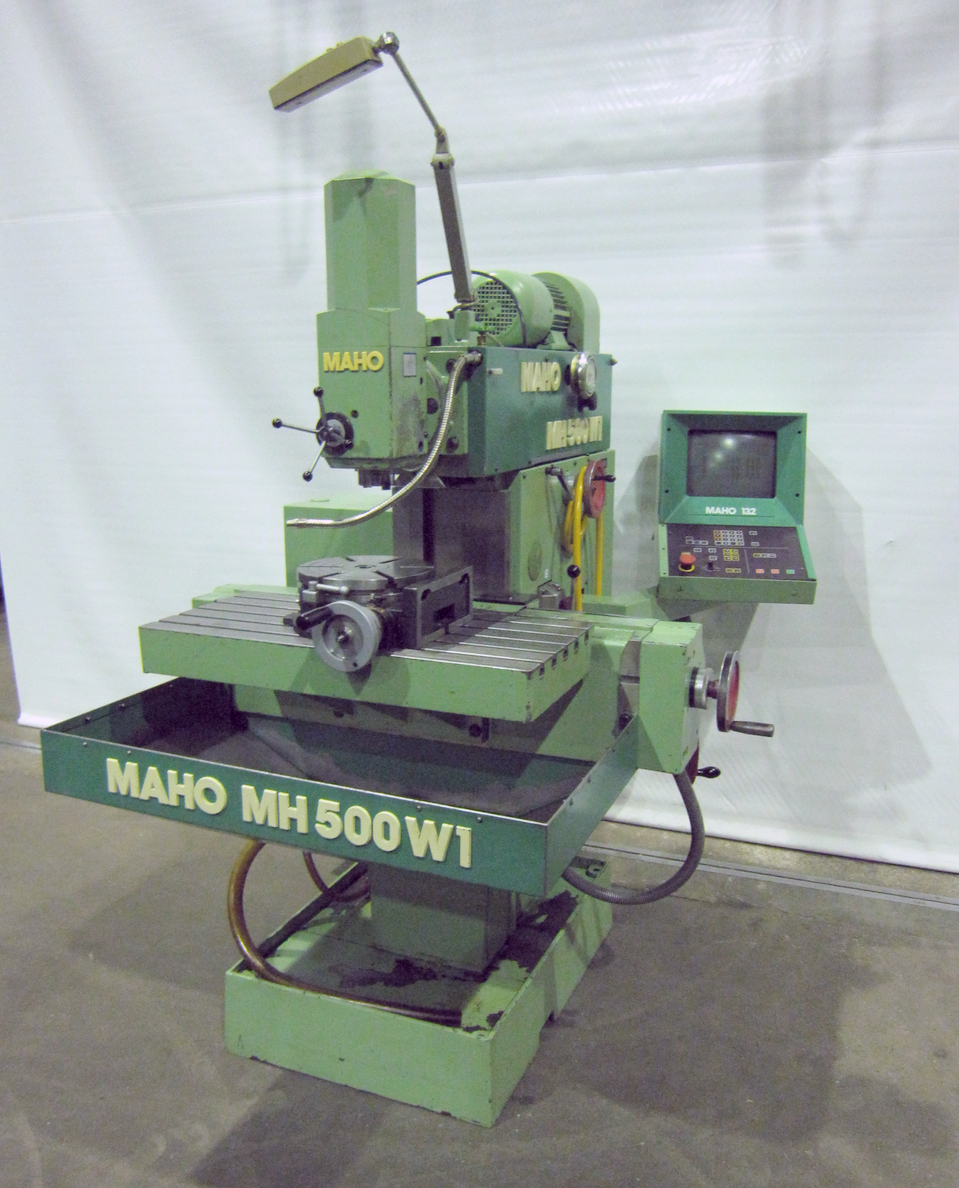

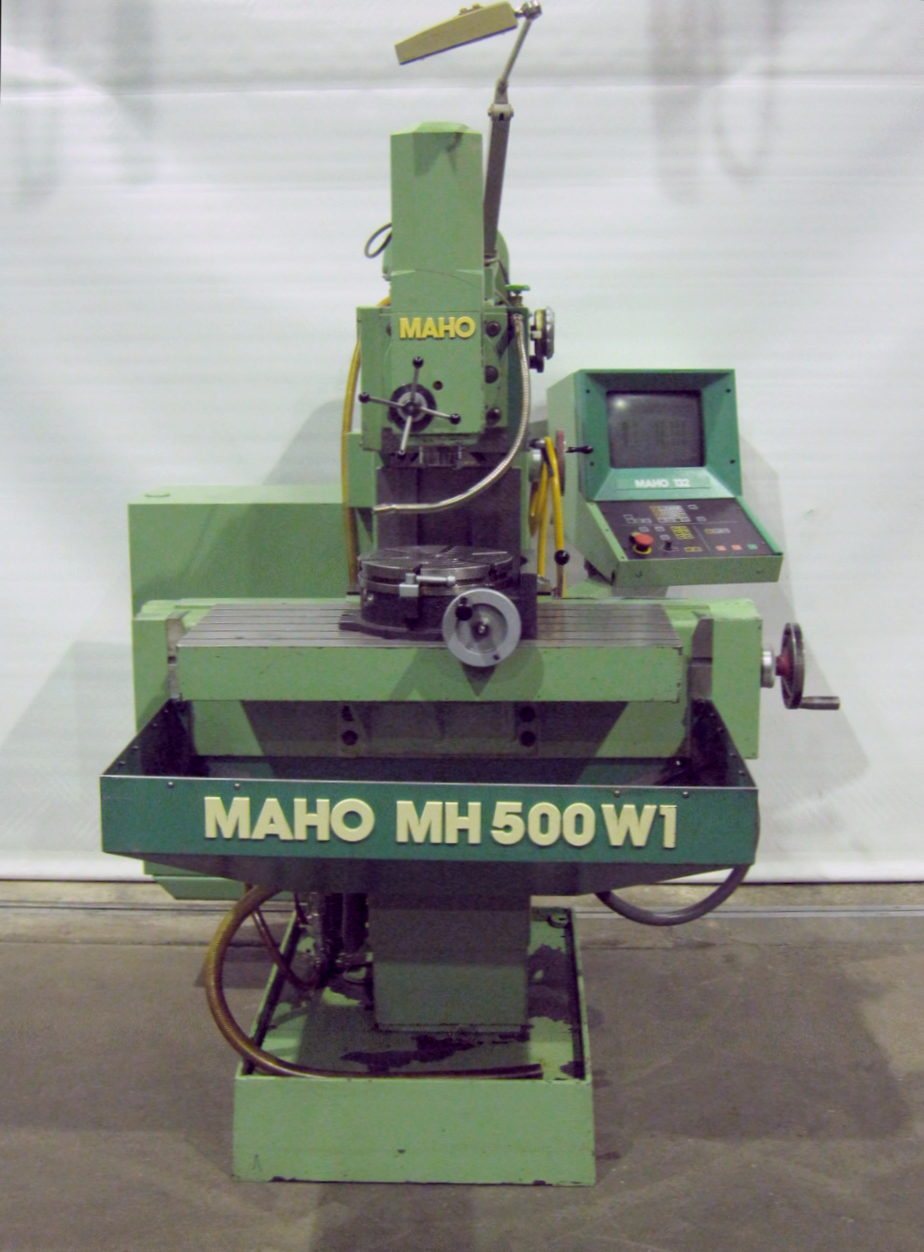

  • 018121 - MAHO MH 500 W
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

Number of axis total: 3.
Table length: 800 mm.
Table width: 360 mm.
Number of T-channels: 5.
T-channel width: 14 mm.
Distance of the T-slots: 65 mm.
Longitudinal travel (X-axis): 500 mm.
Transversal travel (y axis): 300 mm.
Vertical travel (z axis): 400 mm.
Table load max.: 250 kg.
from: 63 t/min.
up to: 3000 mm/min.
Taper in spindle: 40 ISO.
longitudinal from: 1 mm/min.
transversal from: 1 mm/min.
vertical from: 1 mm/min.
Rapid traverse:: 5 m/min.
Voltage 50 Hz 3x: 380 Volt.
Motor output: 5 CV.
Machine's weight about: 1700 kg.
Length: 1700 mm.
Width: 1300 mm.
Height: 1800 mm.

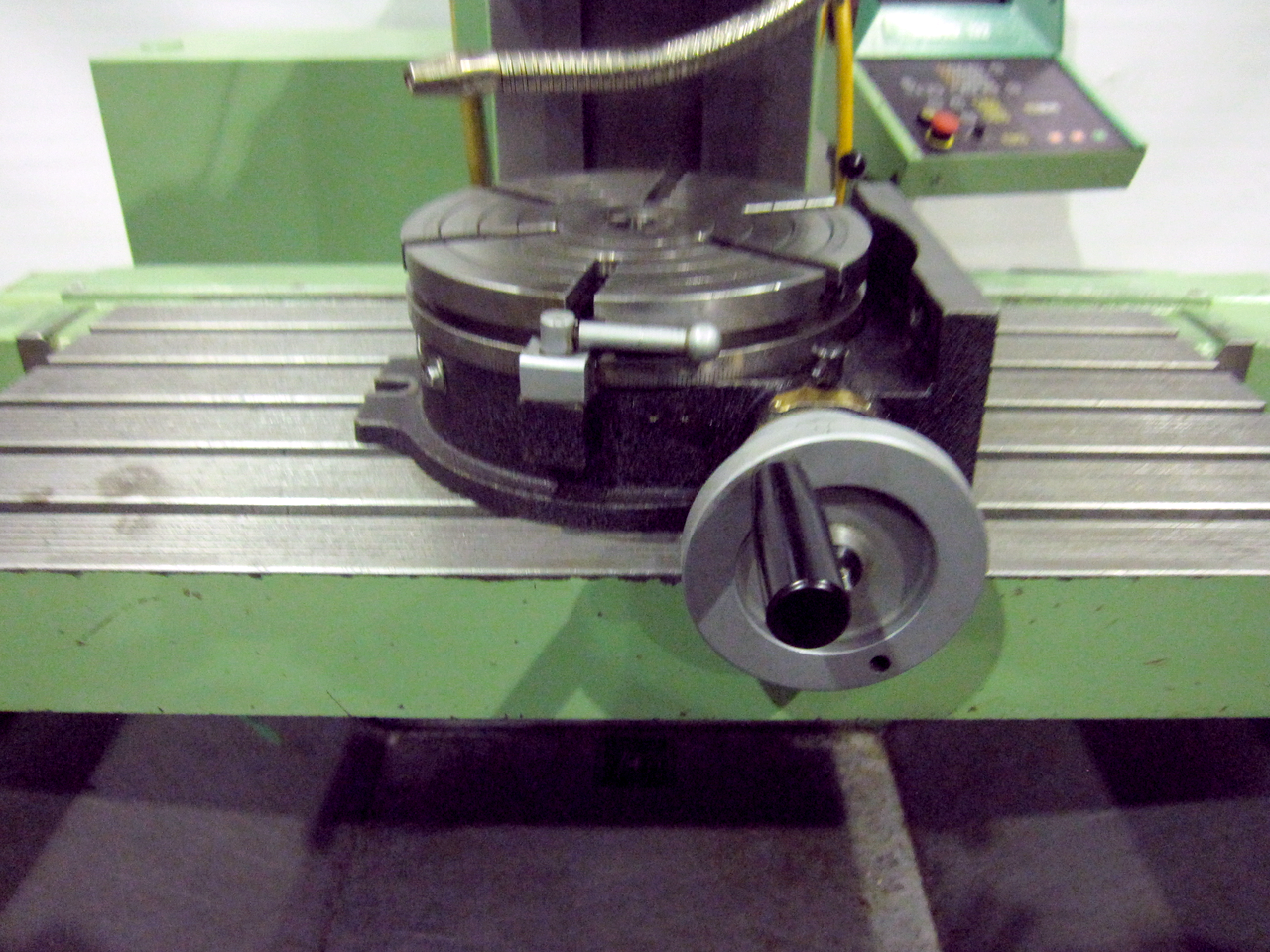

Rotary table:diameter: 250 mm.
