MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Model:

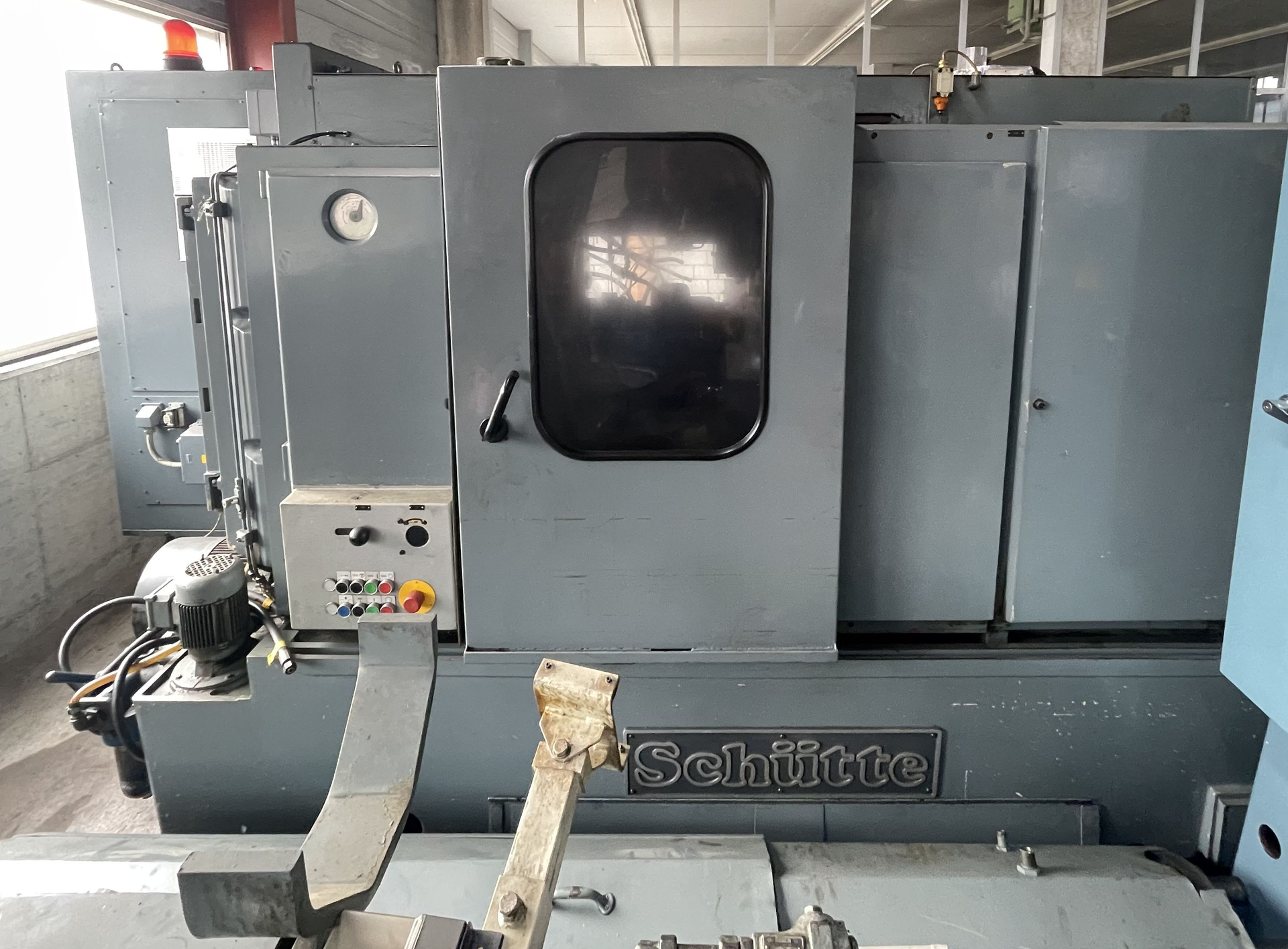

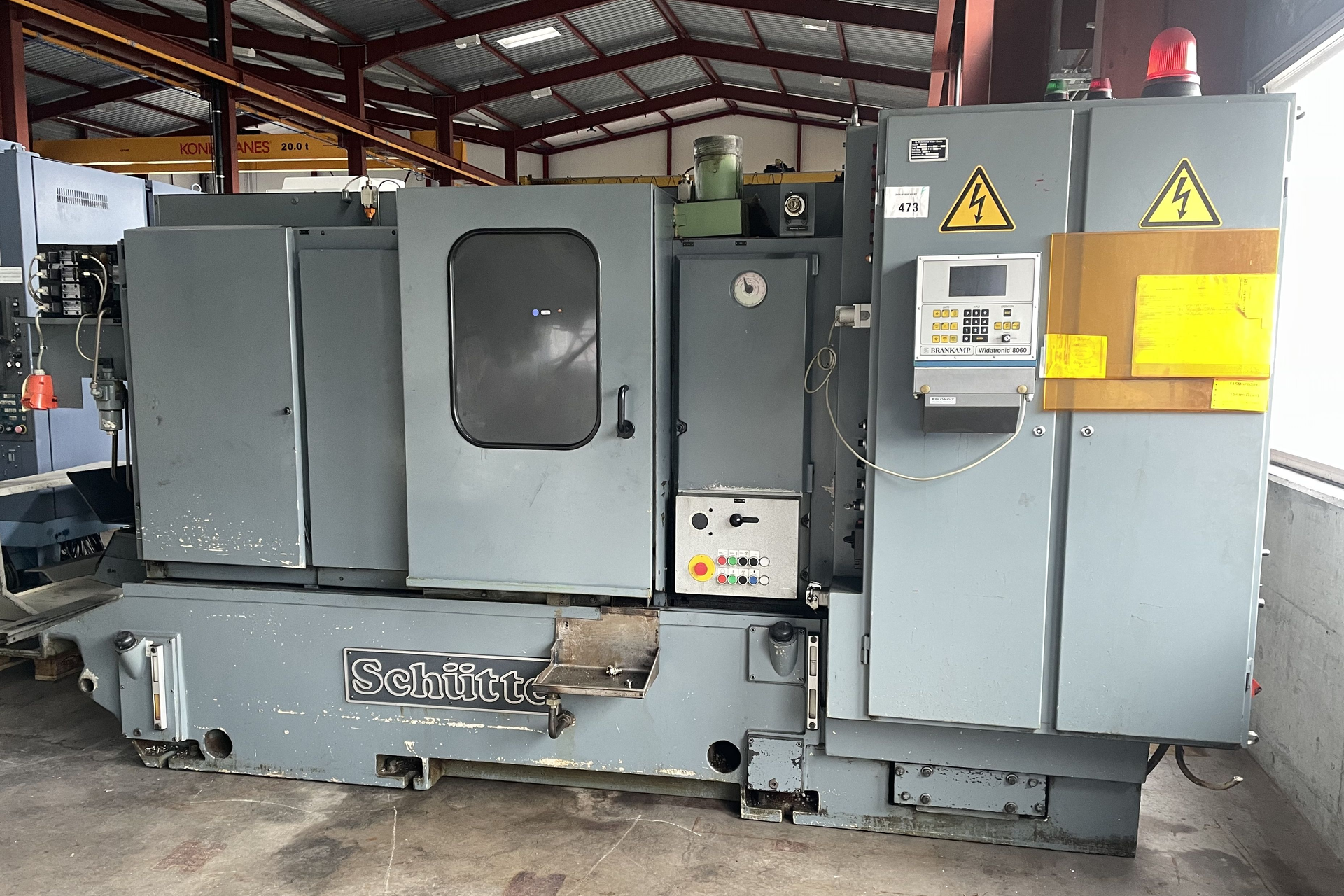

  • 012390 - SCHÜTTE SF 26
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

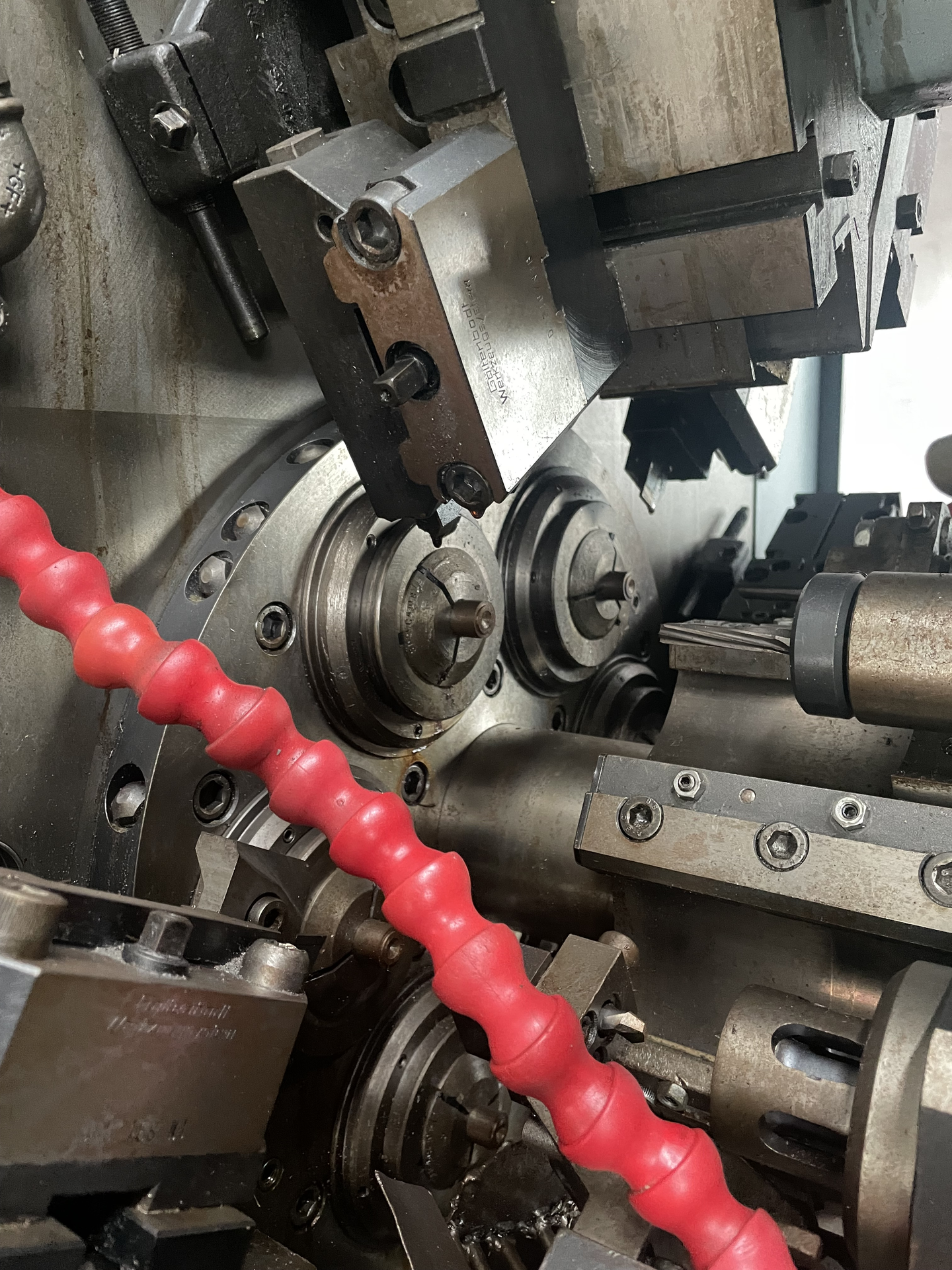

Number of spindles: 6.
Capacity round bar: 26 mm.
Max. advance of bar: 80 mm.
Max. turning length: 40 mm.
Max. stroke of long slide: 63 / 39.6 mm.
Number of possible pieces: 31.
from: 355 t/min.
up to: 5000 t/min.
Voltage 50 Hz 3x: 380 Volt.
Power: 15 kW.
Machine's weight about: 4000 kg.
Length: 3125 mm.
Width: 1030 mm.
Height: 2000 mm.
Longitudinal slide number: 2.
