MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Model:

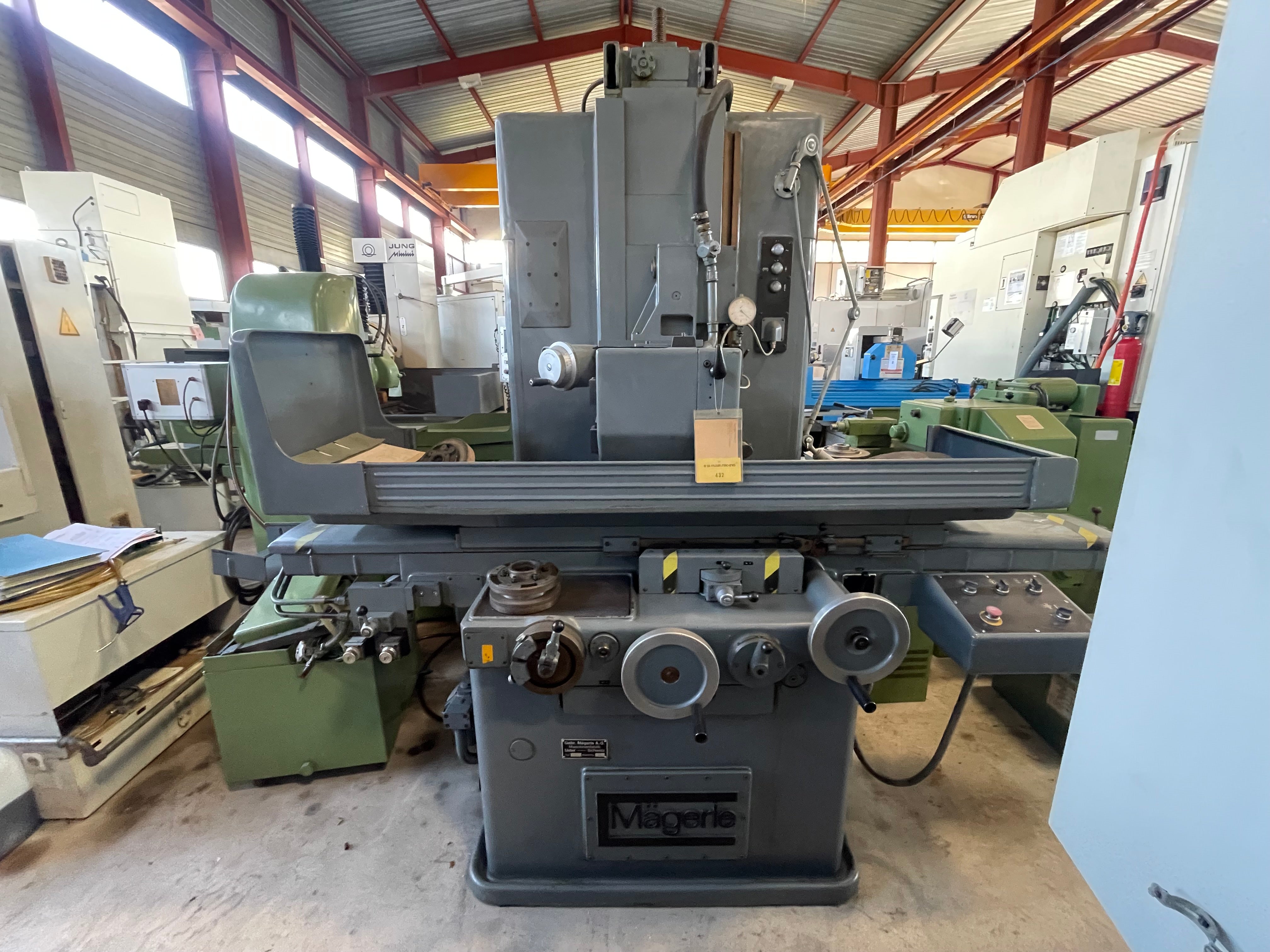

  • 000432 - MÄGERLE FD 7
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:

DESCRIPTION

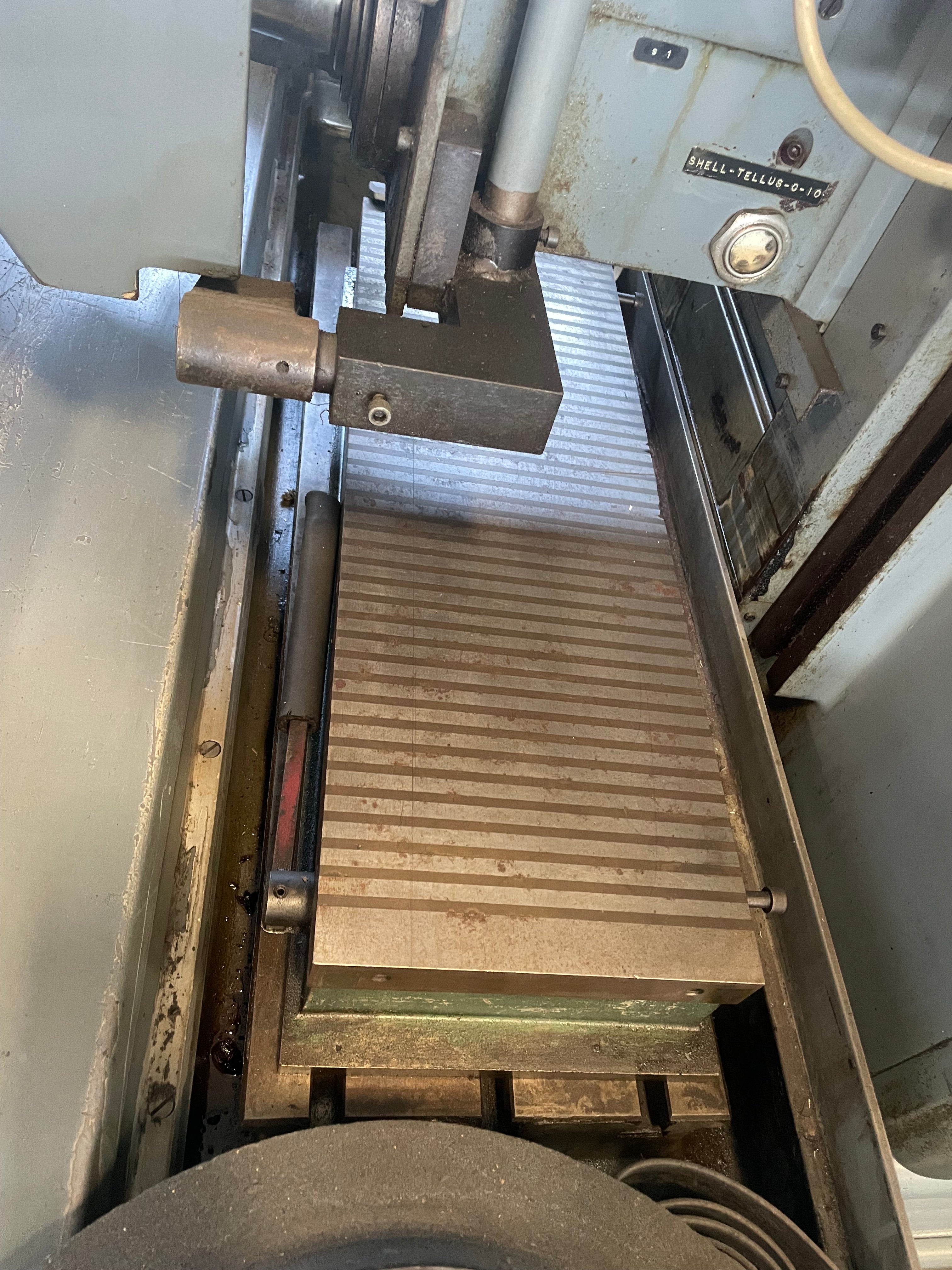

Table length: 750 mm.
Table width: 240 mm.
Grinding length: 700 mm.
Grinding width: 300 mm.
to spindle-centreline: 600 mm.
Transversal travel (y axis): 270 mm.
from: mm.
up to: 2200 t/min.
Vertical rapid traverse: 0.30 m/min.
Diameter of grinding wheel: 400 mm.
Width of the grinding wheel: 500 mm.
Voltage 50 Hz 3x: 380 Volt.
Grinding spindle motor: 5.00 CV.
Total power required: 20.00 CV.
Machine's weight about: 3000 kg.
Length: 700 mm.
Width: 250 mm.
