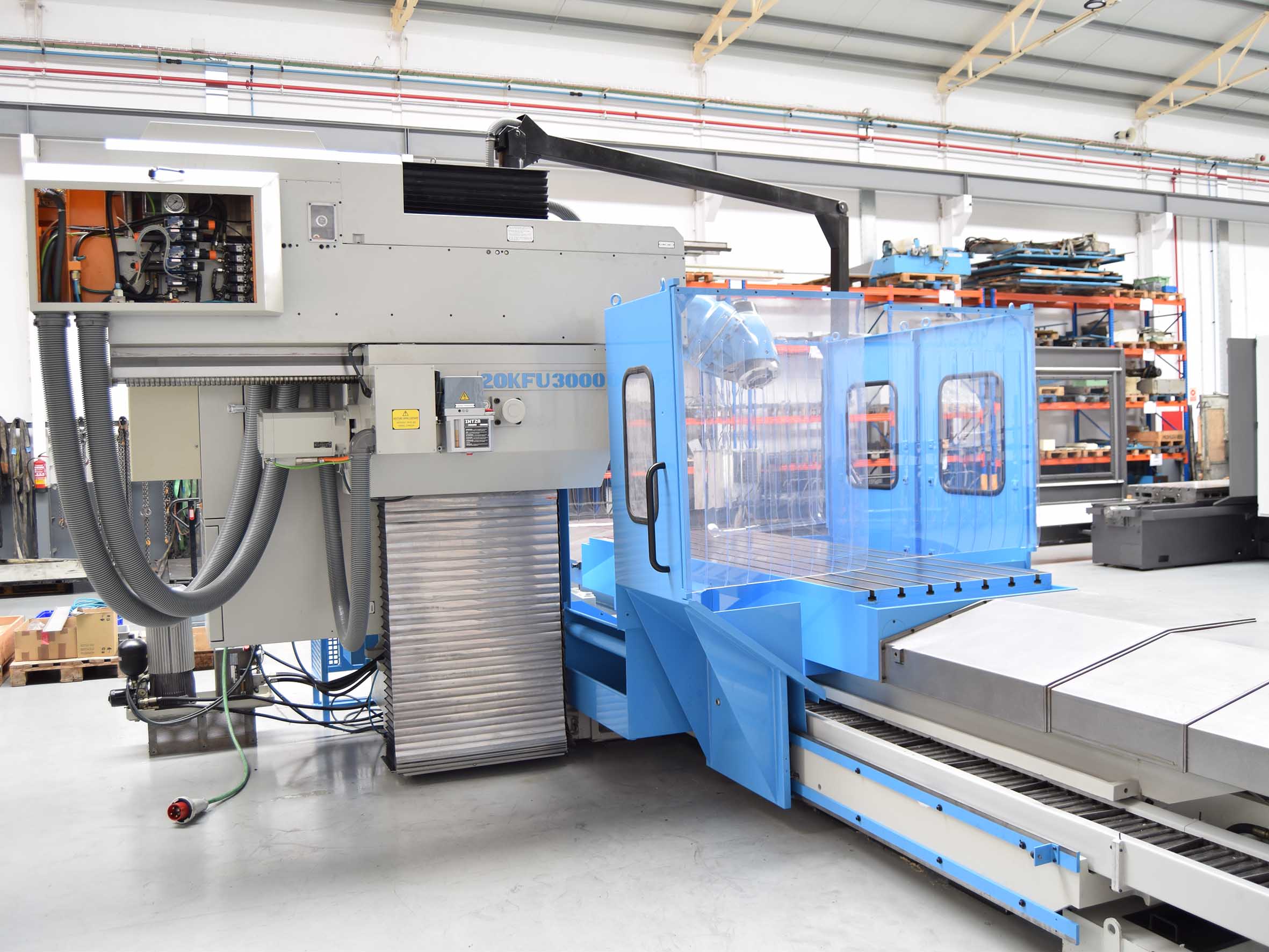

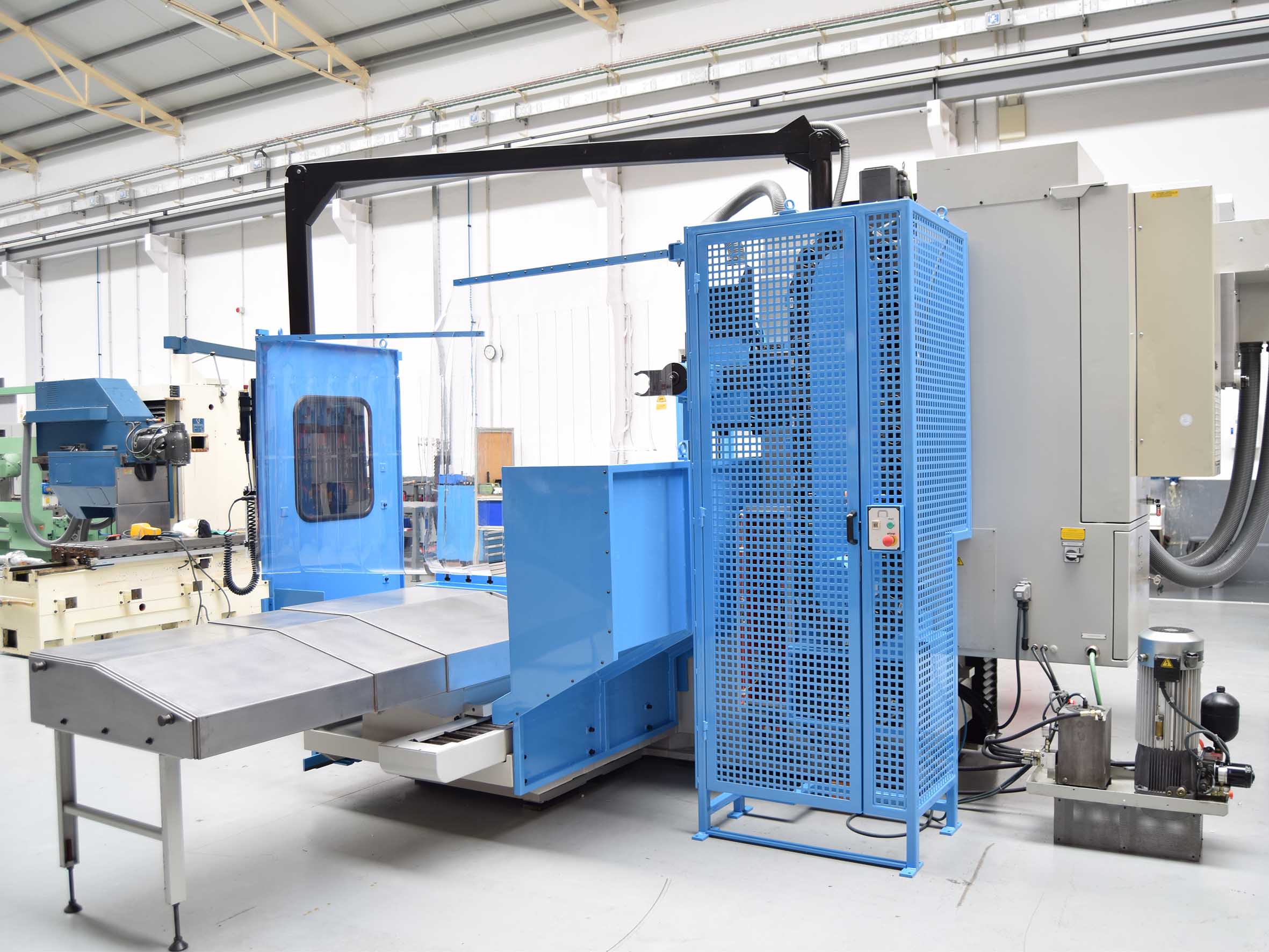

Manufacturer ZAYER
Model 20 KFU -3000
New in/ Reconstructed 2005/2021
CNC HEIDENHAIN TNC 530i
Table Surface 3.000 x 1.000 mm
Longitudinal Traverse (X Axis) 2.700 mm
Transversal Traverse (Y Axis) 1.200 mm
Vertical Traverse (Z Axis) 1.000 mm
Rapid Traverse (X,Y,Z) 20.000 mm/min
Max. Working Feed 10.000 mm/min
Taper ISO-50
Turning Speeds 20 – 3.000 r.p.m.
Universal 45º Auto Indexing Head
Head 2,5º
Elbow 1º
Automatic Tool Changer (ATC) INCLUDED
ATC type Cadena / Chain
Tools at ATC 30
Longitudinal Chip Conveyor INCLUDED
Main Motor Power 28 kW
Speed Ranges 2
Portable Handwheel Heidenhain HR 420
Carrying Load Table 10.000 kg.
Machine Weight 24.000 kg.
EMA
08754
Drilling capacity on steel with R = 45/50 mm 25
Threading capacity on steel M16x2
Distance between spindle axis and column max/min mm 800/300
Distance between spindle nose and basement mm 1000
Distance between spindle nose and table mm 125
...
