MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Correa
  • Model:

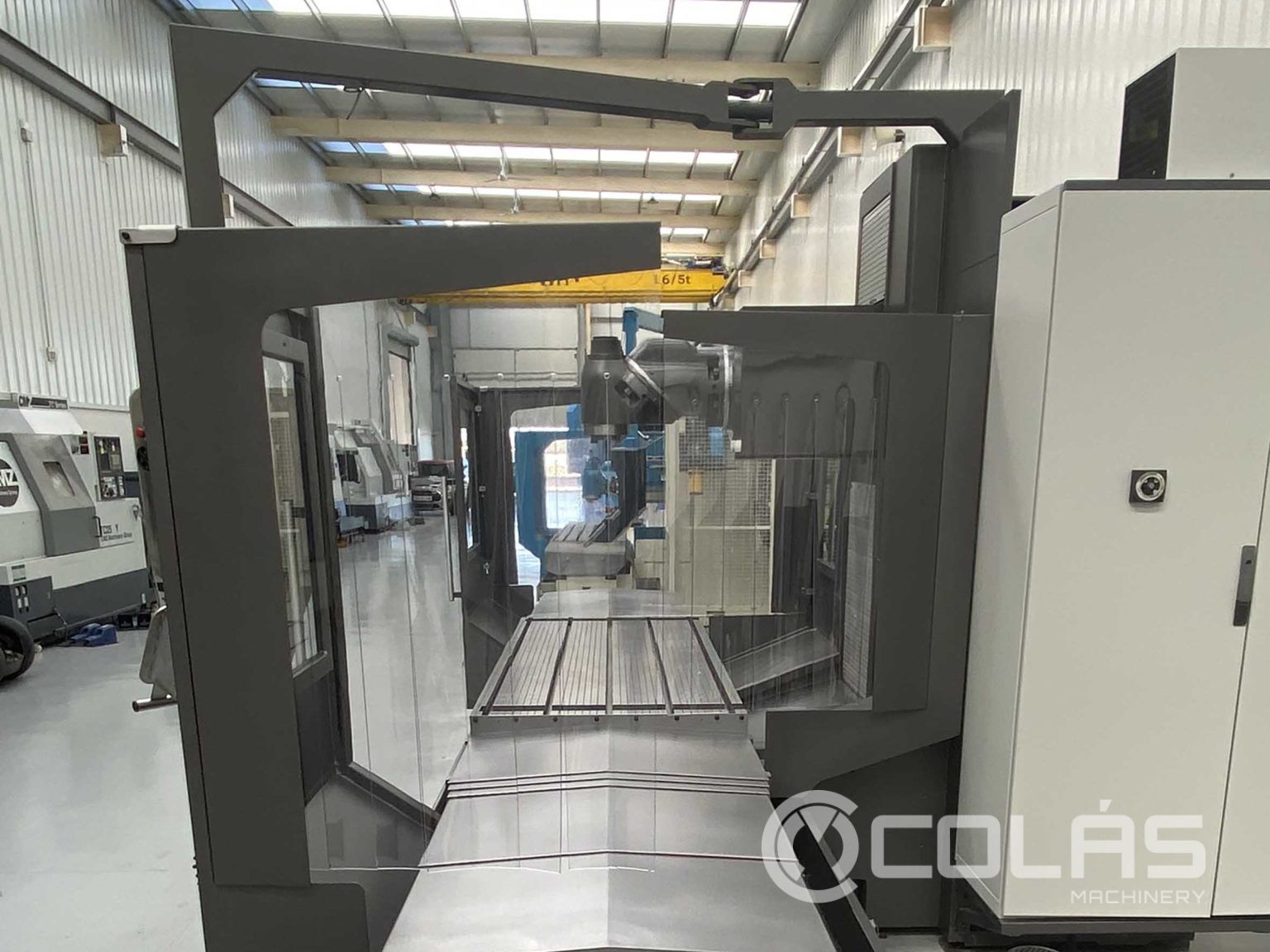

  • NICOLÁS CORREA DIANA 20
  • Condition:
  • NA
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • N/A

DESCRIPTION

Working Feeds (X/Y/Z) 5-10.000 mm/min Rapid Traverse 20.000 mm/min Head Type Universal Taper ISO 50 Turning Speeds 20-4000 rpm Head Power 22 Kw Hydraulic Tool Clamping System INCLUDED EC Guarding INCLUDED Carrying Load Table 3.500 kg. Machine Weight 14.000 kg. Machine Dimension 6.114×5.070×2.803 mm
