Home > Metal Cutting > Milling Go Back
REQUEST PRICE

MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • SACHMAN
  • Model:

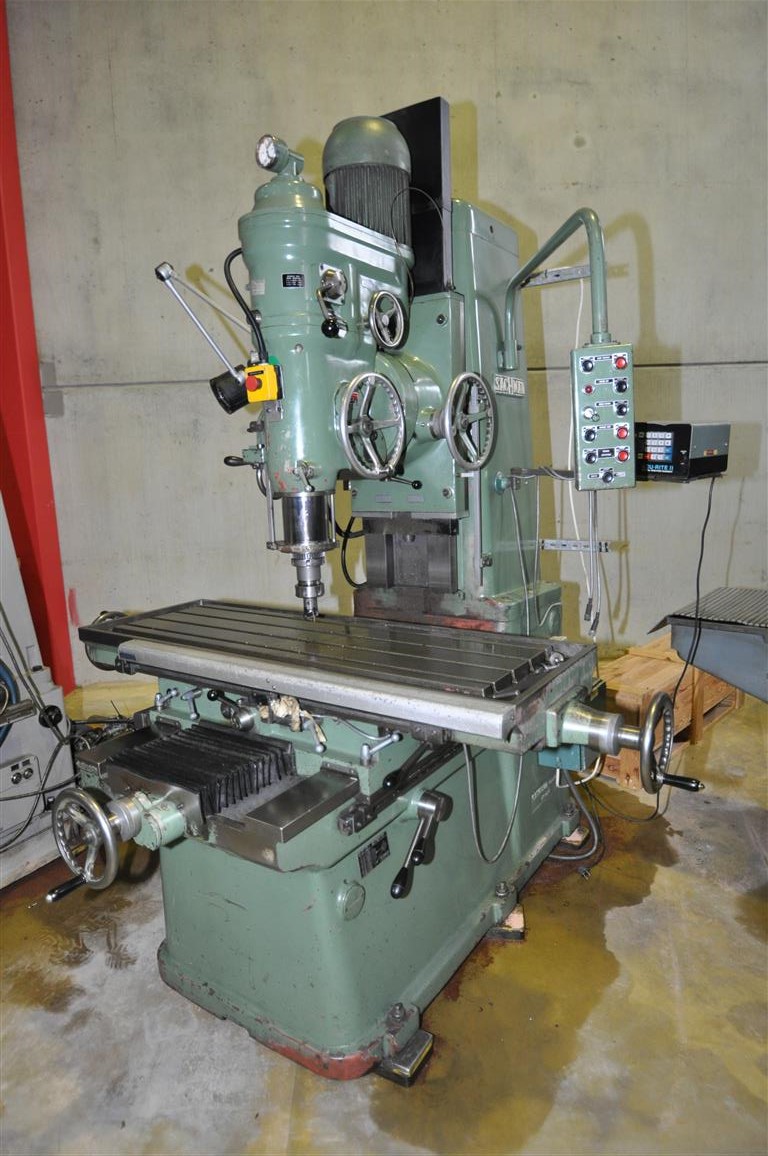

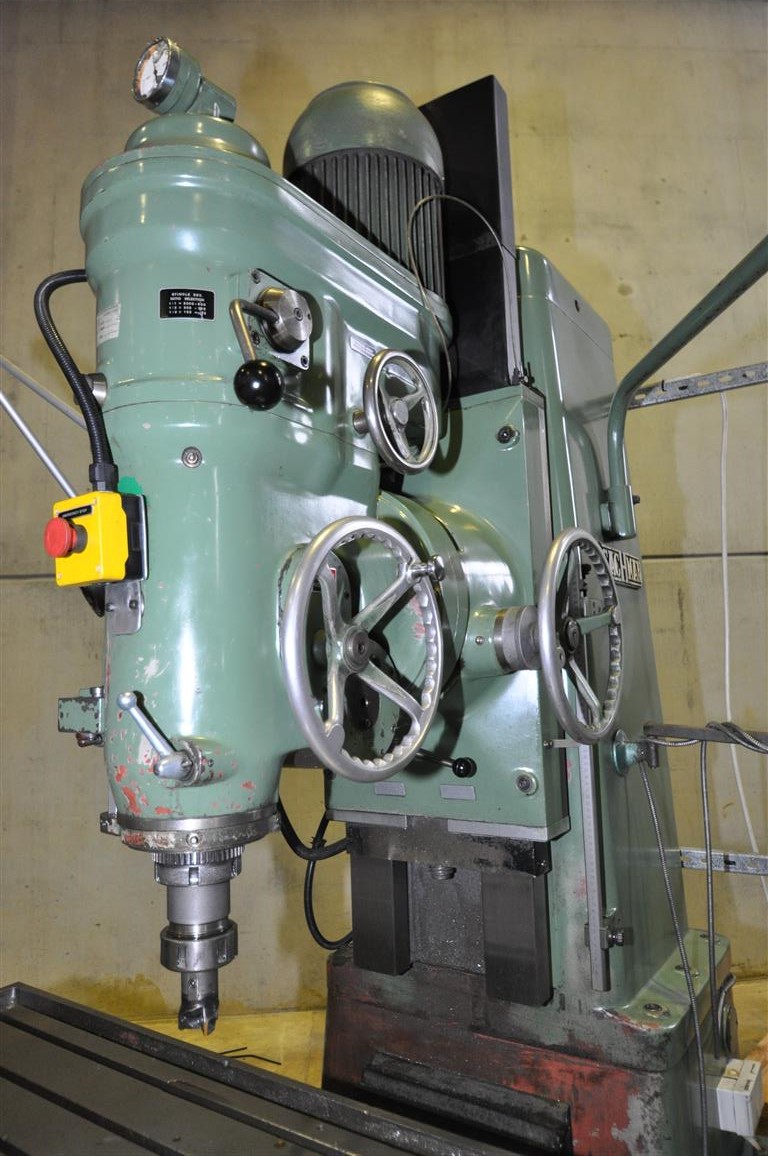

  • Sachman FAS 1000-550
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • N/A

DESCRIPTION

{"Stock number": "060671", "Longd. travel": "1030 mm", "Crosstravel": "560 mm", "Vertical travel": "725 mm", "Quill travel": "160 mm", "Table": "1000x500 mm", "Distance spindle-table": "0-725 mm", "Radius": "510 mm", "Spindle taper": "ISO 40", "Spindle speed": "35-2000 rpm", "Feeds": "12-610 mm/min", "Quill feed": "0,038-0,17 mm/r", "Rapid traverse": "2000 mm/min", "Spindle motor": "8 hp", "Feed motor": "2 hp", "Length": "2200 mm", "Width": "2150 mm", "Height": "2400 (2750) mm", "Weight": "5200 kg"}
+ request more information

SEND ENQUIRY

*I AM A
Dealer
End User
Check here if you no longer wish to subscribe to our newsletter.

SHARE PAGE

REQUEST MORE INFORMATION

SEND ENQUIRY

*I AM A
Dealer
End User
Check here if you no longer wish to subscribe to our newsletter.

    Sellers

    Norima AB

    • Contact Name
    • Tobias Kruse
    • Contact Number
    • (0)370 69 55 00
