MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Universal
  • Model:
  • UNIVERSAL MILLING MACHINE ACIERA F-3
  • Condition:
  • Used
  • YOM:
  • N/A
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • N/A

DESCRIPTION

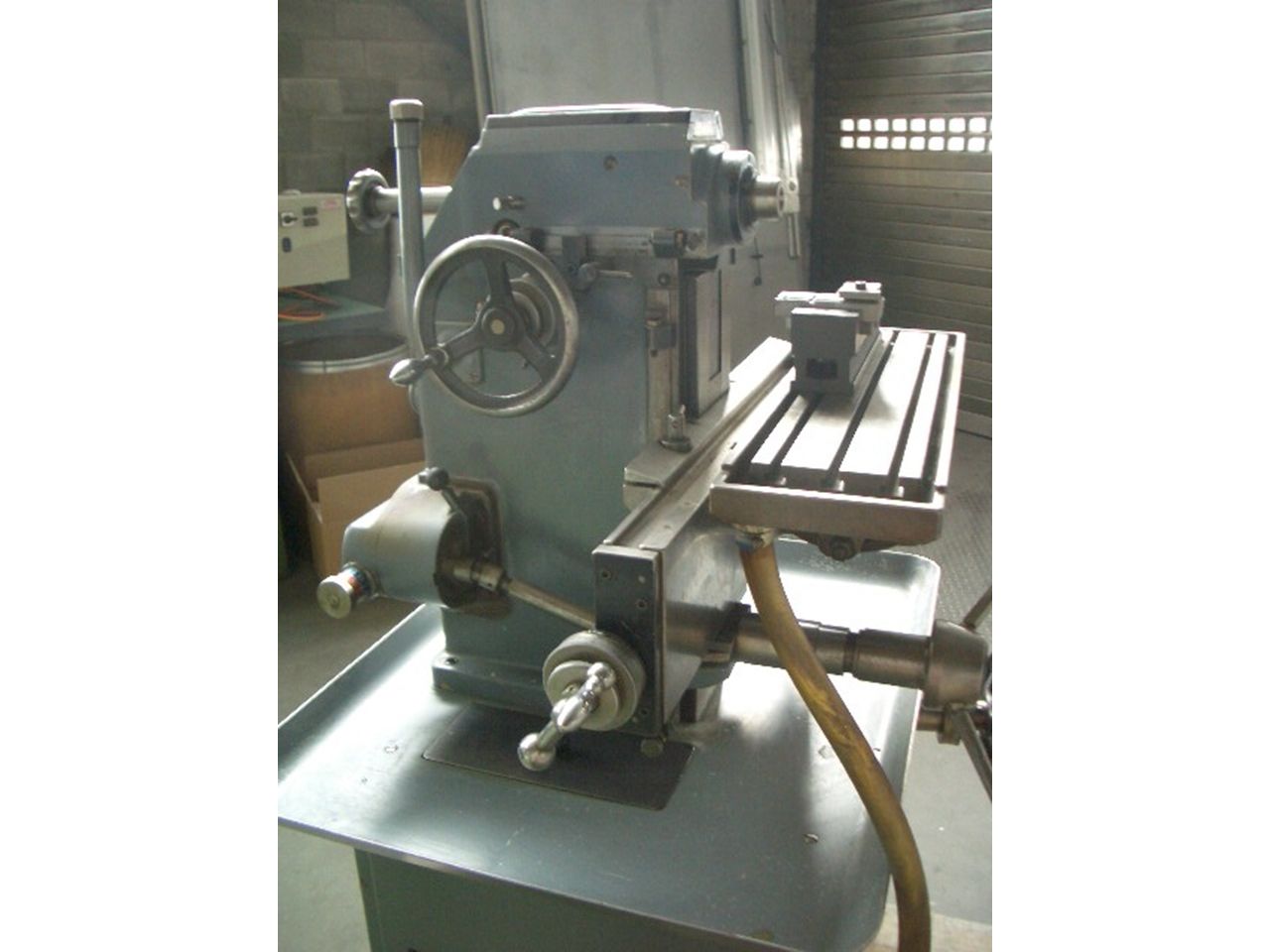

UNIVERSAL MILLING MACHINE "ACIERA" F-3

Reference: 24112024

with tilting table



Information

Manufacturing number
Manufacturing year
Manufacturing originSwiss
Voltage380 / 50 / 3
Netweight approx.500 kg
Dimensions
Total power
Custom position
Colour

TECHNICAL DATA

MOTOR

Power0,75 / 2 HP
Speeds 50 cycle motor700/2800 RPM
Speeds 60 cycle motor840/3360 RPM

TRAVERSES AND CAPACITY

Manual and powered longitudinal traverse to the table300 mm
Manual vertical traverse to the table300 mm
Manual cross traverse to the headstock135 mm
With intermediate piece205 mm
Working surface of table600x205 mm
4 T-slots DIN 650, width10 mm
Graduations on all feedscrew drums0,02 mm
Min./Max. distance between :
table and orizontal spindle axis30-330 mm
table and vertical spindle nose 20-320 mm
with intermediate piece 100-400 mm

HORIZONTAL AND VERTICAL MILLING SPINDLES

Provision for clamping by W-20 colletson request taper ISO 30
Shank diameter20 mm
Number of spindle speeds8
50 cycle motor100-175-300-500-400-700-1200-200 RPM

LONGITUDINAL POWER FEEDS

Number of feeds (in both directions)8
50 cycle motor 12-19-32-58-48-76-128-232

RAPID LONGITUDINAL ADVANCE BY CROSS-HANDLE

Principle of transmission worm and wormwheel
1 turn of cross-handle12 mm
DIMENSIONS (Total height of machine)
with headstock cover-plate1350 mm
with prismatic-section overarm1400 mm
with vertical milling head1450 mm
area occupied by machine1200x1000 mm
errors and omissions excepted-data given without obligation
