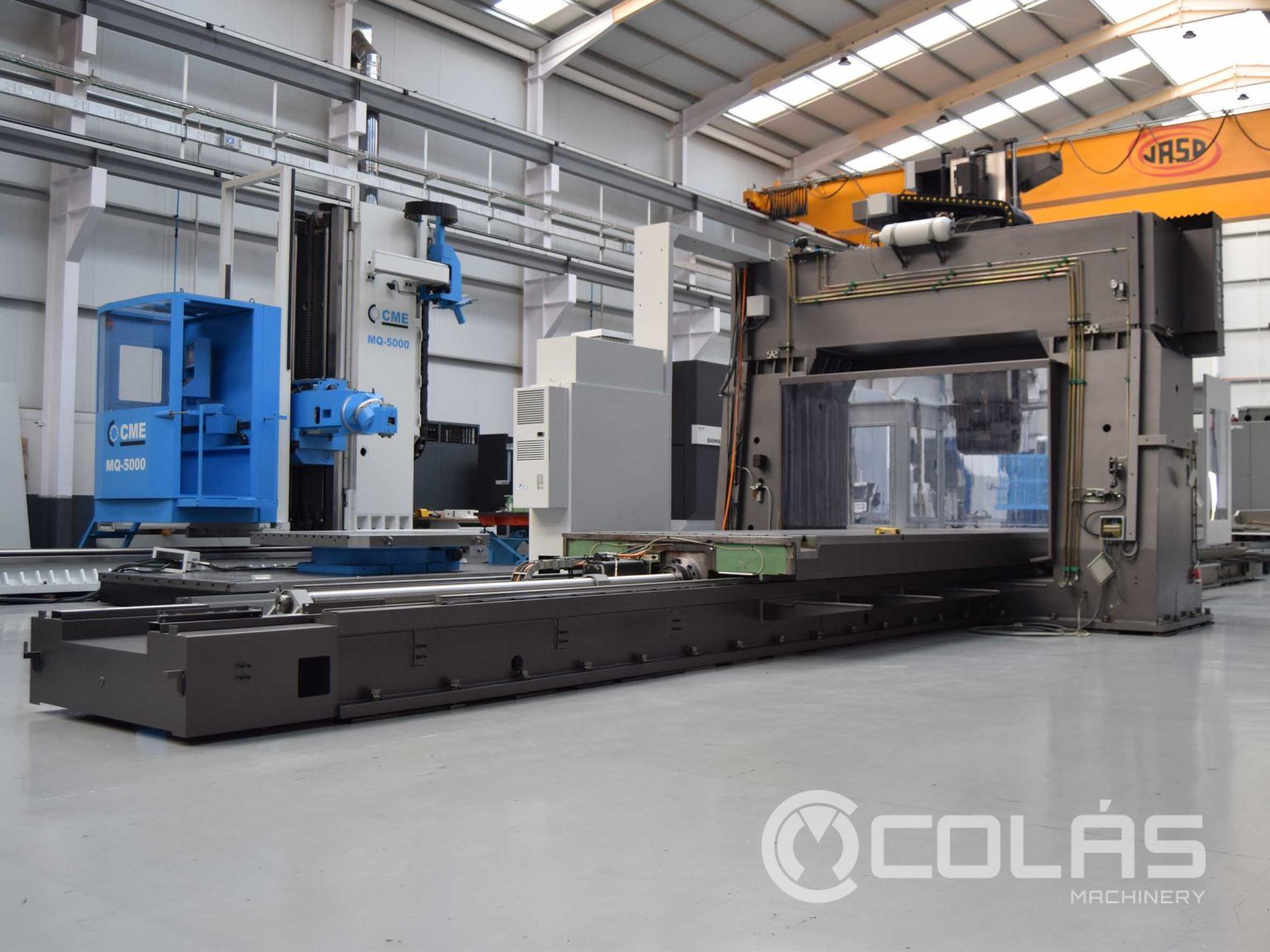

Manufacturer NICOLAS CORREA
Model FP40/80
New in Year 1999
Reconstruction Year 2020
CNC HEIDENHAIN TNC-530
Table Surface 8.000 X 2.000 mm
Longitudinal Traverse (X Axis) 8.000 mm
Cross Traverse (Y Axis 3.250 mm
Vertical Traverse (Z Axis) 1.000 mm
Distance Between Columns 2.730 mm.
Rapid Feed (X Axis) 15.000 mm/min
Rapid Feed (Y,Z Axis) 12.000 mm/min
Max. Working Feed 5.000 mm/min
Autoindex Head 4th /5th Axis INCLUDED
Speed Head 45º 4.000 r.p.m.
Main Engine Power 30 Kw.
Speed Range 2
Max. Carrying Load Table 25.000 Kg.
Machine Weight 78.000 Kg.
Portable Handwheel INCLUDED
RAMBAUDI
06236
Table dimensions mm 1300x300
Axis X mm 950
Axis Y mm 300
Axis Z mm 445
Spindle taper ISO 40
Spindle speed rpm 50-2500
Motor power Kw 3.2
Equipped with:
DRO
USED MACHINE
SERMAC
09981
Electric Fan Oven mod. CDTM 2000 - AMS 2750 E
Max temperature 300°C
Working temperatures From 60°C up to 240°C
Max temperature deviation in the various zones of the chamber +/- 6°C from the set temperature
Temperature controller - el...
