Home > Presses > Mechanical Presses Go Back

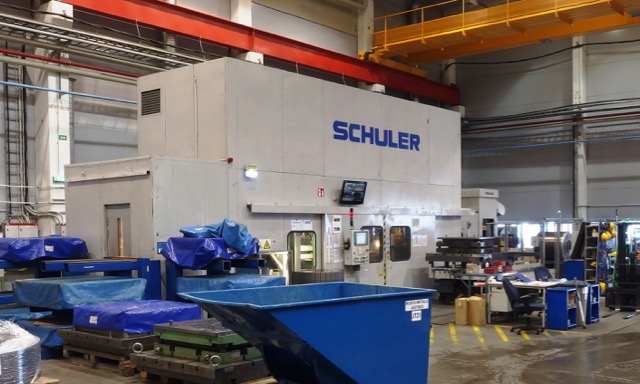

Mechanical Presses/SCHULER SP250-1.6-1.6 sn.84/20.5917

Mechanical Presses/SCHULER SP250-1.6-1.6 sn.84/20.5917

Mechanical Presses/SCHULER SP250-1.6-1.6 sn.84/20.5917

Mechanical Presses/SCHULER SP250-1.6-1.6 sn.84/20.5917

Mechanical Presses/SCHULER SP250-1.6-1.6 sn.84/20.5917

Mechanical Presses/SCHULER SP250-1.6-1.6 sn.84/20.5917

Mechanical Presses/SCHULER SP250-1.6-1.6 sn.84/20.5917

Mechanical Presses/SCHULER SP250-1.6-1.6 sn.84/20.5917

Mechanical Presses/SCHULER SP250-1.6-1.6 sn.84/20.5917

REQUEST PRICE VIEW MAP

MACHINE INFORMATION AND SPECIFICATION

Category:
Presses

Subcategory:
Mechanical Presses

Manufacturer:
Schuler

Model:
SCHULER SP250-1.6-1.6 sn.84/20.5917

Condition:
Used

YOM:
1985

Control:
NA

Price:
POA

Seller:
Pressen Haas

Country:
Germany

DESCRIPTION

Pressure total: 250 ton
Ram stroke: 70 / 250 mm
Slide adjustment: 160 mm
Ejector in ram: 20 ton
Ejector stroke in ram: 10 mm
Shut height (stroke down, adjustment up): 520 mm
Free lateral opening F-B: 1.300 mm
Table surface area : 1.600 x 1.600 mm
Slide area: 1.600 x 1.600 mm
Number of strokes: 0 - 50 s.p.m.
Required power: 33 kW
Height over floor approx.: 5.500 mm
Weight of machine approx.: 58 ton
Roll feeder Material width: 1250 mm
Material thickness: 0,3 - 1,6 mm

+ request more information
