Manufacturer:
Model:
Description:
x-way 2500 mm
y way 1000 mm
z-way 1100 mm
Or
Manufacturing origin Swiss<br> Voltage 400V/50Hz/3ph<br> Netweight 1700 kg<br> Dimensions 170x195x220 cm<br> Custom position 8459.6120<br> TECHNICAL DATA (standard execution)<br> Longitudinal slide, X-axis, travel 250 mm<br> Cross slide, Y-axis, travel 200 mm<br> Vertical slide, Z-axis, travel 300 mm<br> A-axis, indexing 360°<br> B-axis, pivoting 110°<br> Rapid feed 30 m/min<br> Feed power X, Y, Z-axes 3700 N<br> Precision, resolution X, Y, Z-axes 0,001 mm<br> A, B-axes 0,001°<br> Spindle HSK E40 with integrated motor 30000 min-1<br> Power at 100 % 10 kW<br> Central lubrication, tank cap.
2,7 L<br> Pneumatic 6 bar<br> Air lubrication, tank cap.
0,04 L<br> Hydraulic, nominal pressure 100 bar<br> Tank cap.
11 L<br> Spindle cooling, tank cap.

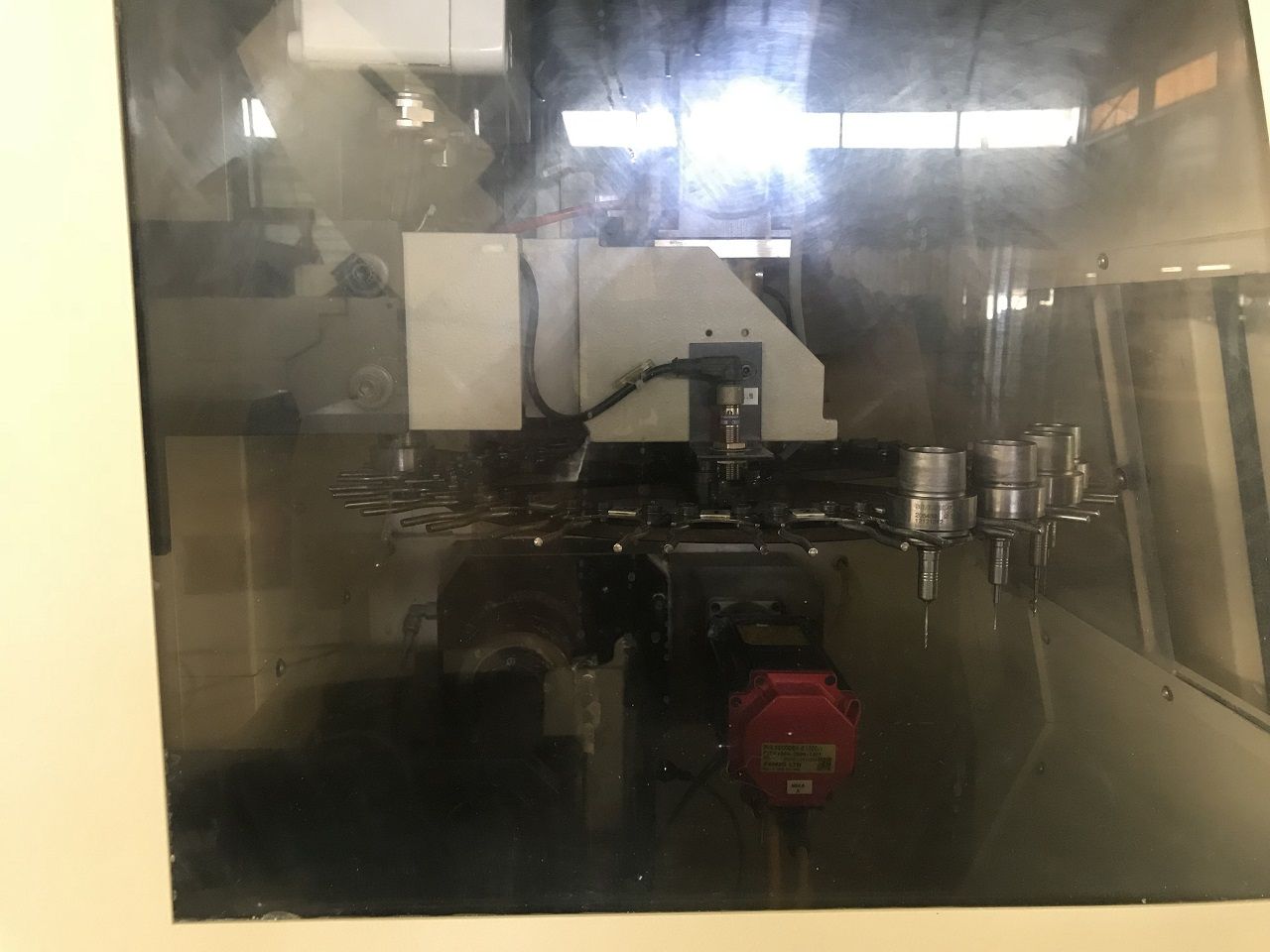

4 L<br> Installed power 18 kVA<br> Changeur d’outils magazine 24/48 tools<br> Chips collecting vat <br> errors and omissions excepted-data given without obligation<br>
