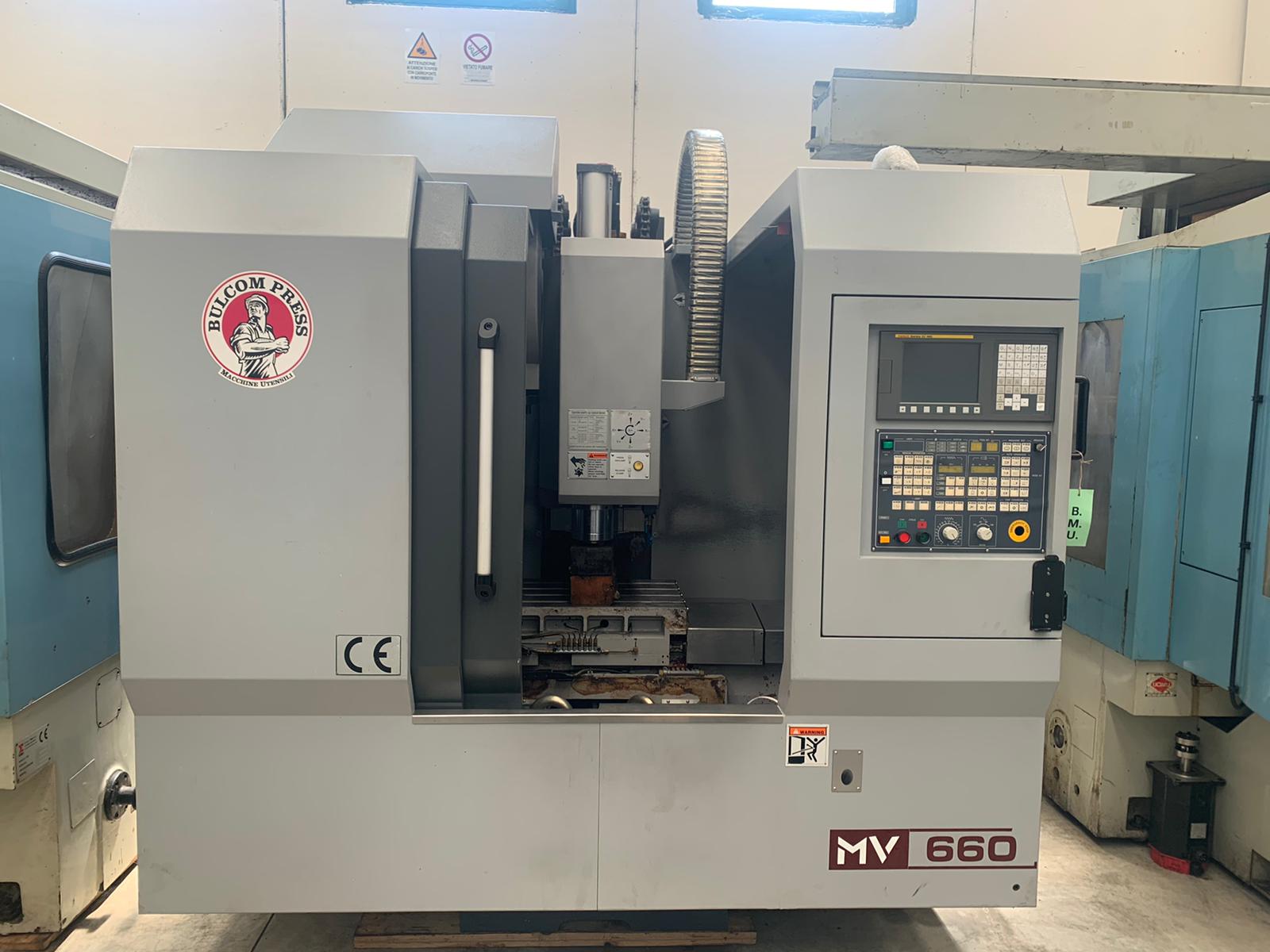

BULCOM
08438
BOX GUIDEWAY

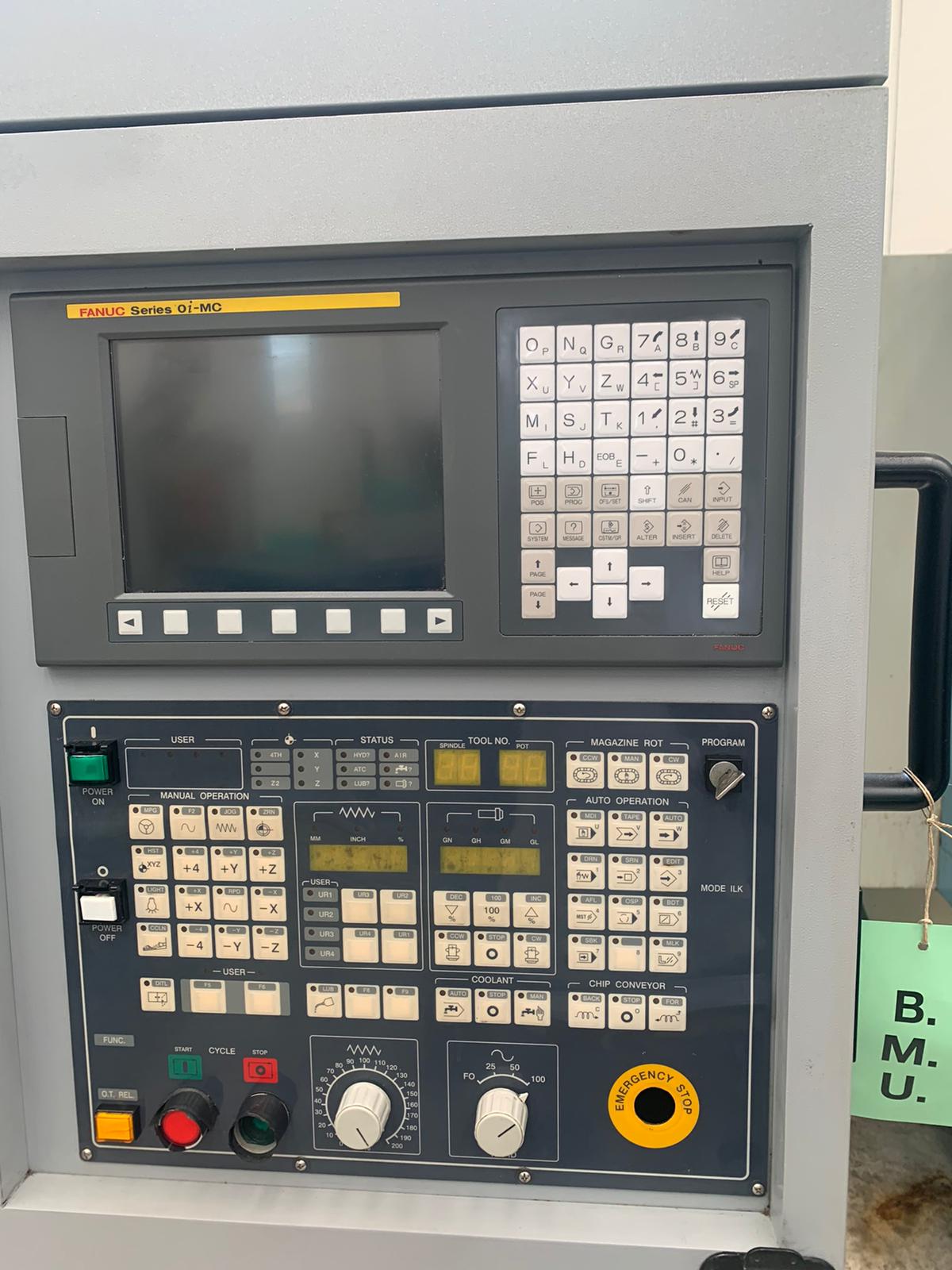

CNC FANUC Oi-MCwith hand-wheel
TABLE:
Table dimensions mm 800x450
T-slots (dimensions and number) mm 18x4Tx100
Max load admitted Kg 500
STROKES:
Axis X mm 660
Axis Y mm 480
Axis Z mm 510
Distance between spindle and table from mm 200 to 650
Distance spindle axis/column guides mm 520

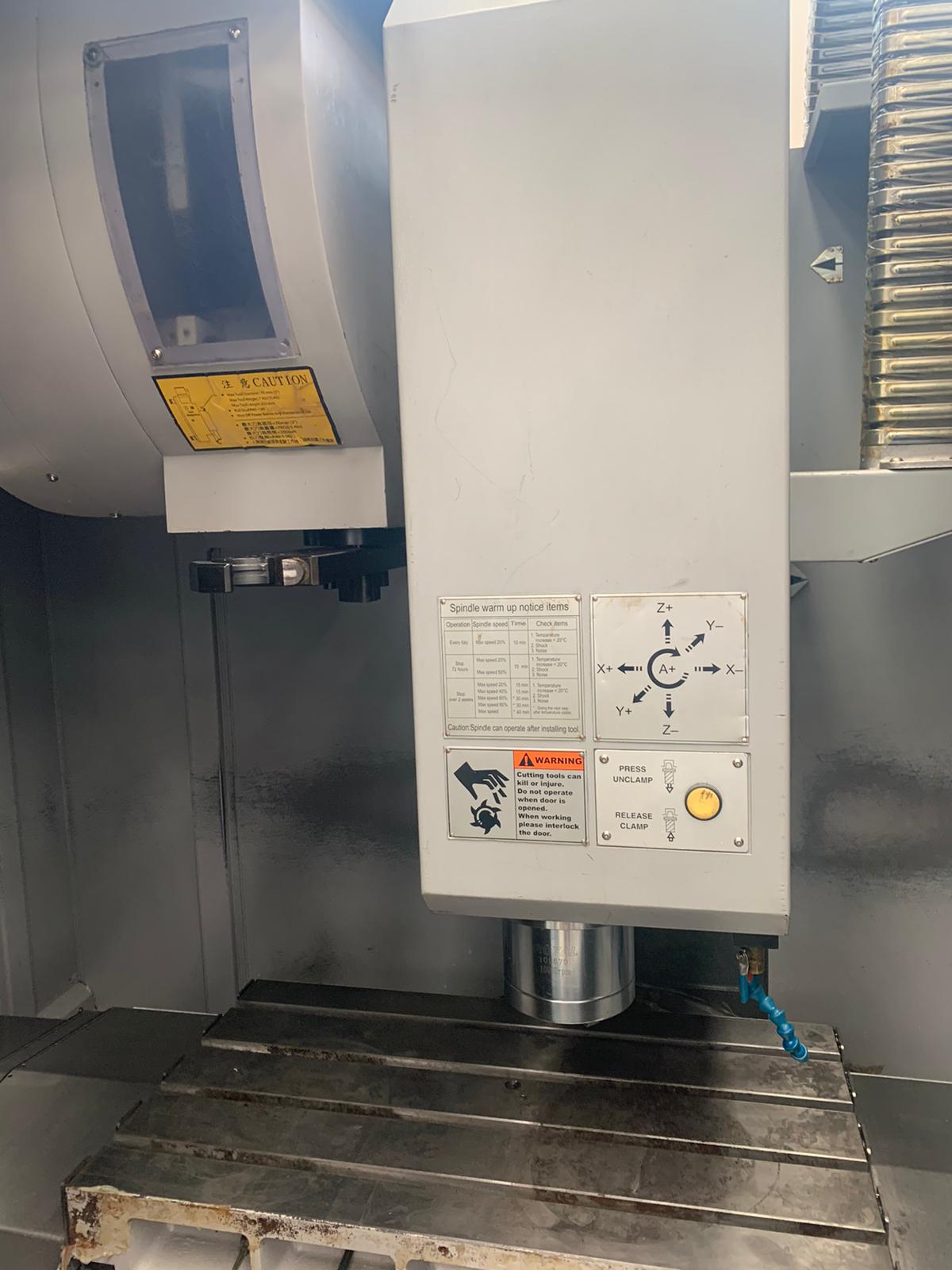

SPINDLE:
Spindle cone BT 40
Spindle speed rpm 10.000
Spindle motor power kW 5.5

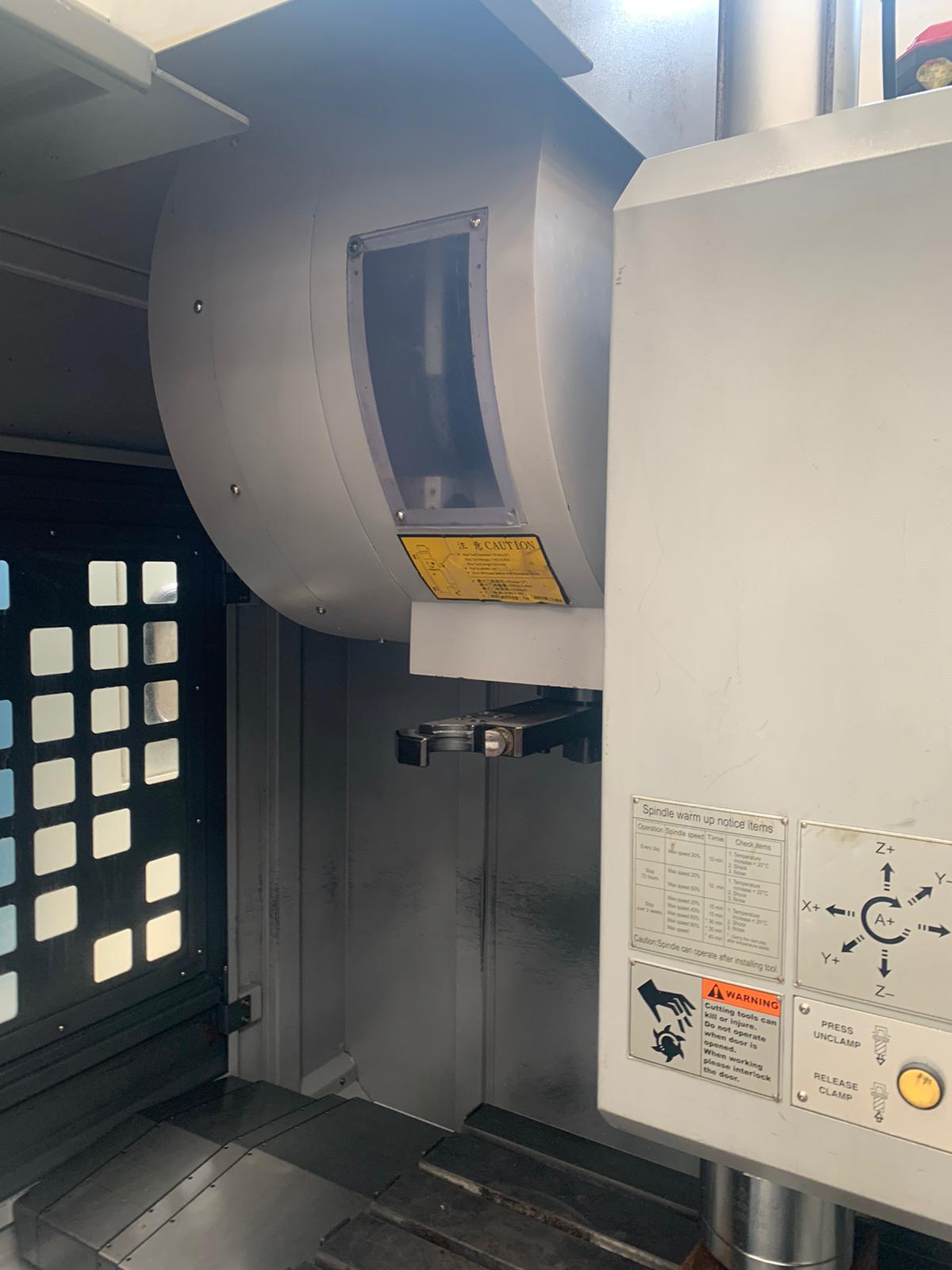

TOOLS MAGAZINE:
Tool change 24 positions
Max tool diameter x lenght mm 100x250
Max tool weight Kg 7
Tool taper BT 40
EQUIPPED WITH:
-High pressure through spindle

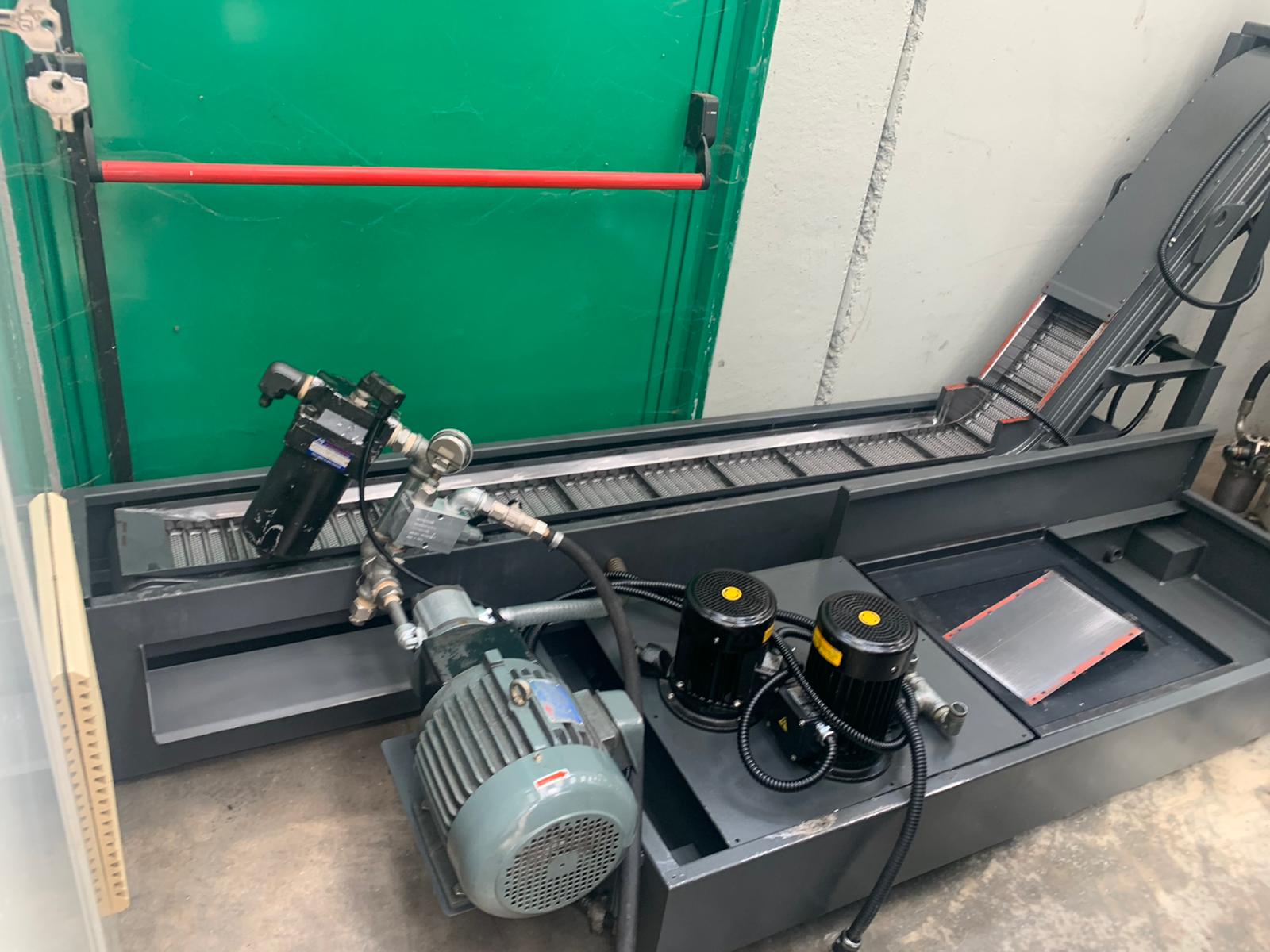

-Chip conveyor
USED MACHINE
YEAR 2008
CMT
08739
CNC VIDEU NC 916
Distance between center mm 2000
Height of center mm 300
Spindle bore mm 105
Spindle taper Type Camlook
EQUIPPED WITH:
Self-centring chuck PINTO double guideway
Multifix turret with toolholder
USED MACHINE
SCHIESS
08432
CNC ECS 1400
Max turning diameter mm 1000
Spidle diameter 3 jaws mm 800
Spindle speed n.8 11,2-355 Rpm
Main motor power 30 Hp
Turret 5 position
Vertical stroke mm 600
USED MACHINE
CAGLIO
06715
Cutting pressure ton 35
Adjustable stroke mm 10-80
Table mm 610x420
Max distance between table and ram mm 300
Strokes per minute 120
Absorbed power HP 3
Approx. weight Kg 1700
USED MACHINE
