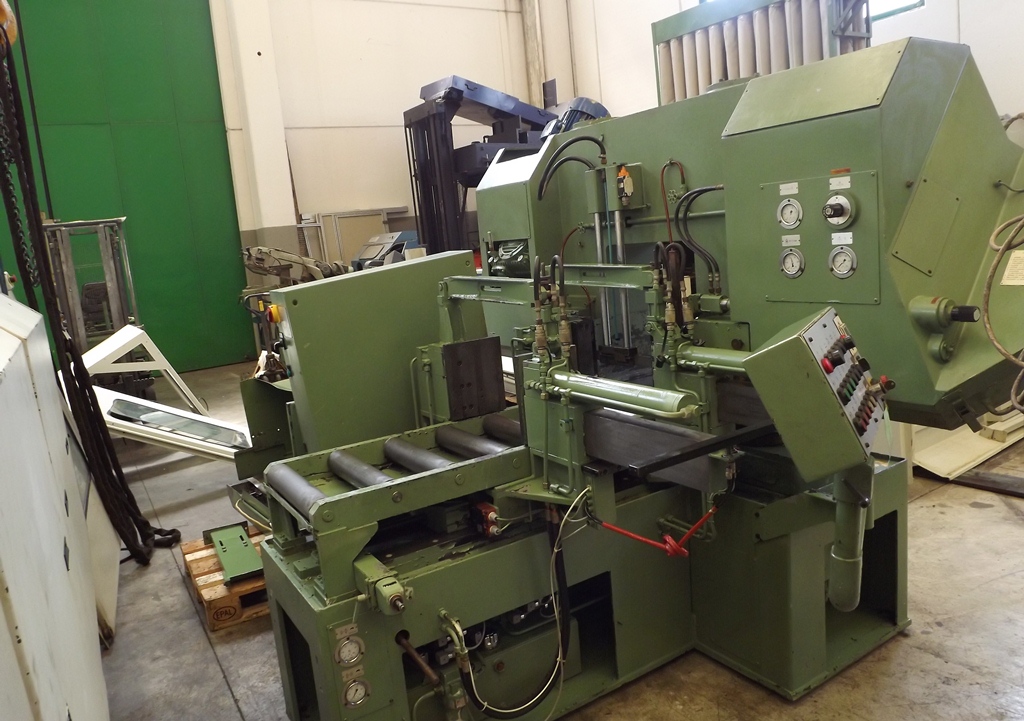

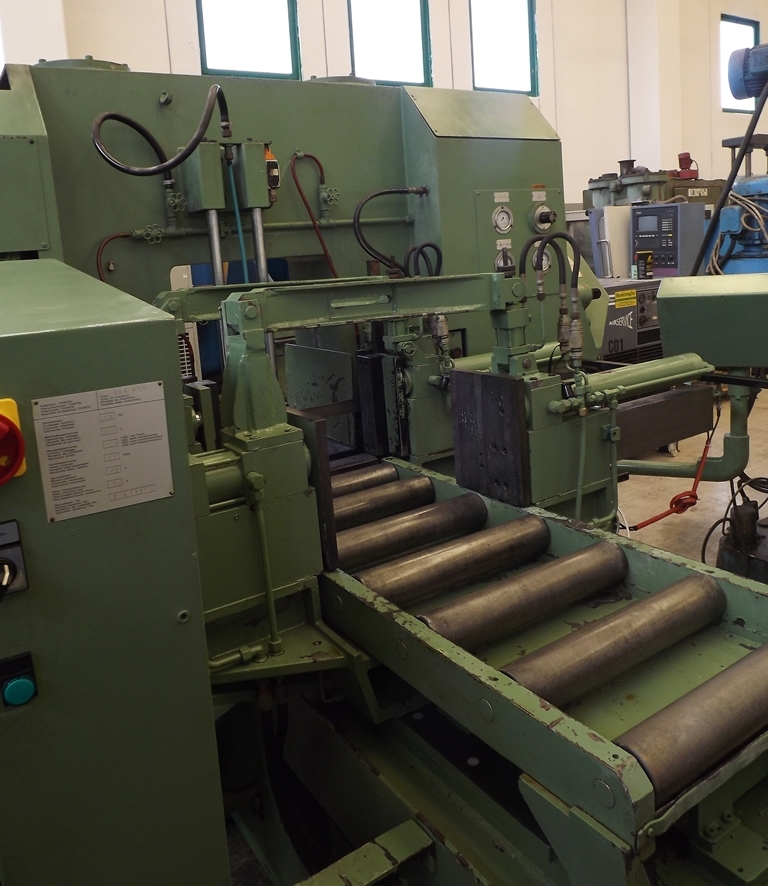

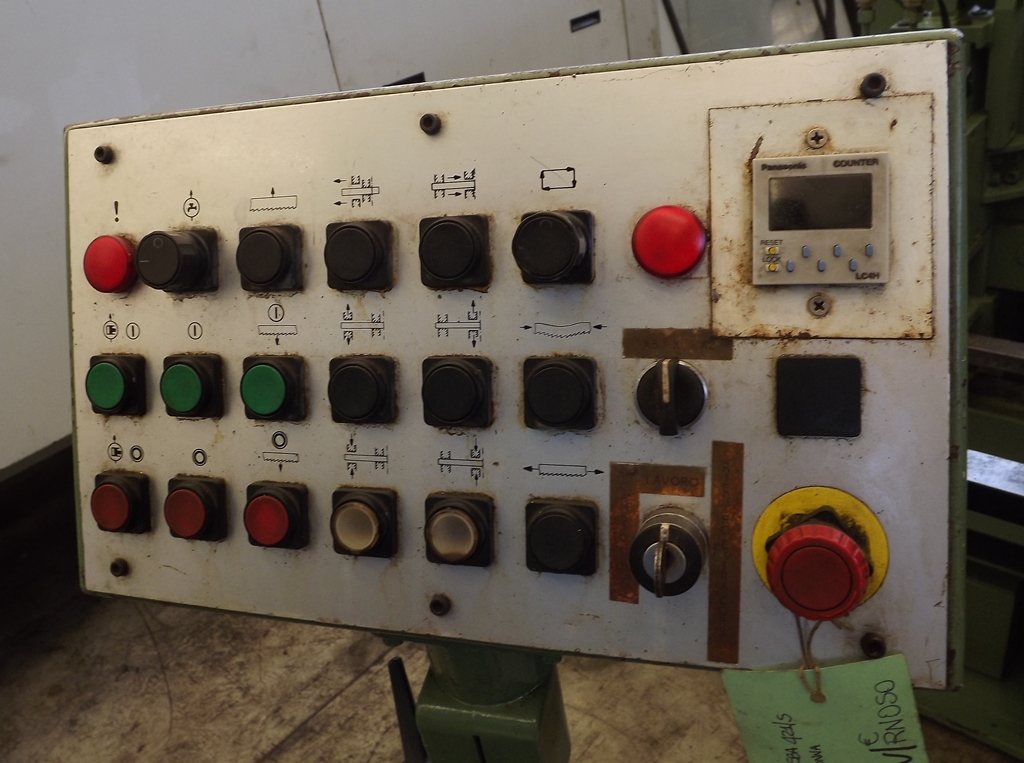

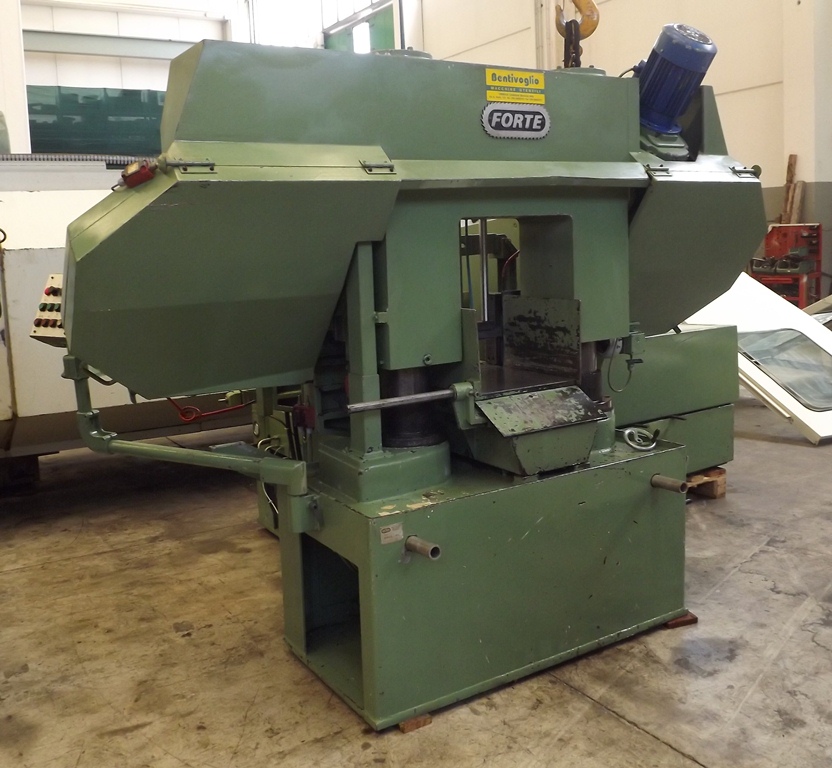

FORTE
06115
AUTOMATIC, DOUBLE COLUMN
Height working table mm 900
Blade size mm 6050 x 41 x 1,3
Blade guide - synchronous to the morse
Blade pulley diameter mm 720
Blade twisting 50°
Blade tension N 24000
Piece tension N 4800 - 9600
Clamping width mm 10 - 420
Automatic cutting lenght single feedrate mm 4 - 600
Automatic cutting lenght multiple feedrate mm max 10 x 600
Cutting angle 90°
Cutting speed:
-with switch in position I m/1' 12 - 50
-with switch in position II m/1' 24 -100
Hydraulic system:
-Pressure bar 50
-Rotation pump load l/min 28
Lubricant coolant l 100
Hydraulic oil tank l 54
net weight machine kg 3600
USED MACHINE
DOOSAN
09613
TAILSTOCK
LIVE TOOLS
Y-AXIS
CNC FANUC 18iTB
CAPACITY:
Max diameter on the bed mm 600
Max diameter on the carriage mm 550
Max turning diameter mm 330
Max length mm 500
Bar diameter mm 76
Max piece weight kg 220
Max piece weight with tails...
CMT
06727
CNC SIEMENS SINUMERIK
Height of center mm 350
Diameter over the bed mm 695
Max diameter over the carriage mm 460
Distance between center mm 2000
Spindle nose ISO A2 n.8
Spindle bore mm 105
Axis X stroke mm 355
Axix Z stroke mm 1835
Quill di...
IMET
08437
AUTOMATIC CNC
Round cutting capacity tondo mm 320
Square cutting capacity mm 320
Rectangle cutting capacity mm 320x320
Blade motor power kW 3
Blade speed m/min 12:100
Blade dimensions mm 5320x34x1.1
USED MACHINE
