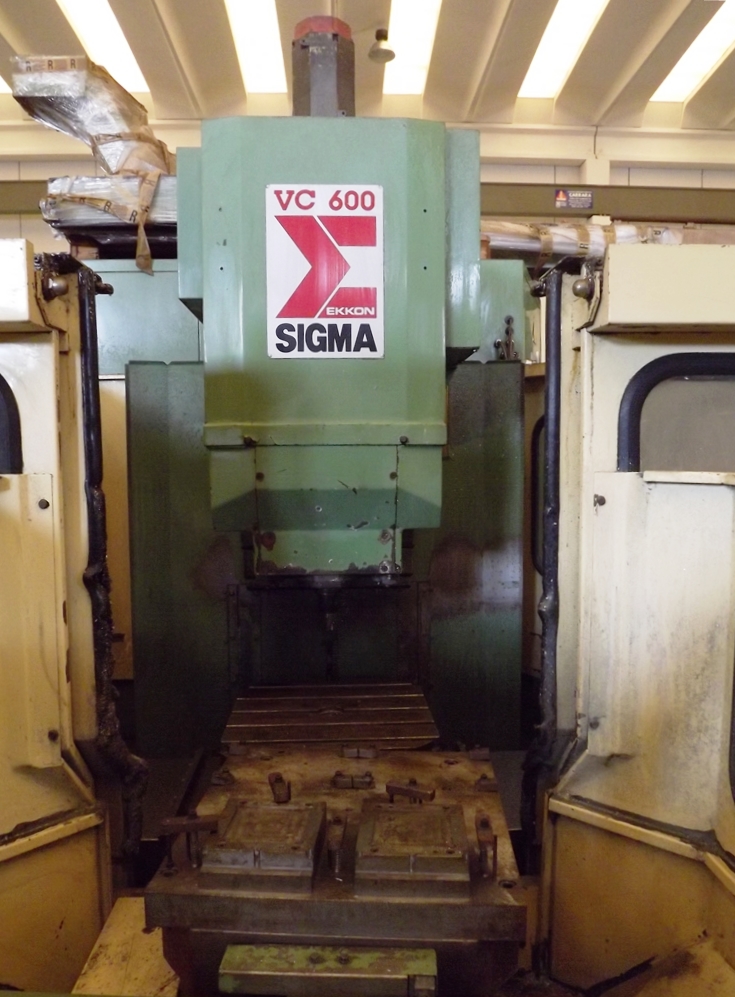

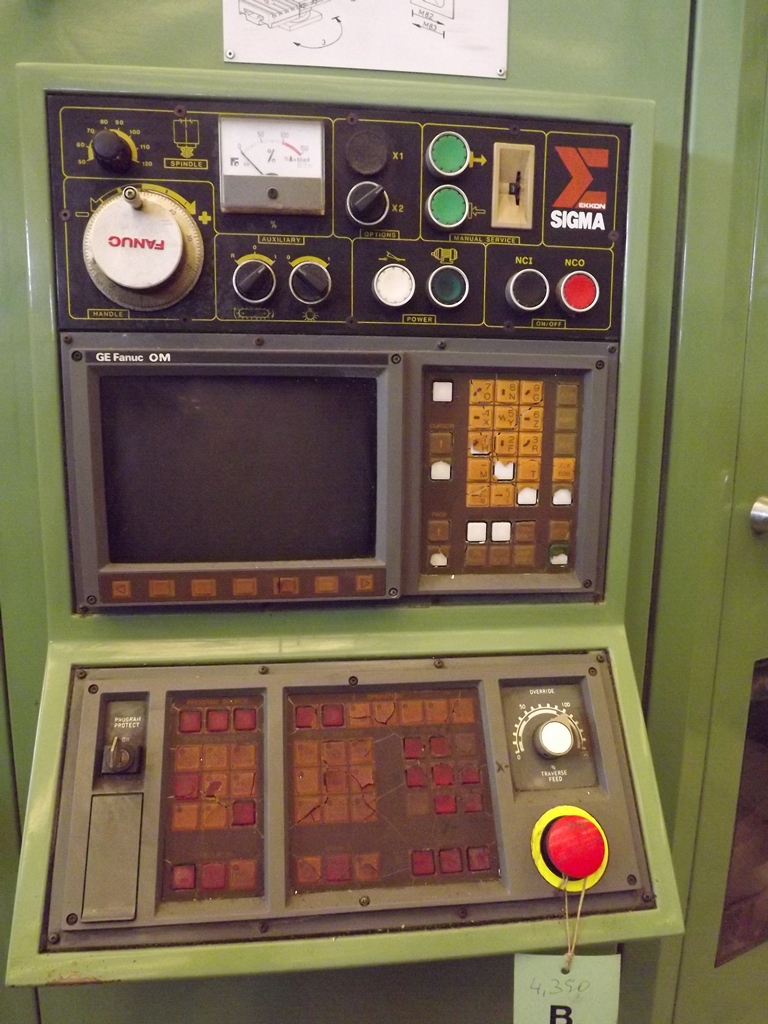

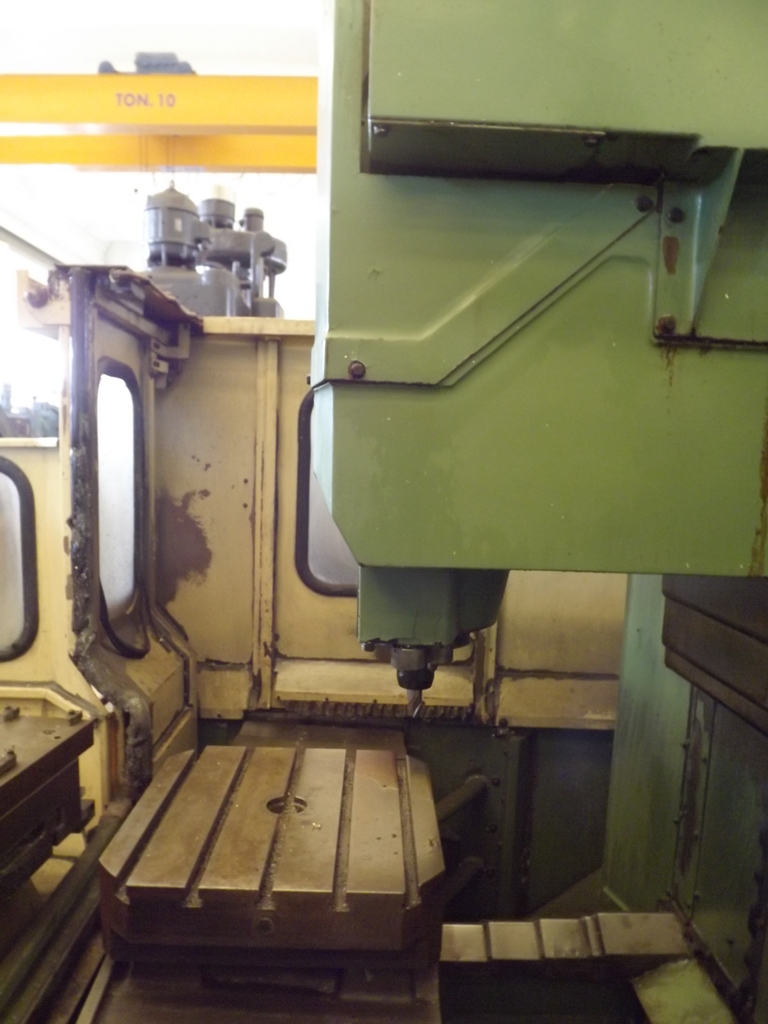

SIGMA
07519
CNC Heidenhain 530
Axis X mm 1600
Axis Y mm 810
Axis Z mm 630
Table dimensions mm 1400x800
Tool change 40 positions - ISO 40
Spindle taper ISO 40
Spindle speed 15.000 rpm
EQUIPPED WITH:
Chip conveyor
Handwheel remoted
USED MACHINE
FAMUP
07892
Max diameter mm 40
Taper CM 4
Quill stroke mm 130
Working plane mm 500x450
Approx. weight Kg 460
Approx. overall dimensions mm 1000x600x1900
USED MACHINE
COMINI
06799
Min e max clamping diameter mm 14-90
Min e max diameter of collar mm 14-65
Max diameter facing and centering mm 110
Min worklenght with 2 vices mm 80
Diameter of inserted tooth cutters mm 140
Cutting speed m/min 140
Speeds of centering s...
