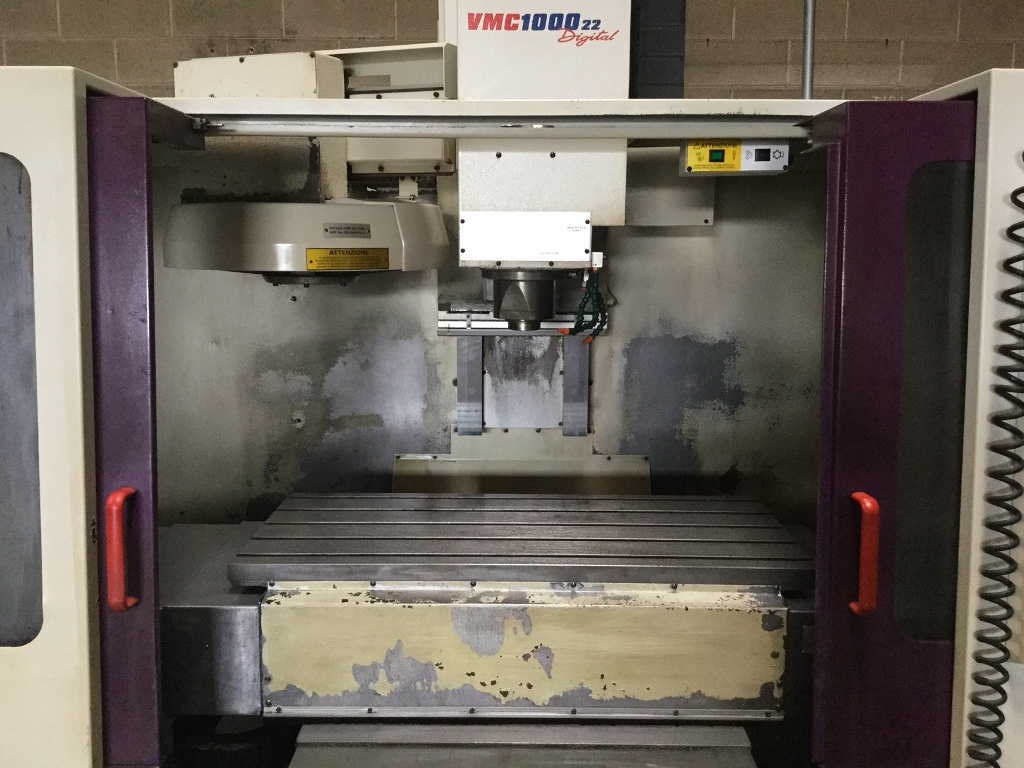

BRIDGEPORT
07020

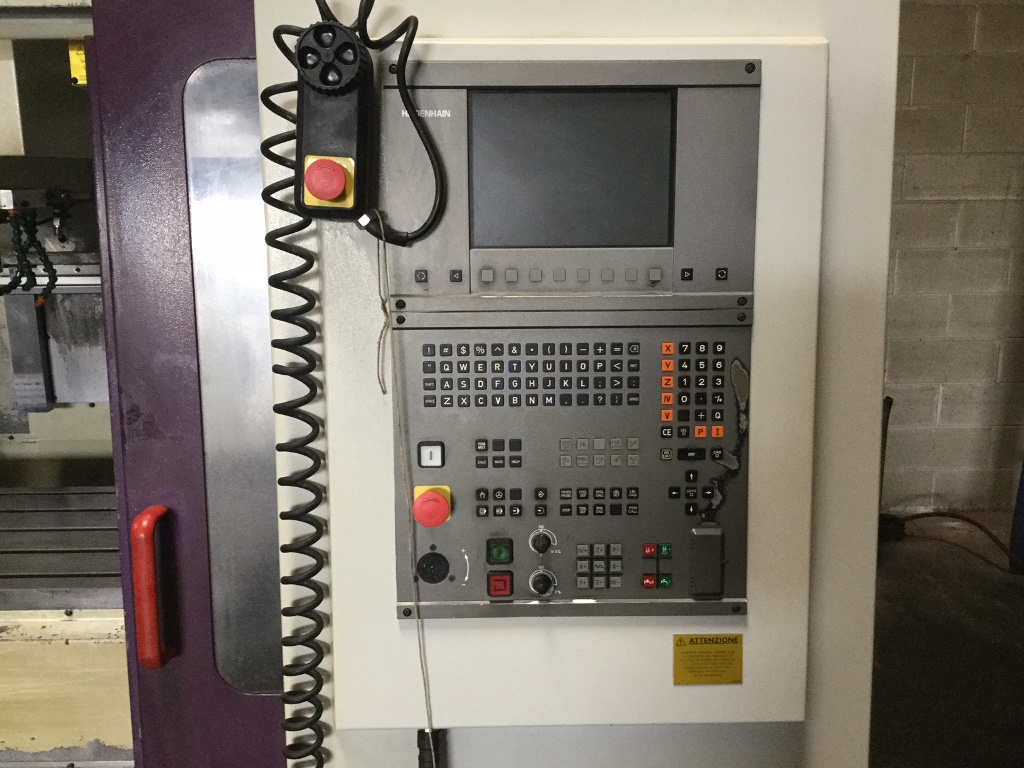

CNC HEIDENHAIN TNC 410P
TABLE:
-Table dimensions mm 1150x490
-Max load Kg 900
STROKE:
-Axis X mm 1020
-Axis Y mm 510
-Axis Z mm 600
-Rapid axis X e Y m/min 40
-Rapid axis Z m/min 25
SPINDLE:
-Motor power kW 11
-Motor speed rpm 40-6000
-Spindle taper BT 40
TOOL CHANGE:
-Capacity 22 tools
-Max tool weight Kg 6
-MAx tool lenght mm 250
-Max tool diameter (with utensili adiacenti) mm 75
-Max tool diameter (without utensili adiacenti) mm 130
-All tools max weight Kg 66
OVERALL DIMENSIONS AND WEIGHT:
-Total power kVA 20
-Lenght mm 2830
-Width mm 2160
-Height mm 2740
-Weight Kg 3800
EQUIPPED WITH:
-Chip conveyor
USED MACHINE
TRAUB
09836
LIVE TOOLS
CNC TRAUB SYSTEM TX 8F
Turning length 800 mm
Turning diameter over bed 480 mm
Turning diameter over cross slide 240 mm
Bar passaging 65 mm
Tailstock quill diameter 85 mm
Tailstock quill stroke 140 mm
Tailstock quill cone MK5
Tu...
YOU JI
10092
YOU JI HMC 1200-BP
Numerical control Fanuc Series 18i-MB
X-axis mm 1800
Y-axis mm 1500
Z-axis mm 1500
W-axis mm 700
B-axis 360° (0.001°)
No 02 Pallets with automatic pallet changer
Dimensions mm 1200 x 1400
T-slots mm 22x9
Max table lo...
DOOSAN
08140
CNC FANUC serie i
STROKES:
Axis X mm 2160
Axis Y mm 762
Axis Z mm 650
TABLE:
Table dimensions mm 2160x760
Max table load Kg 1800
SPINDLE:
Spindle taper ISO 40
SPindle speed rpm 12000
Spindle motor power Kw/HP 18.5/15
TOOL CHANGE:
Tool c...
