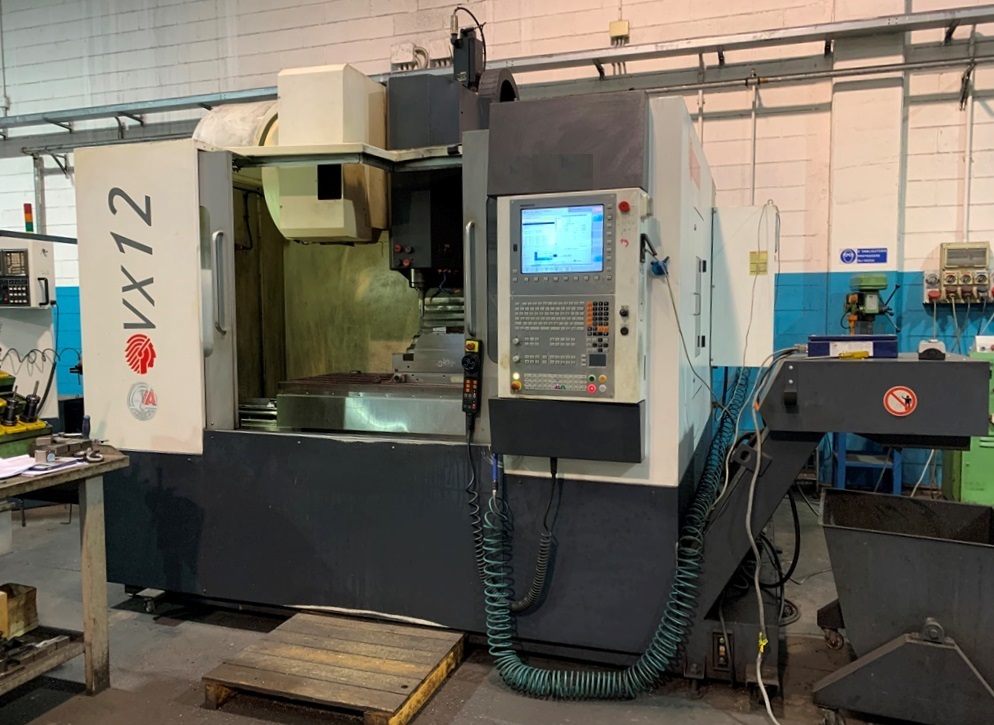

HURON
09623

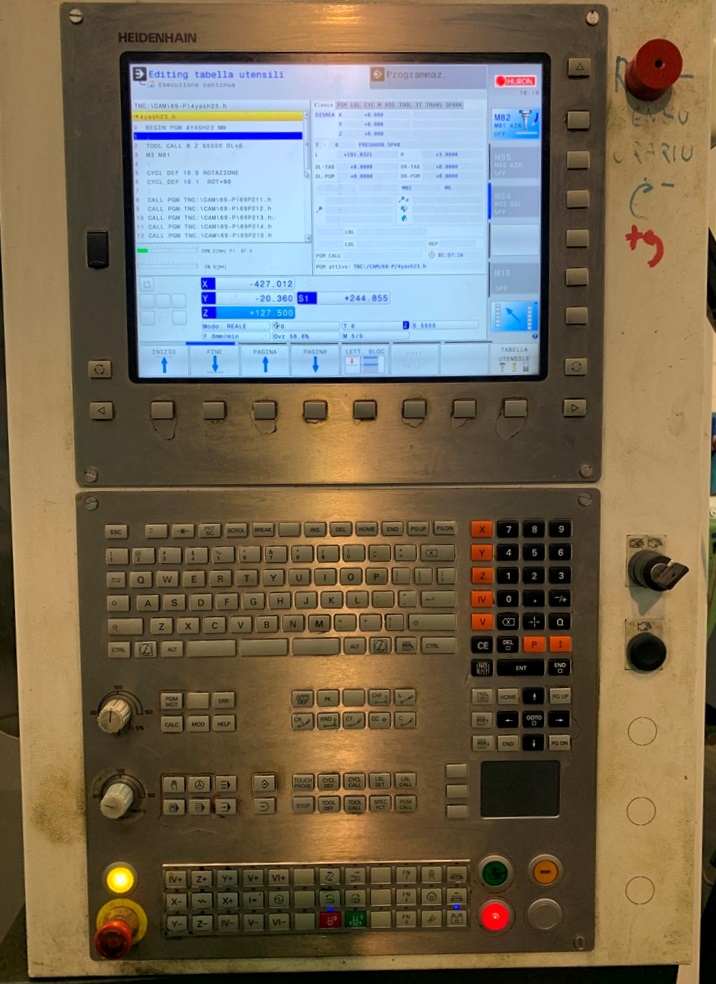

CNC HEIDENHAIN TNC 620

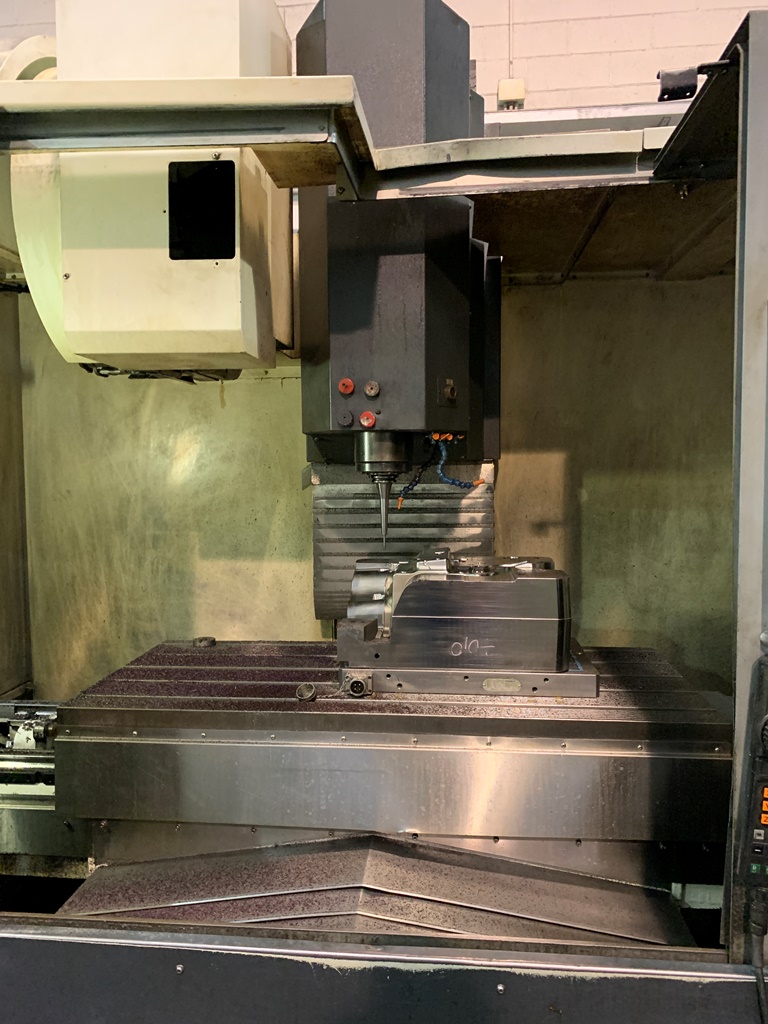

TABLE:
Table dimensions mm 1400x630
T-slots mm 5x18x125
Max table load Kg 1200
CAPACITY:
Axis X stroke mm 1220
Axis Y stroke mm 600
Axis Z stroke mm 610
SPINDLE:
Spindle taper ISO 40
Spindle speed rpm 10.000
Spindle power (30 min.) kW 10,5/14,5
AUTOMATIC TOOL CHANGE:
Tools number 20
Max tool diameter mm 80/125
Max tool lenght mm 250
max tool weight Kg 7
MACHINE WEIGHT AND DIMENSIONS:
Weight Kg 7700
Overall dimensions approx. mm 2900x2600x3500
EQUIPPED WITH:
-Internal refrigeration
-Vibration monitoring on electro-spindle
-Chip conveyor
-M&H KIT tool+piece probe
-Air from the center
-Air nozzles
-Ethernet
USED MACHINE
YEAR 2015
IMSA
09970
Maximum drilling depth in single cycle - V axis: 1.000 mm
Column, longitudinal movement - X axis: 1.250 mm
Drilling slide, vertical movement - Y axis: 1.000 mm
Drilling slide, piece support stroke - W axis: 500 mm
Maximum axis feed rate: 1...
MEP
08421
AUTOMATIC CNC
-0 degrees round mm 260, square mm 230, rectangle mm 330x230
Blade dimensions mm 3150x25,4x0,9
Cutting speed mt/min 40/80
Motor power 1,8/1,5 Kw
Approx. overall dimensions mm 2460x2020x1790H
Approx. weight Kg 1220
USED MACHINE
NAKAMURA TOME
New04395
CNC FANUC 16 T
Swing over guideways mm 500
Max swing over:
-upper turret mm 330
-lower turret mm 165
Max turning lenght:
-upper turret mm 832
-lower turret mm 782
Distance between spindle nose and turret:
-upper turret min/max ...
FAMUP
09206
CNC SELCA 3045
STROKES:
X axis (Iongitudinal) 1200 mm
Y axis (transversal) mm 600
Z axis (vertical) mm 600
TABLE:
Dimensions 1380x620 mm
Max table capacity Kg 800
SPINDLE:
Cone DIN 69871 ISO 40
Spindle motor power (30 min) Kw 18.5
Continu...
