MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Colchester
  • Model:
  • Mastiff 1400 80"
  • Condition:
  • Used
  • YOM:
  • NA
  • Control:
  • Manual
  • Price:
  • £10,950 + VAT
  • Country:
  • United Kingdom

DESCRIPTION

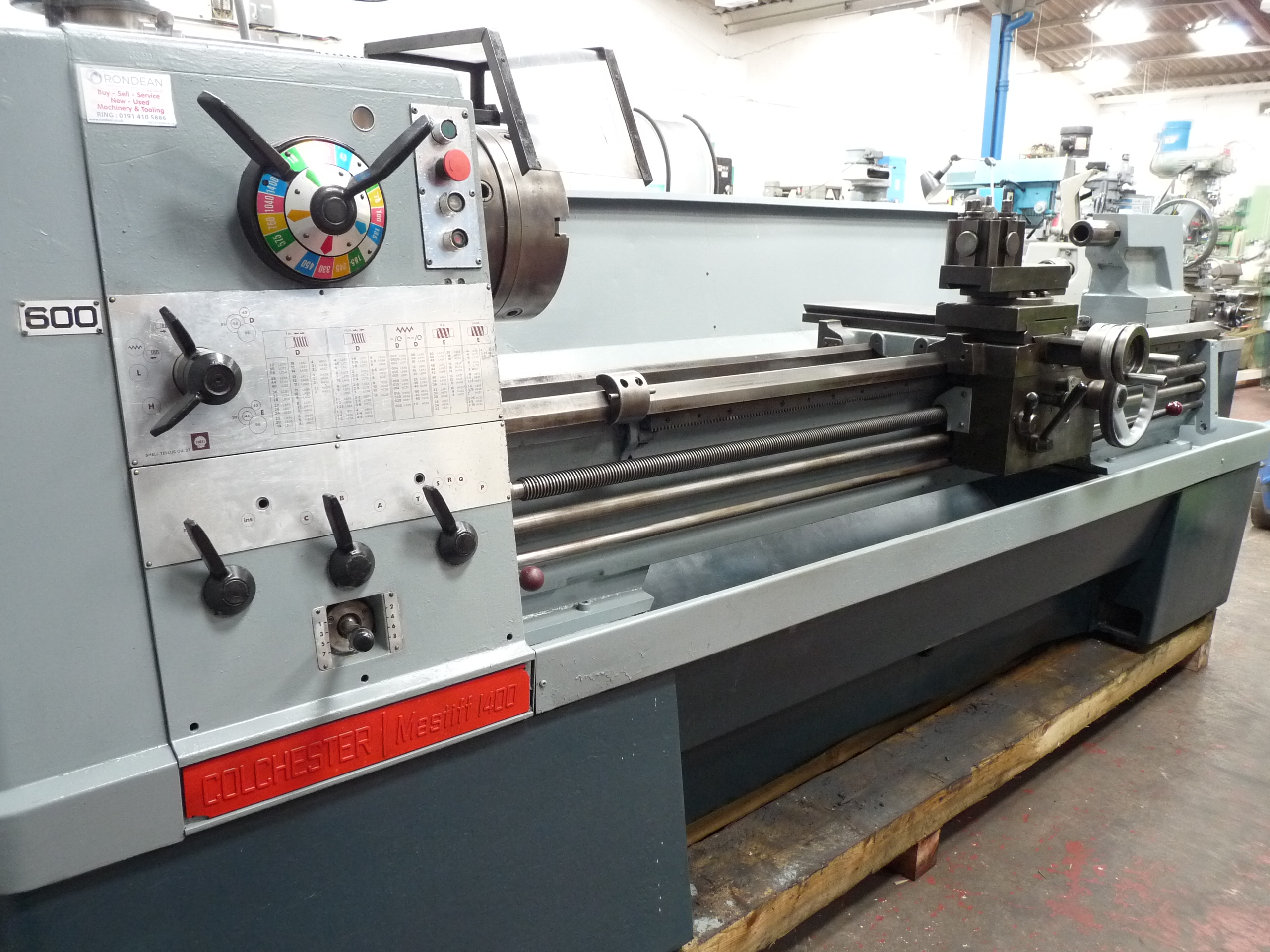

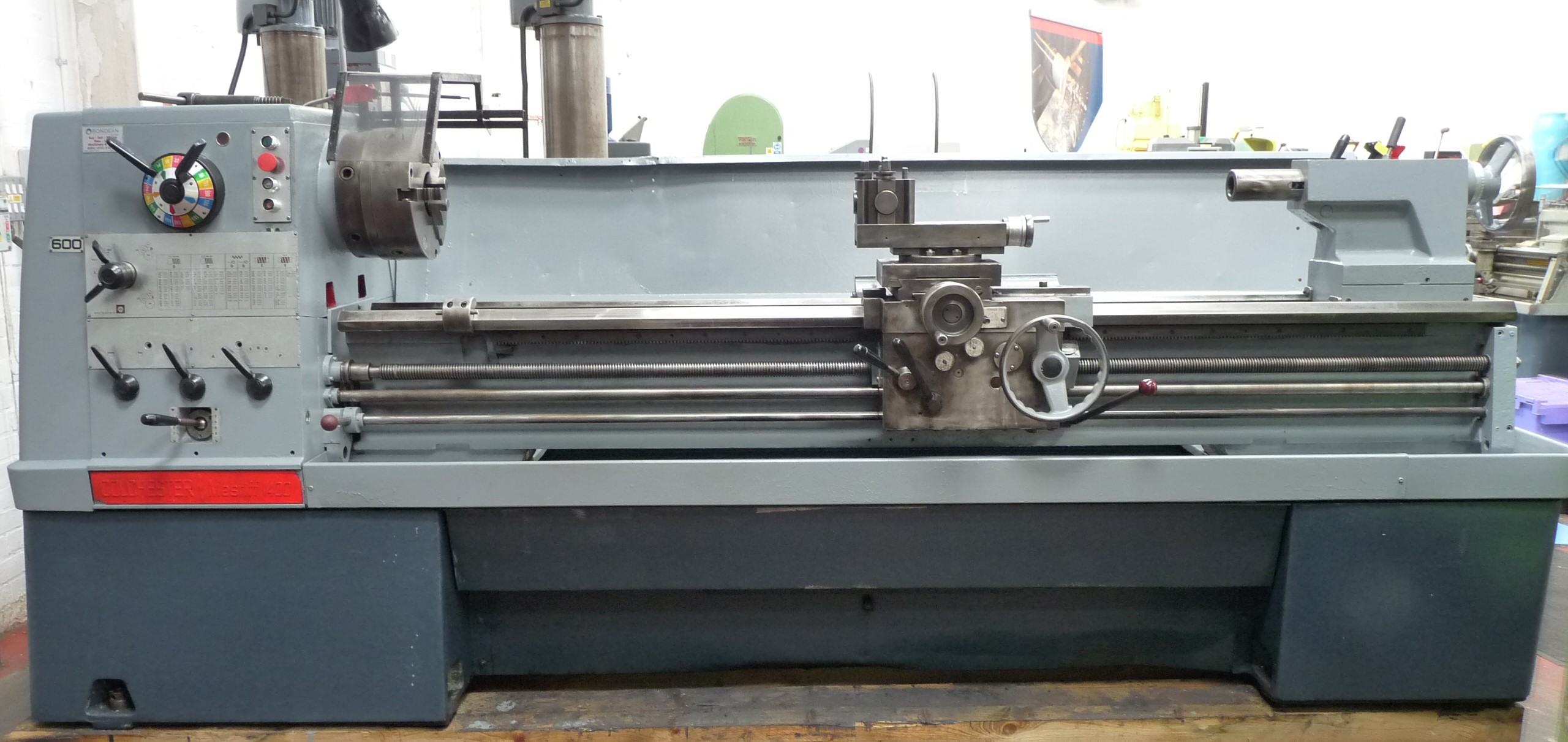

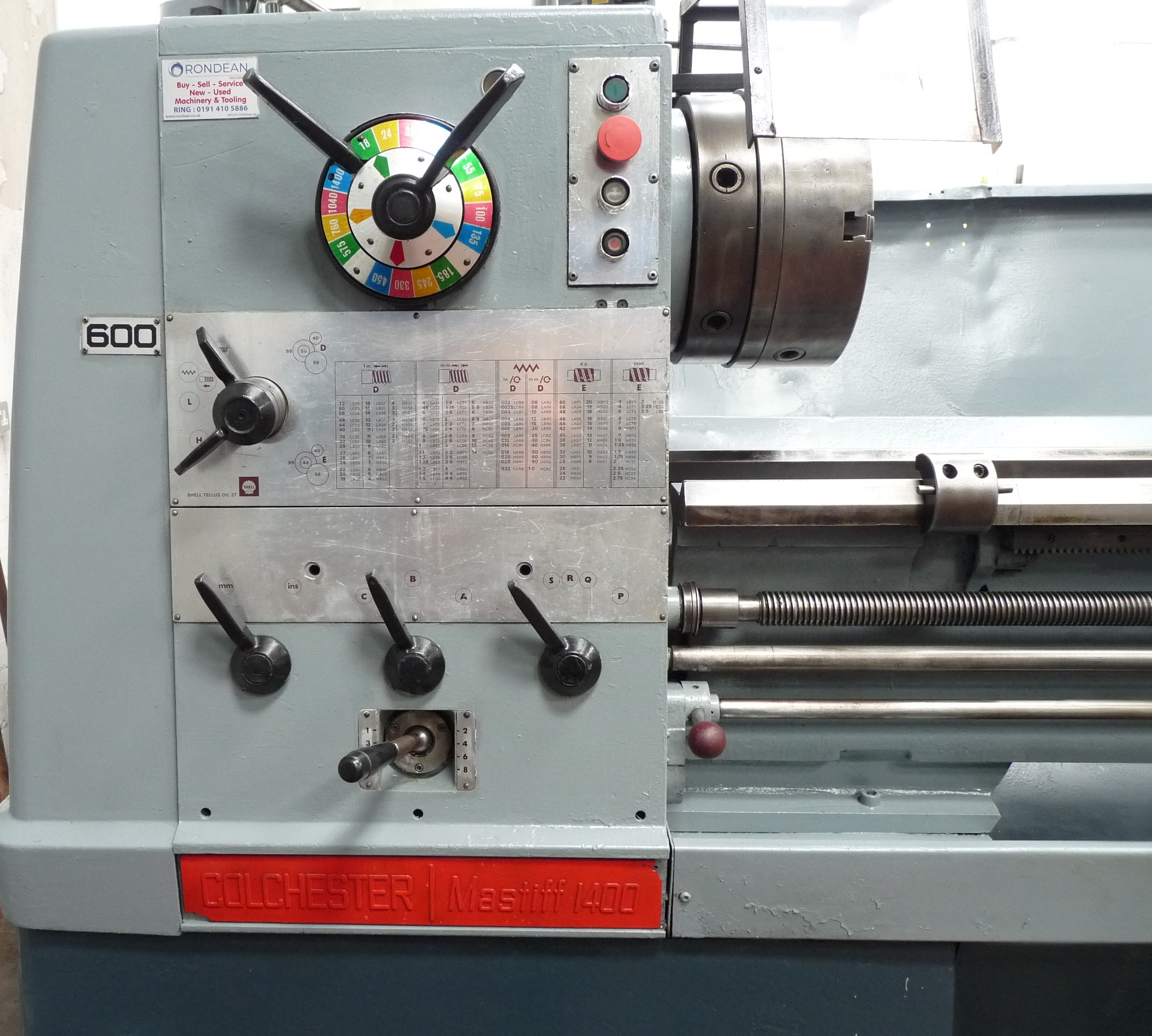

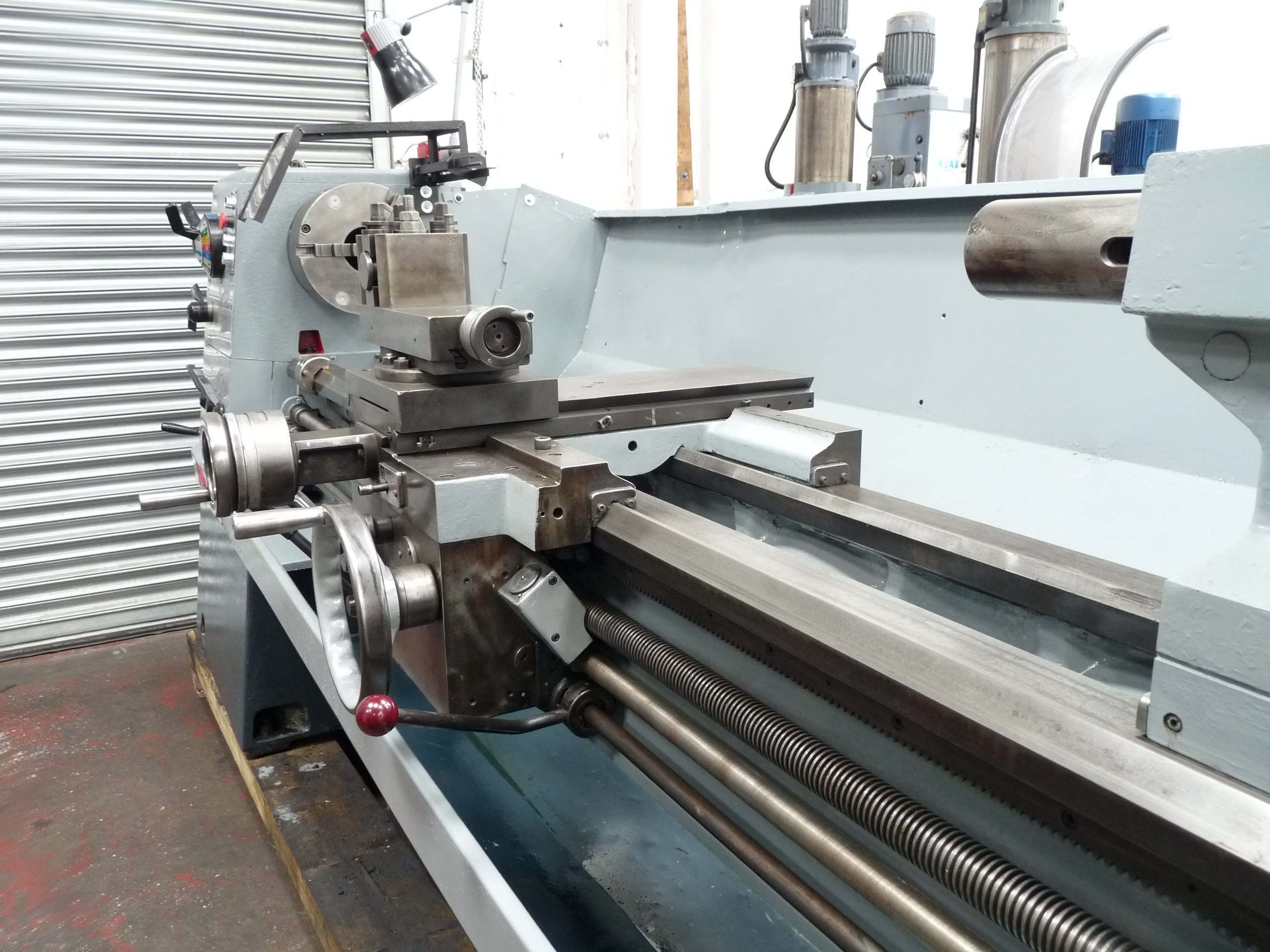

Manufacturer Colchester Model Mastiff 1400 2 metre gap bed centre lathe Distance between centres 80” (2000mm) Height of centres 10 1/2" (270mm) Swing over bed 21” (535mm) Swing in Gap 32” (815mm) Swing over cross-slide 14 ½” (370mm) Gap Piece Length 8" (200mm) Spindle Nose D1-11” Camlock Spindle Bore 3 9/16” (90 mm) Tailstock Spindle Taper 5 Morse Taper Speeds 16 of: 18-1400 RPM Equipment 3 Jaw Chuck Quick Change Tool Post 2 tool holders Coolant Dual Dials Low Volt Lighting Motor Size 12 ½ Horse Power (9.3 kW) Power Three Phase Electric's Approx Dimensions 3535 x 1100mm 2650kg
