MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • INIS
  • Model:
  • LATHE GEMINIS MOD. GHT 5 G2
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • N/A

DESCRIPTION

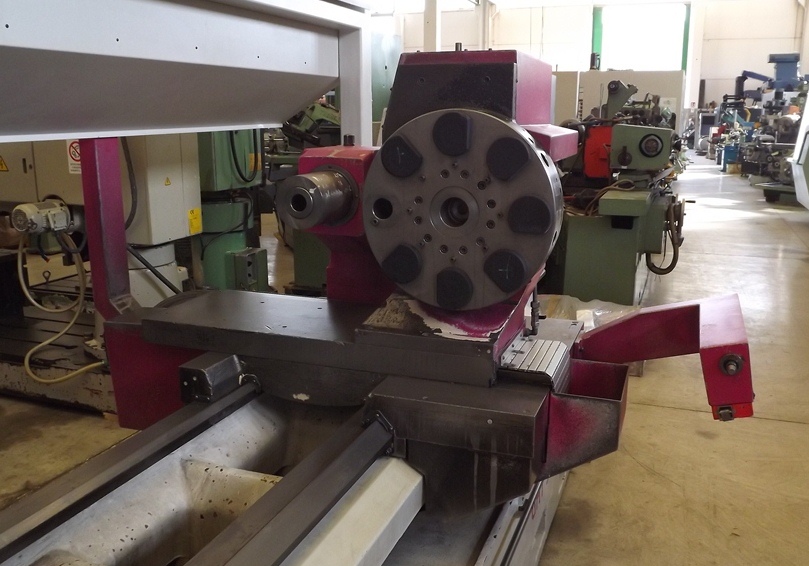

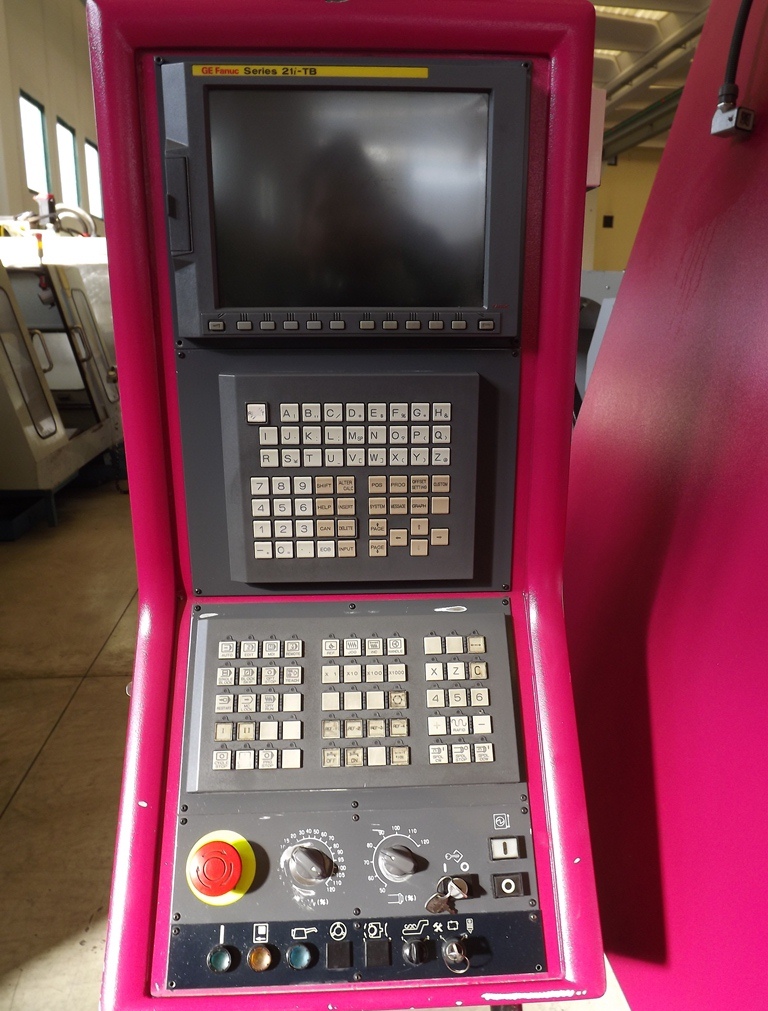

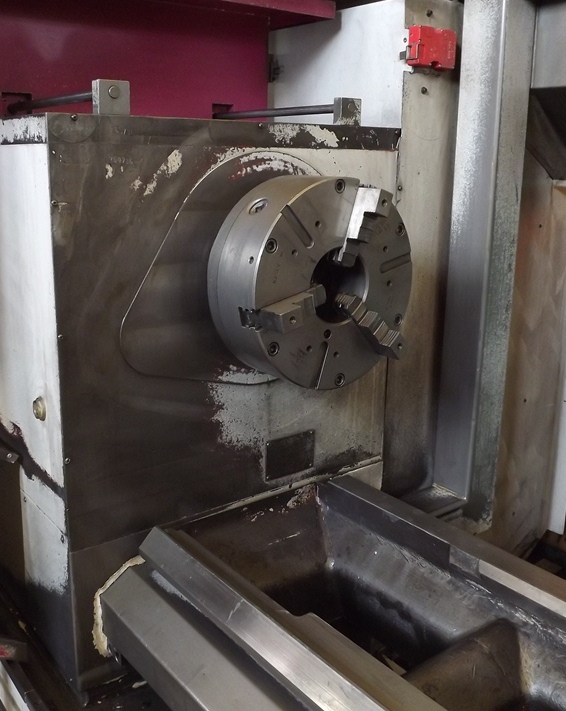

GEMINIS 06669 Controllo numerico FANUC 21iT CAPACITY: Height of center mm 500 Max diameter over cross carriage mm 680 Max diameter over the bed mm 1000 Distance between center mm 4000 SPINDLE: Spindle bore mm 104 Spindle taper DIN 55026-11 Spindle speed: -speed range 1 rpm 0:175 -speed range 2 rpm 0:350 -speed range 3 rpm 0:700 -speed range 4 rpm 0:1400 Spindle spedd motor S1/S6-60% kW 30/37,5 TAILSTOCK: Quill diameter mm 140 Quill stroke mm 300 Quill taper Metric 80 BED: Width mm 550 Height from floor to flat guideway mm 805 MAX LOAD: Max weight between center Kg 4800 EQUIPED WITH: Manual chuck diam. 400 mm Turret 8 positions with lives tools USED MACHINE YEAR 2005
