Home > Metal Cutting > Lathes (CNC and Manual) Go Back
REQUEST PRICE

MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • INIS
  • Model:
  • LEADSCREW LATHE GEMINIS TYPE GE5-1000-S
  • Condition:
  • Used
  • YOM:
  • N/A
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • Switzerland

DESCRIPTION

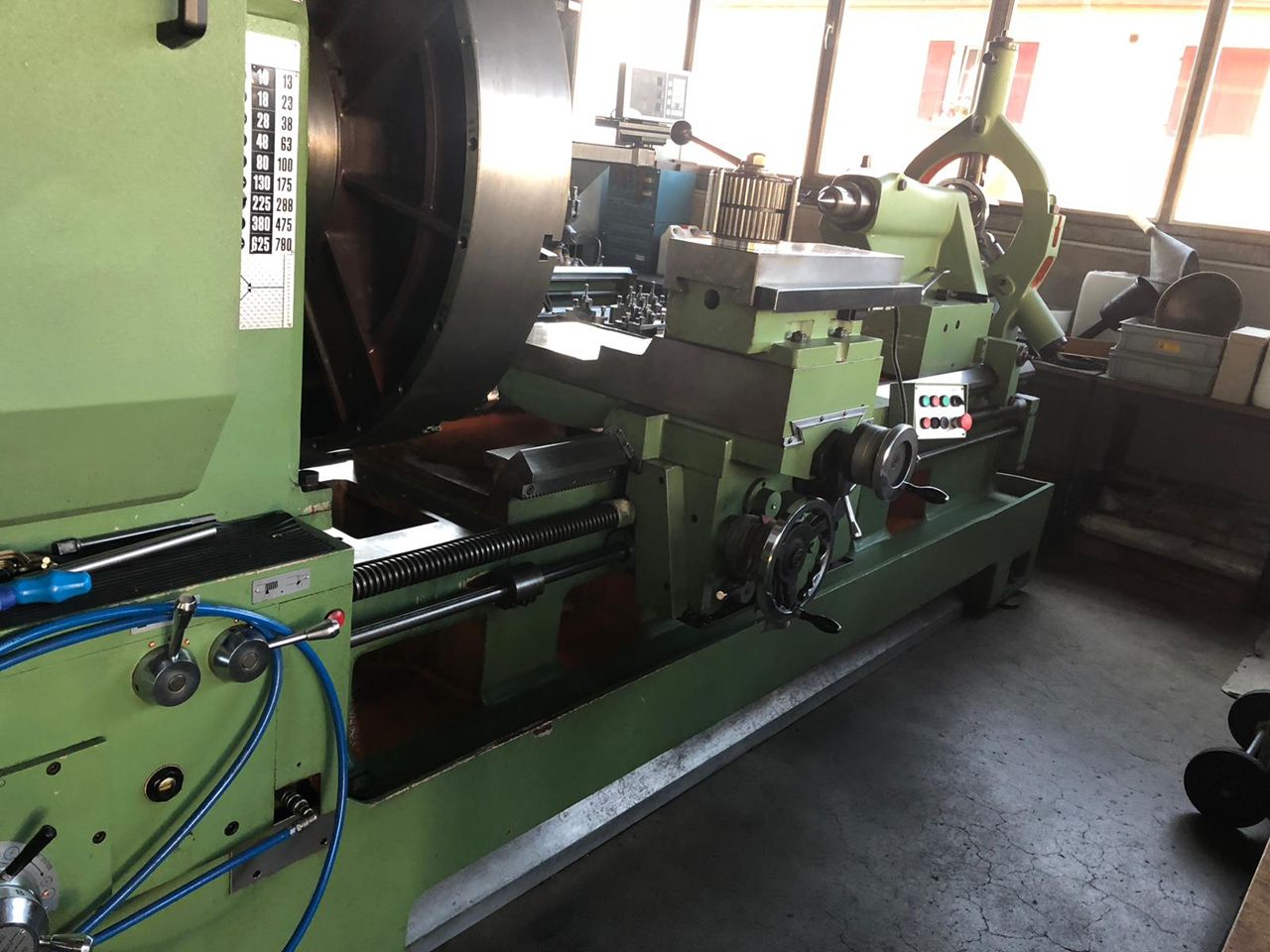

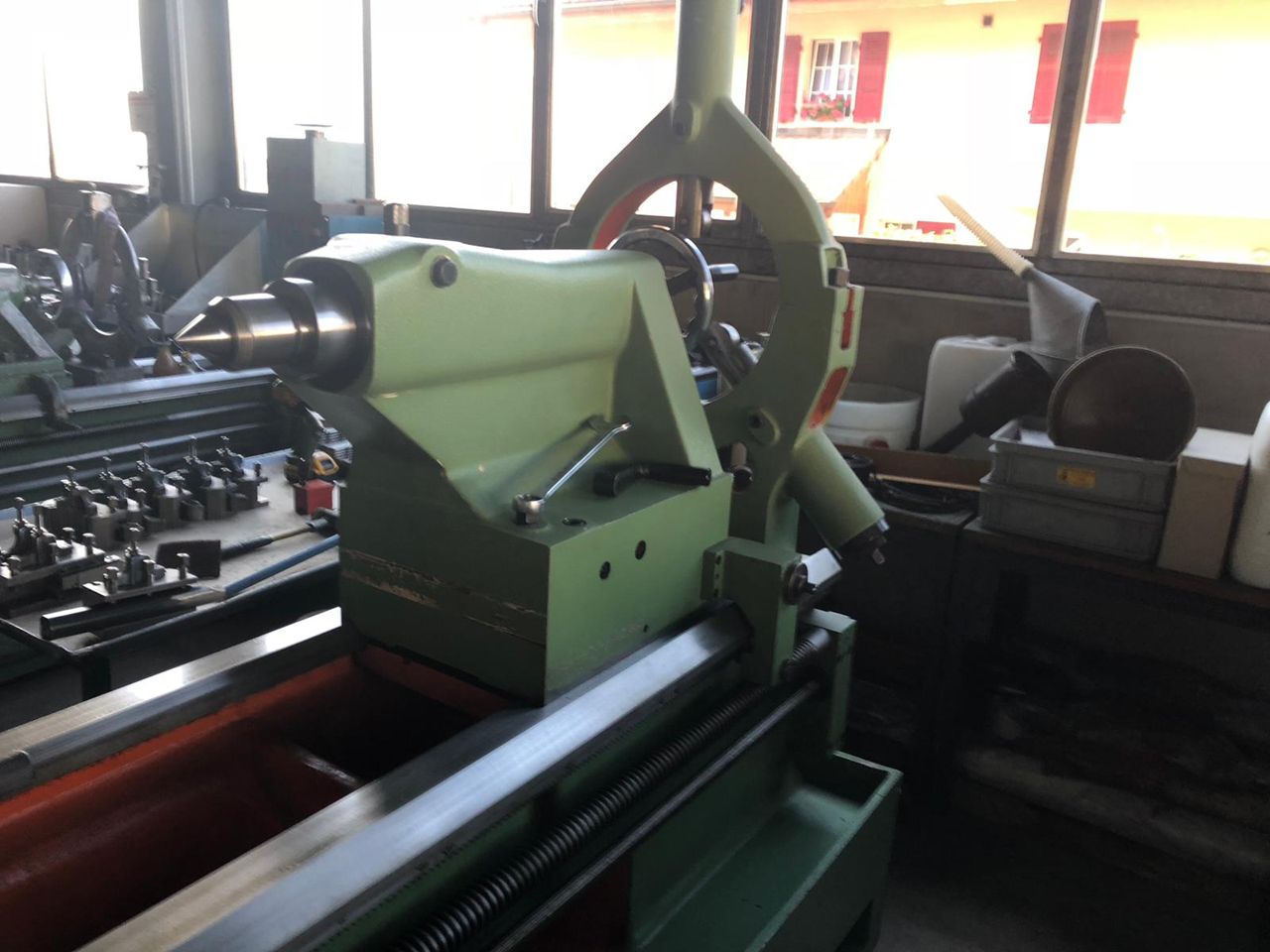

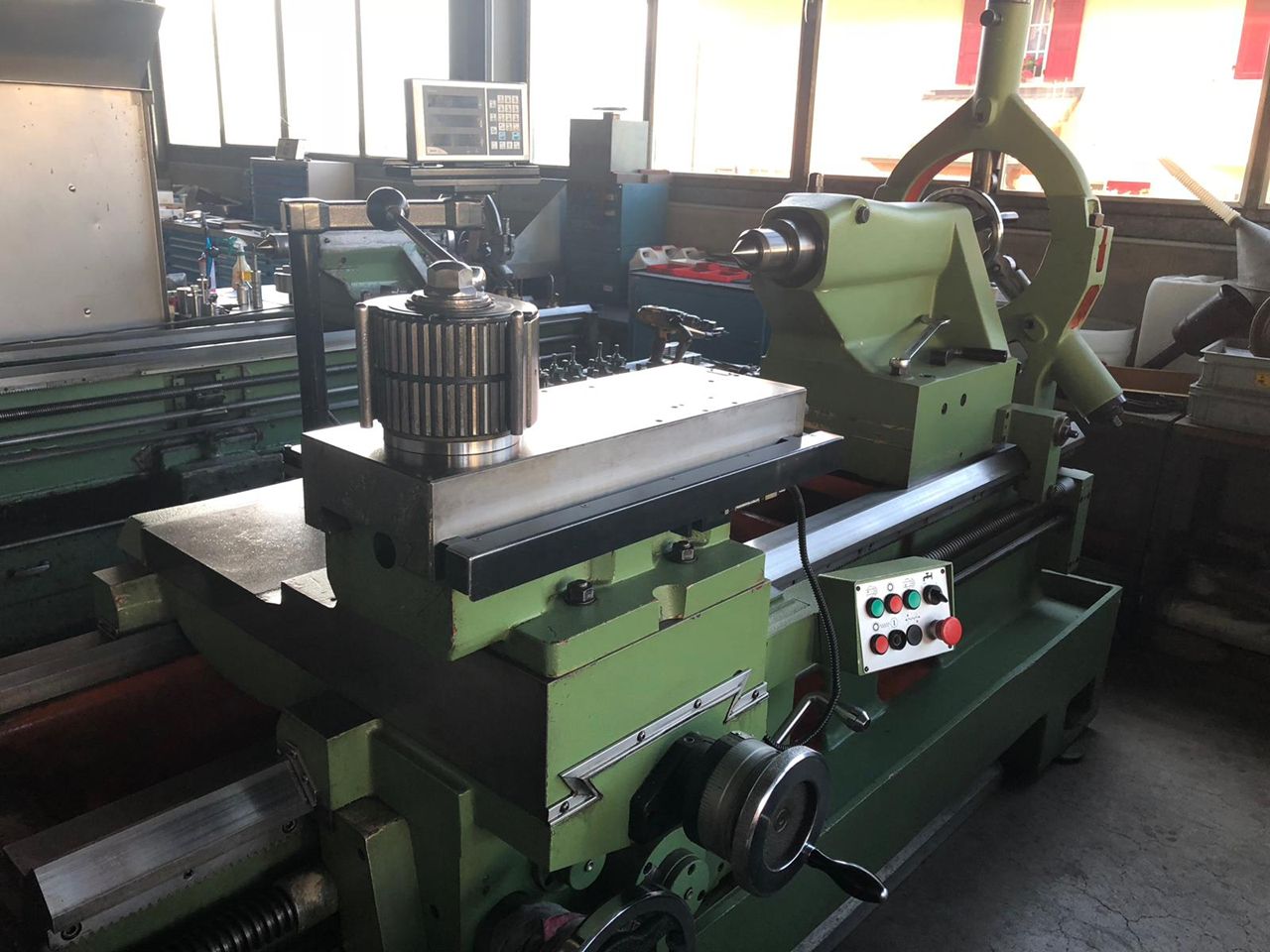

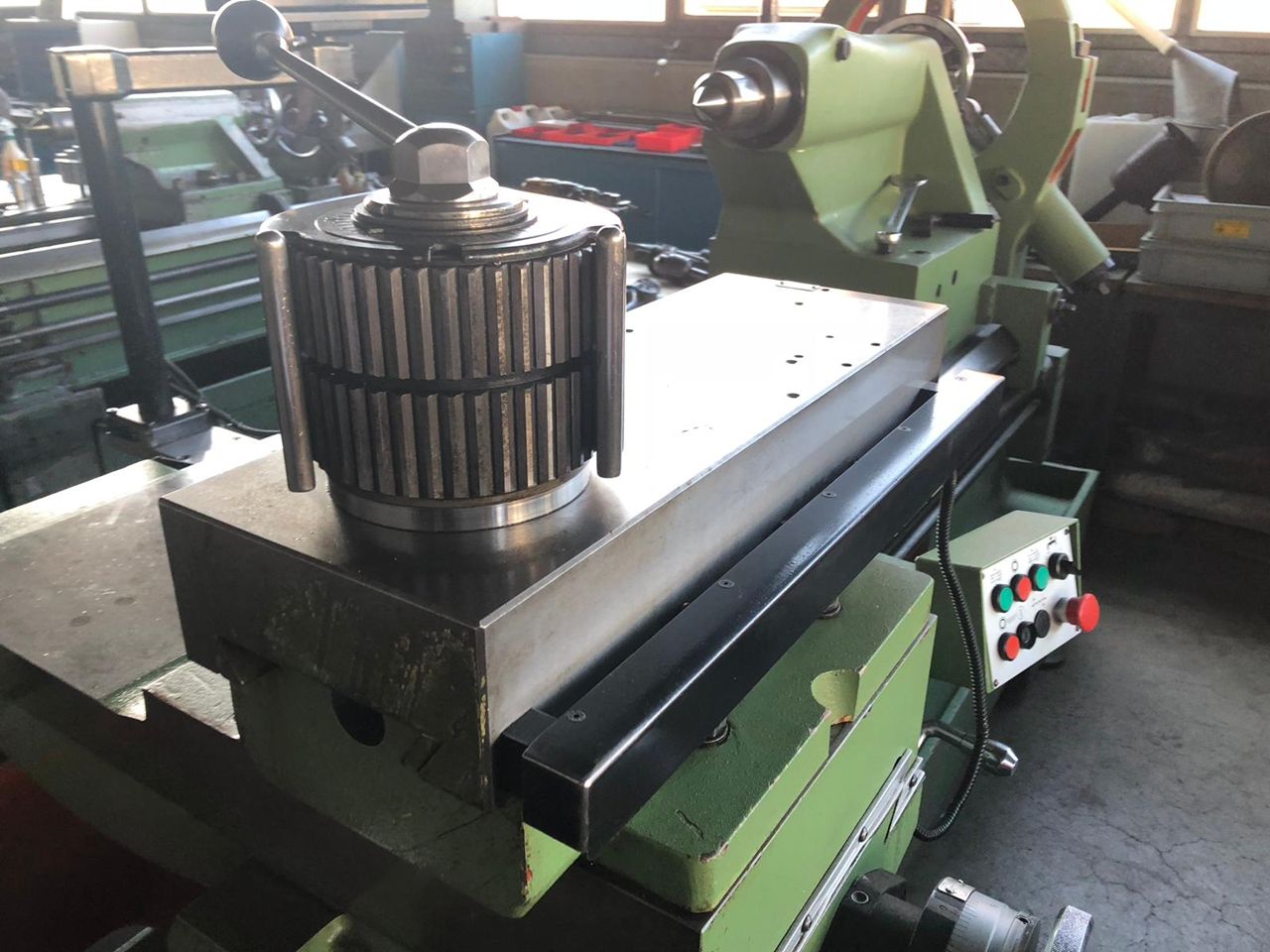

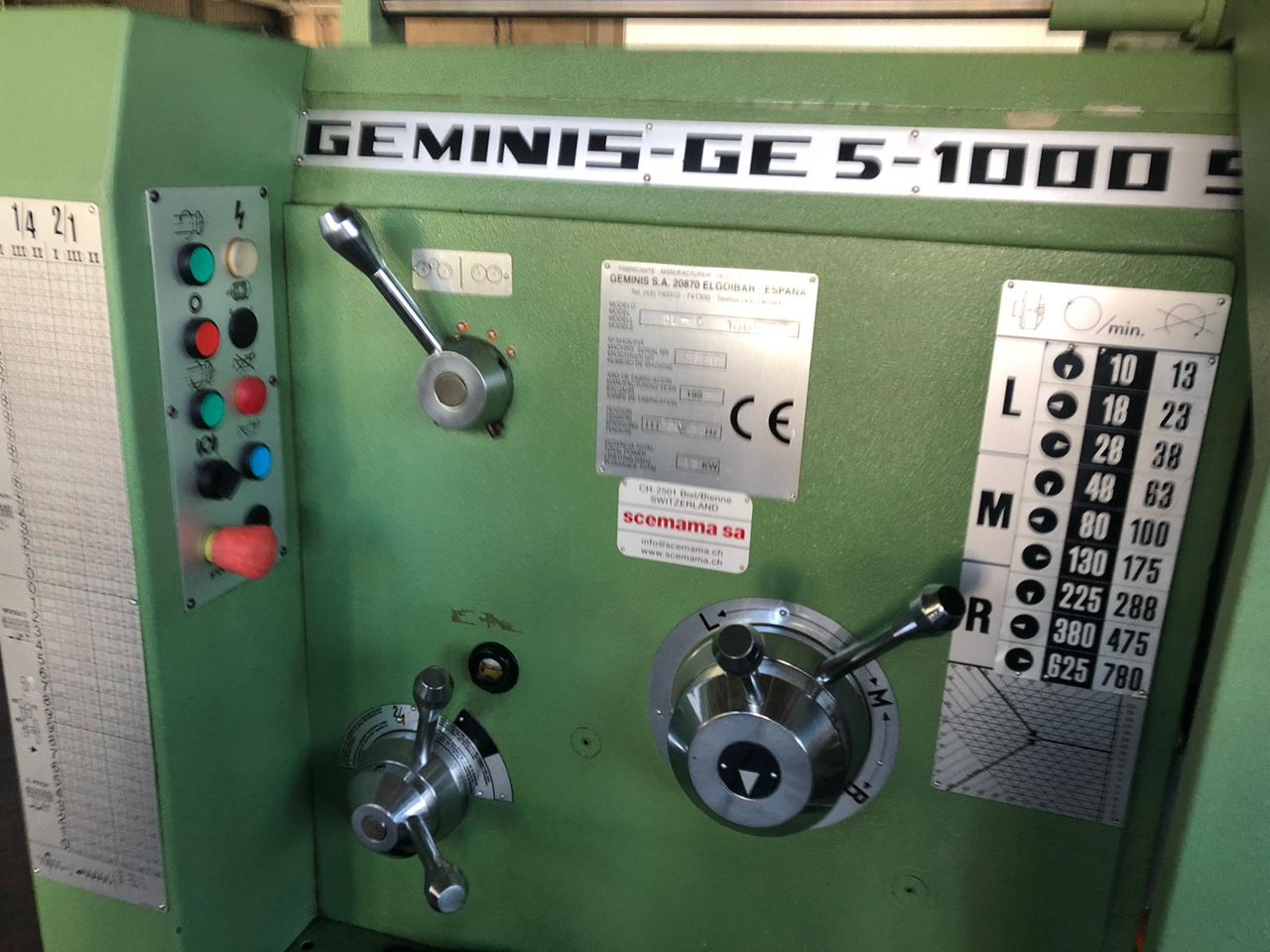

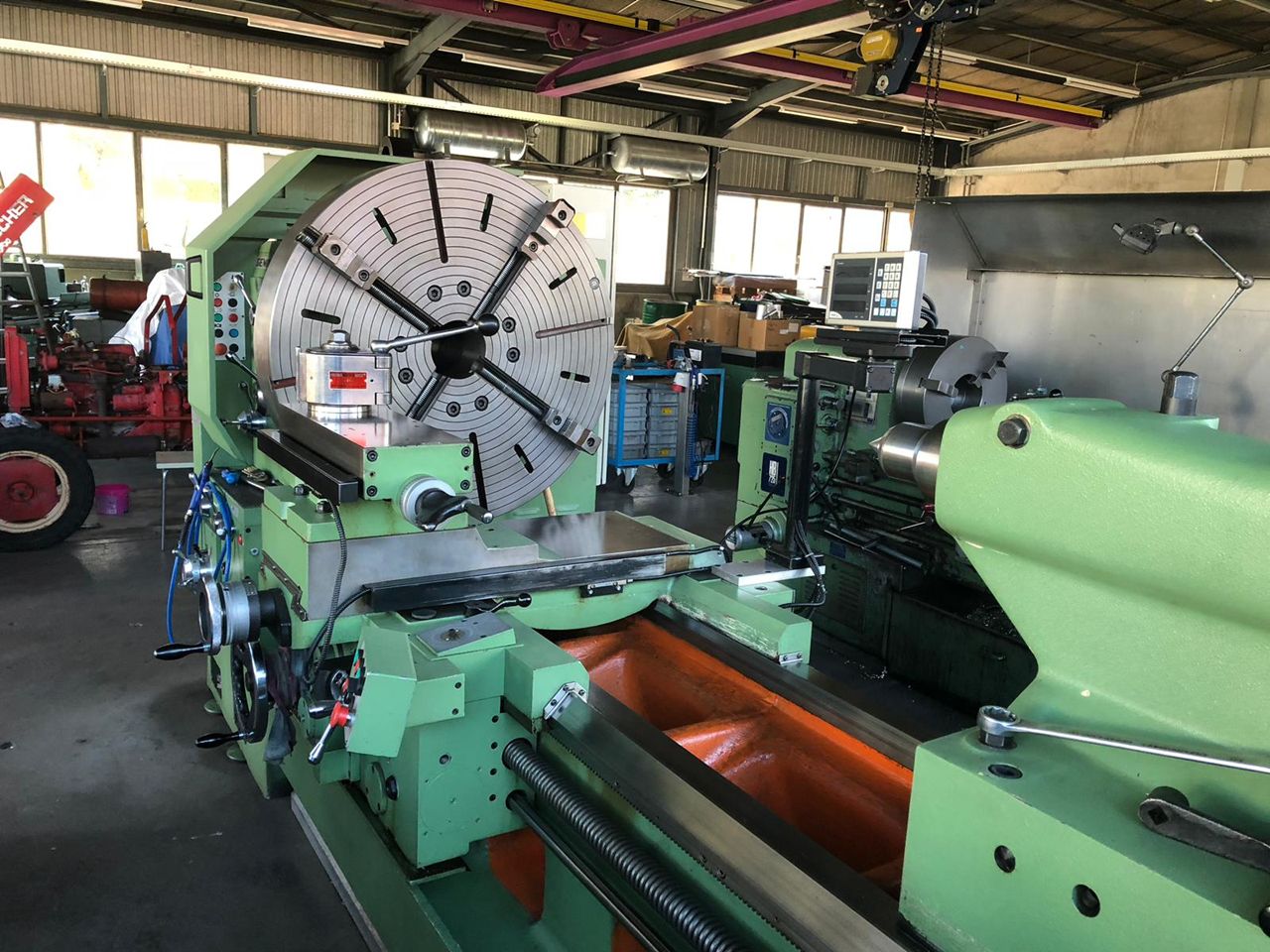

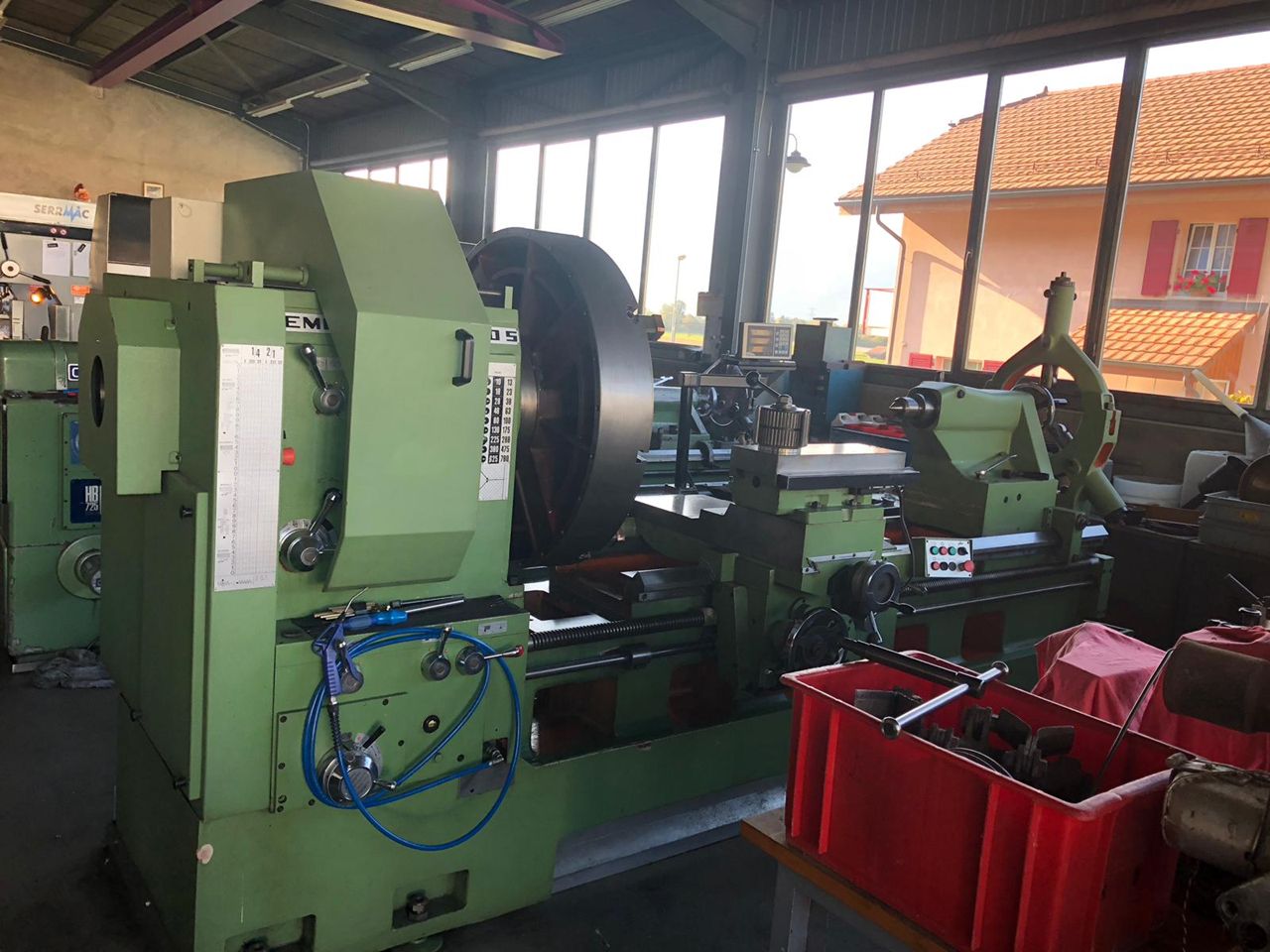

LEADSCREW LATHE "GEMINIS" TYPE GE5-1000-S

Reference: 23180011

as New - abt. 100 hrs. - centres height 500 between centres 2000 mm - digital read-out Fagor 30i-T


Information

Manufacturing year
Manufacturing originCH
Voltage400 V
Netweight kg
Custom position8458.9120
Dimensions mm

TECHNICAL DATA

Between centers2000 mm
Center height500 mm
Bar passage160 mm
Swing over cross carriage720 mm
Diameter in bed gap1250 mm
Bed gap lenth350 mm
Bed width 550 mm
Spindle speeds 18  from 10 to 780 min-1
Number of ranges2
Main motor power 15 kW
errors and omissions excepted-data given without obligation
