MACHINE INFORMATION AND SPECIFICATION

Category:
Metal Cutting

Subcategory:
Lathes (CNC and Manual)

Manufacturer:
DMG

Model:

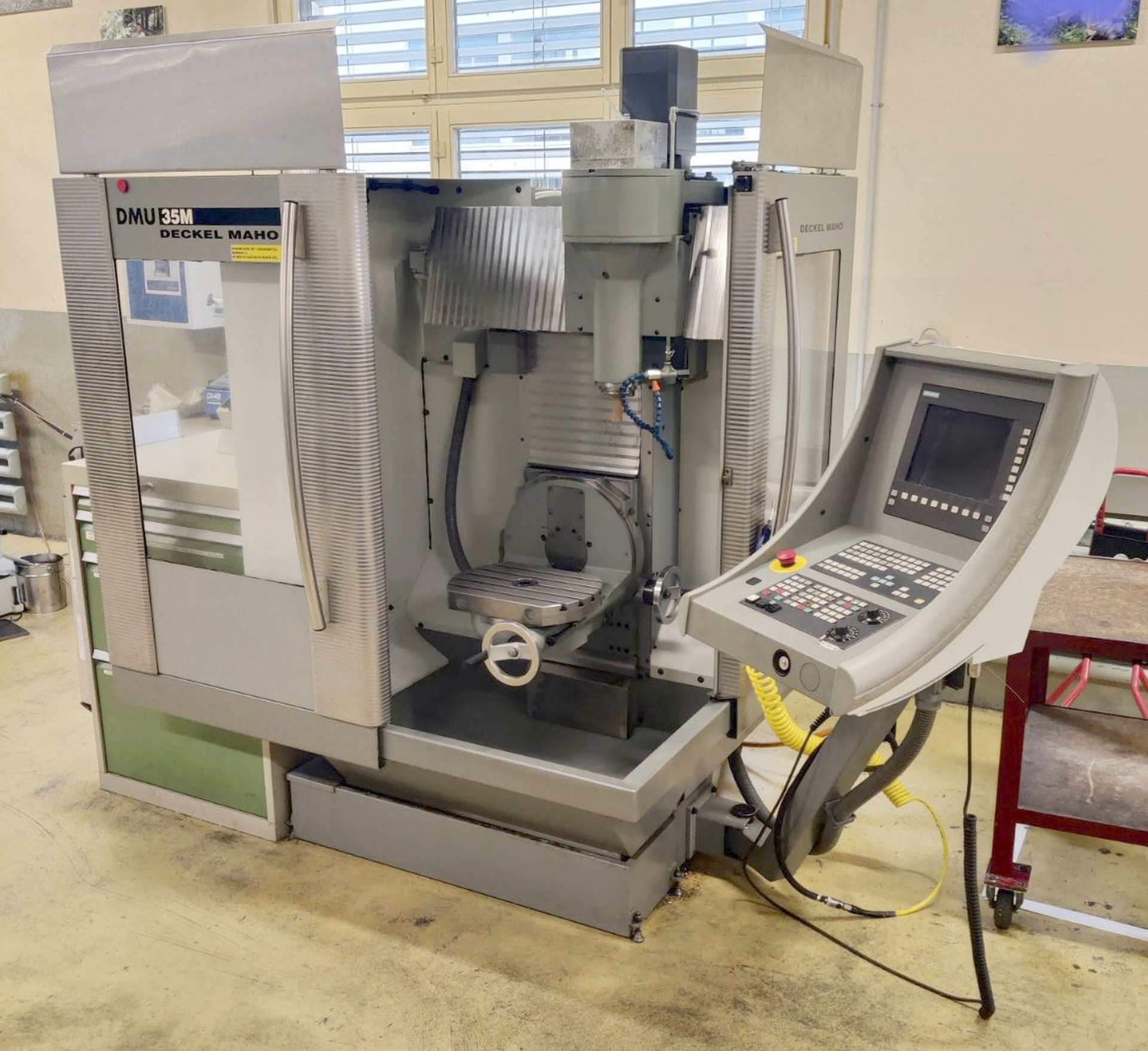

022381 - DMG DMU 35M

Condition:
1

YOM:
NA

Control:
NA

Price:
POA

Seller:
Muller Machines SA

Country:

DESCRIPTION

Number of axis total: 5 (3+2).
Table length: 400 mm.
Table width: 280 mm.
Number of T-channels: 5.
T-channel width: 12H7 mm.
Distance of the T-slots: 50 mm.
Centering bore diameter: 30H6 mm.
Rotation range: 360 °.
Swivelling range: + 105 / -15 °.
Table load max.: 100 kg.
Longitudinal travel (X-axis): 350 mm.
Transversal travel (y axis): 240 mm.
Vertical travel (z axis): 340 mm.
from: 20 t/min.
up to: 6300 t/min.
Spindle nose SK: 40 DIN 69871.
Pull-Studs: DIN 69872.
Feeds (X, Y, Z): 5000 mm/min.
Rapid traverse:: 5 m/min.
Air connect: 6 bar.
Voltage 50 Hz 3x: 400 Volt.
Milling spindle motor: 6.3 / 10 kW.
Total power required: 15 kVA.
Machine's weight about: 1600 kg.
Length: 1860 mm.
Width: 1700 mm.
Height: 2100 mm.
