MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Mazak
  • Model:

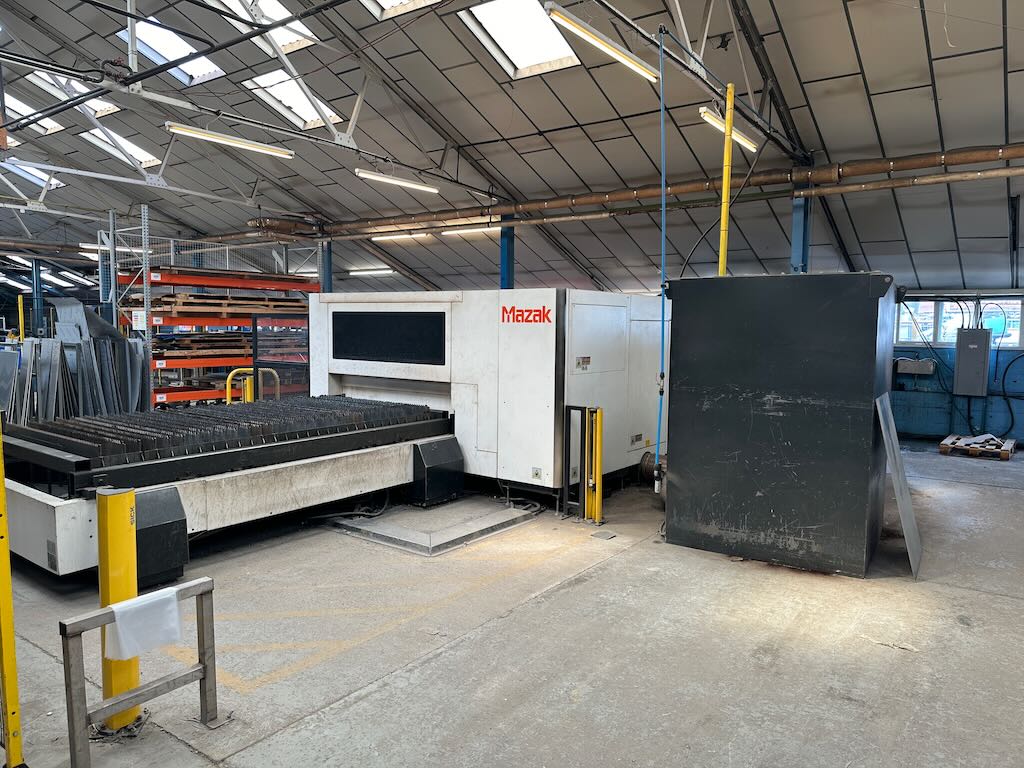

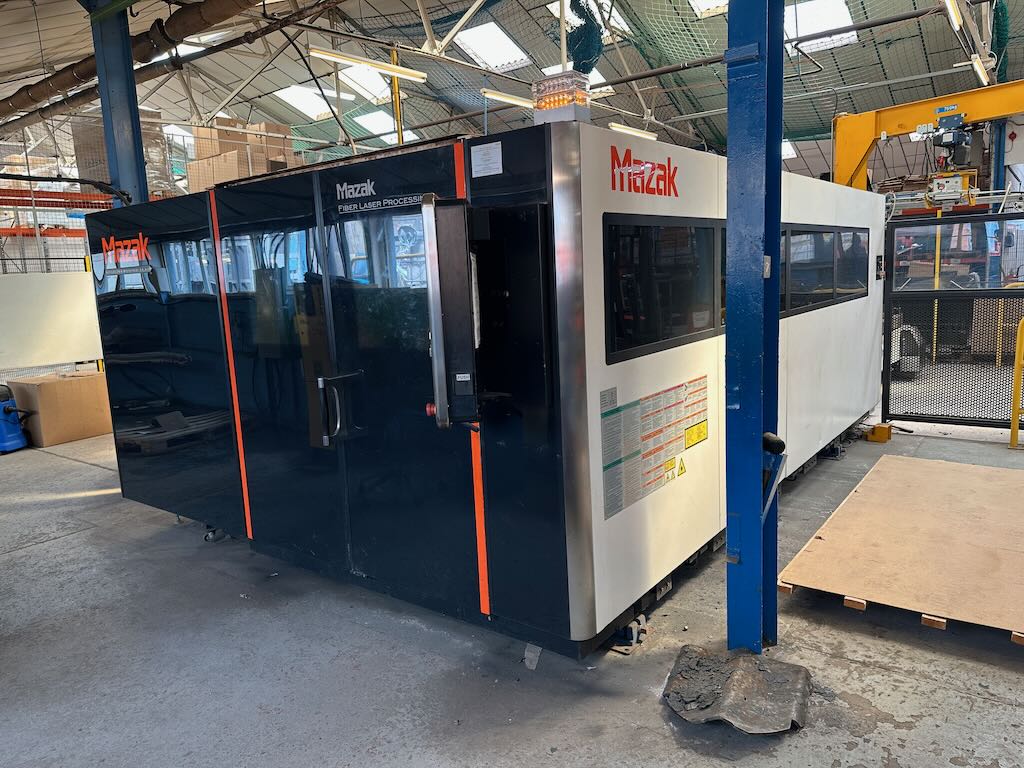

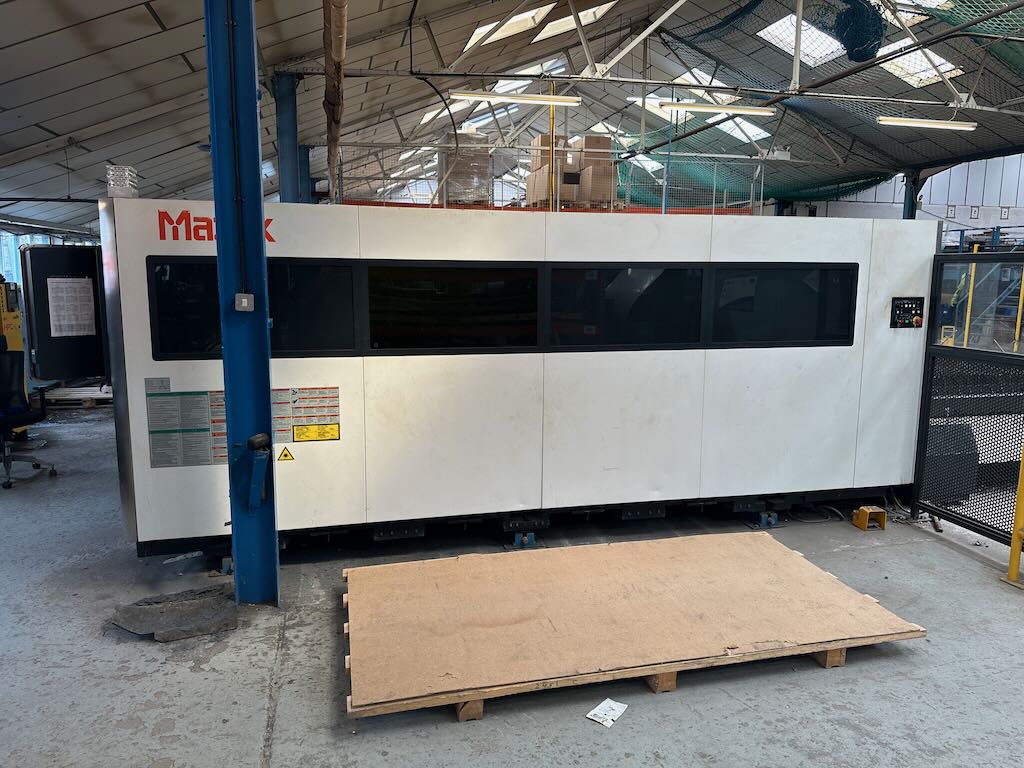

  • Optiplex 3015 FIber II 4kW Laser
  • Condition:
  • Used
  • YOM:
  • 2015
  • Control:

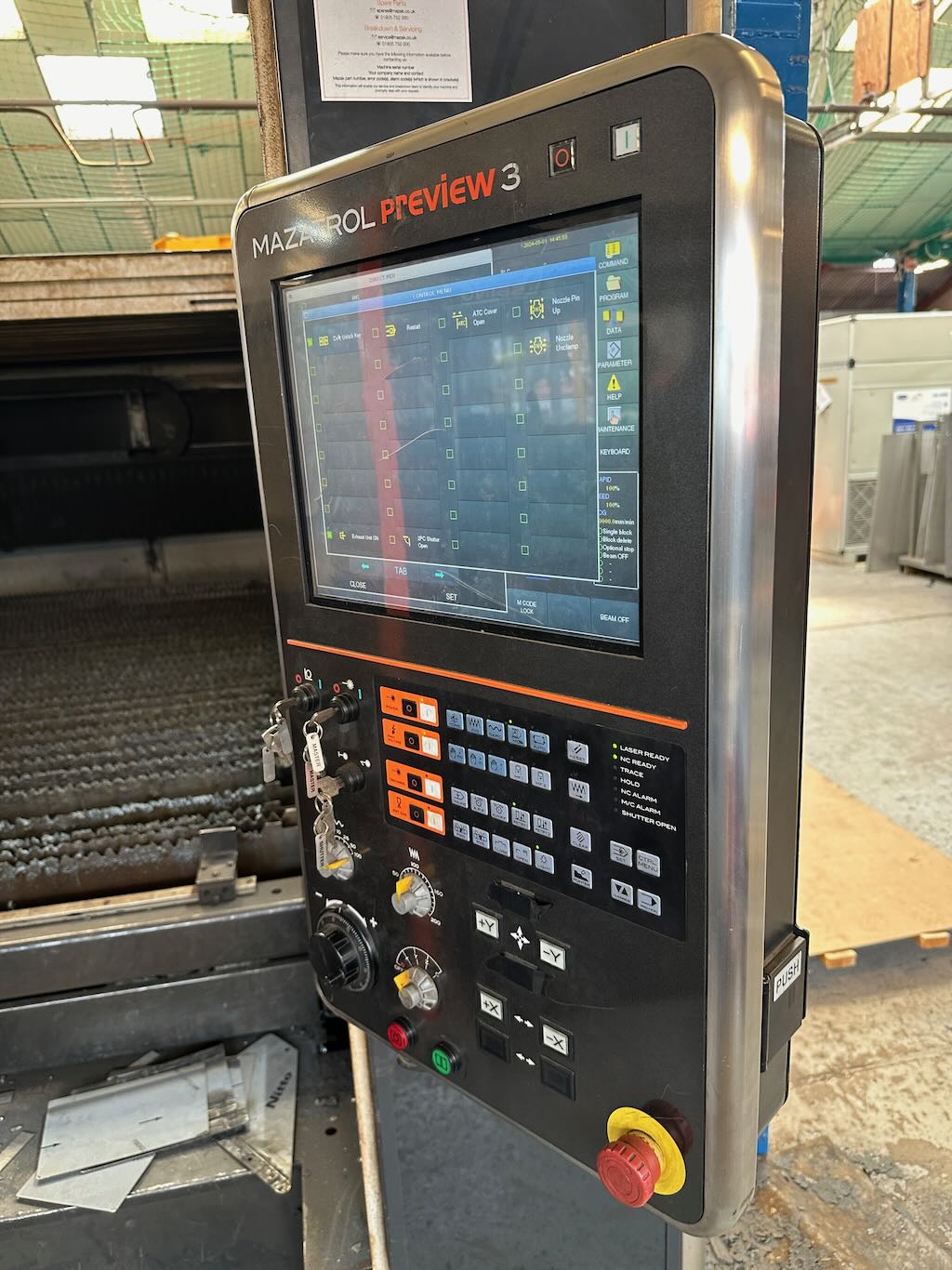

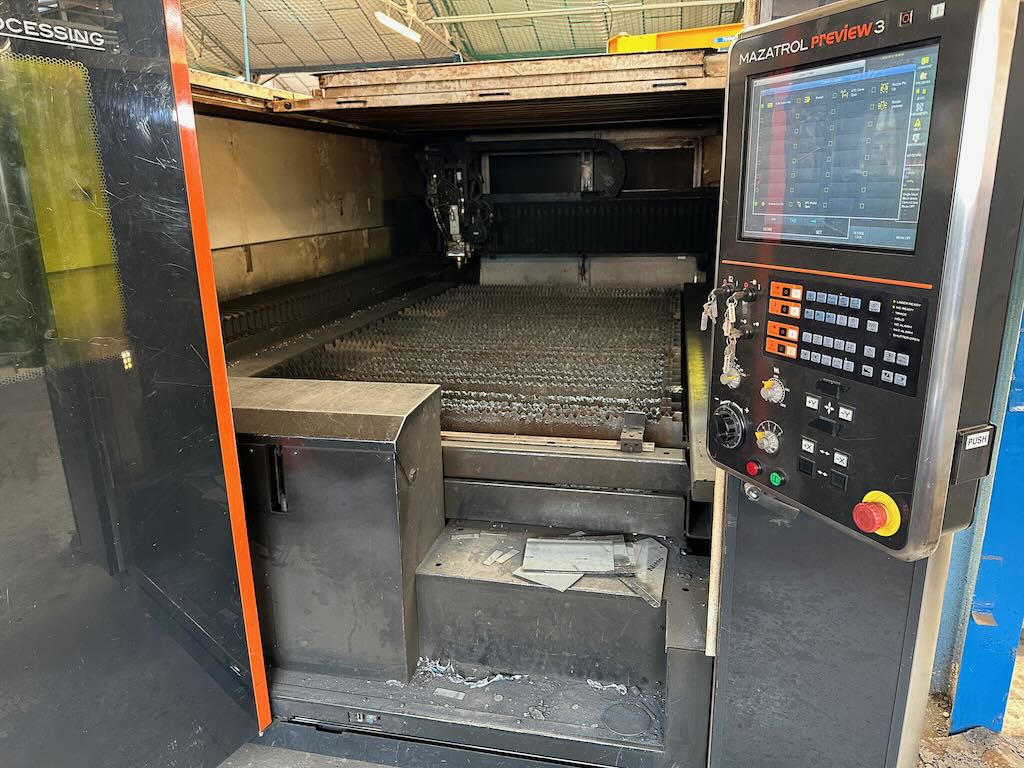

  • Mazatrol Preview 3
  • Price:
  • POA
  • Country:
  • United Kingdom United Kingdom

DESCRIPTION

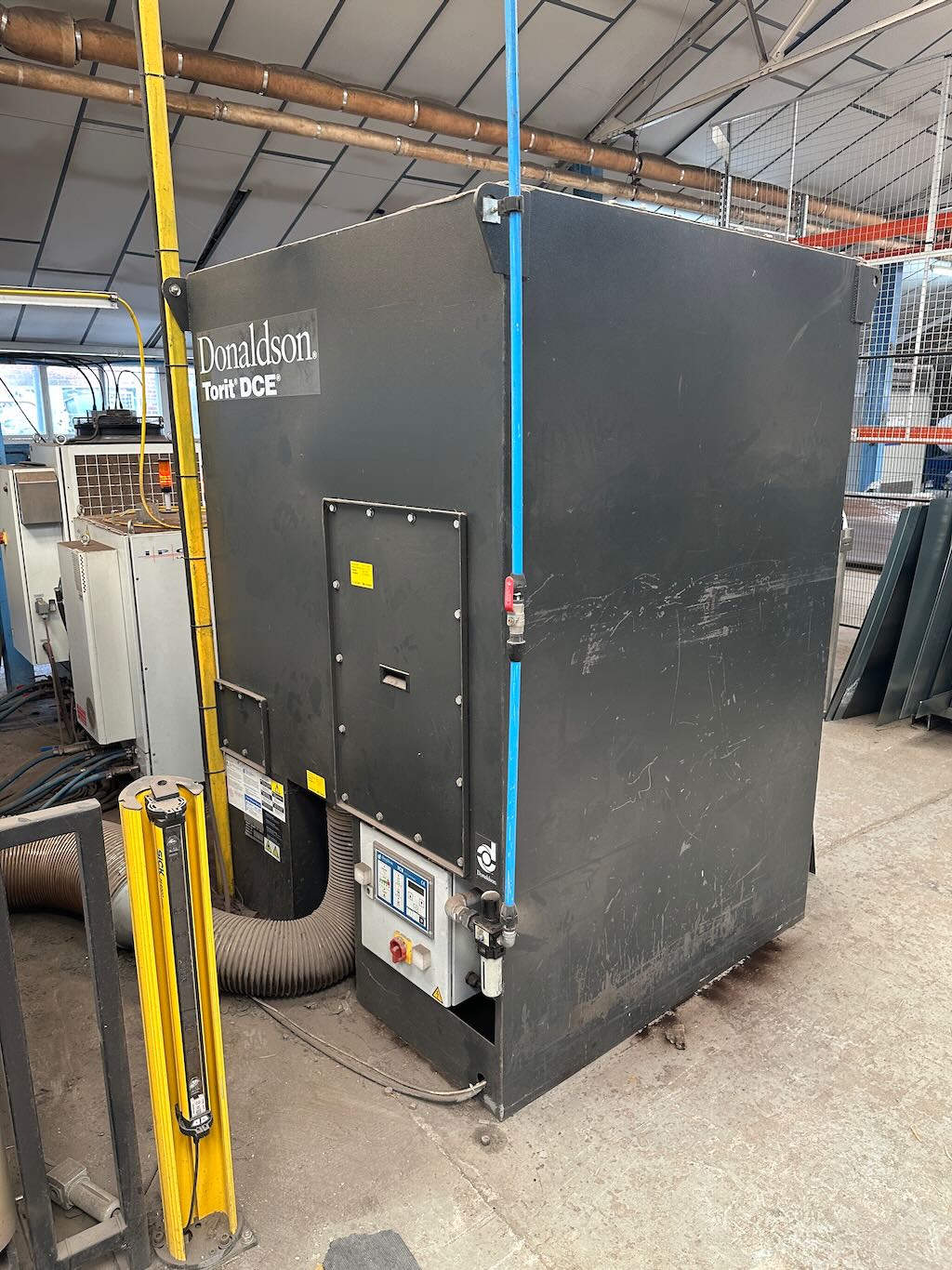

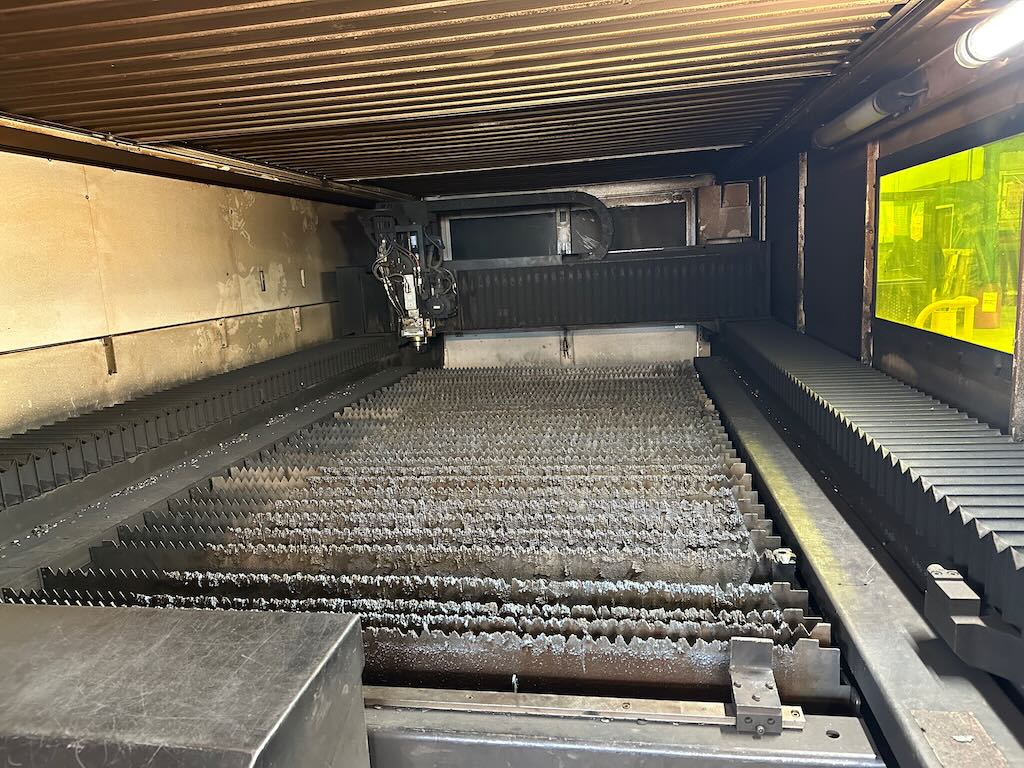

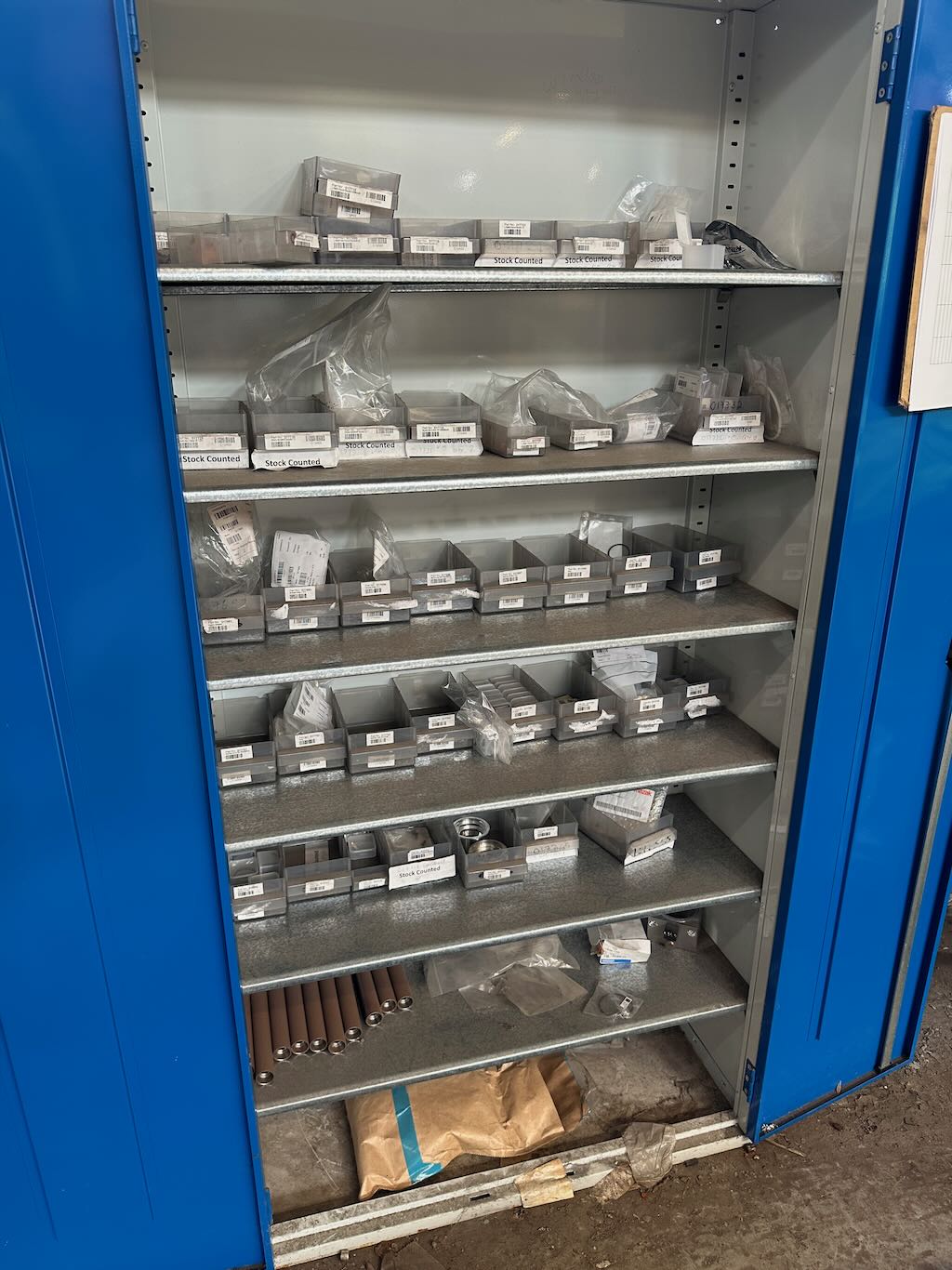

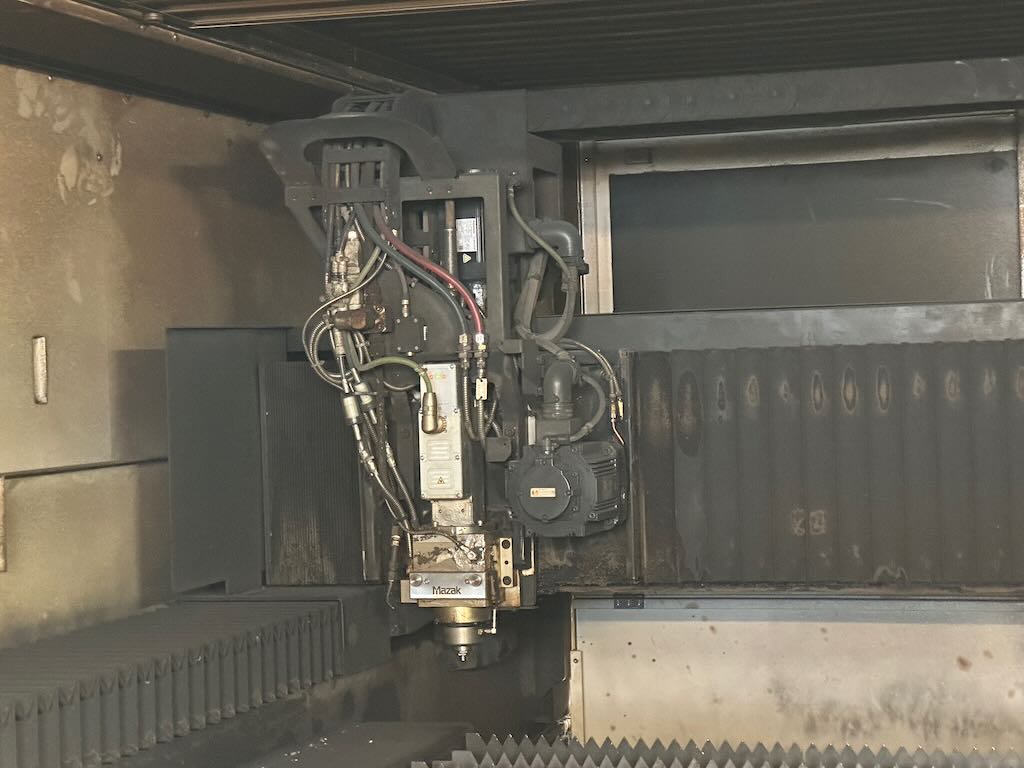

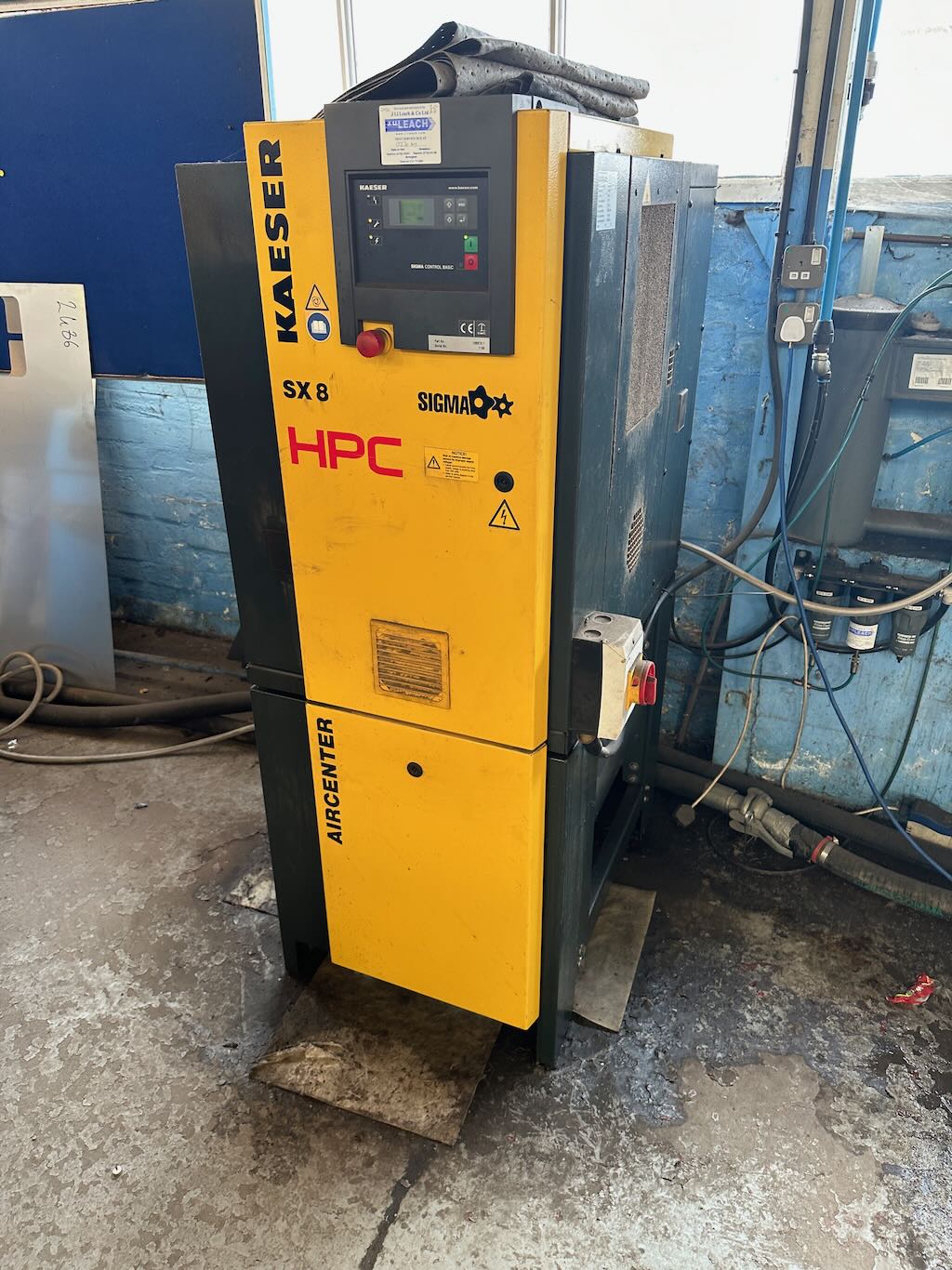

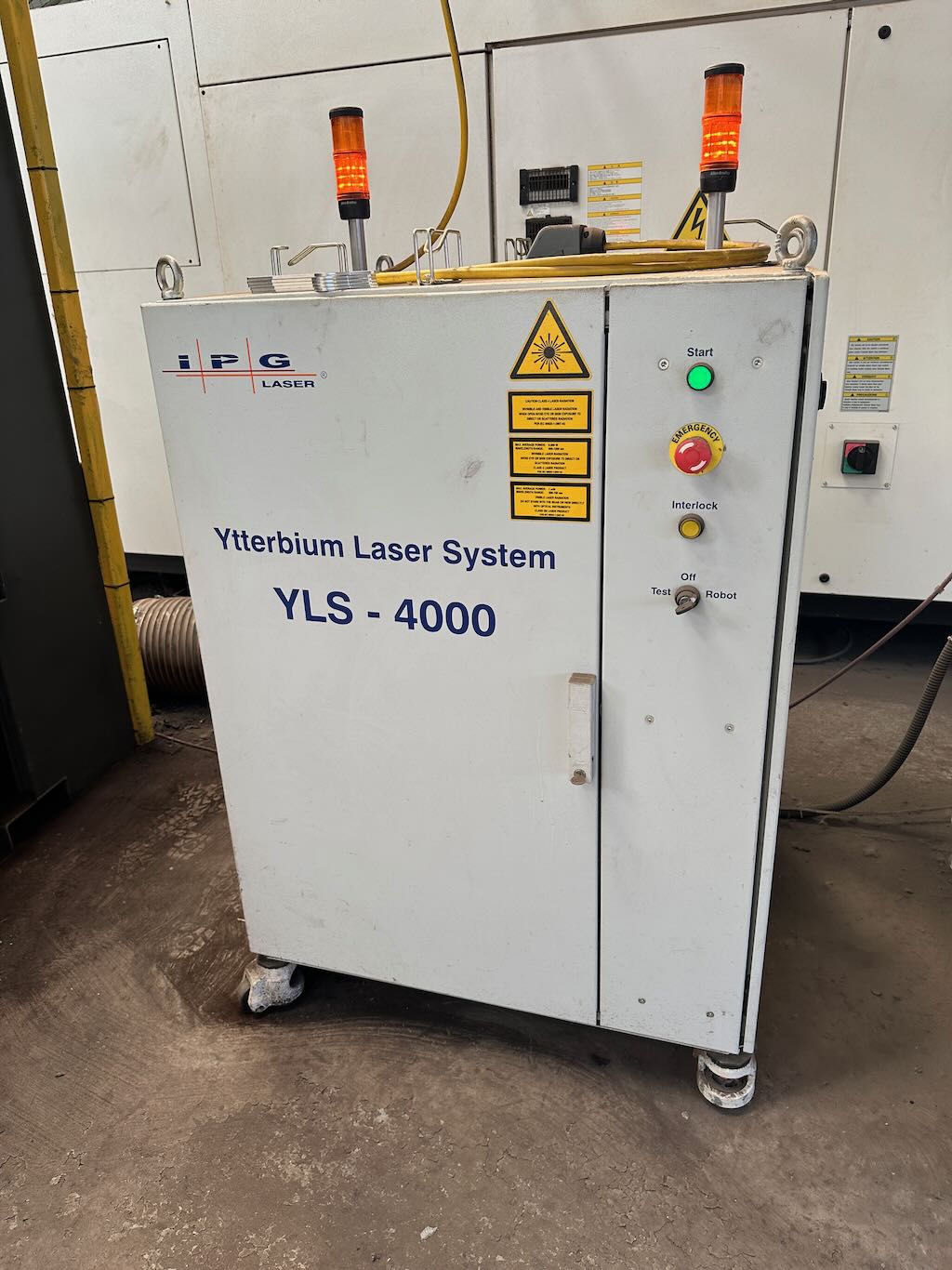

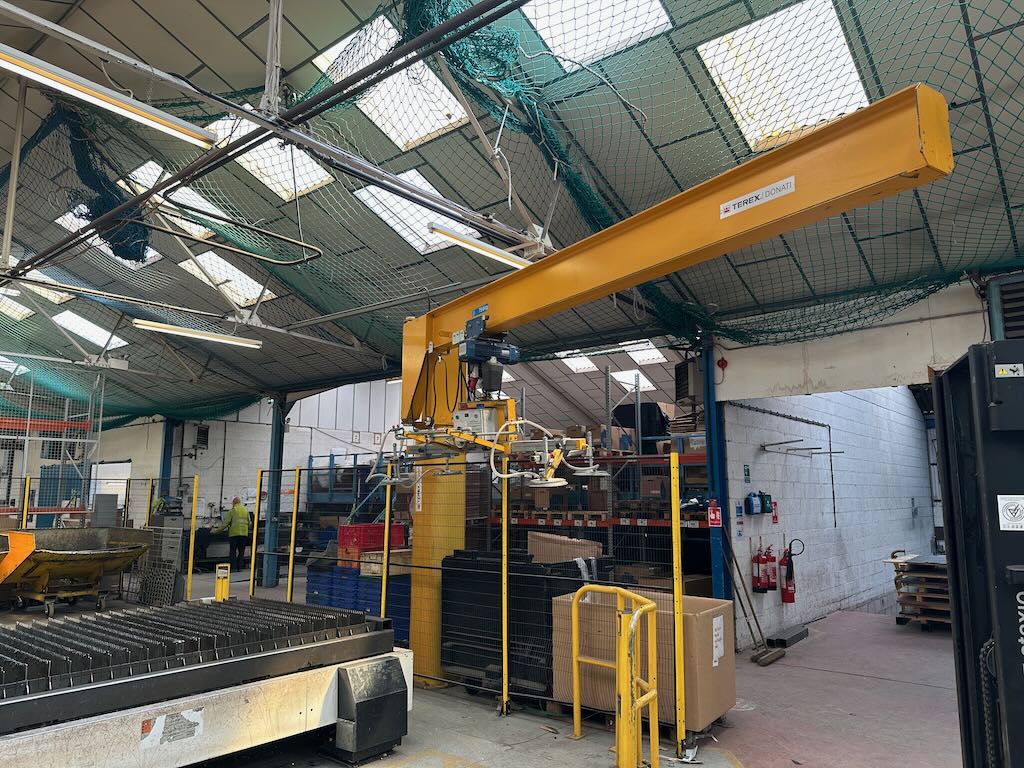

This machine is in excellent condition, and was released from production on the 3rd July. Approximately 38,600 Laser on time and 5970 Cutting Hours. Purchase of this machine includes a tooling package, operating manuals, Kaser Aircentre SX8 5.5kW Screw Compressor, Seifert KG-4270 Chiller Unit, Donaldson Torit DCE EXtraction Unit, 750kg Swing Jib Crane and Vacuum Lifter. Capcity: Max Workpiece Size: 1525 x 3050mm Axis Travel: X Axis: 3110mm Y Axis: 1595mm Z Axis: 135mm Rapid Traverse Rates: X Axis: 120m/min Y Axis: 120m/min Z Axis: 60m/min Positional Accuracy: X Axis: ±0.05mm/500mm Y Axis: ±0.05mm/500mm Z Axis: ±0.003mm/100mm Repeatability: X Axis: ±0.03mm Y Axis: ±0.03mm Z Axis: ±0.03mm Resonator: Ytterbium Laser System - YLS 4000 Features: Max Number of Nozzles: 8 Auto Nozzle and Torch Changing Feature Auto Profiler Calibration Focus Detection Intelligent Monitoring Function Oscillator Status Indicator Weight: 14400kg Approx Dimensions: 14930 x 5472 x 2300mm Finance Package is available for this machine subject to status of the applicant. Please get in touch to find out more options for financing this machine.
