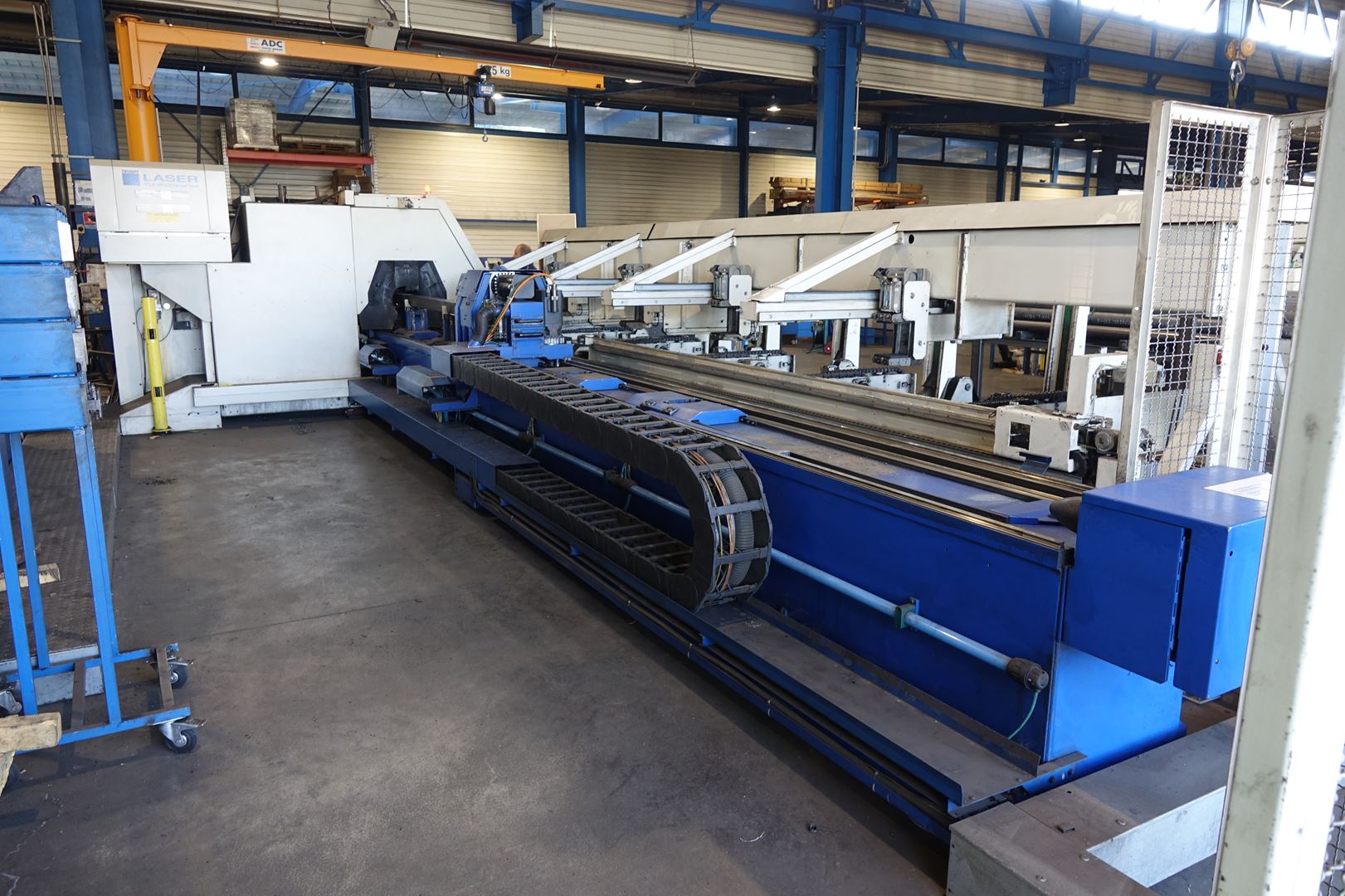

MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • TRUMPF
  • Model:

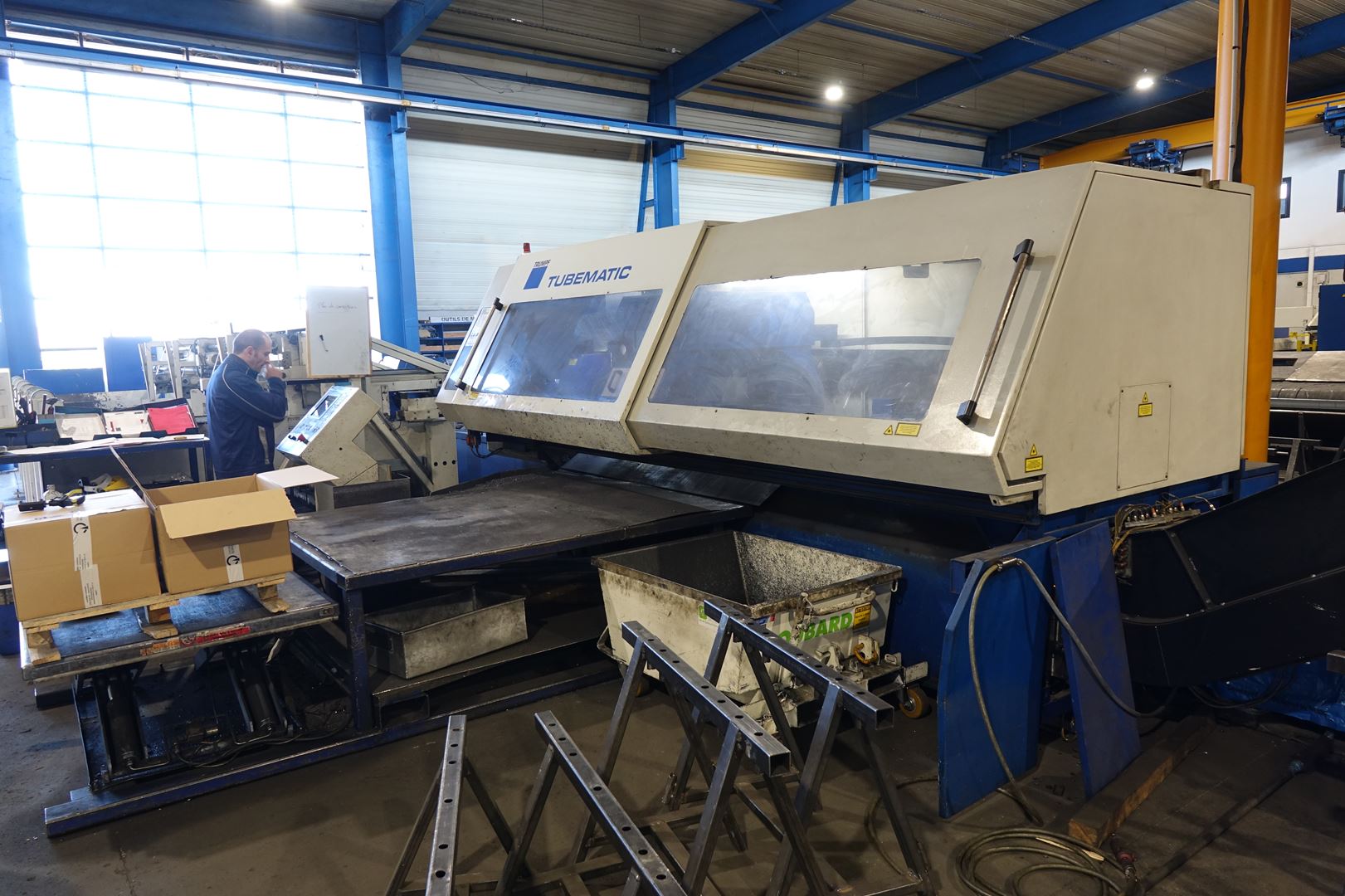

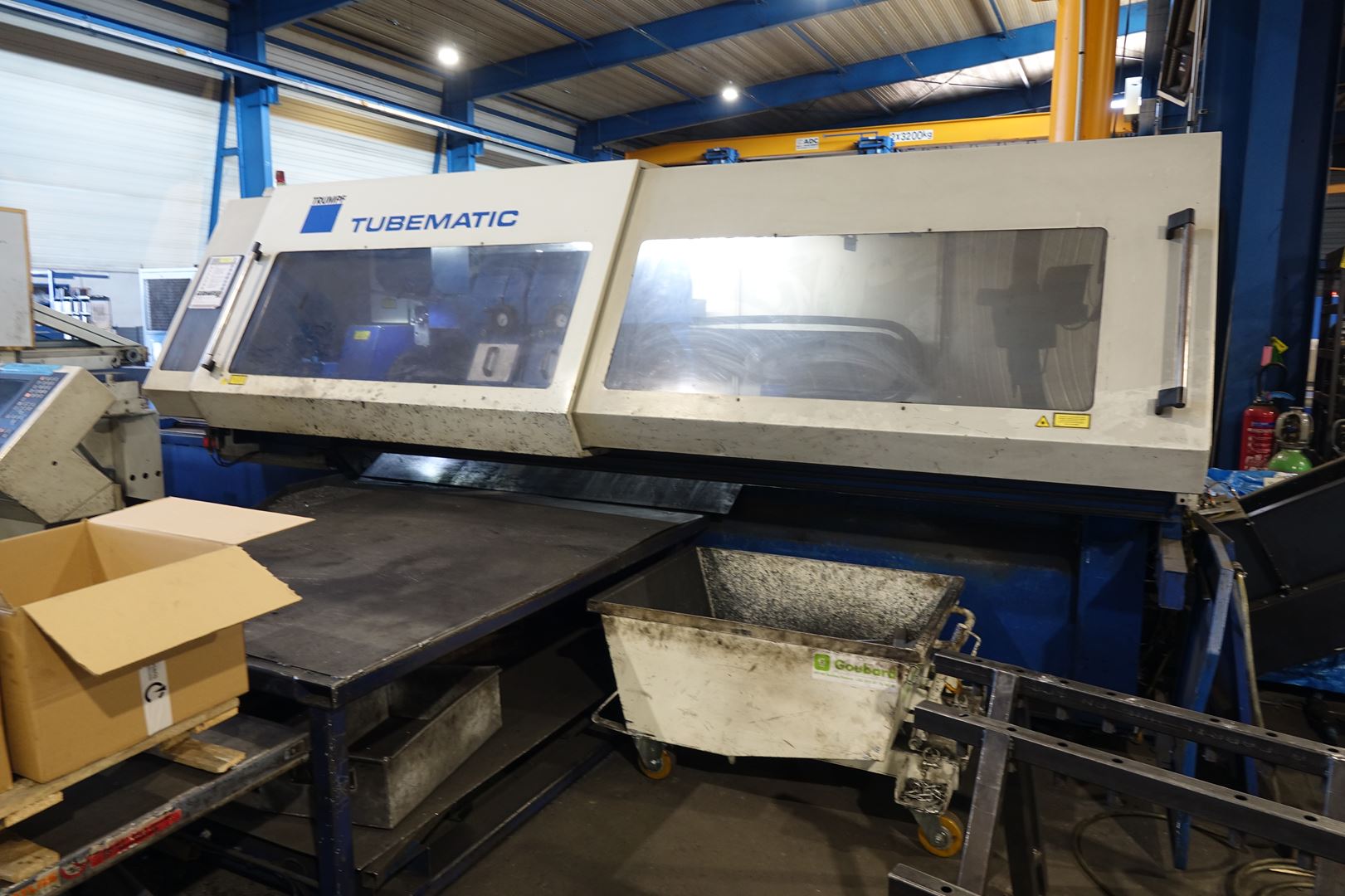

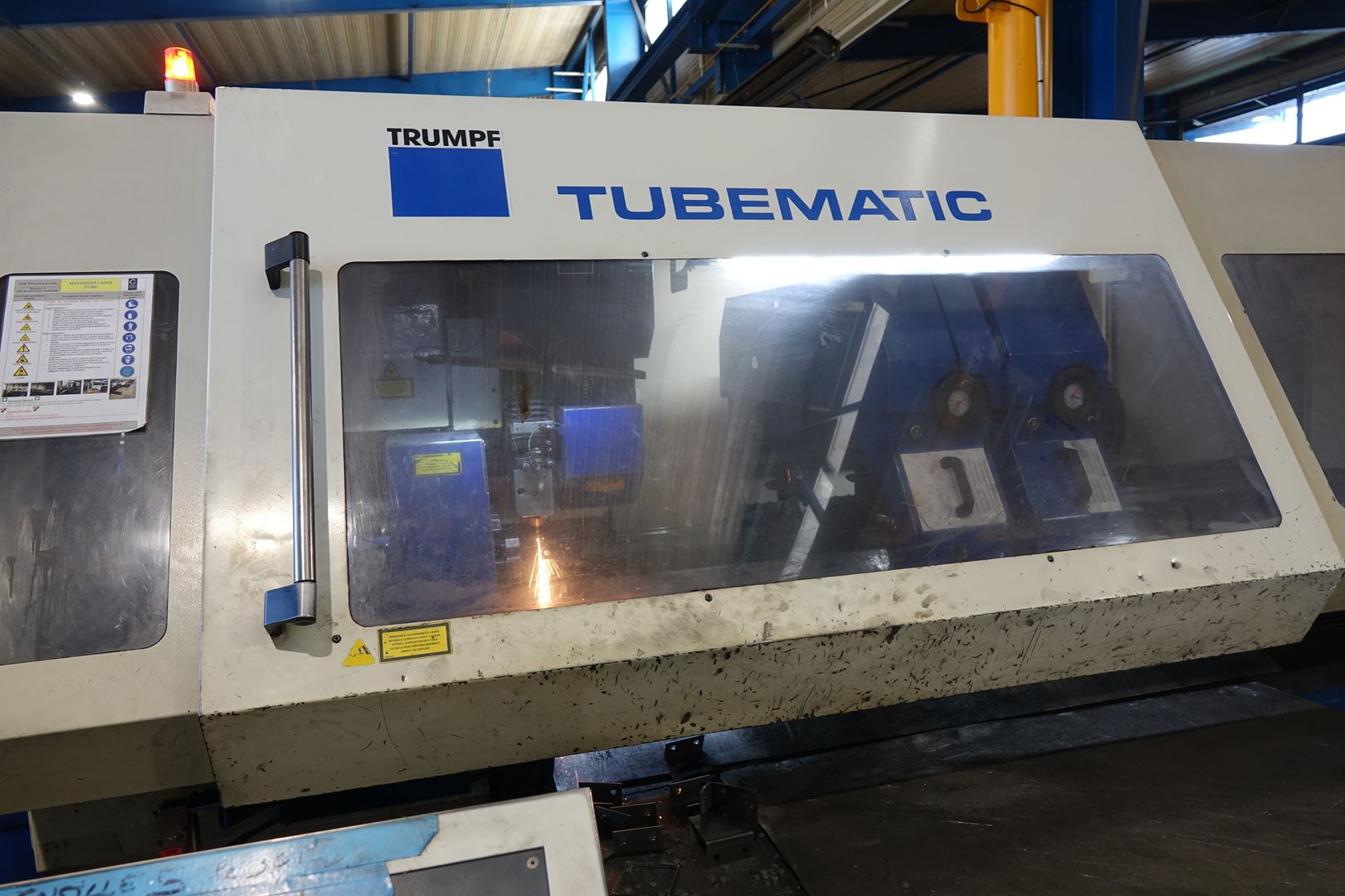

  • Trumpf - Tubematic
  • Condition:
  • Used
  • YOM:
  • 2001
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • Germany

DESCRIPTION

  • Working hours machine: 72100 h
  • Working hours laser on: 71966 h
  • Working hours beam on: 32017 h
  • Laser power: 2400 kW
  • Working range laser: 6500 x 1500 mm
  • Length: 18000 mm
  • Width: 9000 mm
  • Height: 2800 mm
  • Machine weight: 17700 kg
  • max. wall thickness: 6,4 mm
  • max. tube length: 6500 mm
  • min. tube length (automatic): 3000 mm
  • max. tube diameter: 150 mm
  • min. tube diameter: 15 mm
  • max. length finished parts: 3000 mm
  • Description:
  • This reliable all-around machine replaces conventional, sepa- rate manufacturing operations such as sawing, drilling, milling and punching, and enables the ideal entry into the laser tube processing industry. It owes its high productivity to the perfectly coordinated operation of its components, from the laser unit and its beam guidance system to the clamping units and system control software as well as the tube and profile handling modules.
.
