MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Amada
  • Model:

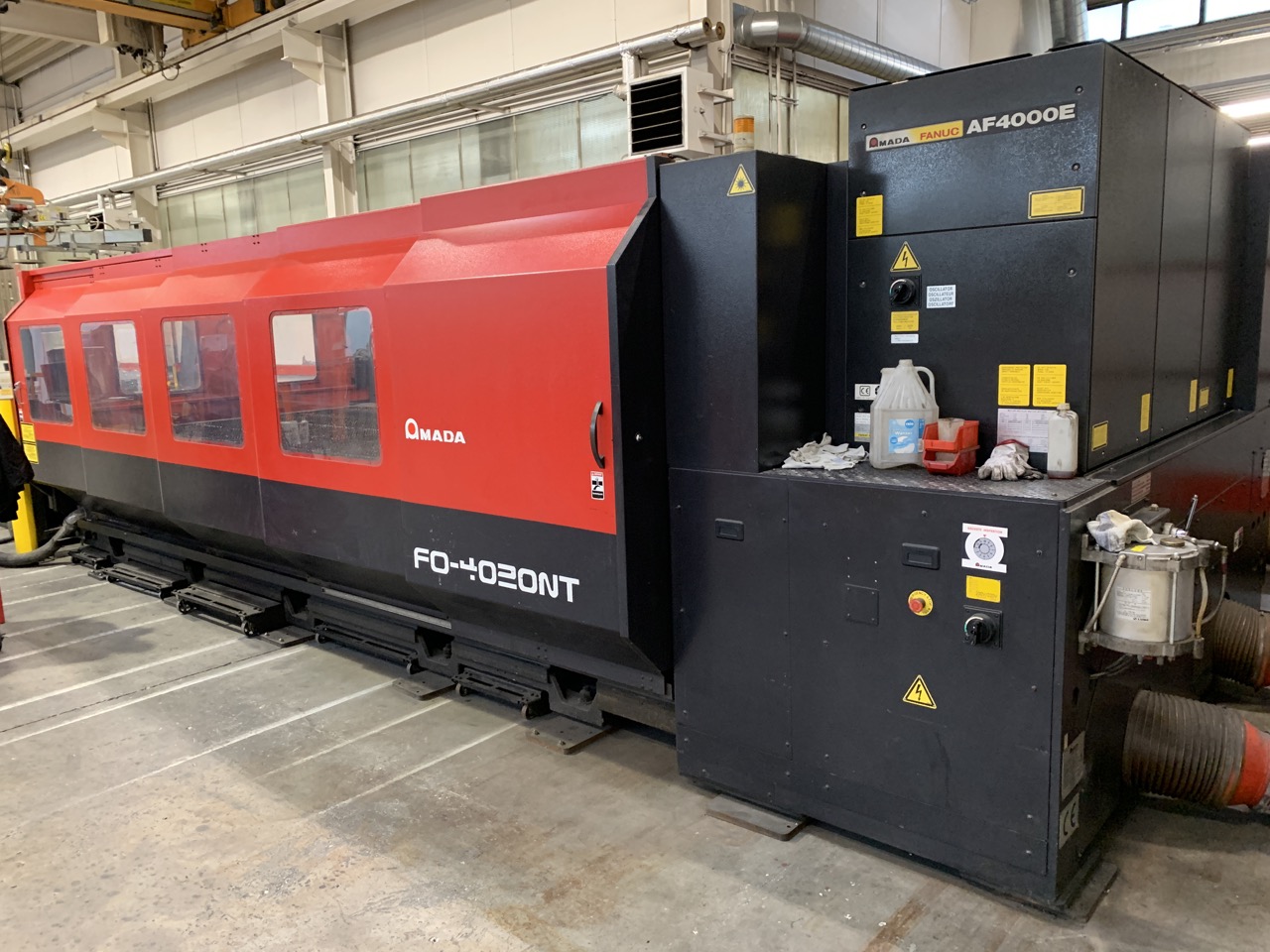

  • Amada - FO 4020 NT
  • Condition:
  • Used
  • YOM:
  • 2006
  • Control:
  • AMNC-F (Fanuc FS-160iLB)
  • Price:
  • POA
  • Country:
  • Germany Germany

DESCRIPTION

  • Working hours machine: 31814 h
  • Laser power: 4000 Watt
  • Working range laser: 4070 x 2050 x 200 mm
  • Max. steel: 20 mm
  • Max. stainless steel: 16 mm
  • Max. aluminium: 10 mm
  • Length: 12300 mm
  • Width: 3350 mm
  • Height: 2500 mm
  • Machine weight: 14000 kg
  • Electrical connected load: 83 kVA
  • Standard configuration:
    Maintenance information:

    - TURBO BLOWER changed at 24,000 h (new Turboblower with 6,400 h)
    - O-rings and tubes changed at 30,000 h (Fanuc)
    - All maintenance performed by AMADA

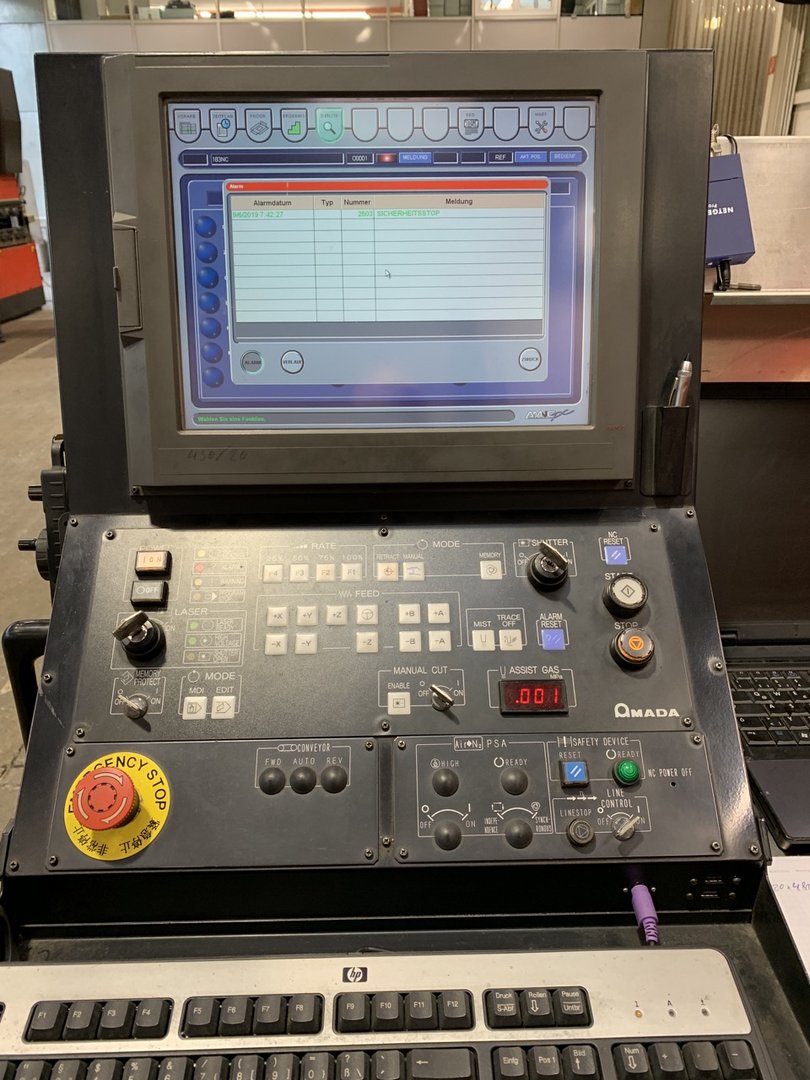

    Control:
    Type: AMNC-F (Fanuc FS-160iLB)
    Screen: 15 "touch screen
    Connections: RJ45 and USB
  • features: - Automatic pallet changer - POWER PIERCING - High pressure cutter CLEANCUT - Aluminum cutter ALUCUT - Automatic gas pressure control - Non-contact capacitive laser cutting head - Diode laser for positioning - Active cutting monitoring - WACS (Water Assisted Cutting System) cutting device - Safety device

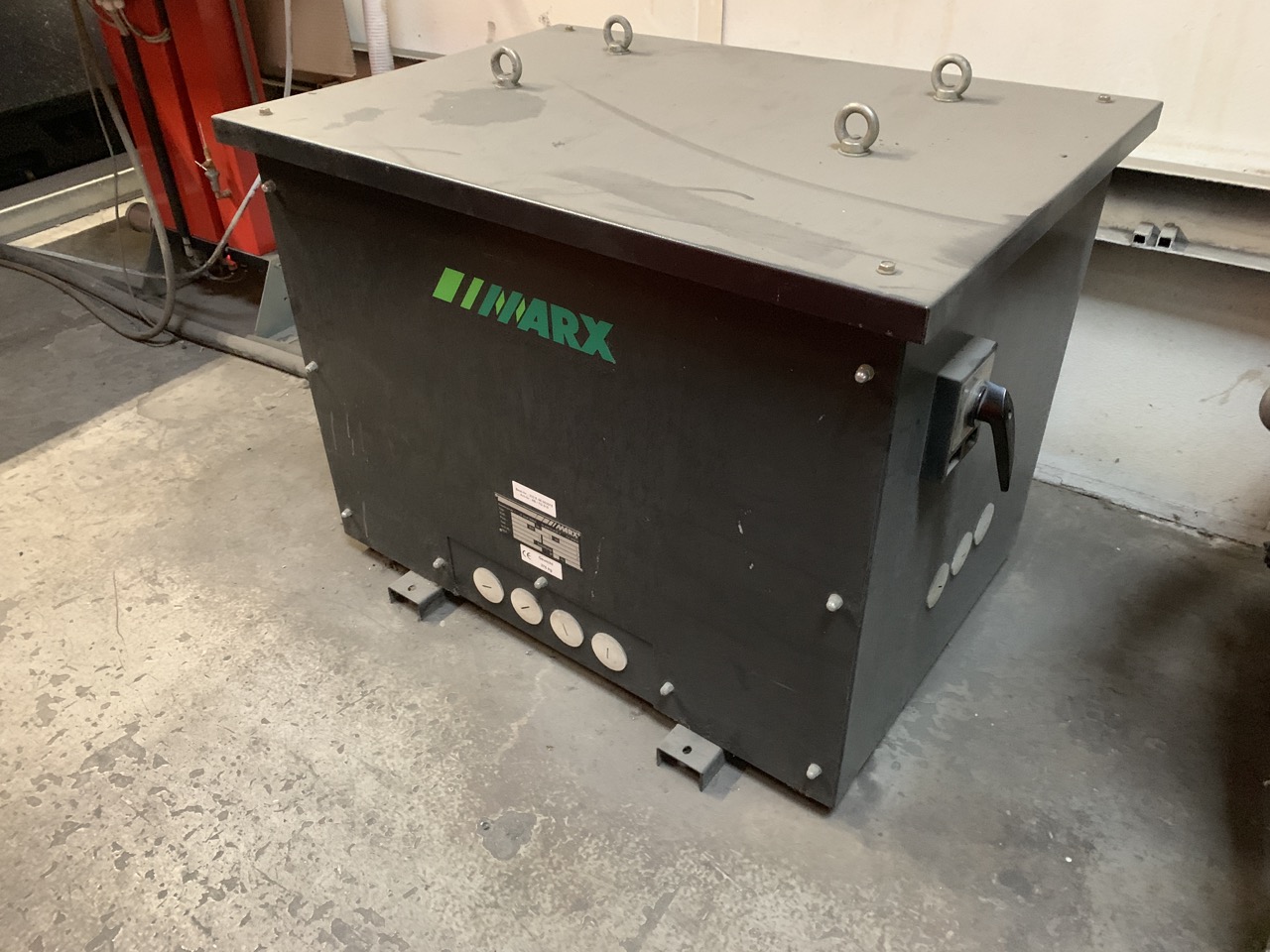

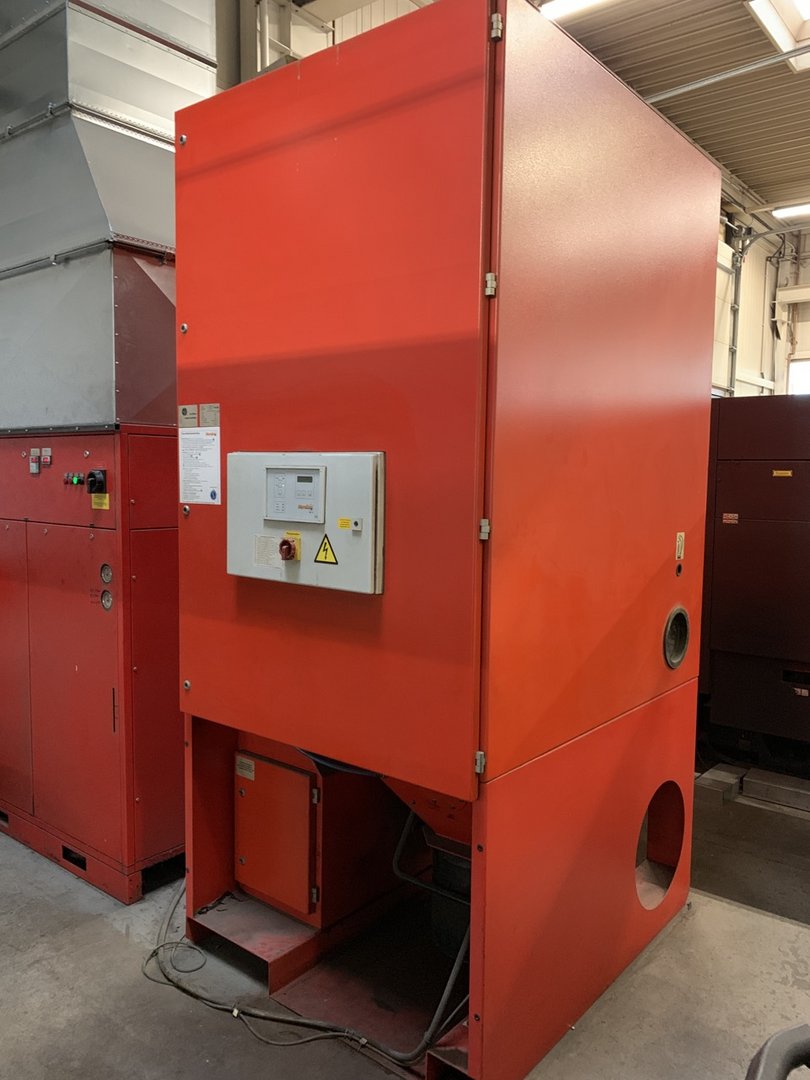

  • Peripherals: - Transformer - cooler - Suction
