MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Hauser-SIP
  • Model:
  • JIG BORING MACHINE HAUSER-SIP TYPE MP-52
  • Condition:
  • Used
  • YOM:
  • N/A
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • N/A

DESCRIPTION

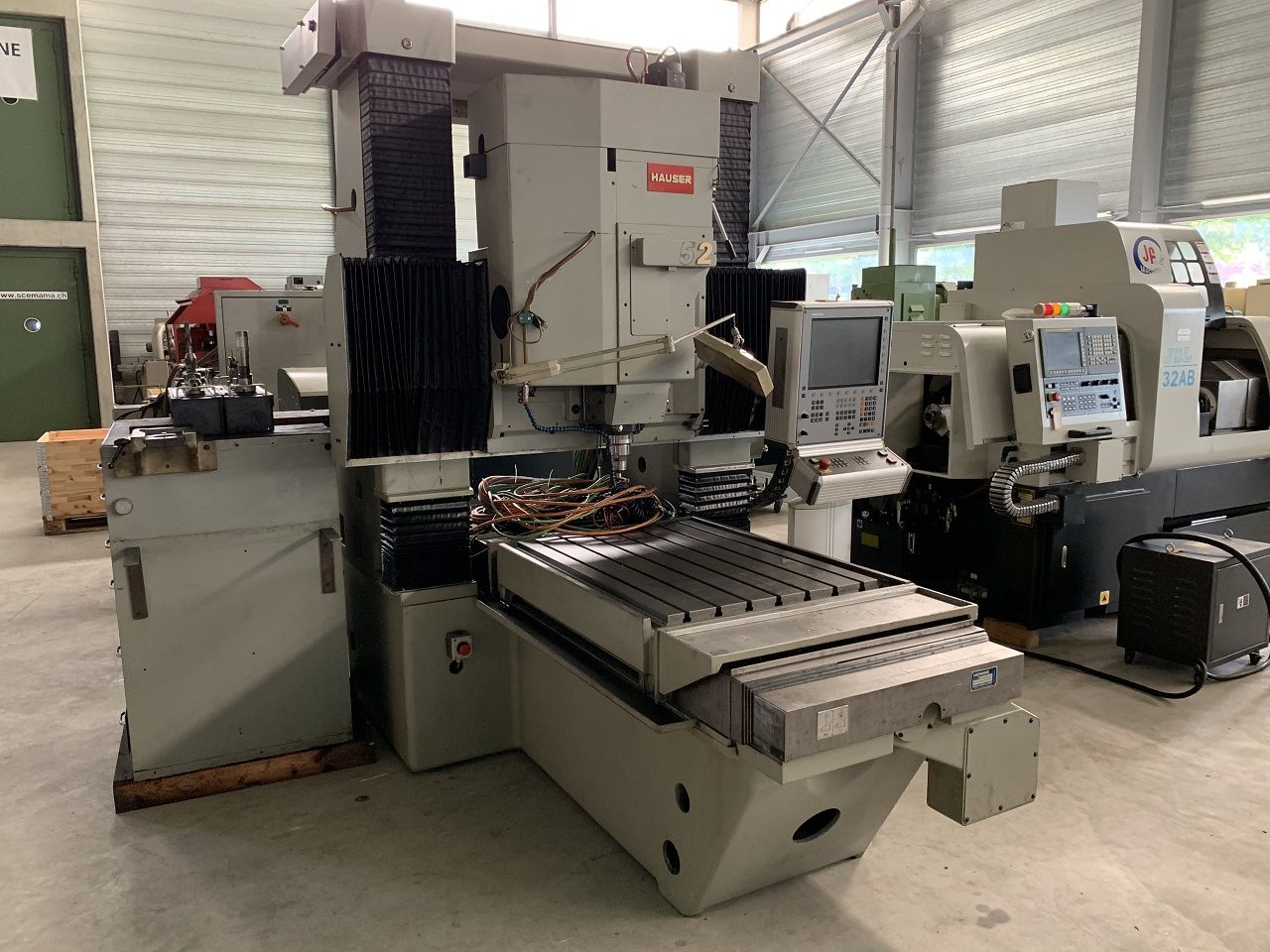

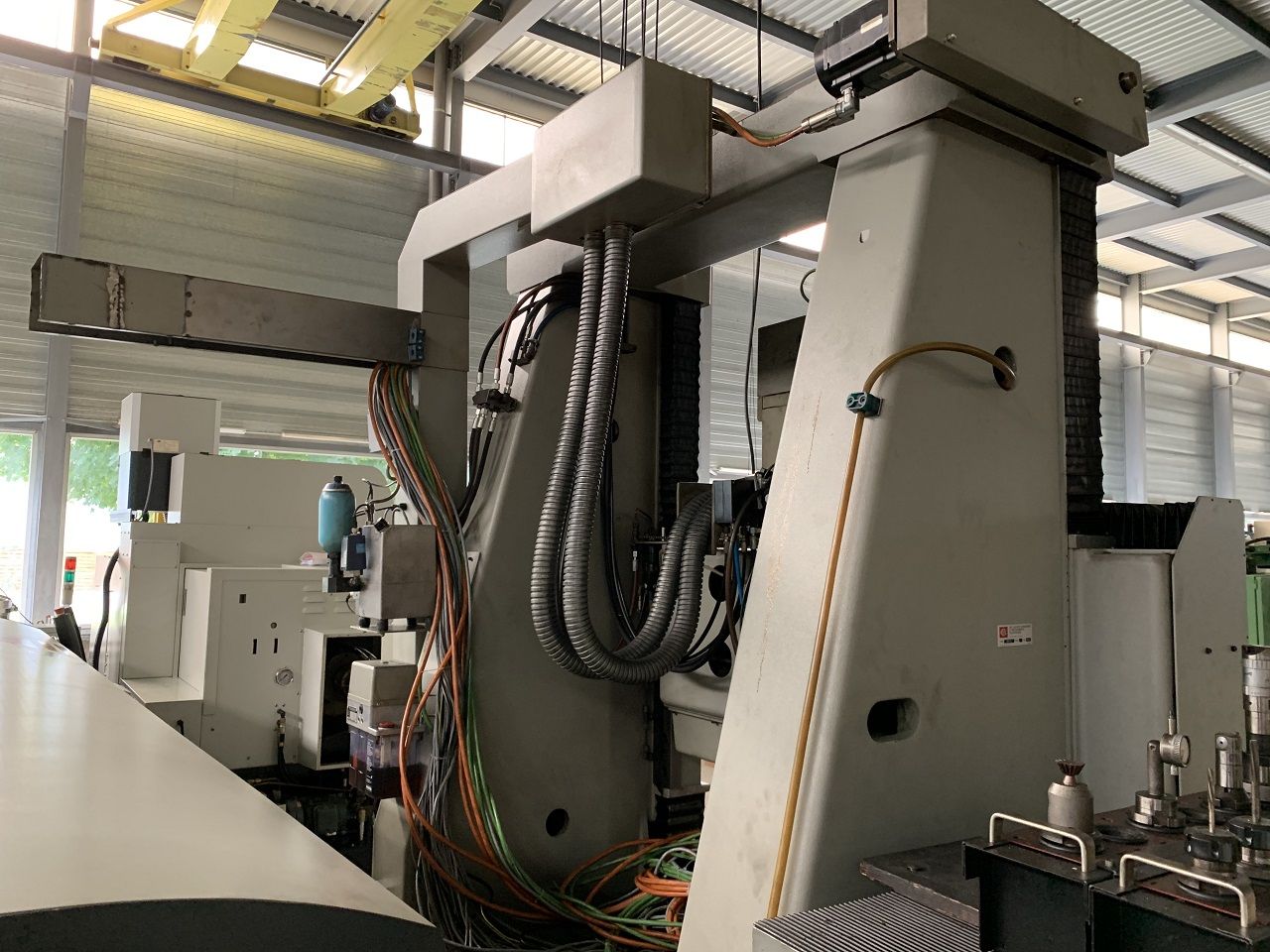

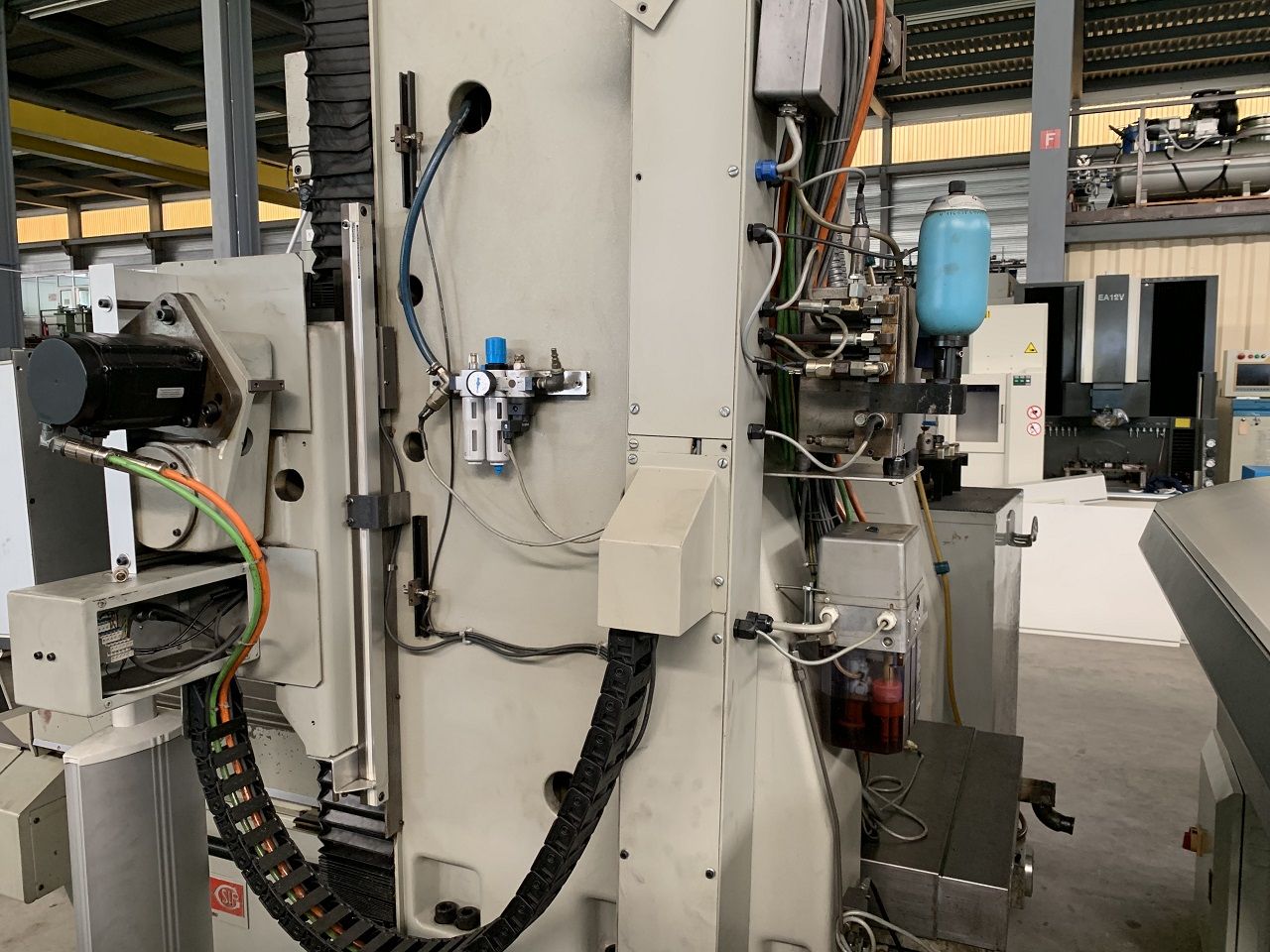

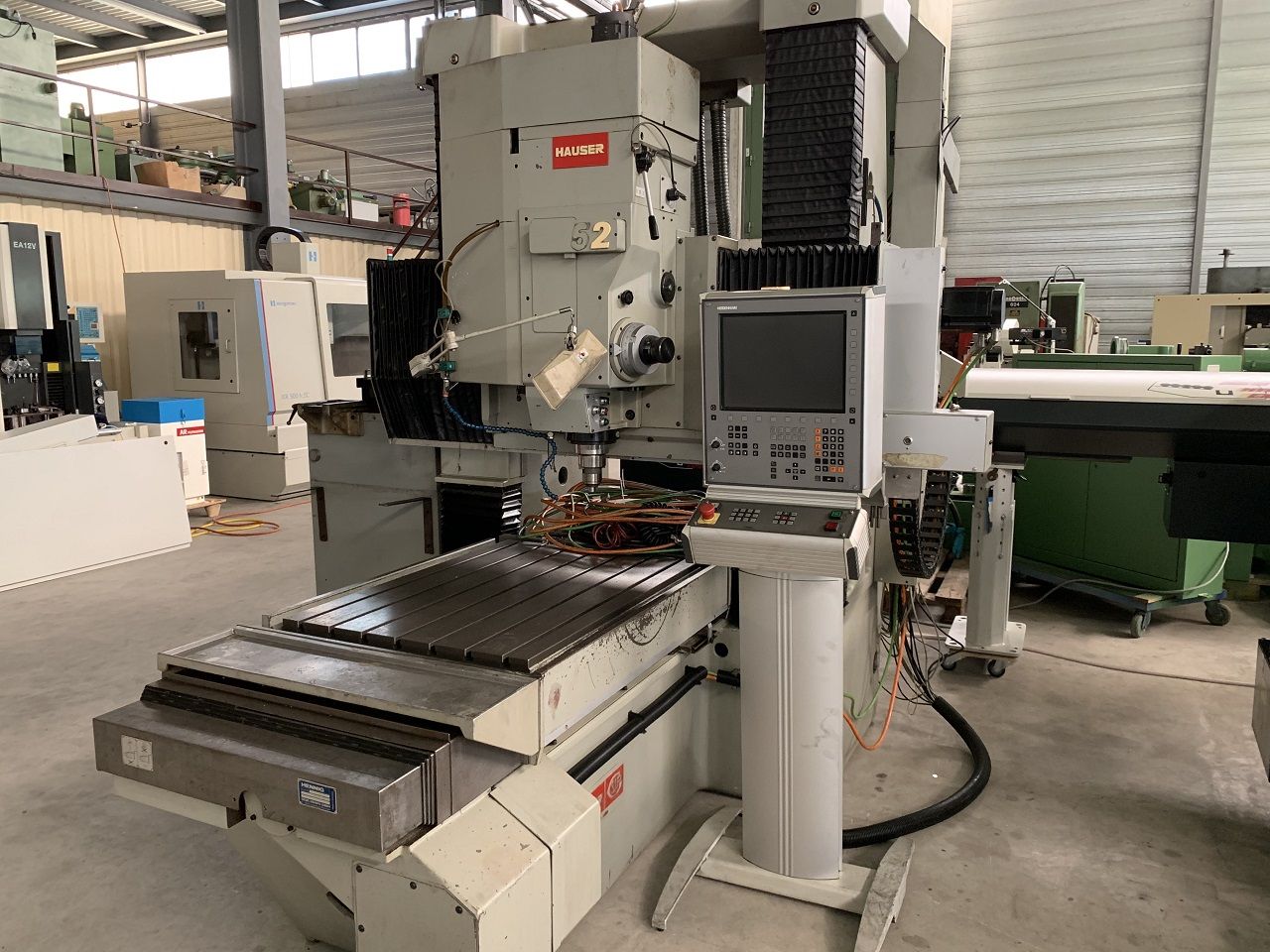

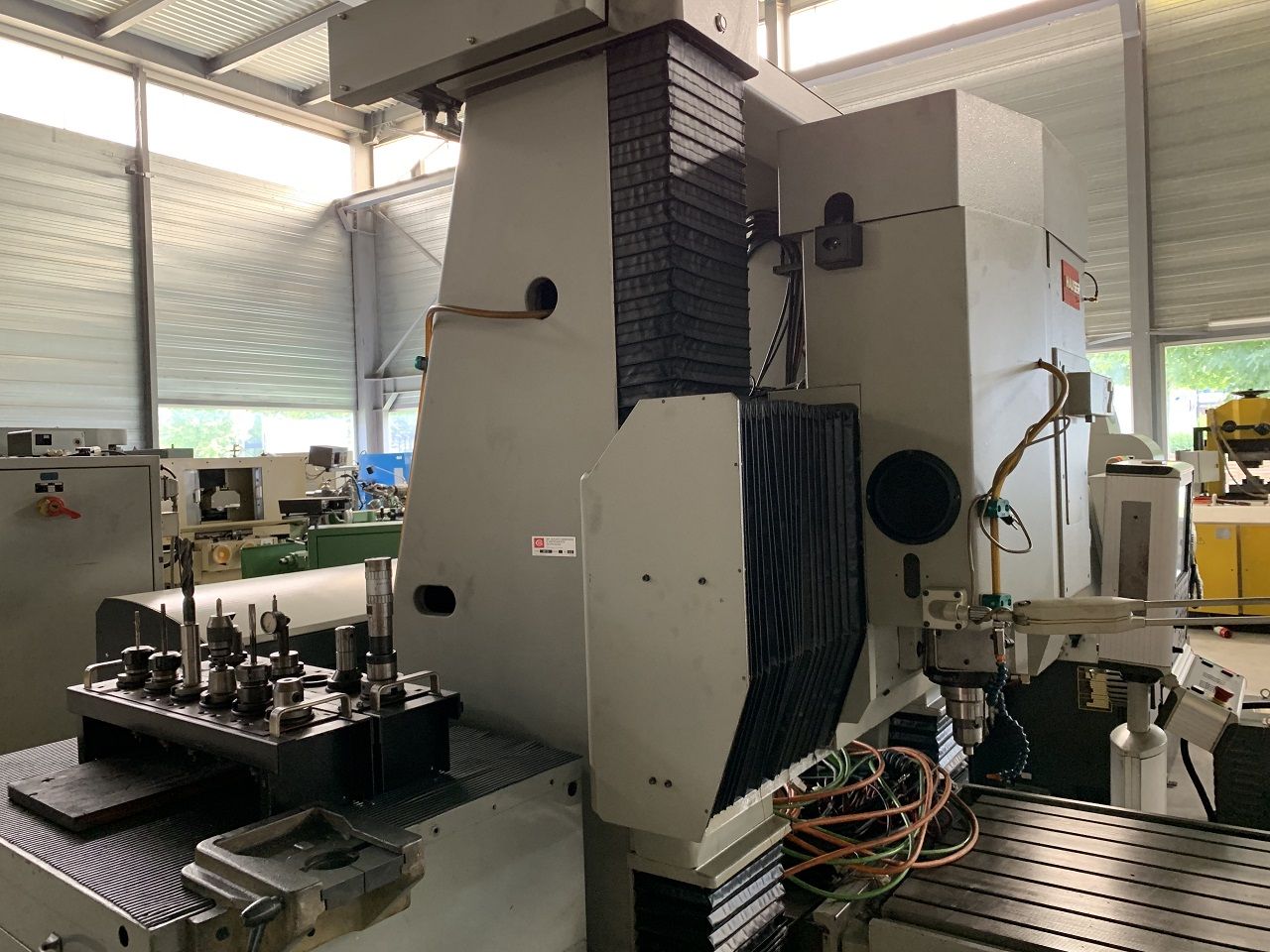

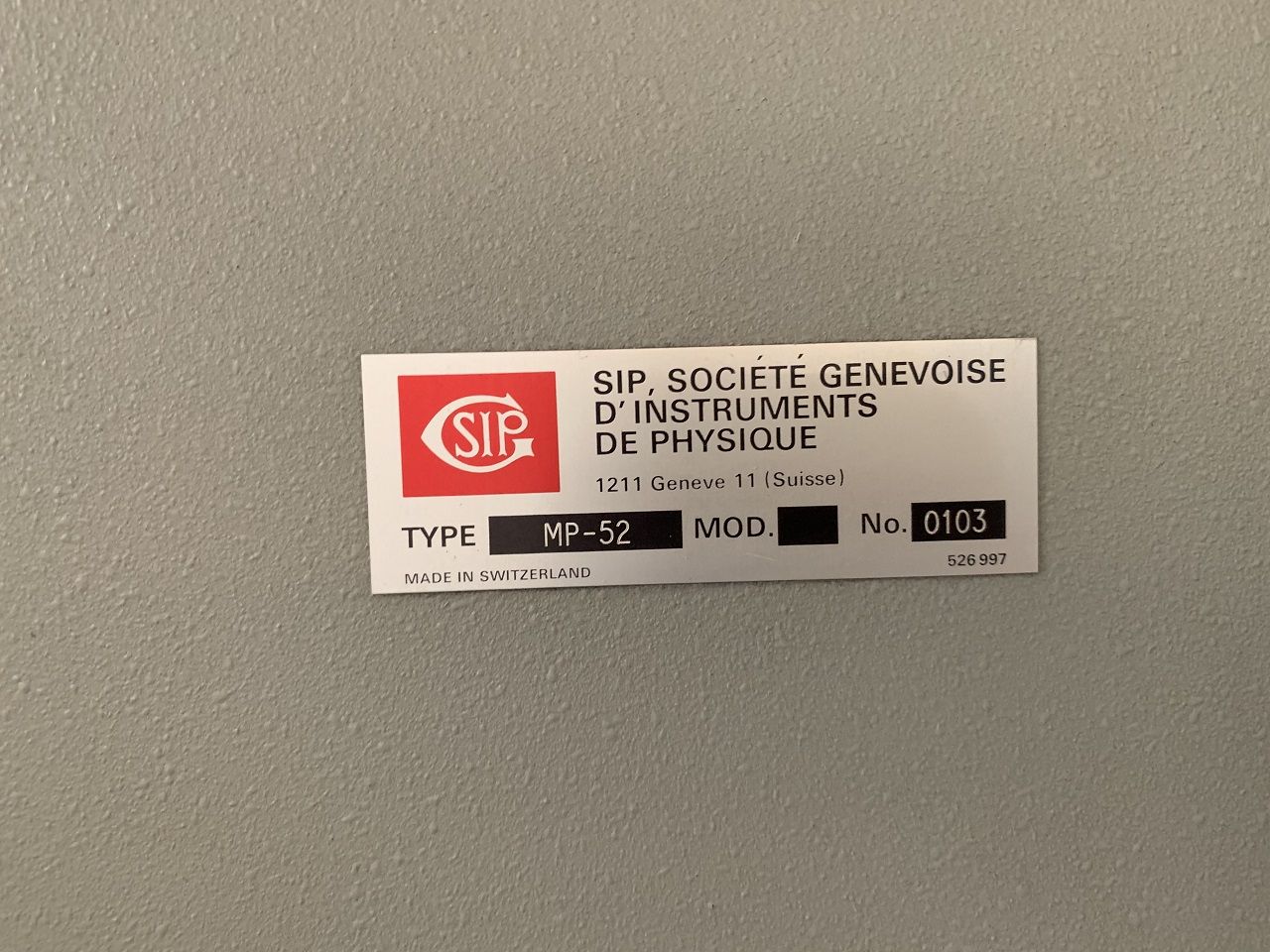

JIG BORING MACHINE "HAUSER-SIP" TYPE MP-52

Reference: 2319016


Information

Manufacturing originCH

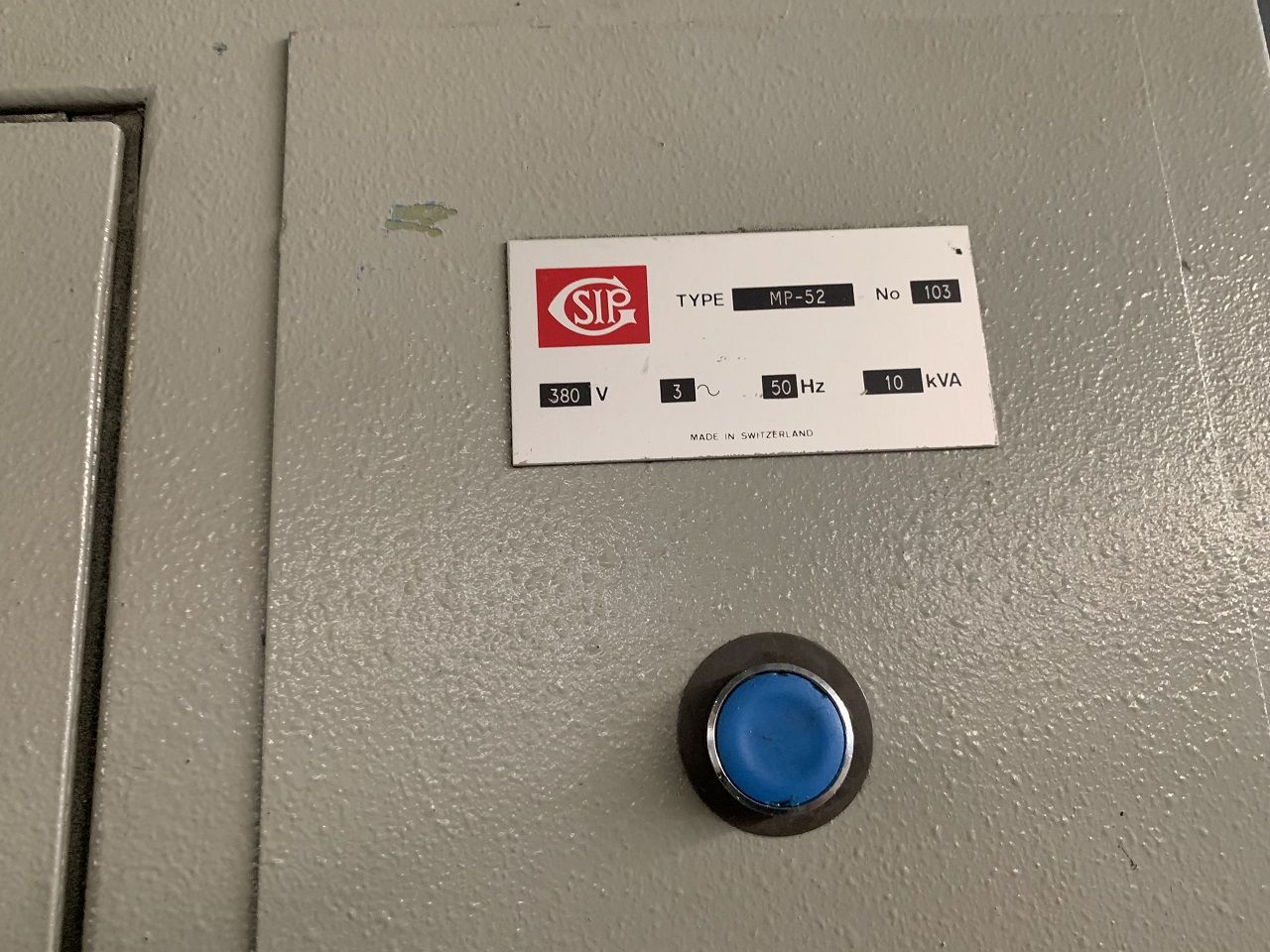

Voltage50 Hz 3x380 V
Netweight6500 kg
Custom position8459.2920
Dimensions 2930x2370x2690 mm

TECHNICAL DATA

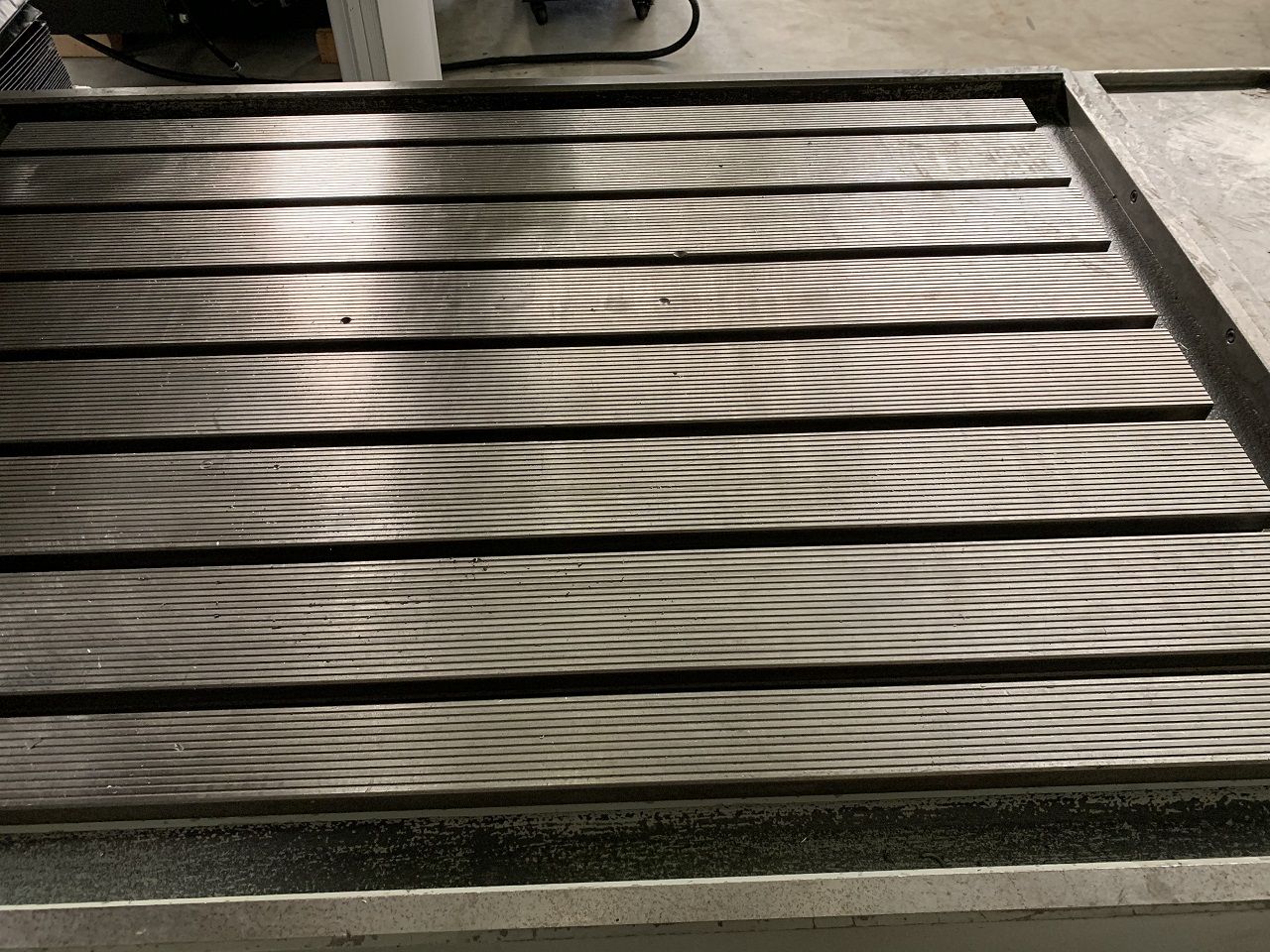

Table length1020 mm
Table width860 mm
Longitudinal travel (X-axis)900 mm
Transversal travel (y axis)600 mm
Vertical travel (z axis)635 mm
Table load max.800 kg
Taper in spindle:ISO40
Stroke of drilling spindle (Z-axis)200 mm
Distance table to spindle15 - 850 mm
Spindle speeds: from 10 - 800 rpm
to 800 - 2500 rpm
Feeds:
Table: from 5 mm/min
To 5000 mm/min
Drill spindle slide:
number (steps)6
from0.03 mm/r
up to 0.33 mm/r
Distance between columns 950 mm
errors and omissions excepted-data given without obligation
