MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Hauser
  • Model:
  • JIG BORING MACHINE HAUSER TYPE 3-BA
  • Condition:
  • Used
  • YOM:
  • N/A
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • Switzerland

DESCRIPTION

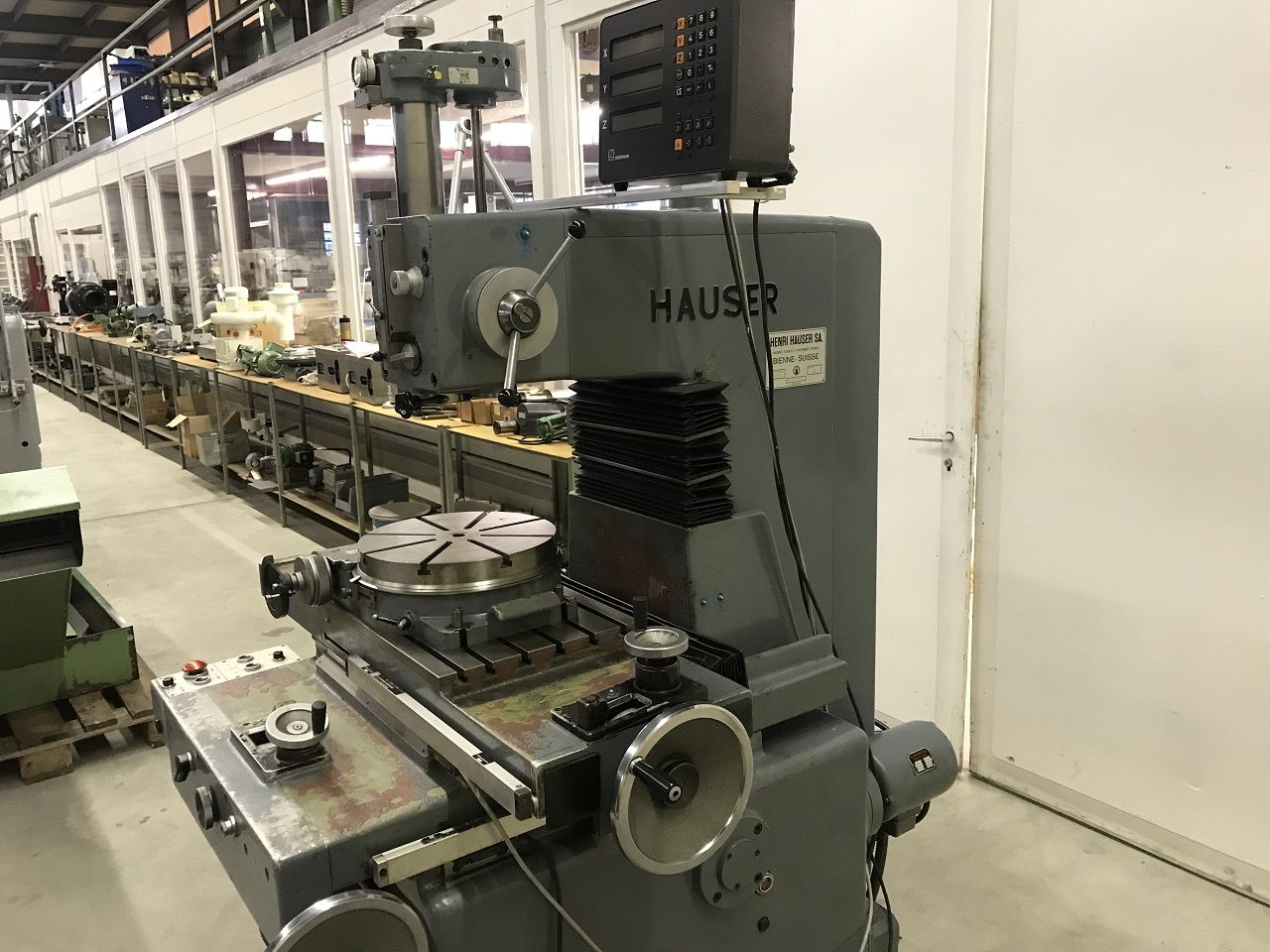

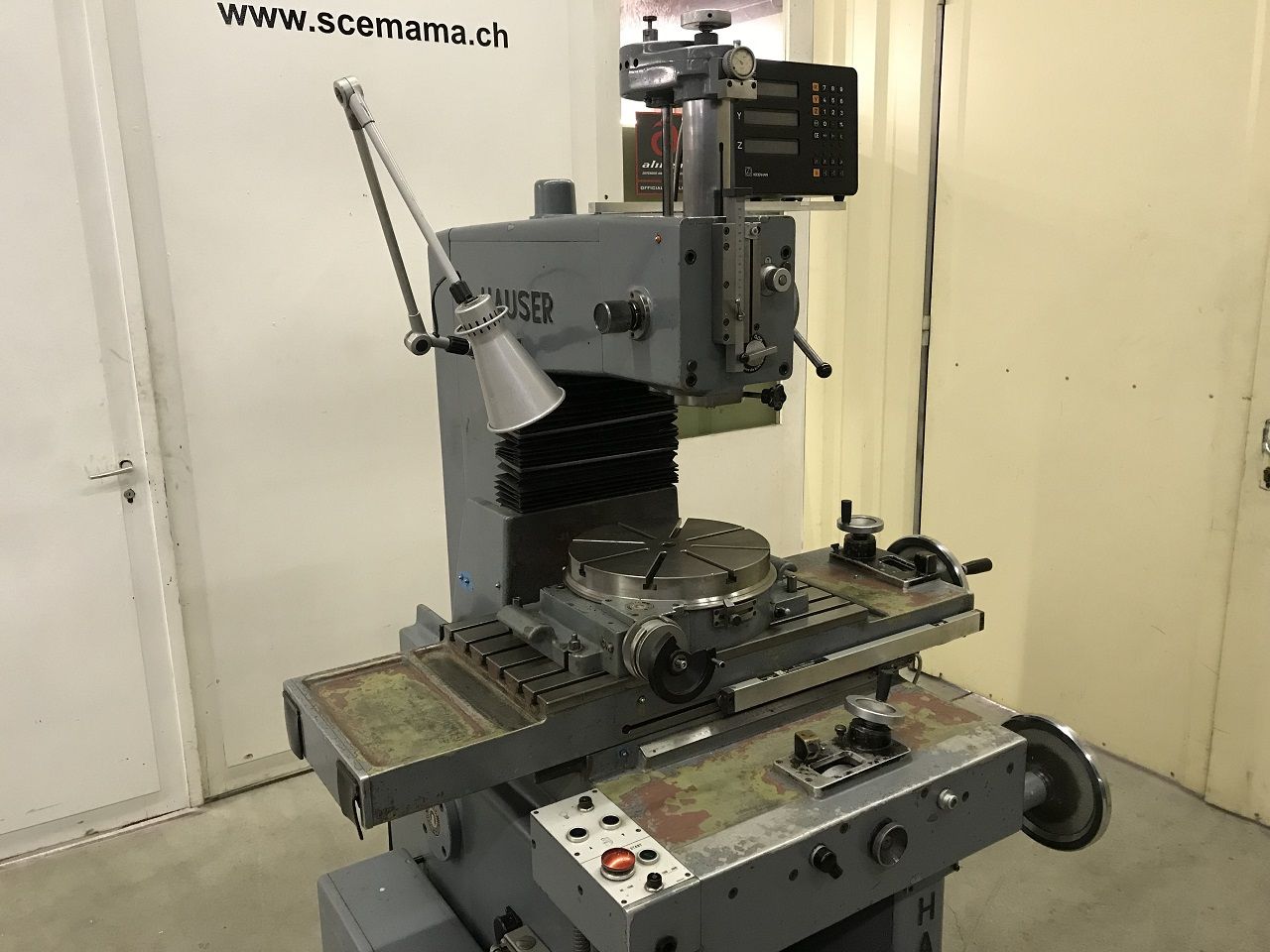

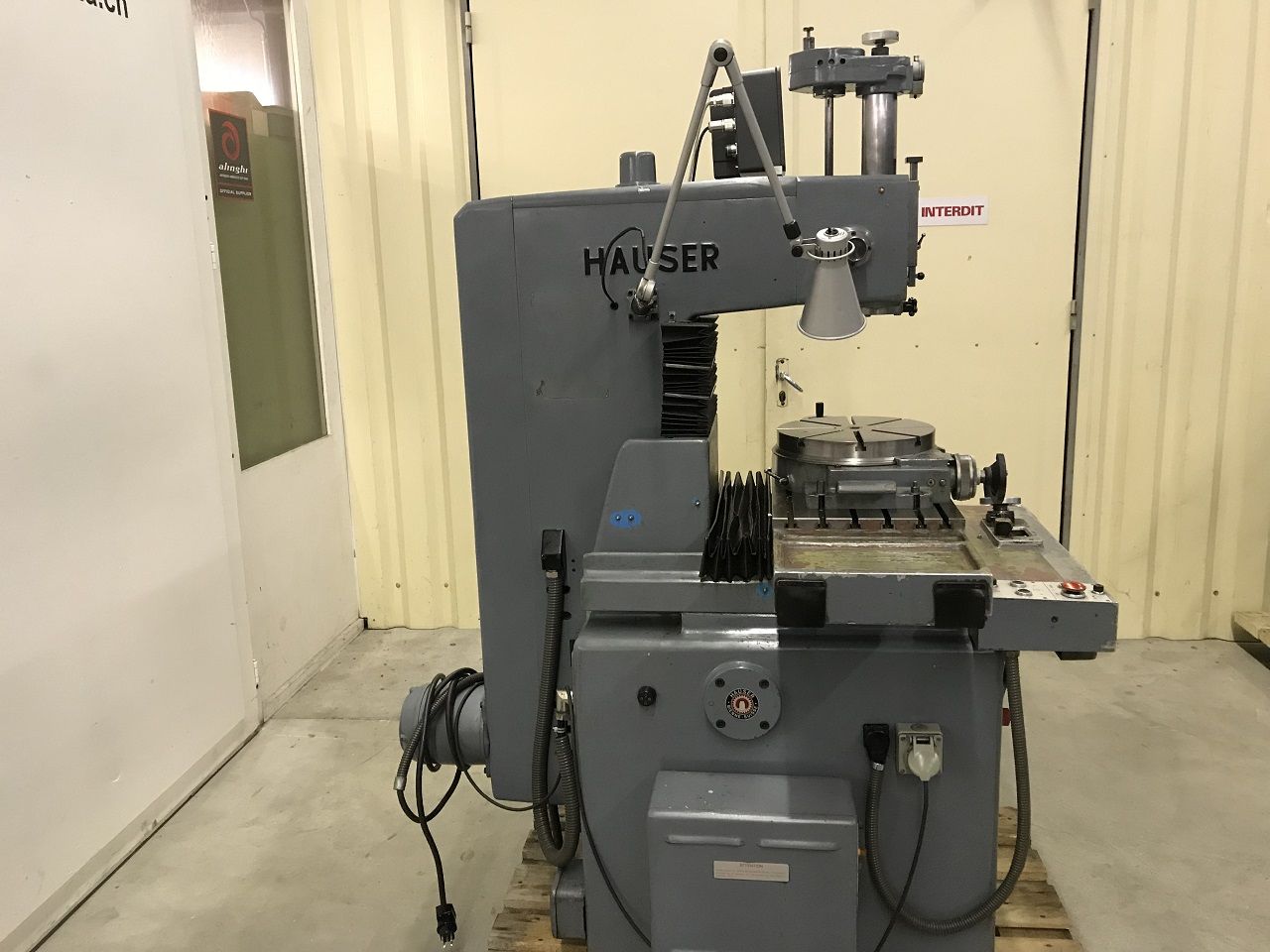

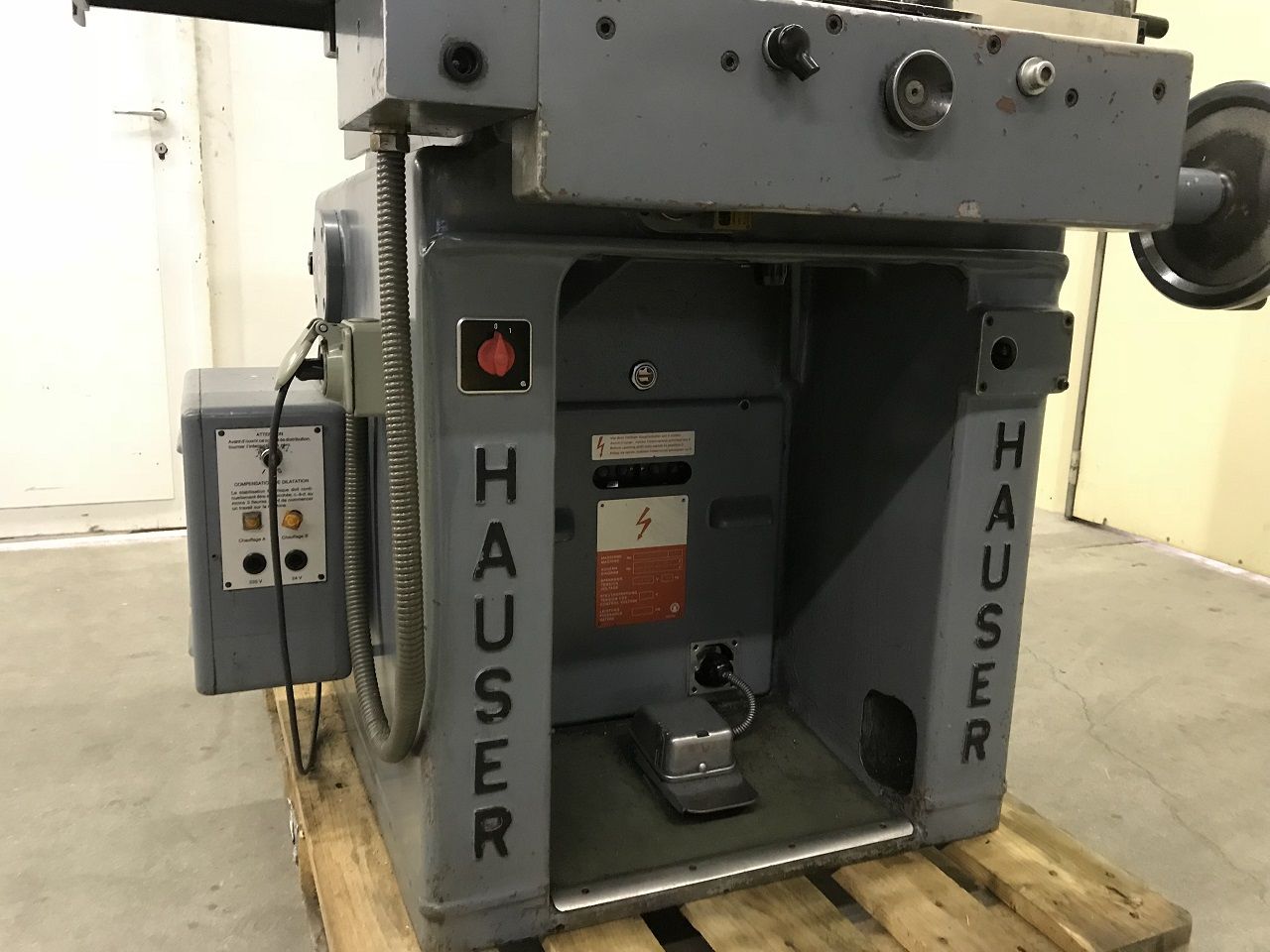

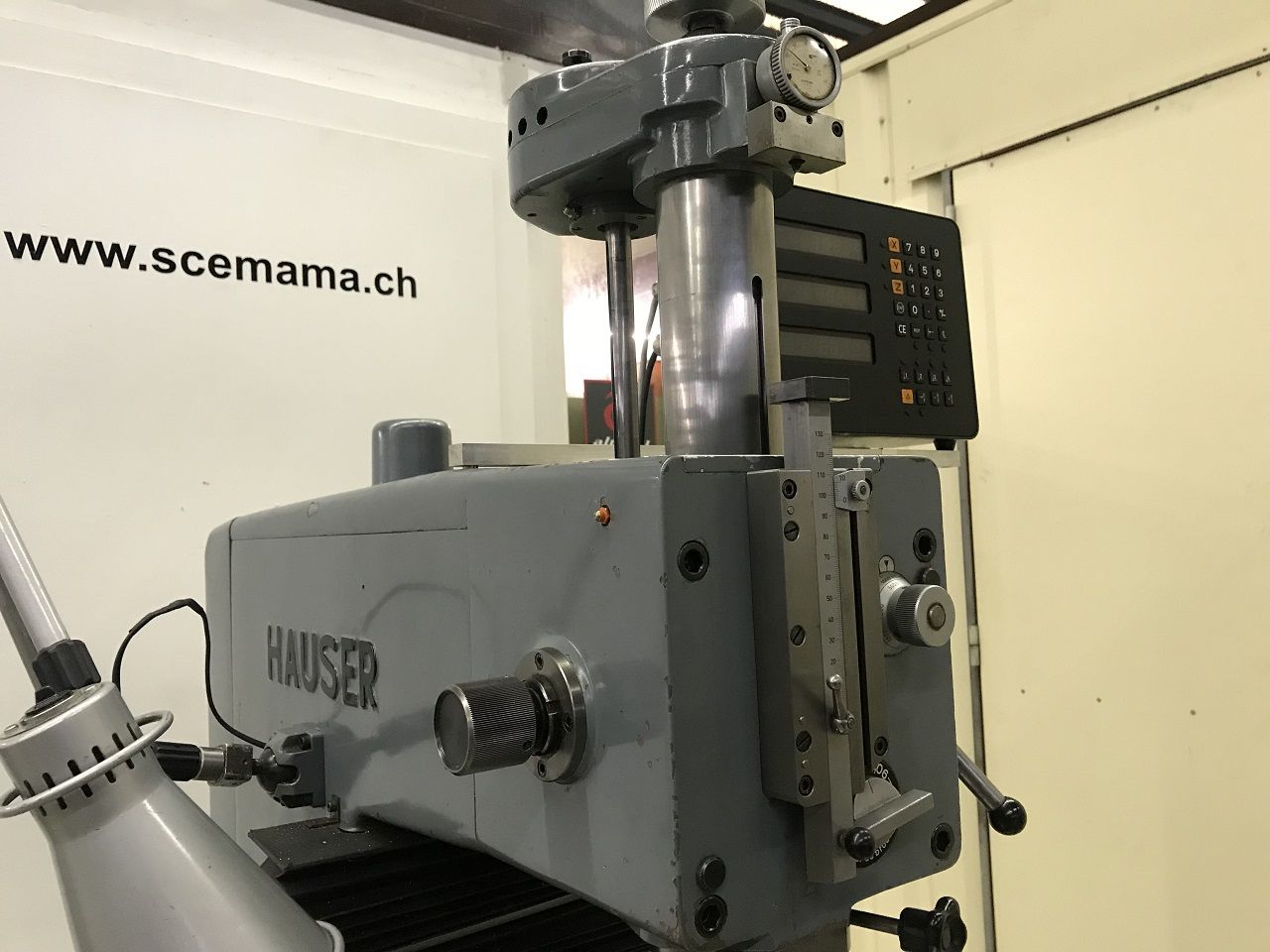

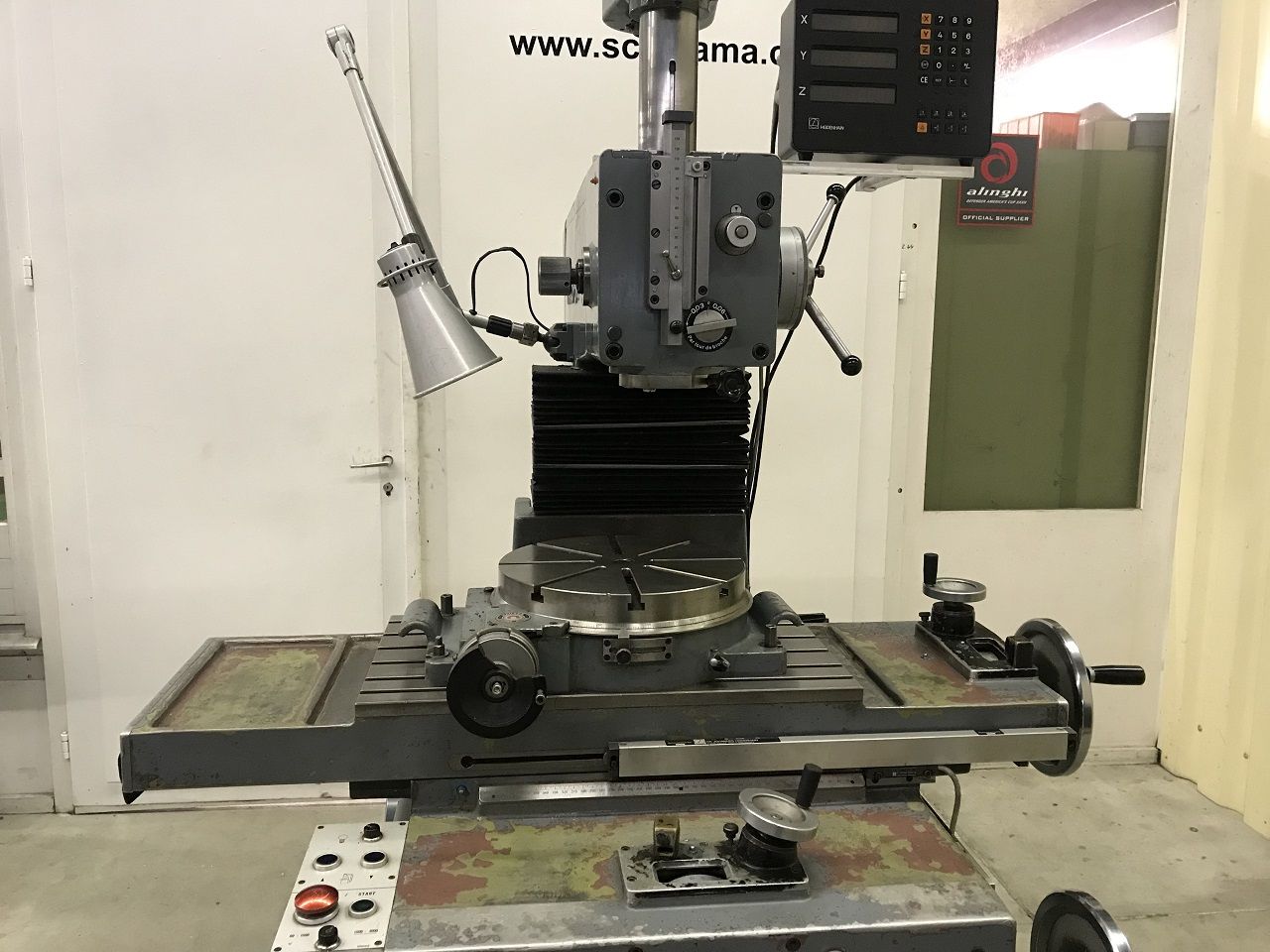

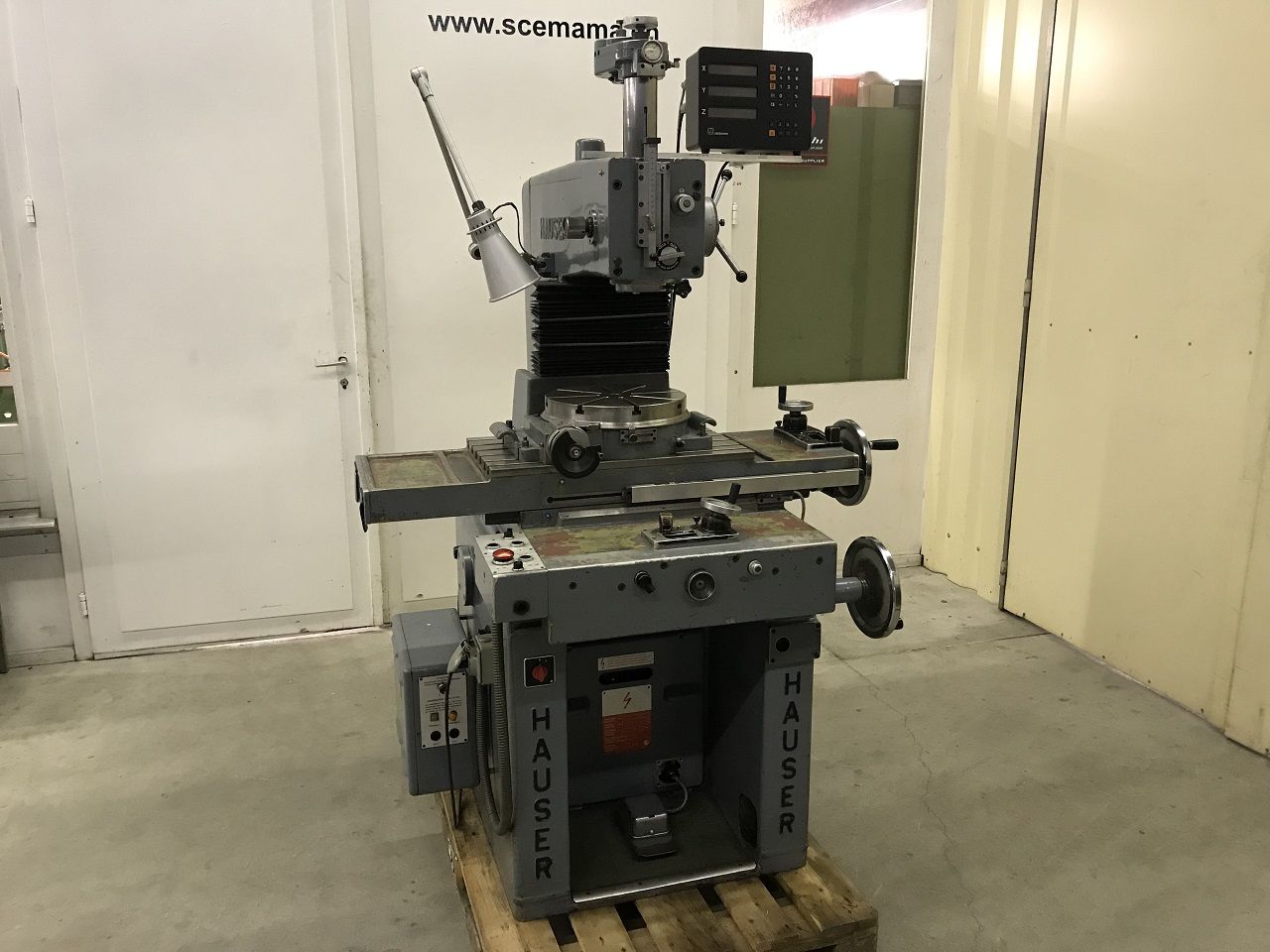

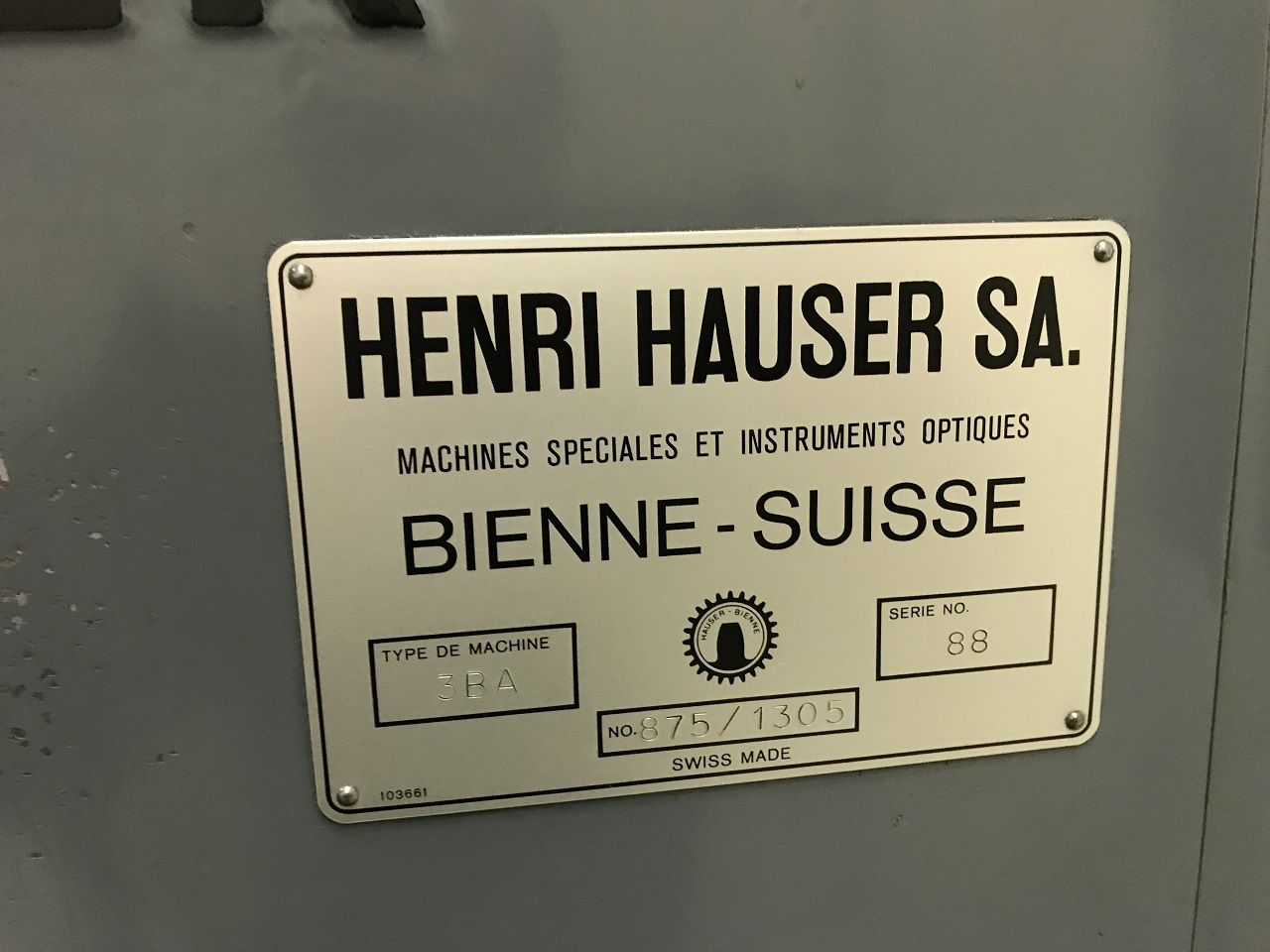

JIG BORING MACHINE "HAUSER" TYPE 3-BA

Reference: 2170101

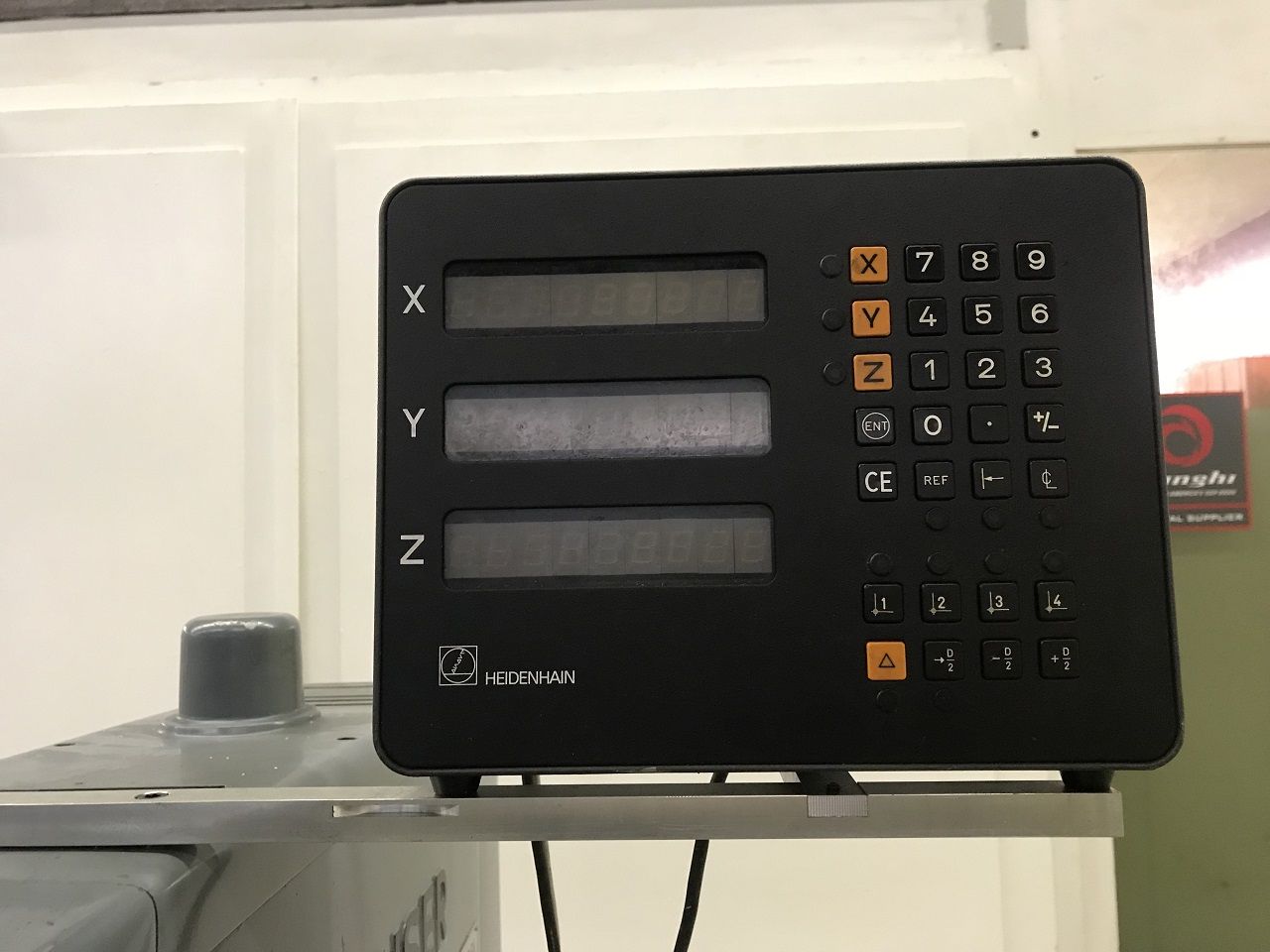

3 axes digital read-out Heidenhain VRZ 760


Information

Manufacturing originSwitzerland
Voltage380/50/3
Total power1,5 KVA
Netweight1100 kg
Custom position8459.2920
Dimensions120x115x160 cm

TECHNICAL DATA

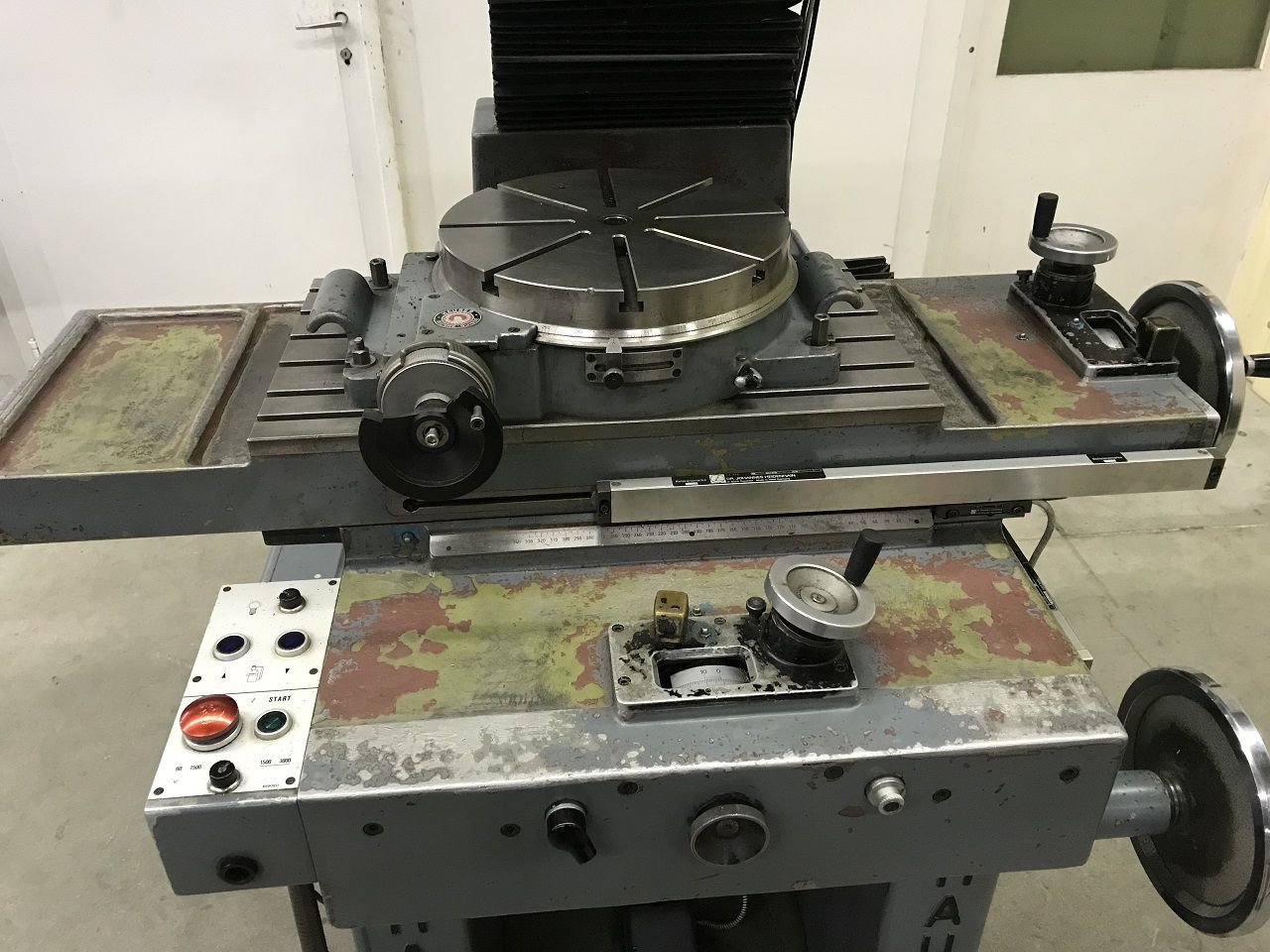

Working surface of table550 x 320 mm
Range of table travel400 x 250 mm
Travel of vertical slide400 mm
Maximum clearance between spindle and table590 mm
Depth of throat315 mm
Drilling capacity (in steel)20 mm
Boring capacity75 mm
Taper in boring spindleCM 2
Power of main motor0,75 HP
errors and omission excepted-data gived without obligation
