MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Model:

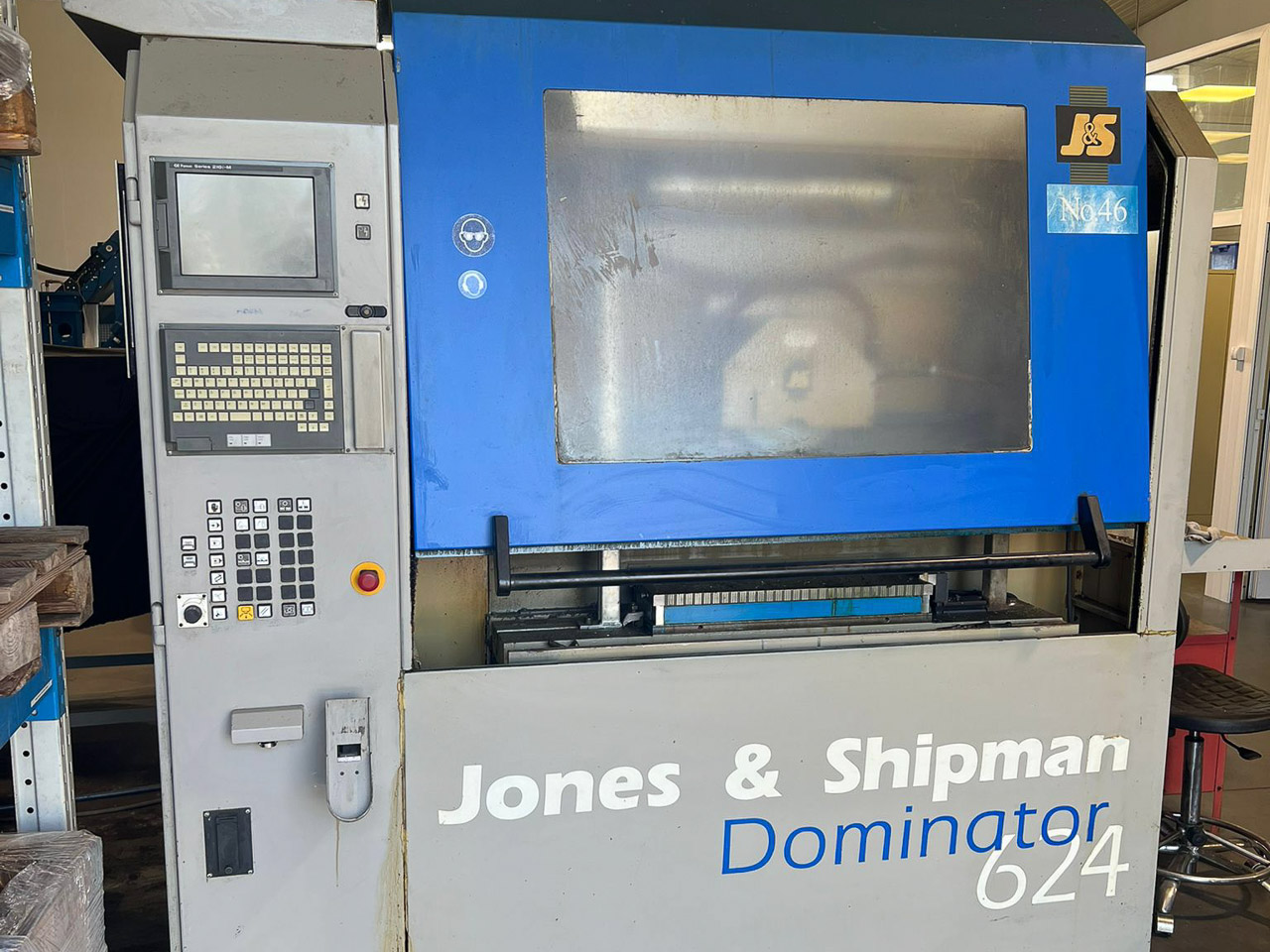

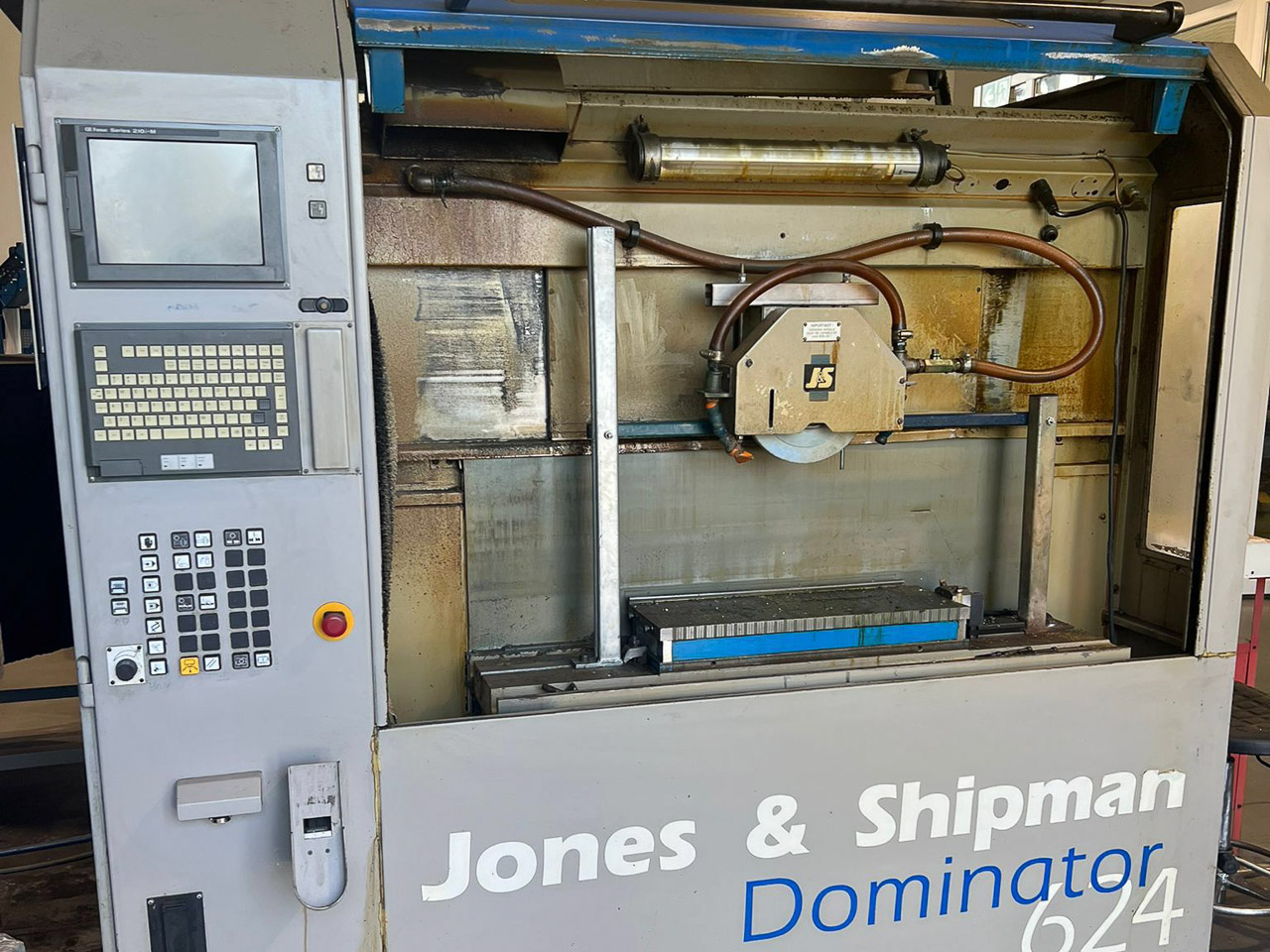

  • Jones and Shipman Dominator 624 Grinder
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • N/A

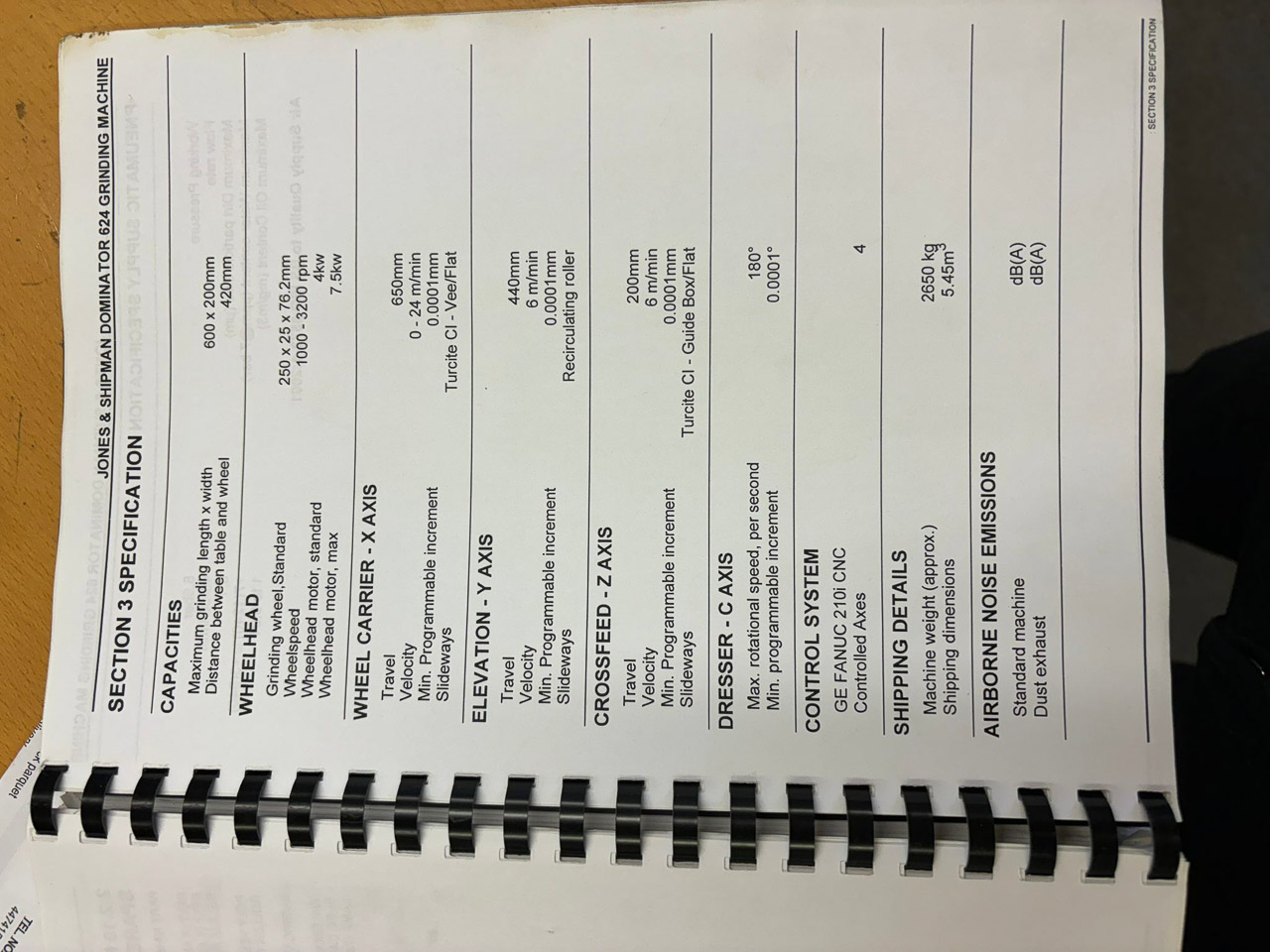

DESCRIPTION

Table Length: 600mm.
Table Width: 200mm.
Control: Fanuc 210i-M.
Wheel Diameter: 250mm.
Wheel Width: 25mm.
Max Wheel Speed: 3200 RPM.
Spindle Power: 7.5kW.
X Axis Travel: 650mm.
Y Axis Travel: 440mm.
Z Axis Travel: 650mm.
X Axis Velocity: 0-40 m/min programmable increment.
Y Axis Velocity: 0-6 m/min programmable increment.
Z Axis Velocity: 0-40 m/min programmable increment.
C Axis Max Rotation Speed: 180° per second.
C Axis Min. Programmable Increment: 0.0001 Degrees.
Footprint: 2100 x 1500 x 2100mm (L x W x H).
Weight: 2650kg.
