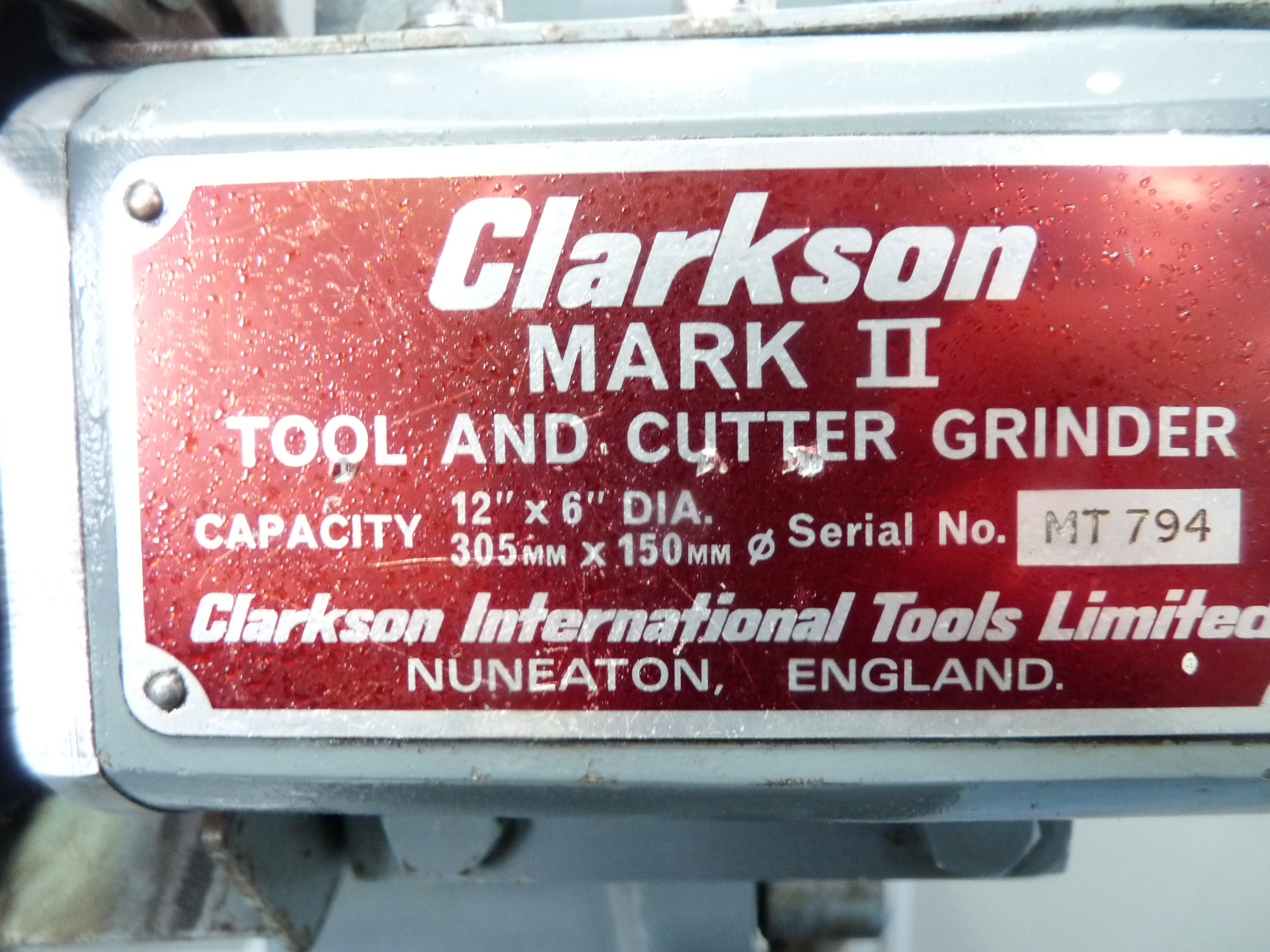

Manufacturer
Clarkson
Model

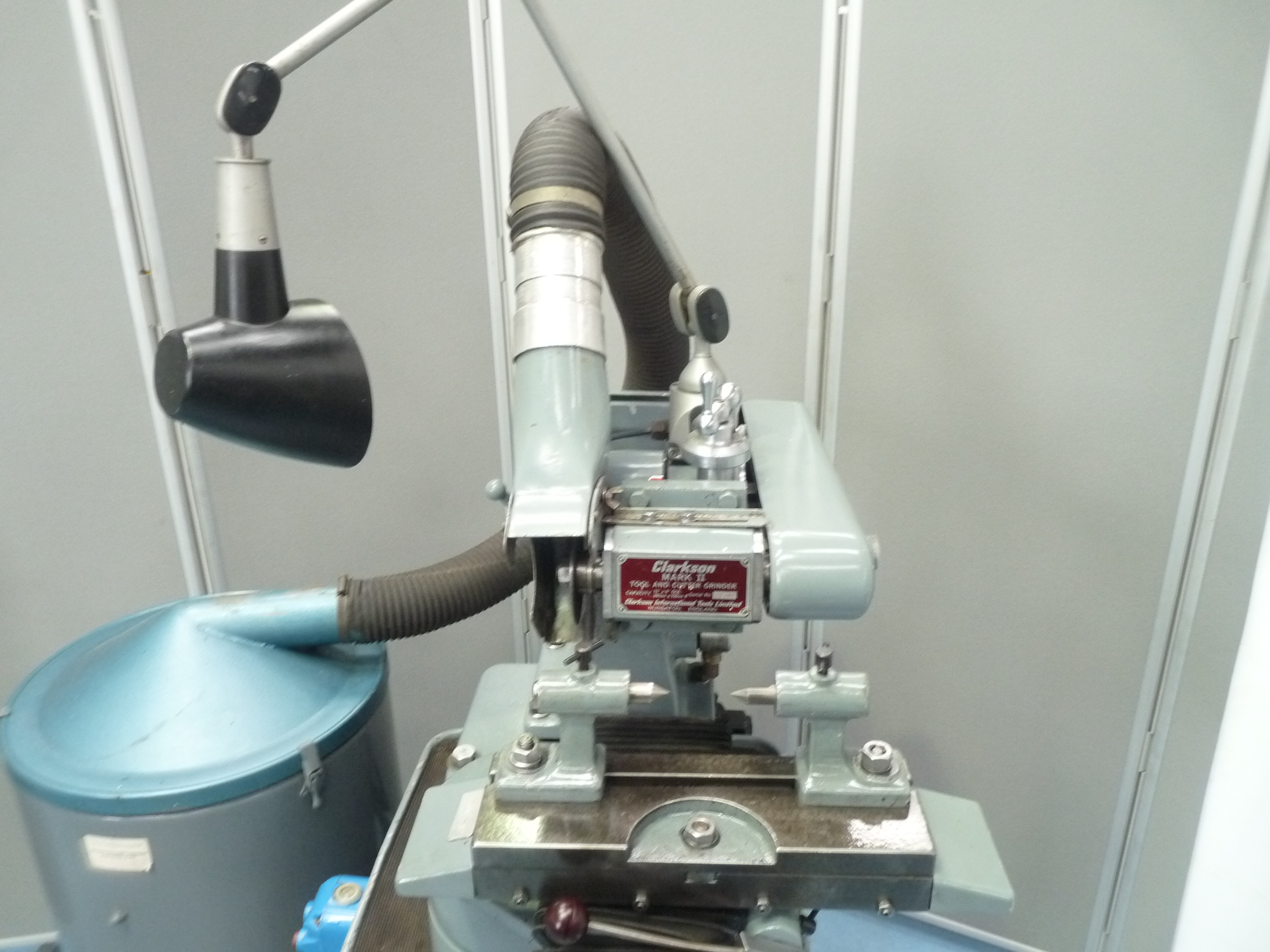

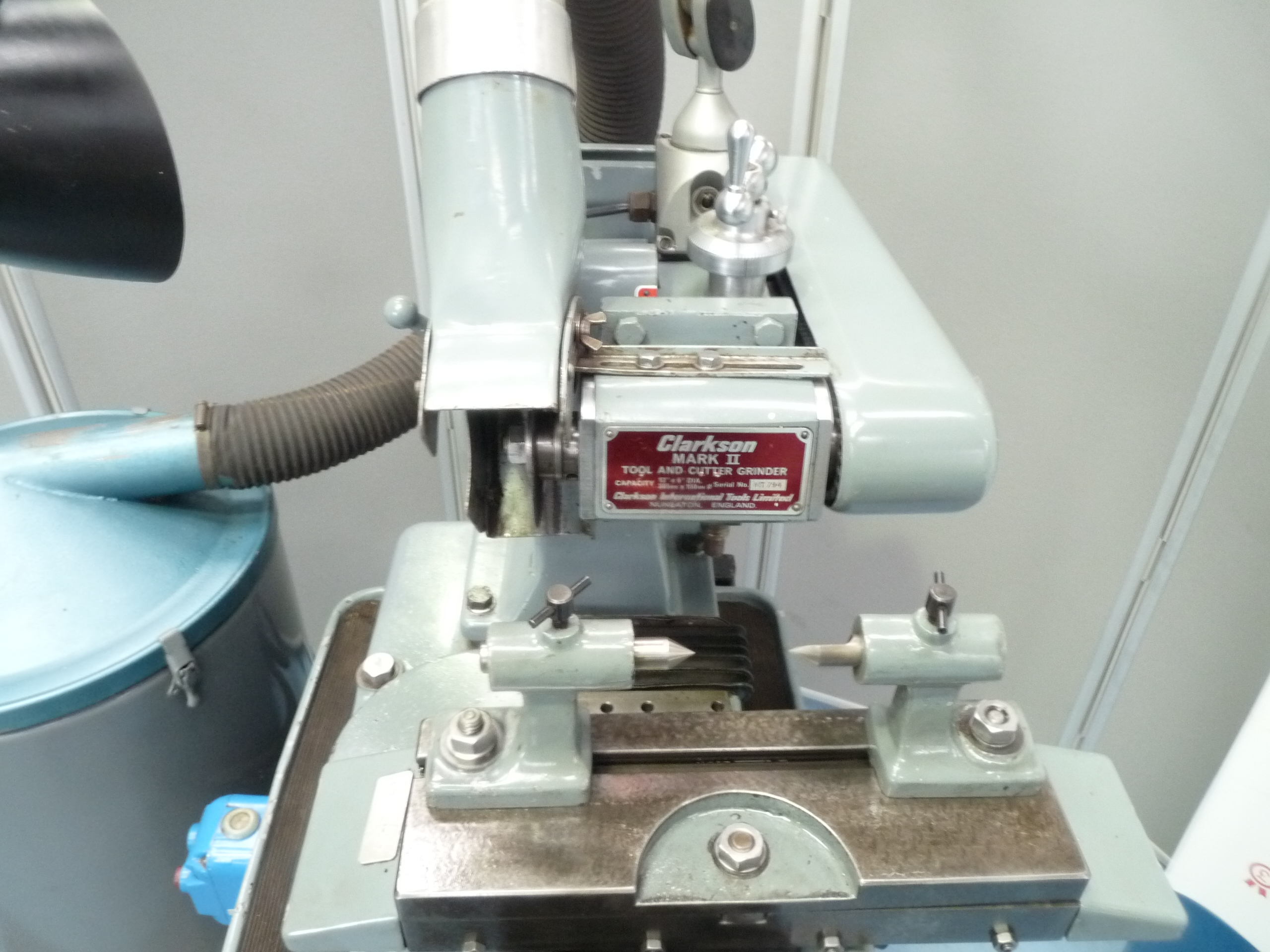

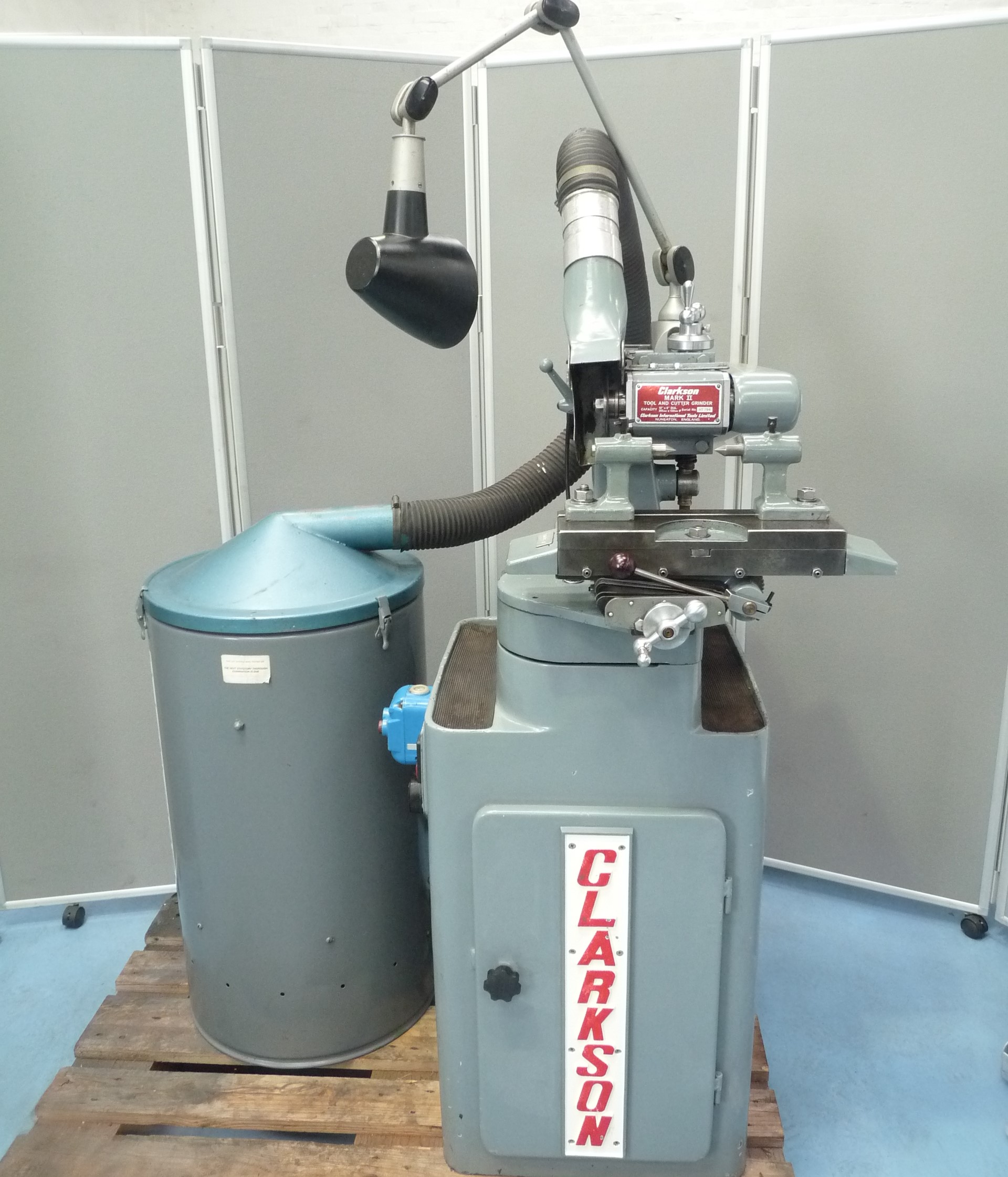

MK 2 Tool & Cutter Grinder
height of spindle centre line above the machine table
Maximum: 203mm (8")
Minimum: 57mm (2 1/4")
Spindle speeds
2: 4000 6000 rpm
Maximum movement of work table
203mm (8")
Maximum stroke of work table
165mm (6 1/2")
Maximum movement of cross slide
136mm (5 3/8")
Maximum distance between centres
305mm (12")
Maximum diameter of cutters
152mm (6")
Table Capacity
330mm x 108mm (13" x 4 1/4")
Equipment
Clarkson Extraction Unit
Extraction hood

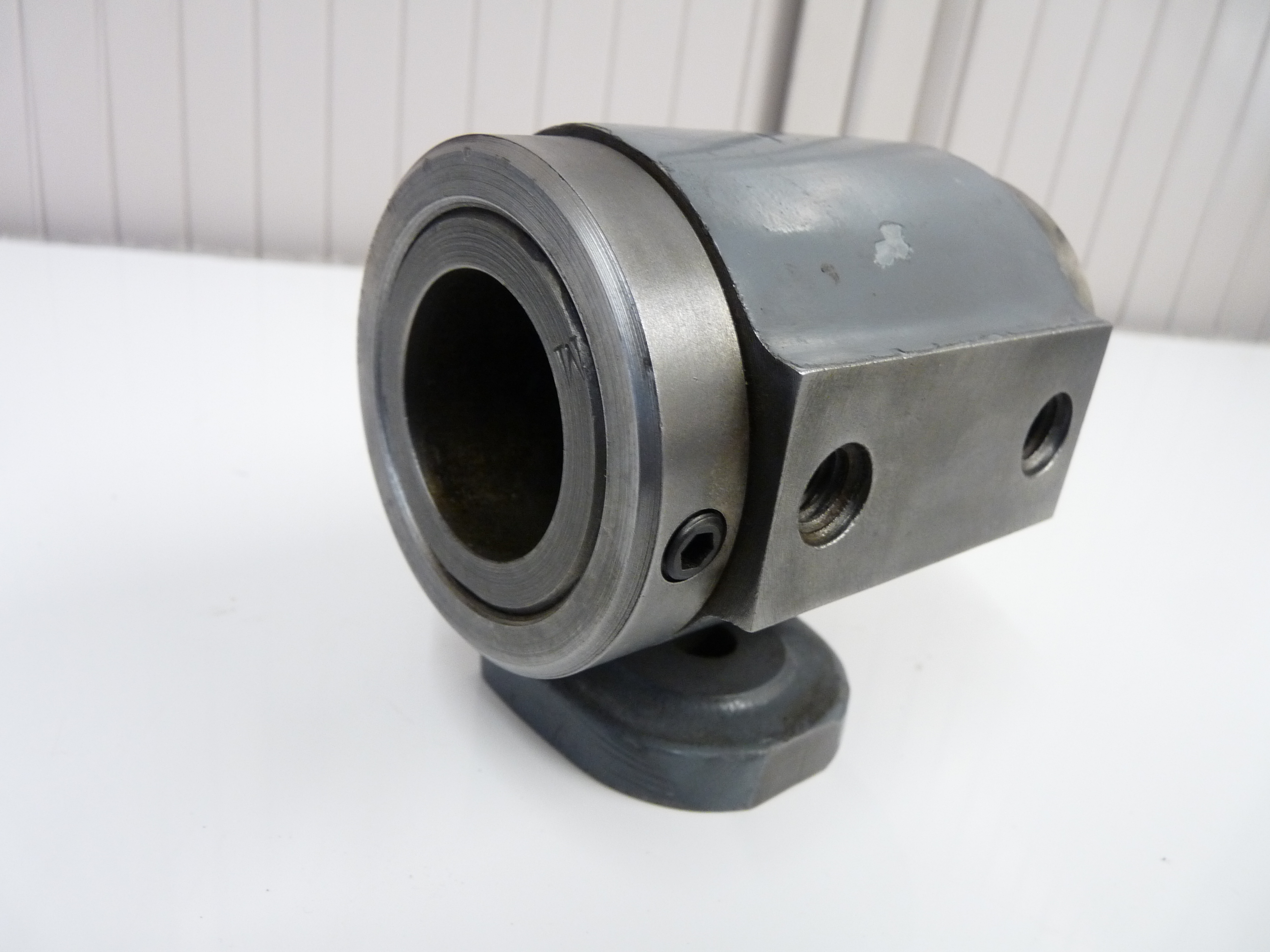

Universal Head with holders

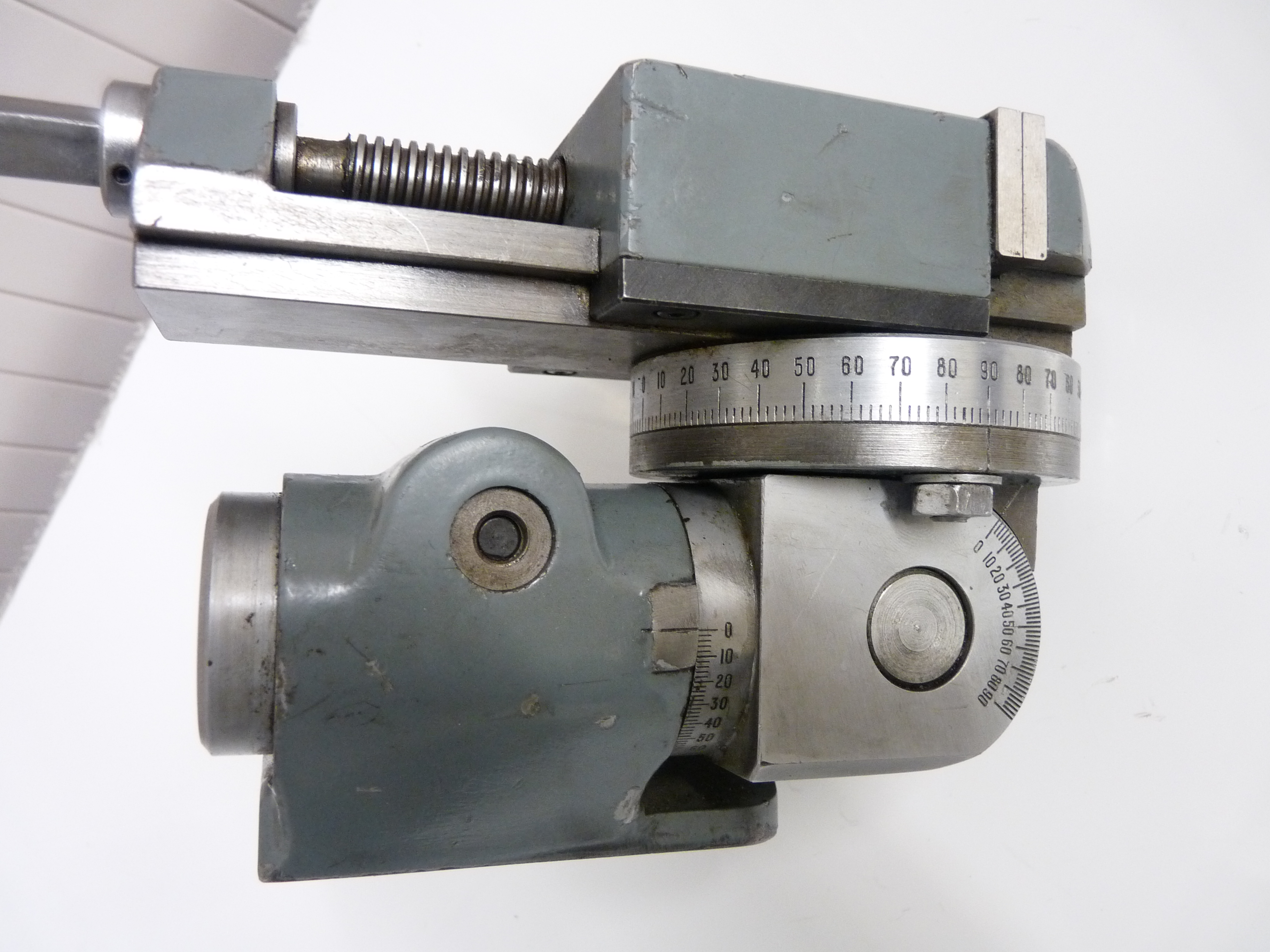

Clarkson Universal Vice

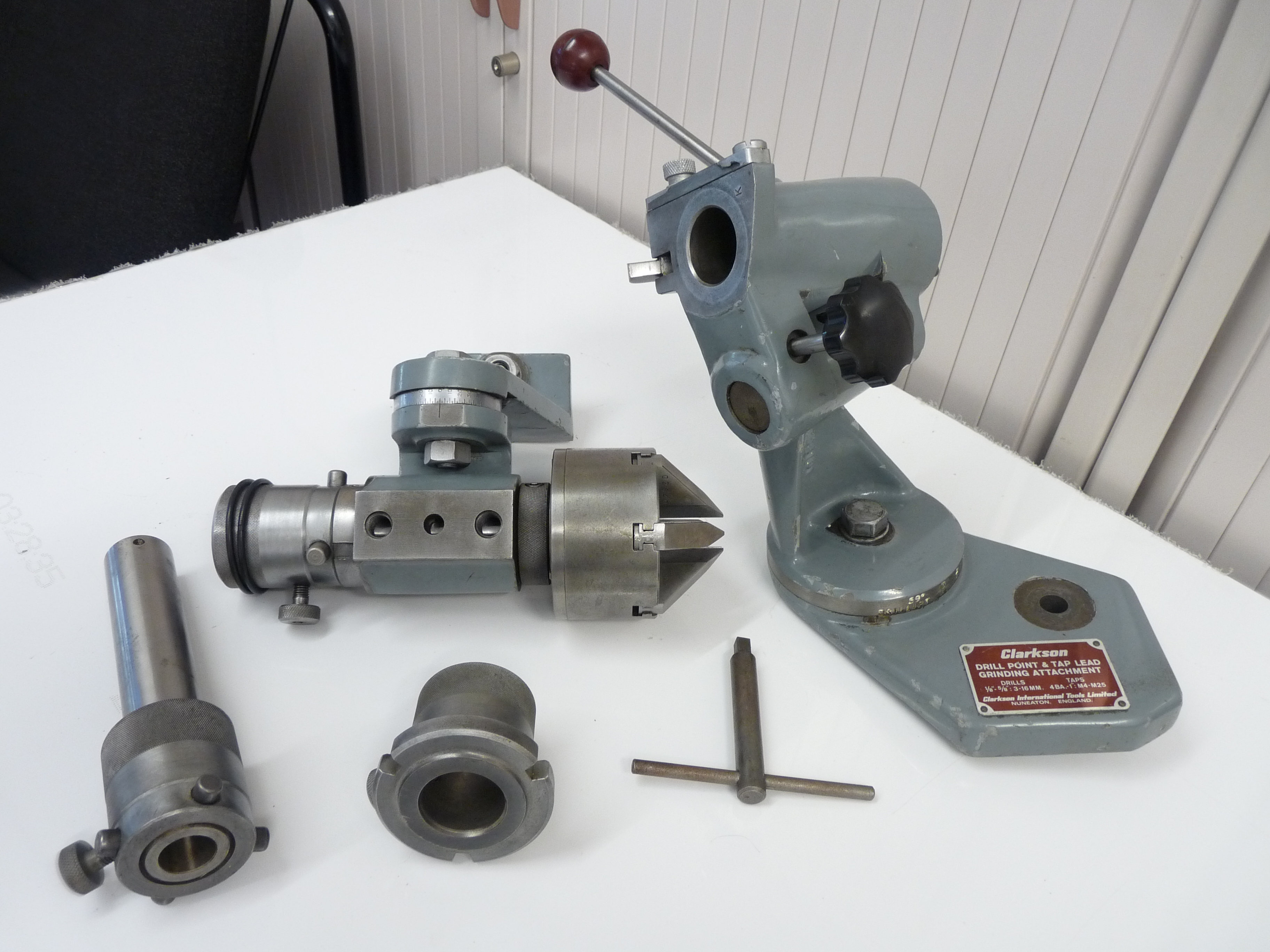

Drill point & tap lead grinding attachment
Diamond Dresser
Plan Vice
Centres
Extension spindle

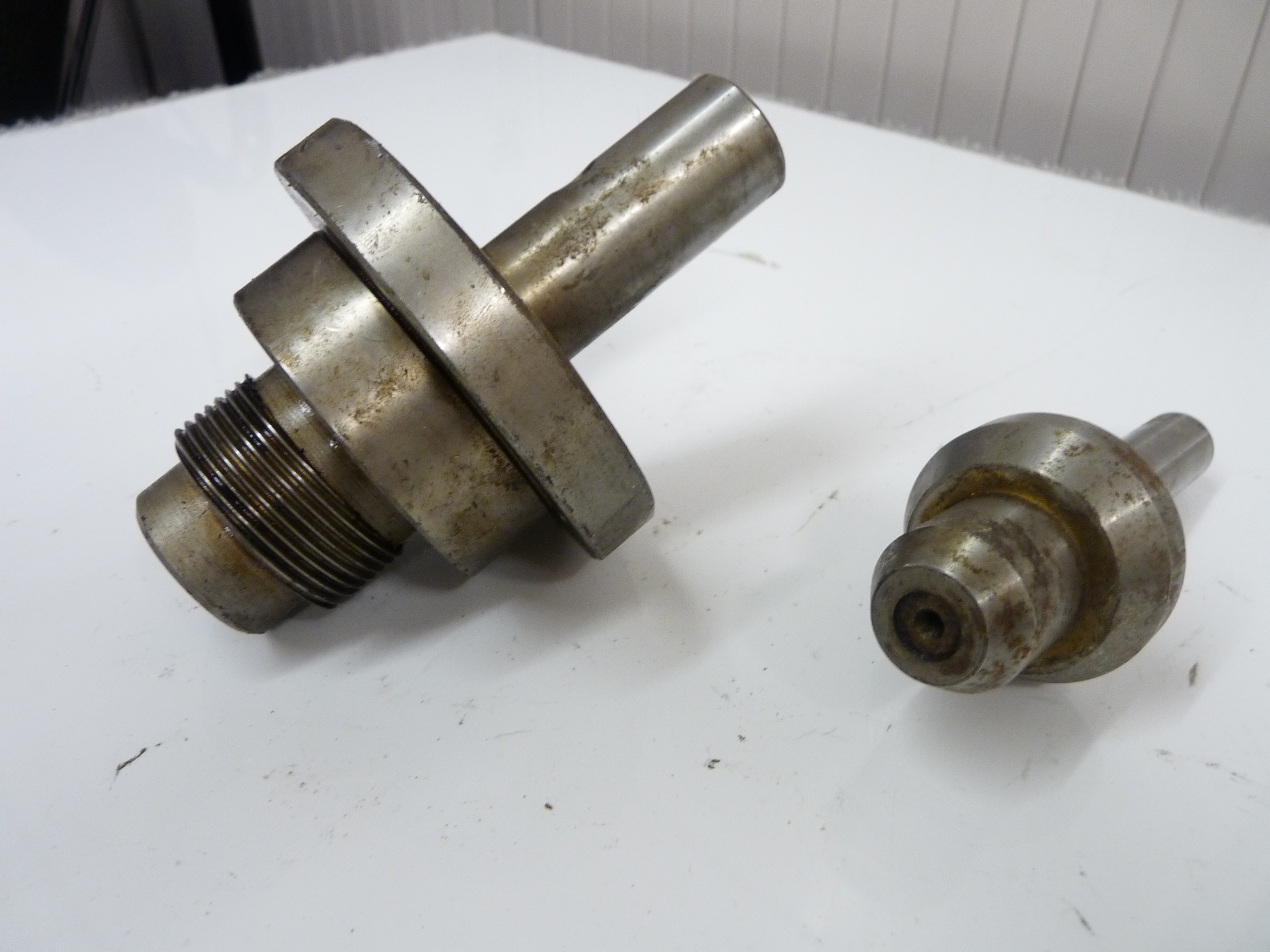

Deadlock regrind mandrels
Side & face cutter mandrels
Selection of tooth rests and holders
Various:

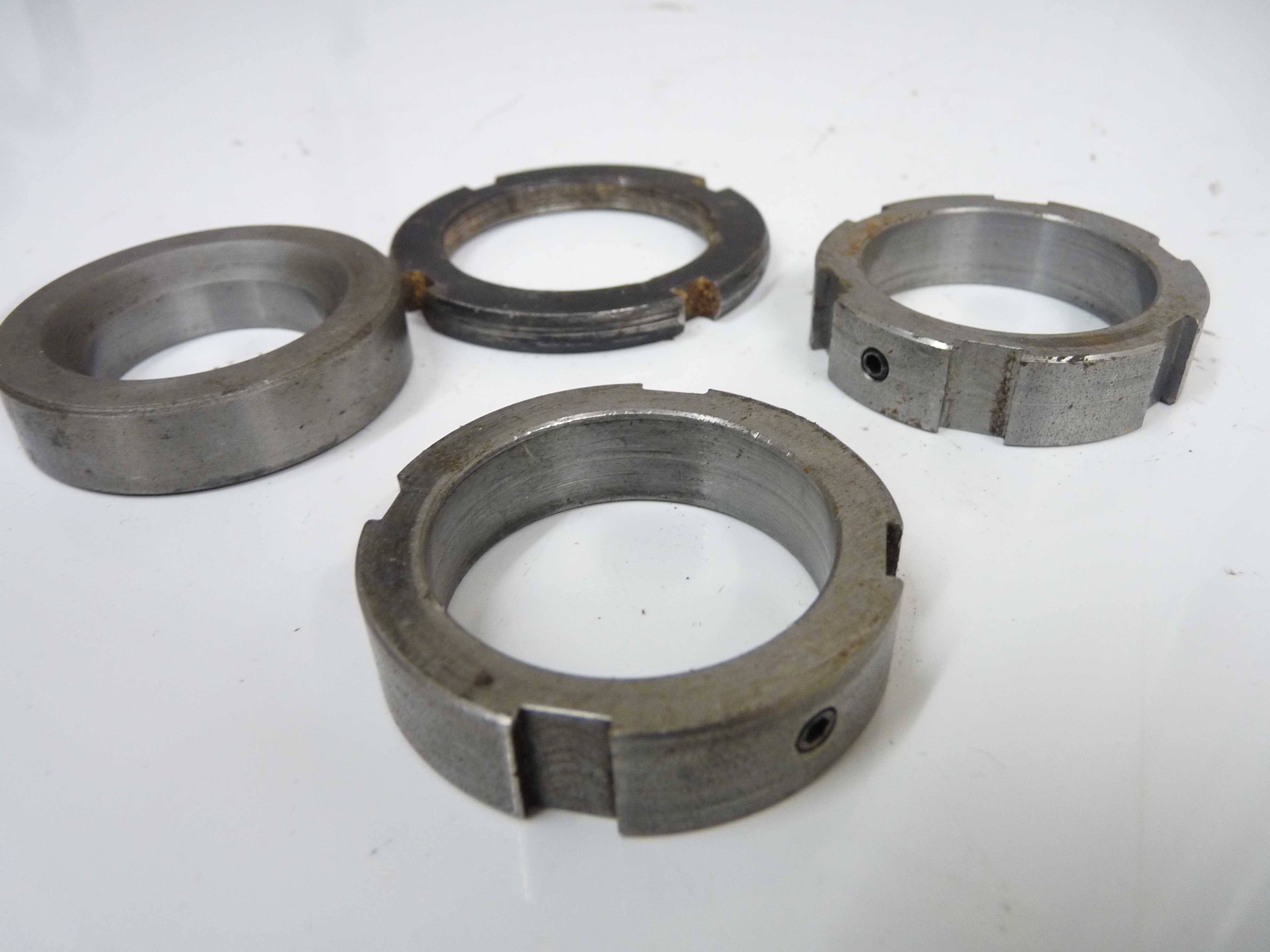

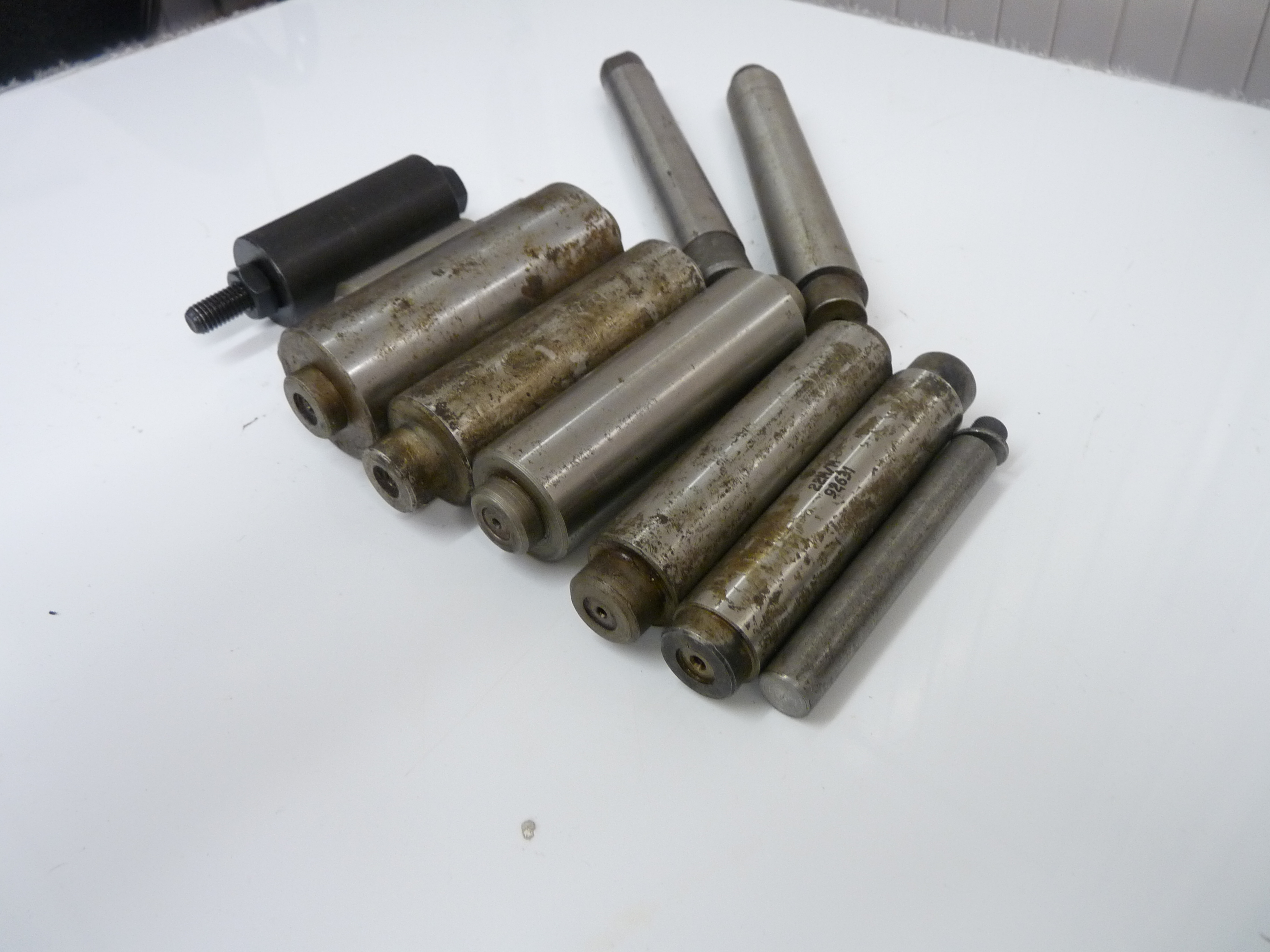

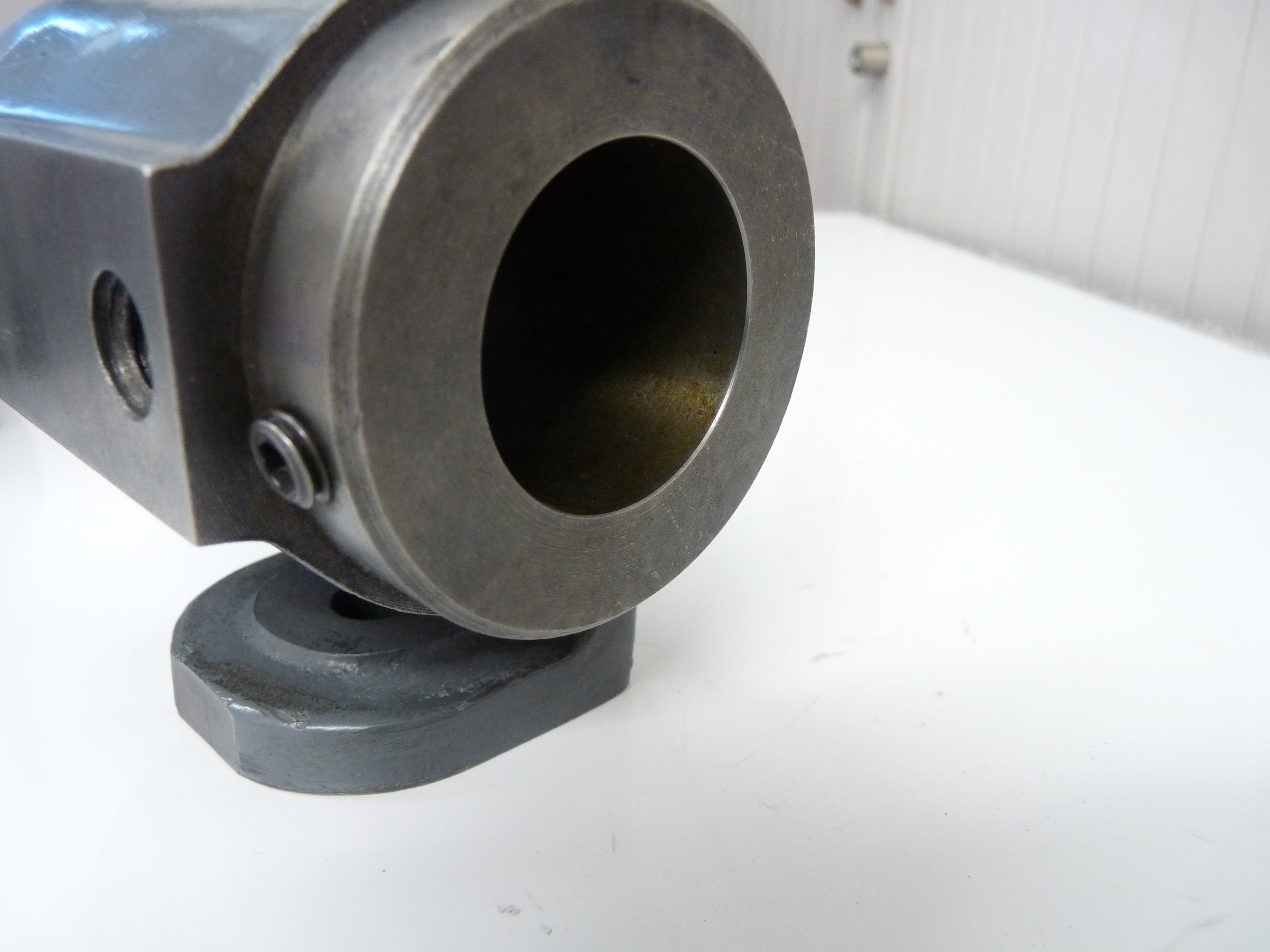

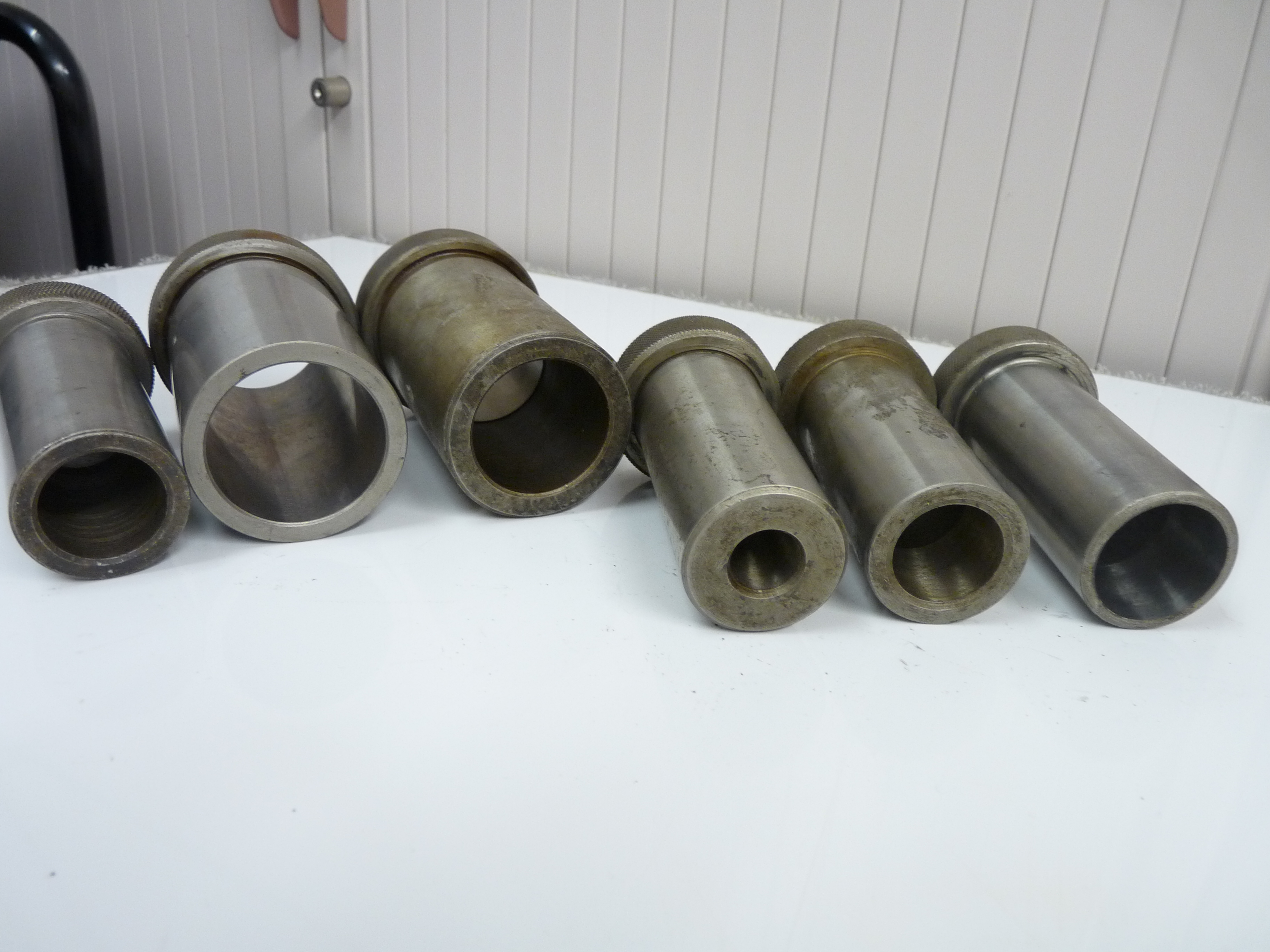

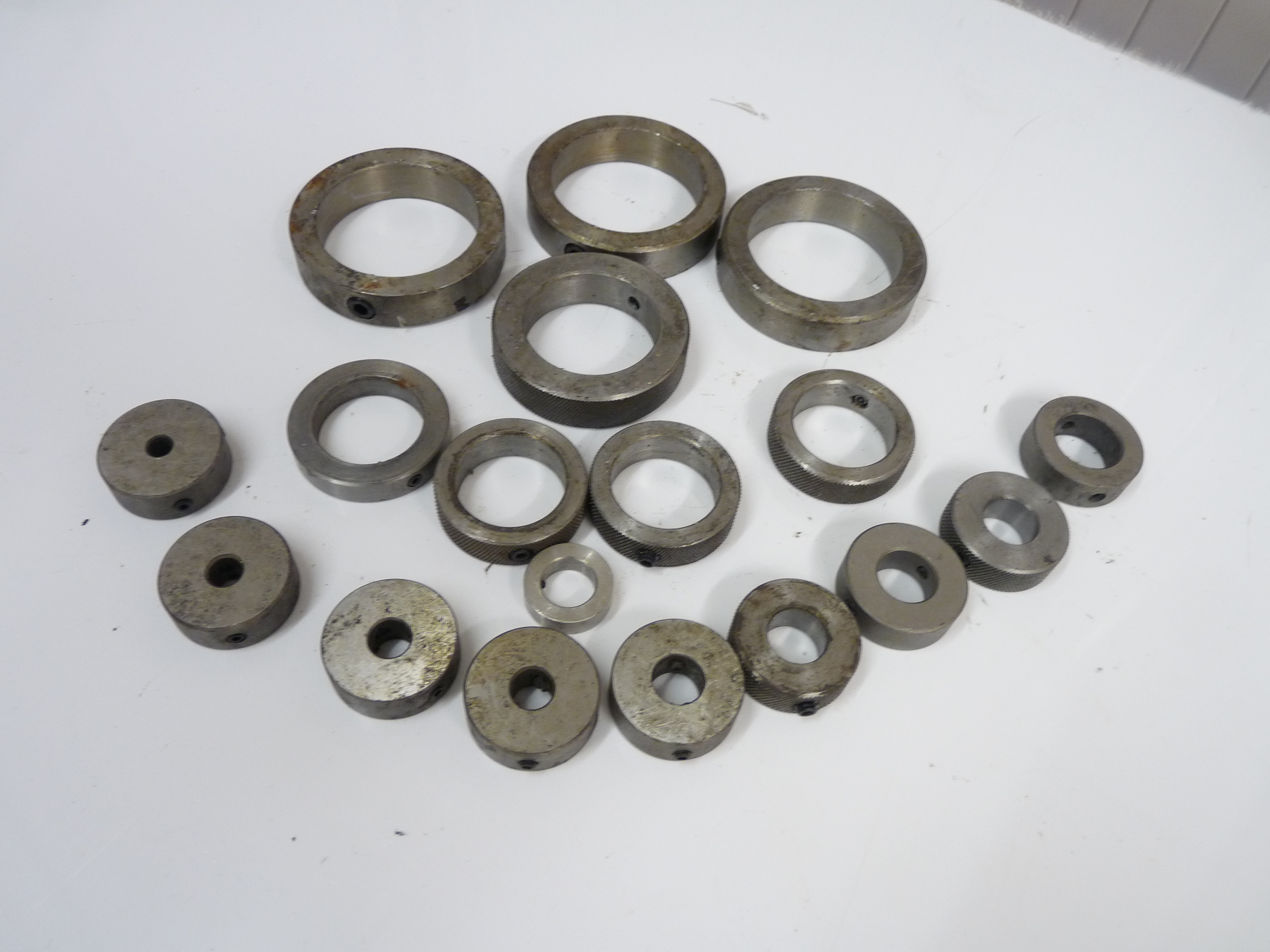

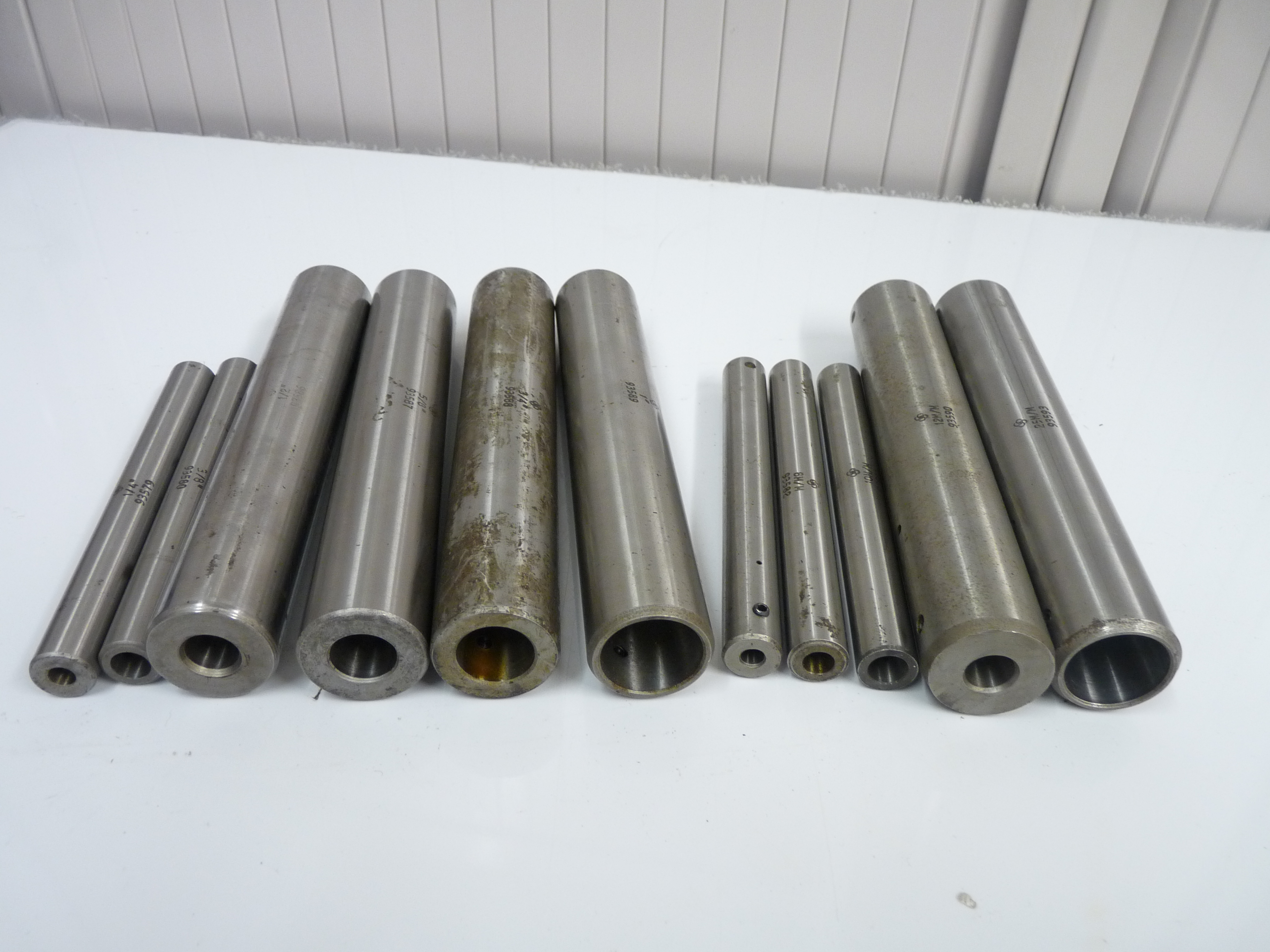

Tool holders, collars, parallel tool holders, solid tool holders, mandrels and adaptor bushes
Power
.55 kW / 3/4 hp / 1.5 AMPS
Three Phase Electric's
Dimensions
1000 x 540 x 1300 mm HIGH (inc extraction) 400kg
Safe lifting and handling
We supply lifting and moving instructions. We also loan our specialist lifting equipment where required.
Delivery options
To suit your needs, call us for a quote.
