stock no.: 1131-0067

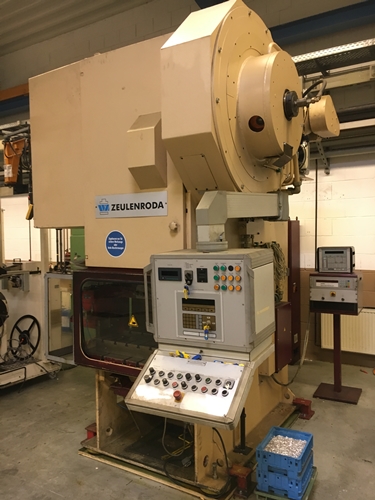

Machine type: Eccentric C-Frame press
Manufacturer: ZEULENRODA RASTER
Type: PDA 100
YOM: 1995
Delivery time: immediately
Location: Germany
Technical details:
Capacity: 100 ton
Ram stroke: 6 - 82 mm
Slide adjustment: 100 mm

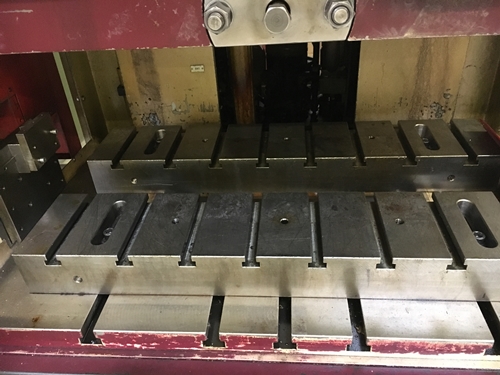

Table surface area : 1.200 x 710 mm
Slide area: 900 x 500 mm
Number of strokes: 50 / 200 s.p.m.
Required power: 18,5 kW
Dimensions L x W x H: 2700 x 2400 x 3500 mm
Weight of machine approx.: 13,5 ton
Extended machine accessories:

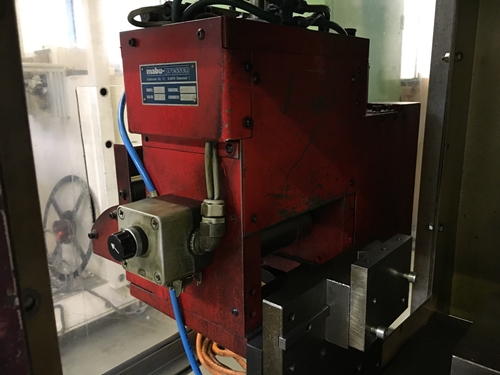

Roll Feeder WE 16
Material width max.: 160 mm
Material thickness: 0 – 3 mm
Cross section: 300 mm²
Roll diameter: 63 mm
Feeding speed: 40 m/min
Description: The ram was completely overhauled from RASTER Zeulenroda.
