MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Cincinnati
  • Model:

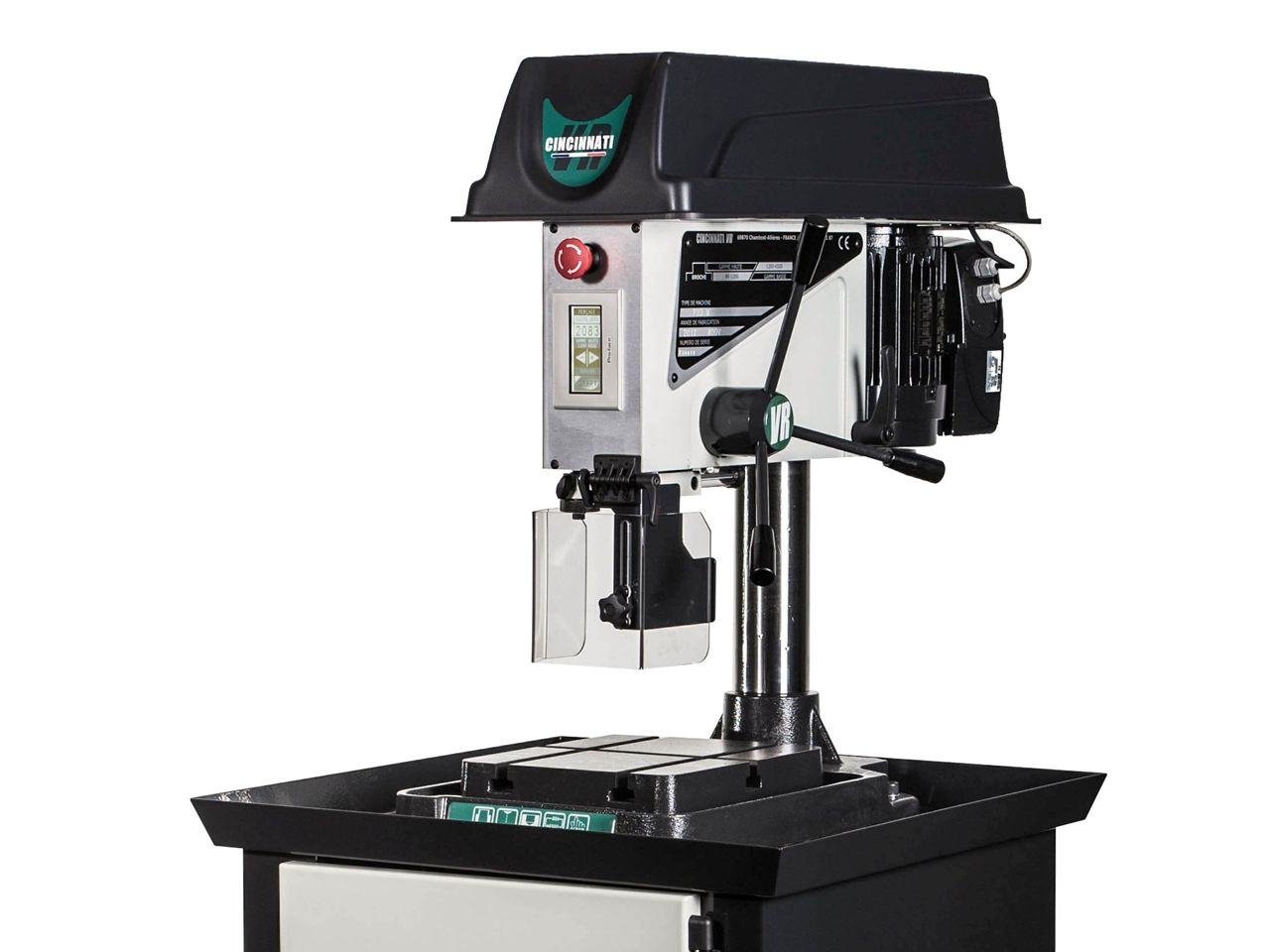

  • BENCH DRILLING MACHINE CINCINNATI TYPE P 23V
  • Condition:
  • Used
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • N/A

DESCRIPTION

Drilling capacity – steel 60 kg: 23 mm
Tapping capacity (version P23T) : M14
Spindle cone : MT2
Spindle sleeve diameter : 52 mm
Spindle stroke : 120 mm
Standard power supply : 400V/3ph
Spindle to column distance : 210 mm (bench version)
: 200 mm (column version)
Column diameter : 80 mm (bench version)
: 100 mm (column version)

.
