MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Tschudin
  • Model:

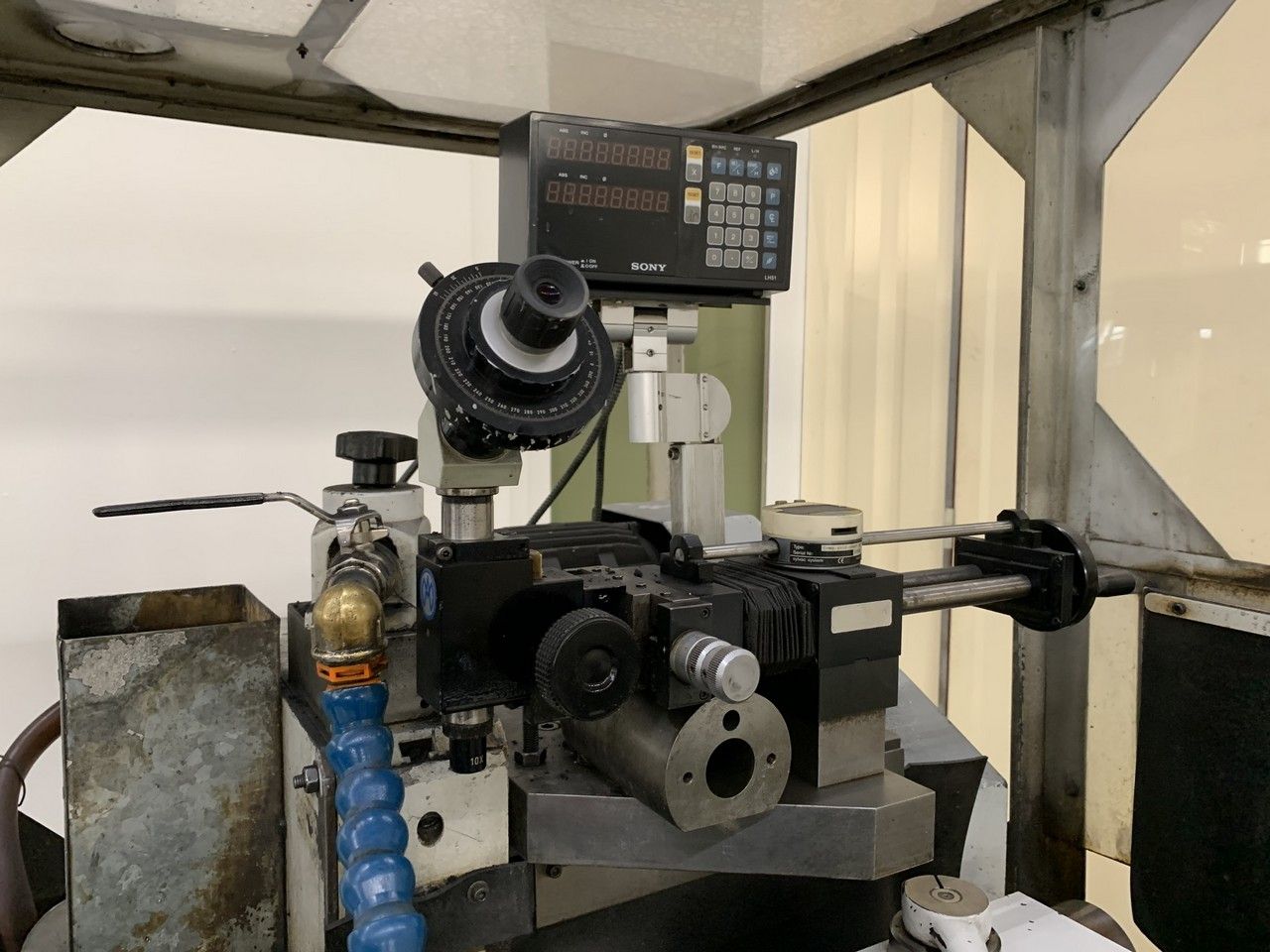

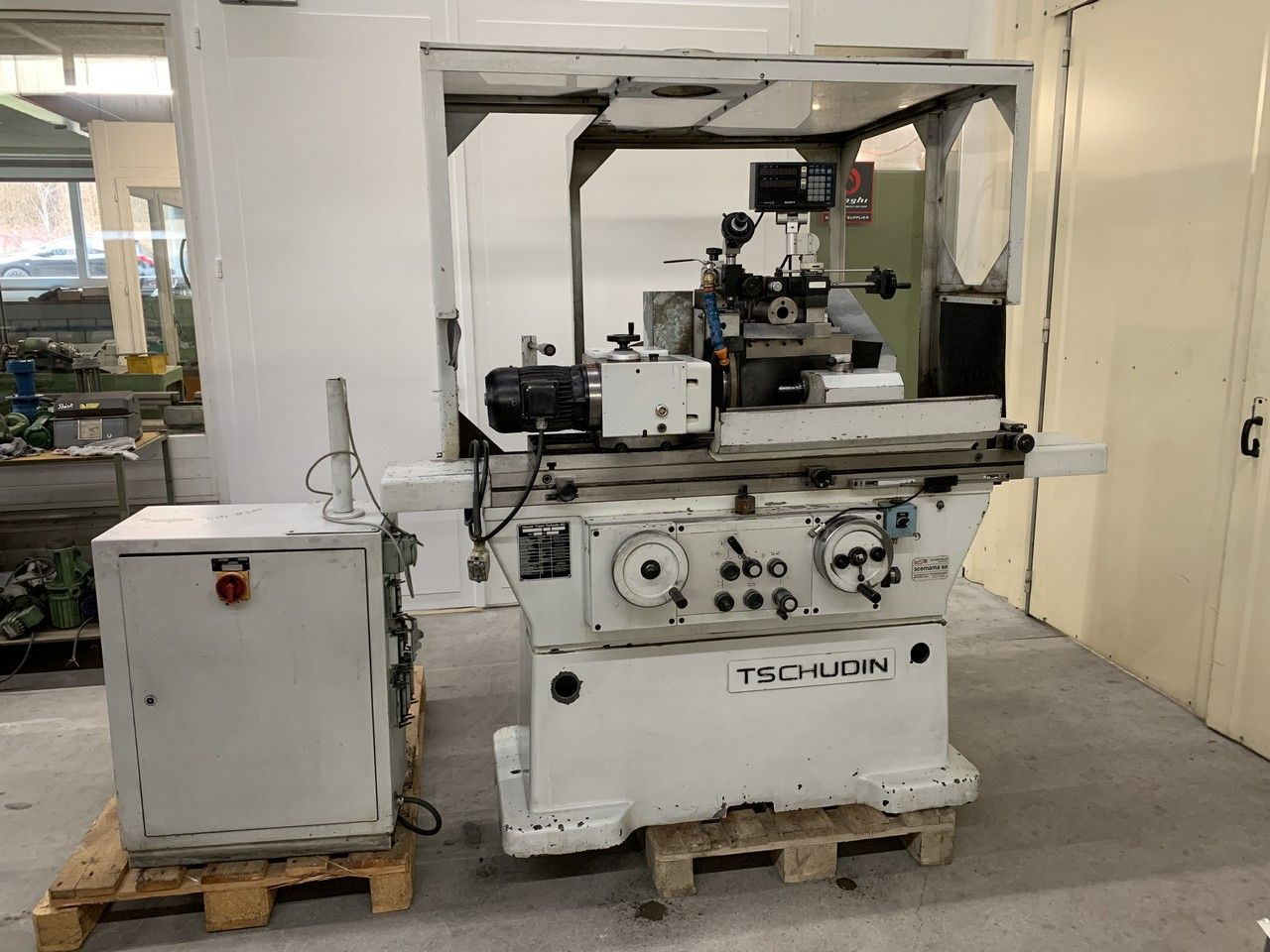

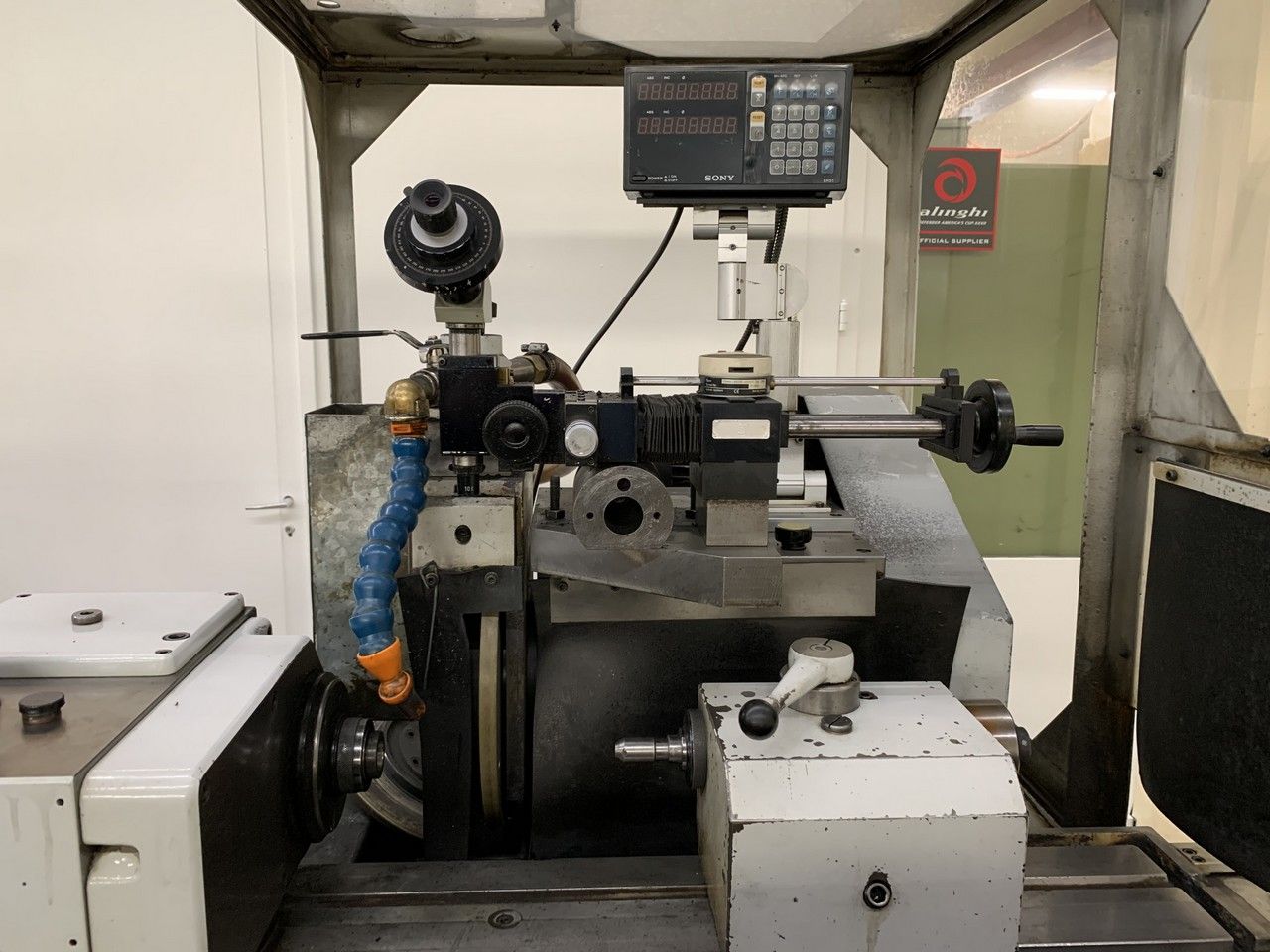

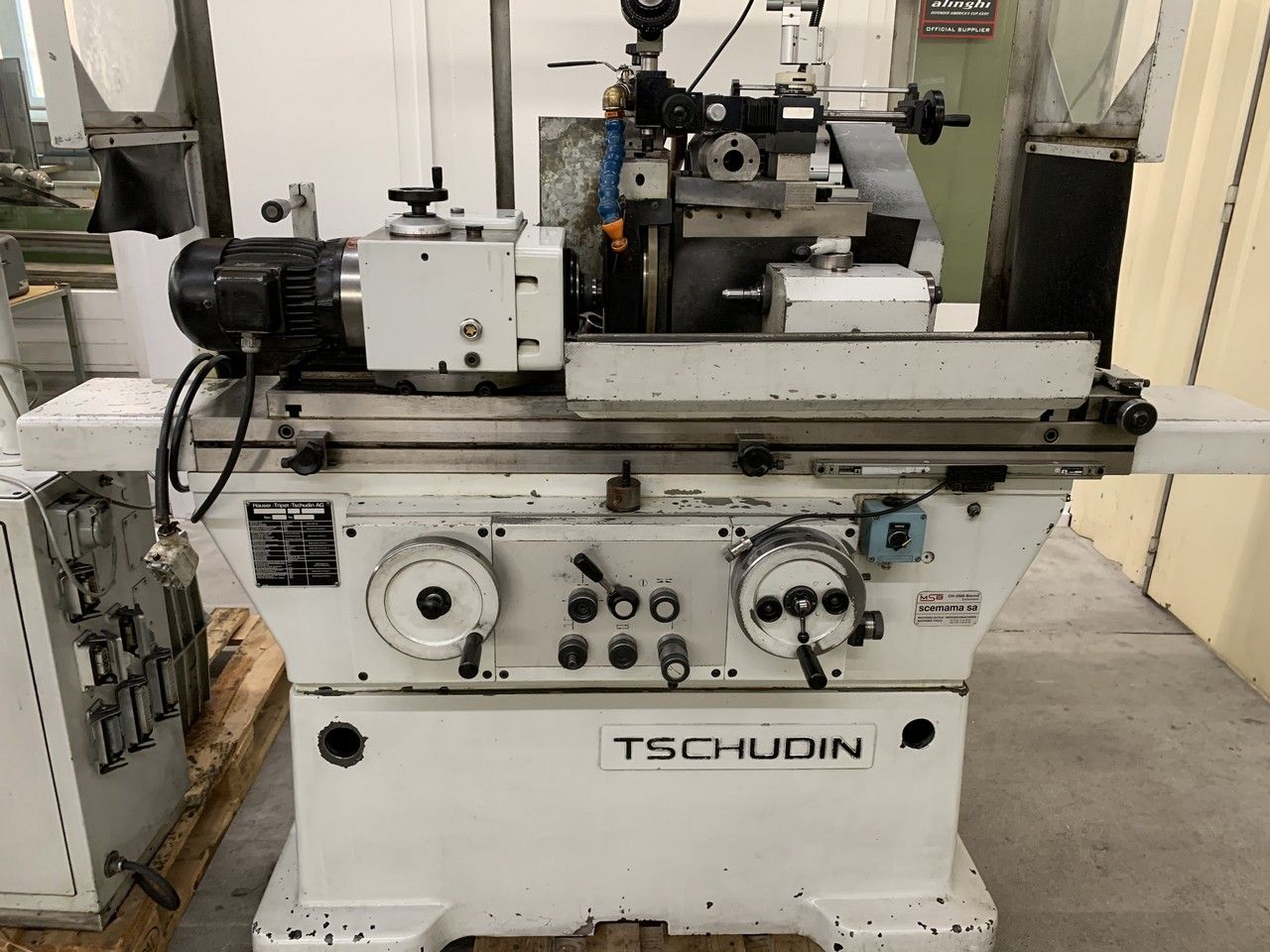

  • TSCHUDIN HTG-410 CYLINDRICAL GRINDING MACHINE
  • Condition:
  • Used
  • YOM:
  • N/A
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • Switzerland Switzerland

DESCRIPTION

  • INFORMATION
  • Manufacturing origin : Swiss
  • Voltage : 380/50/3
  • Netweight : 2200 kp
  • Dimensions : 2400x1500x1800 mm
  • Total power : 5 kW
  • TECHNICAL DATA
  • MAIN DATA
  • Distance between centres : 480 mm
  • Height of centres : 100 mm
  • Height of centres above floor : 1080 mm
  • TABLE SLIDE
  • Traverse movement max. : 420 mm
  • Speed : 0-5 m/min
  • Reversing dwell : 0-10 sec
  • Swivelling capacity of table : +- 9°
  • WHEELHEAD SLIDE
  • Travel by using the handwheel : 45 mm
  • Rapid approach, automatically : 38 mm
  • Travel of in-feed, automatically : 0-1,2 mm/dia.
  • Speed of in-feed : 0-3 mm/min
  • Speed of fine in-feed : 0,01-2 mm/min
  • Speed of superfine in-feed : 0,005-1 mm/min
  • Spark-out time : 2-30 sec.
  • Travel of in-feed in increments, autom. : 0-0,05 mm/dia.
  • Travel of in-feed in increments, autom. : 0-0,1 mm/dia.
  • Spark-out travels : 0-50 number

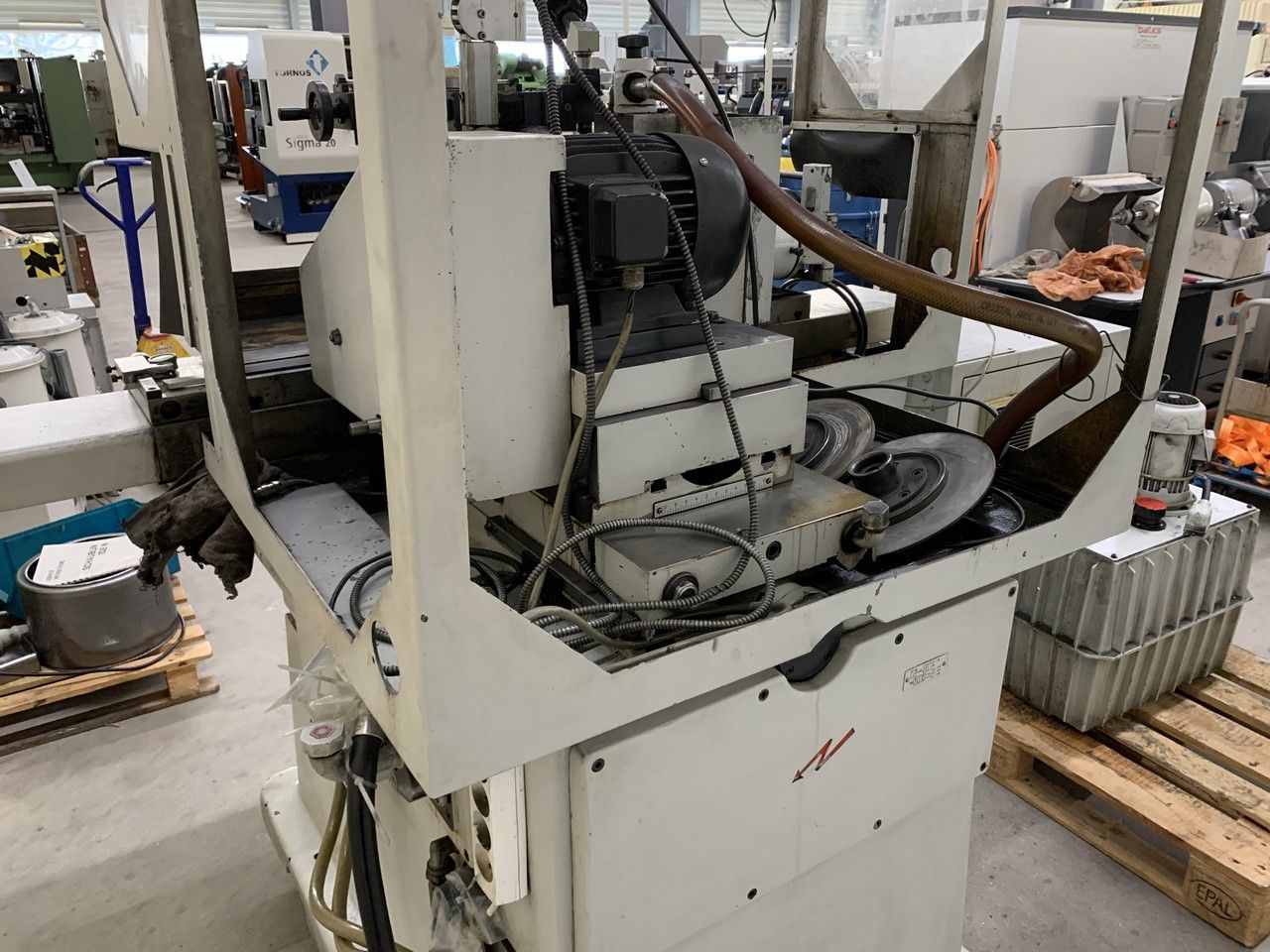

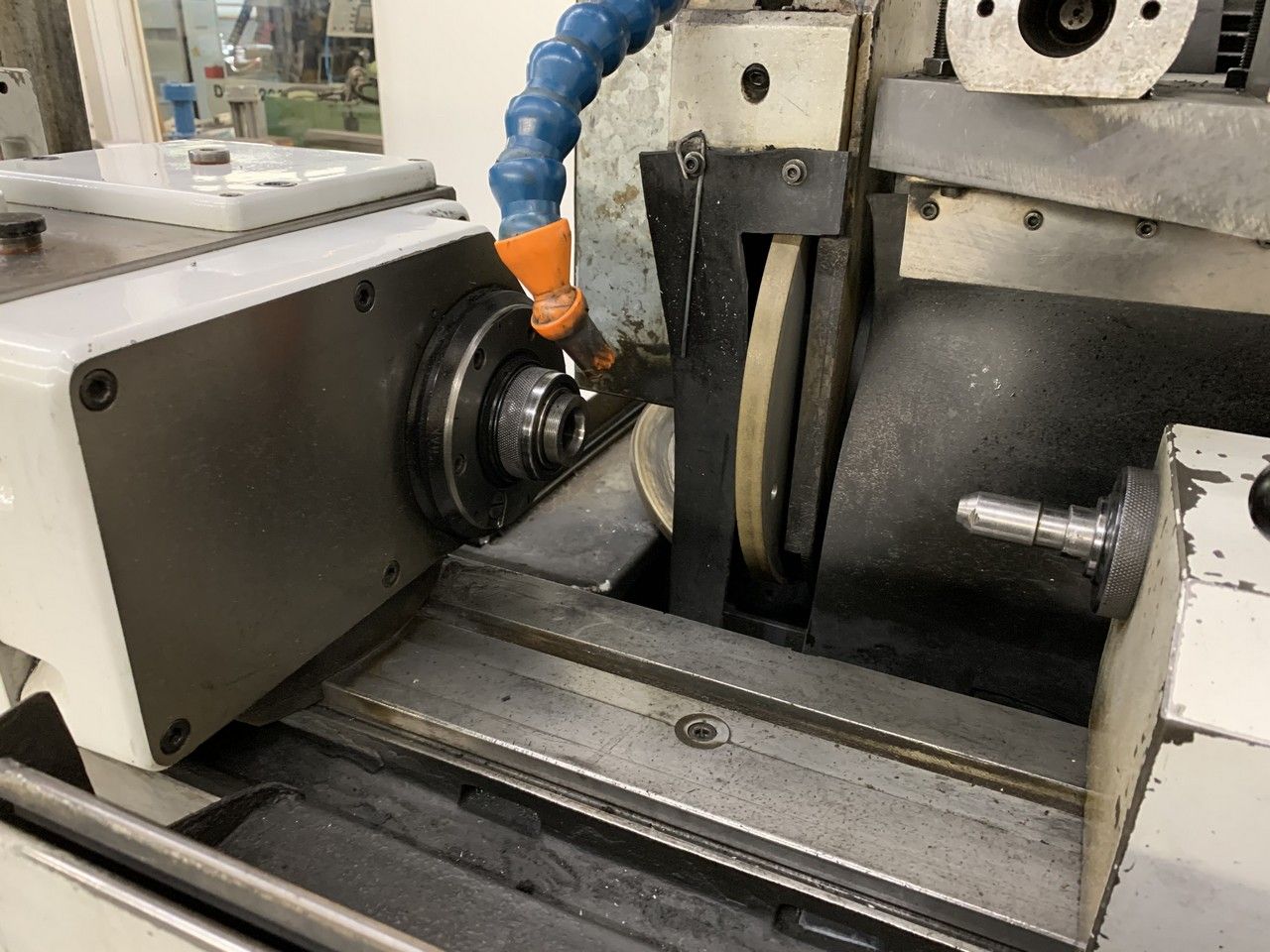

  • WHEELHEAD
  • Wheel diameter : 350 mm
  • Wheel width up to : 50 mm
  • Wheel bore : 127 mm
  • Swivelling capacity : +-5°
  • Power of motor : 3 kW
  • WORKHEAD
  • Spindle taper : Morse 4
  • Spindle nose : M48x3 mm
  • Swivelling capacity : 360°
  • Spindle speed, infinitely variable : 65-500 RPM
  • Power of motor : 0,55 kW
  • TAILSTOCK
  • Taper of barrel bore : Morse 3
  • Travel of barrel : 20 mm

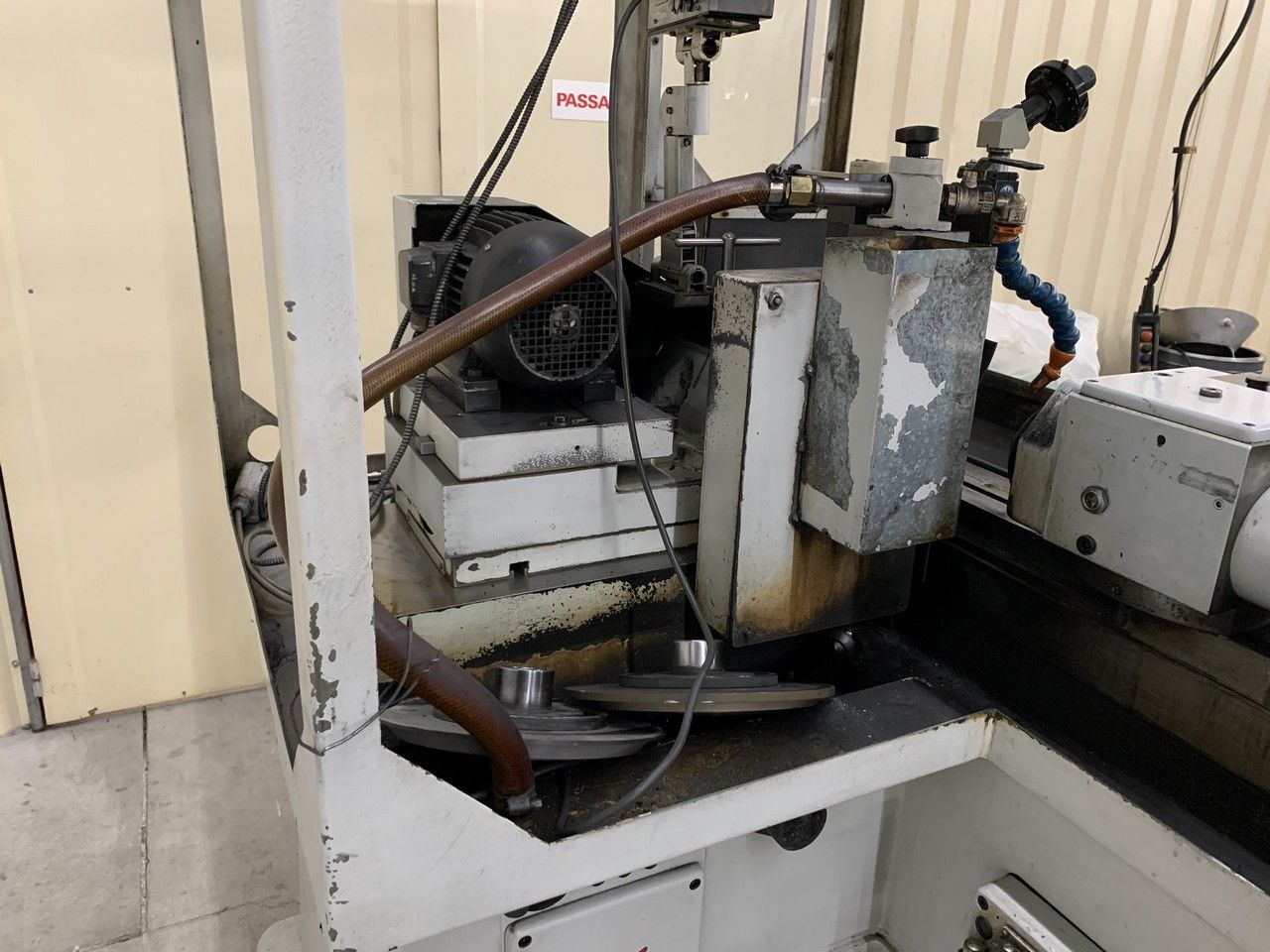

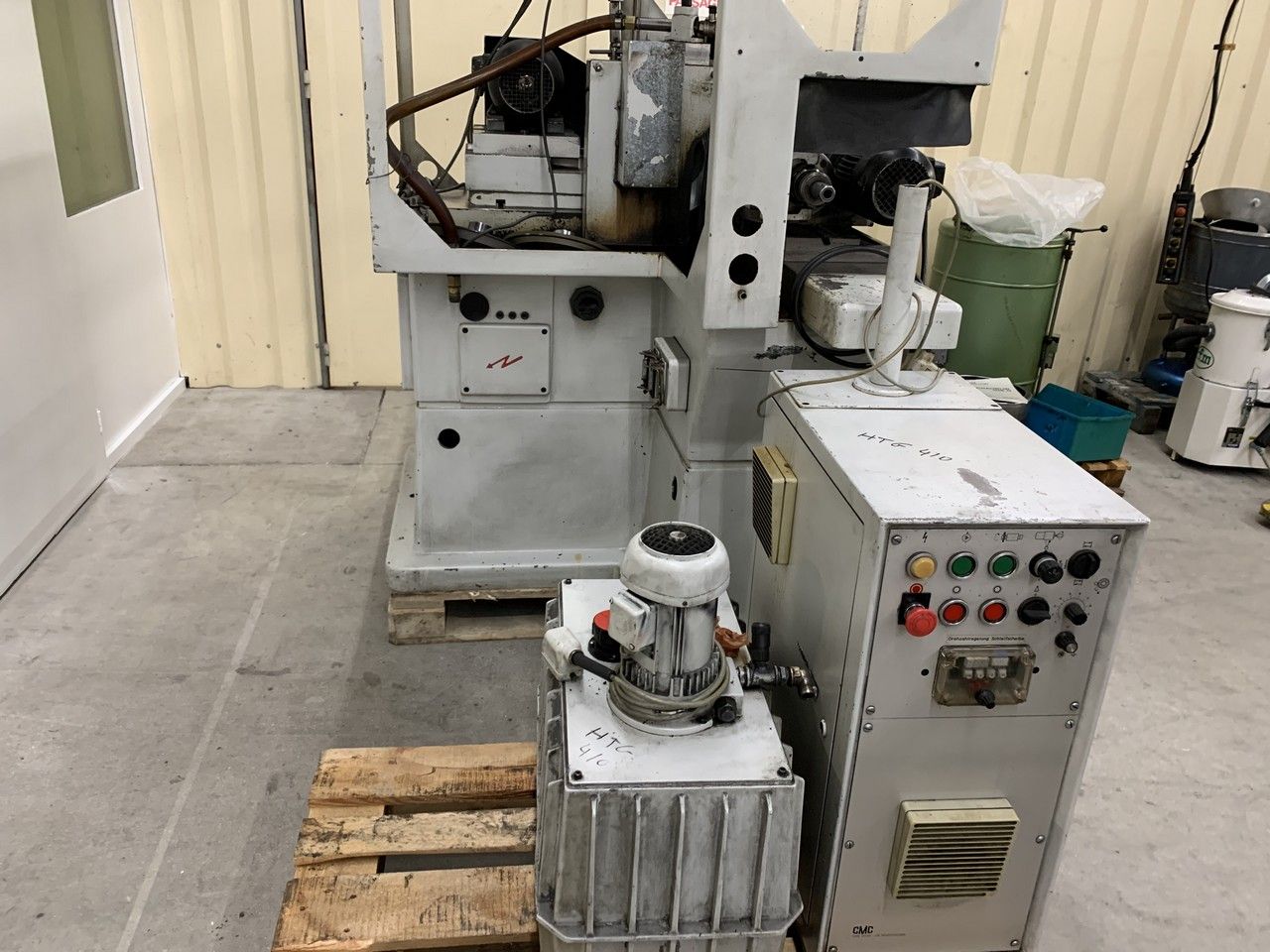

  • HYDRAULIC UNIT
  • Capacity of tank : 58 lt
  • Power of motor : 0,5 kW
  • COOLANT UNIT
  • Capacity of tank : 200 litres
  • Output by 2 m pumping head : 63 litres/min
  • Power of motor : 0,25 kW
