MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Dimeco
  • Model:
  • Dimeco Coil feeding line 500mm
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • N/A

DESCRIPTION

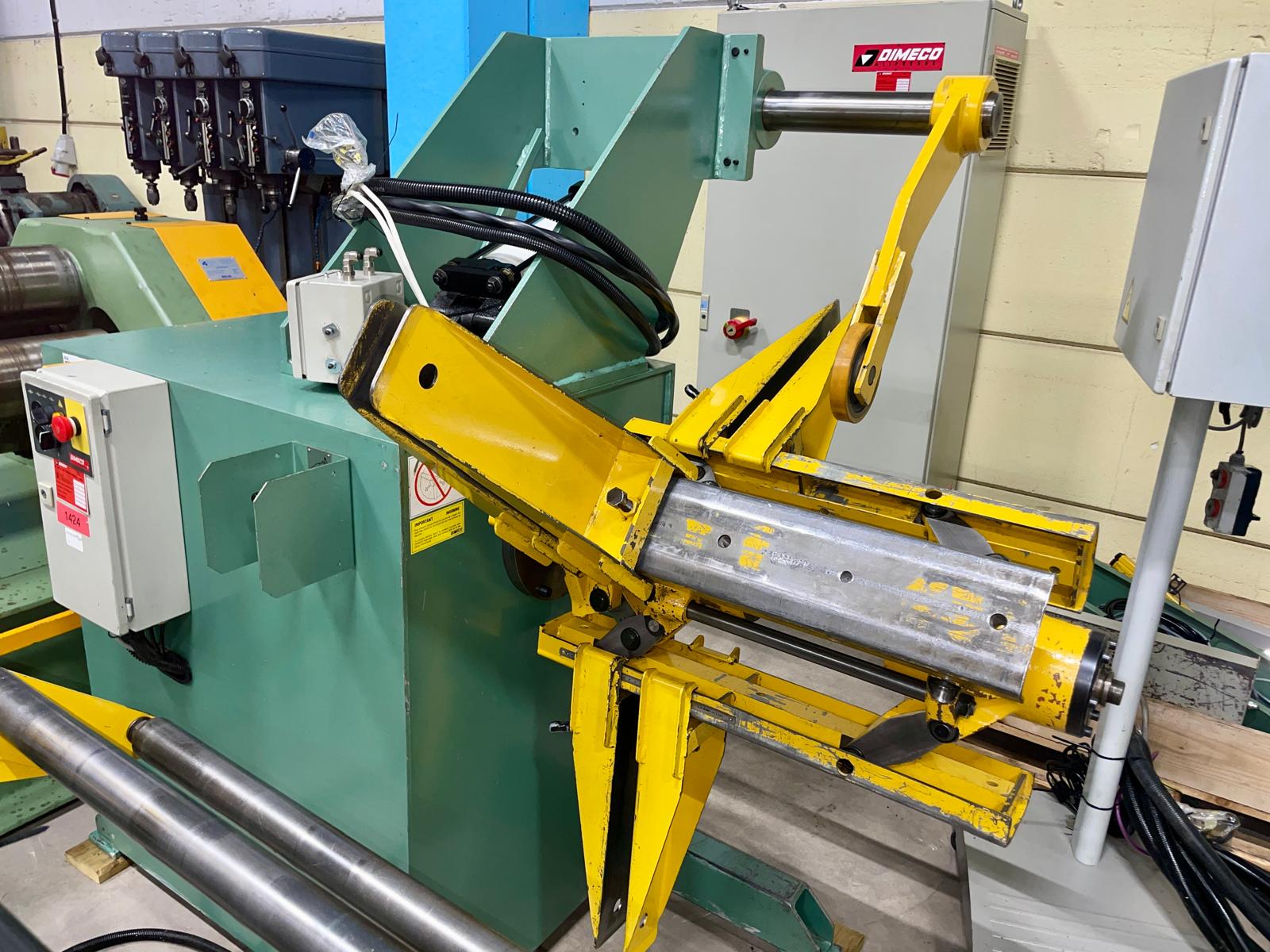

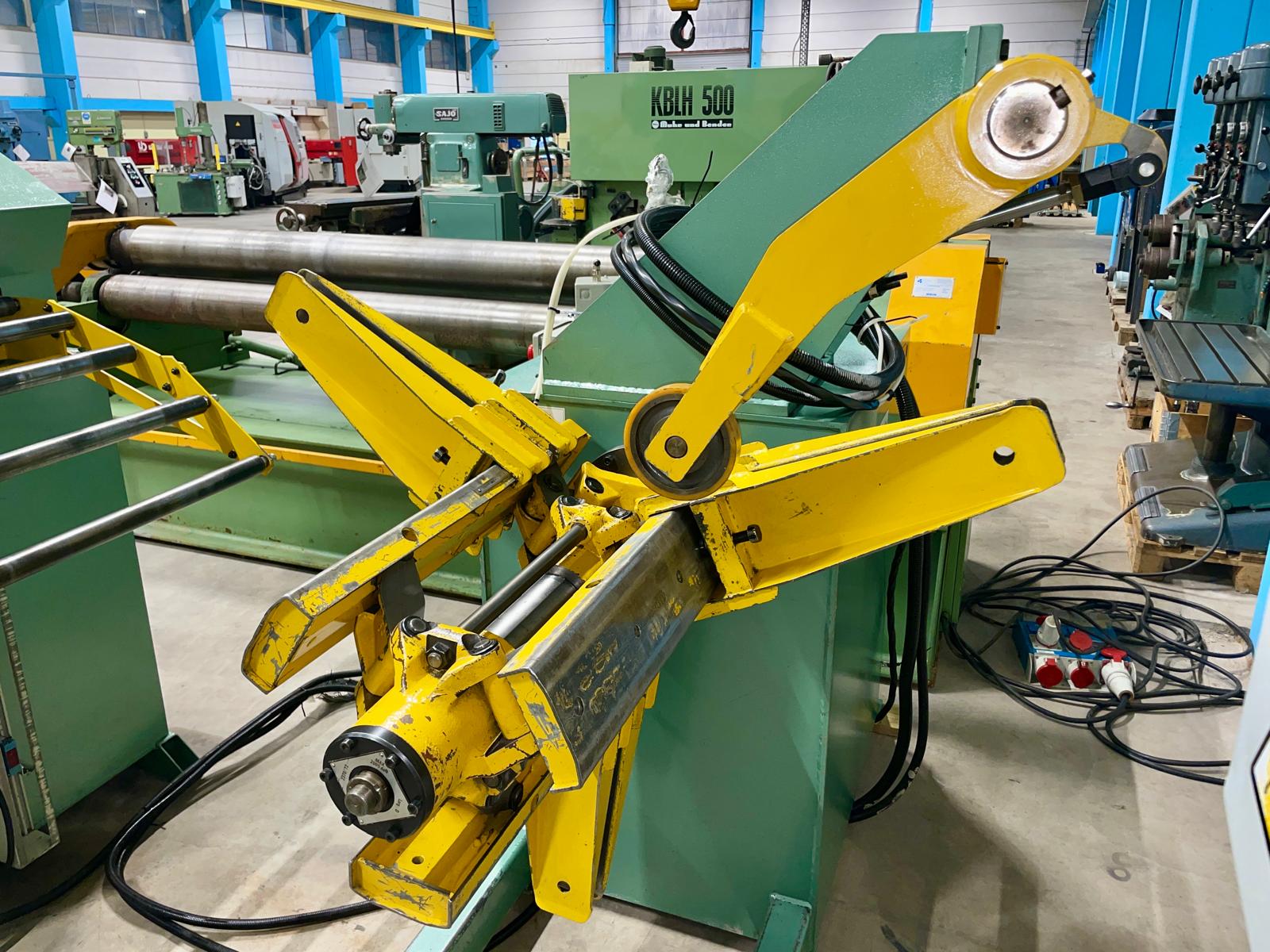

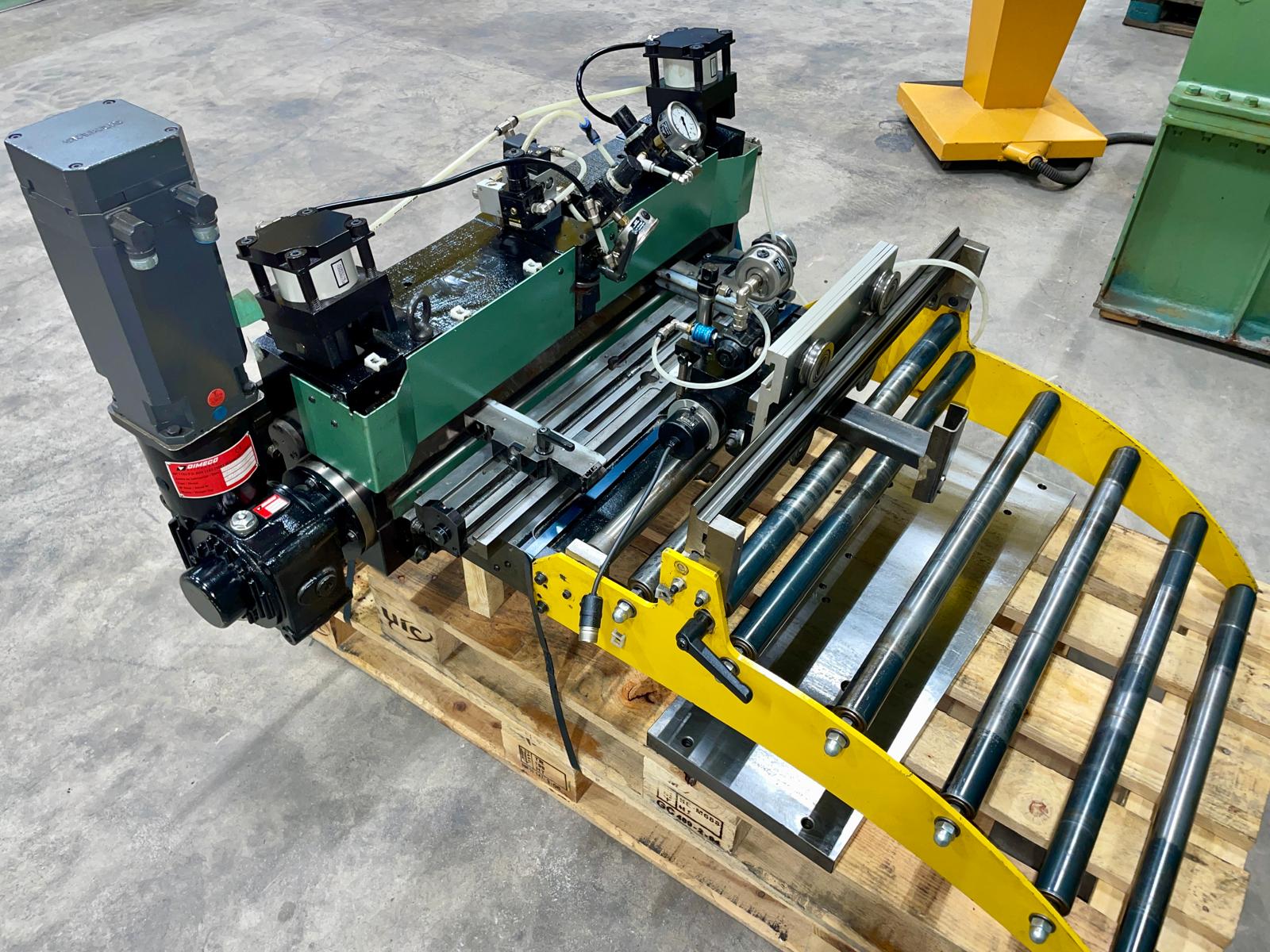

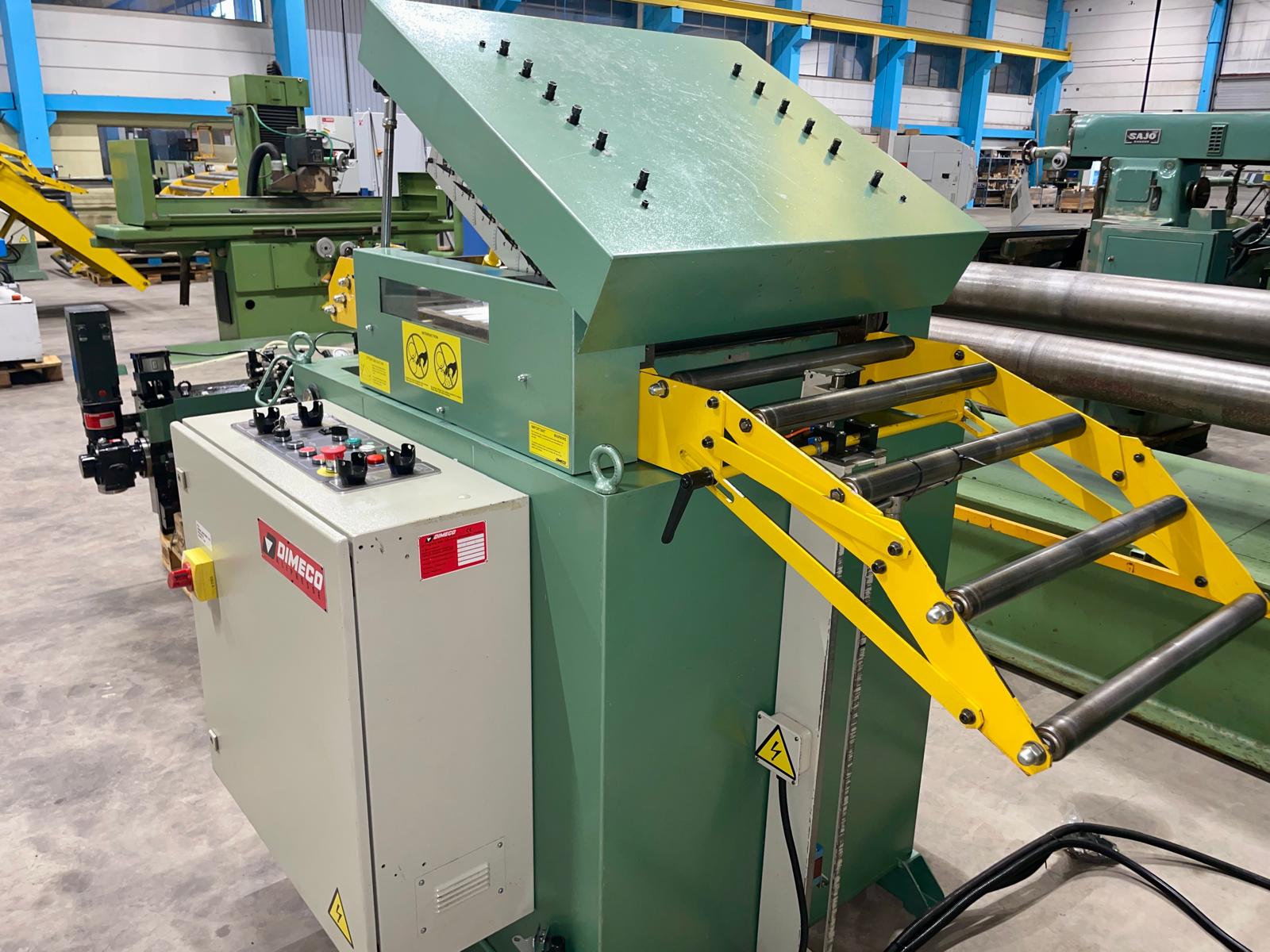

{"Stock number": "180421", "Decoiler": "Dimeco 2370/DFPS, s/n 2107/5 35801", "Coil weight": "2000kg", "Coilwidth": "500mm", "Centre diameter hydraulic": "\u00f8445-530mm", "Coildiameter": "\u00f81400mm", "Manufacturingyear": "1999/11", "Straightener": "Dimeco 1675/11DVV, s/n 42905/1", "Width": "500mm", "Thickness": "0,2-3mm", "No of straighteningrolls": "11pcs. \u00f860mm", "No of Powered rolls": "4pcs. \u00f860mm", "Feeder": "1082E-MCU24/SP, s7n 640/2-3501", "workingwidth": "665mm", "Max area": "850mm\u00b2", "Rolldiameter": "\u00f880mm"}
+ request more information

SEND ENQUIRY

*I AM A
Dealer
End User
Check here if you no longer wish to subscribe to our newsletter.

SHARE PAGE

REQUEST MORE INFORMATION

SEND ENQUIRY

*I AM A
Dealer
End User
Check here if you no longer wish to subscribe to our newsletter.

    Sellers

    Norima AB

    • Contact Name
    • Tobias Kruse
    • Contact Number
    • (0)370 69 55 00
