MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Kohler
  • Model:
  • KOHLER 18.260/19-1000.2H
  • Condition:
  • Used
  • YOM:
  • 2018
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • Germany Germany

DESCRIPTION

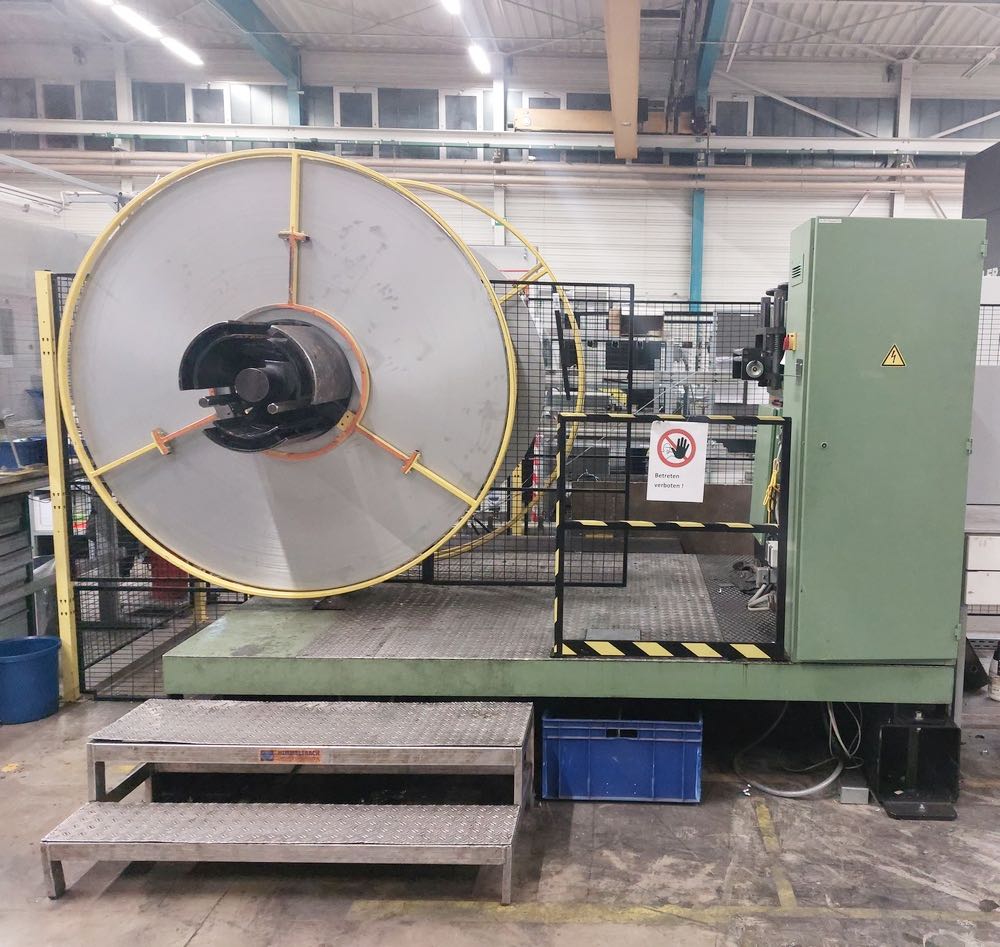

  • Decoiler Double mandrela coil weight each side: 1 ton
  • Material width: 260 mm
  • Coil exterior diameter: 1.800 mm
  • Spacing: 380 - 520 mm

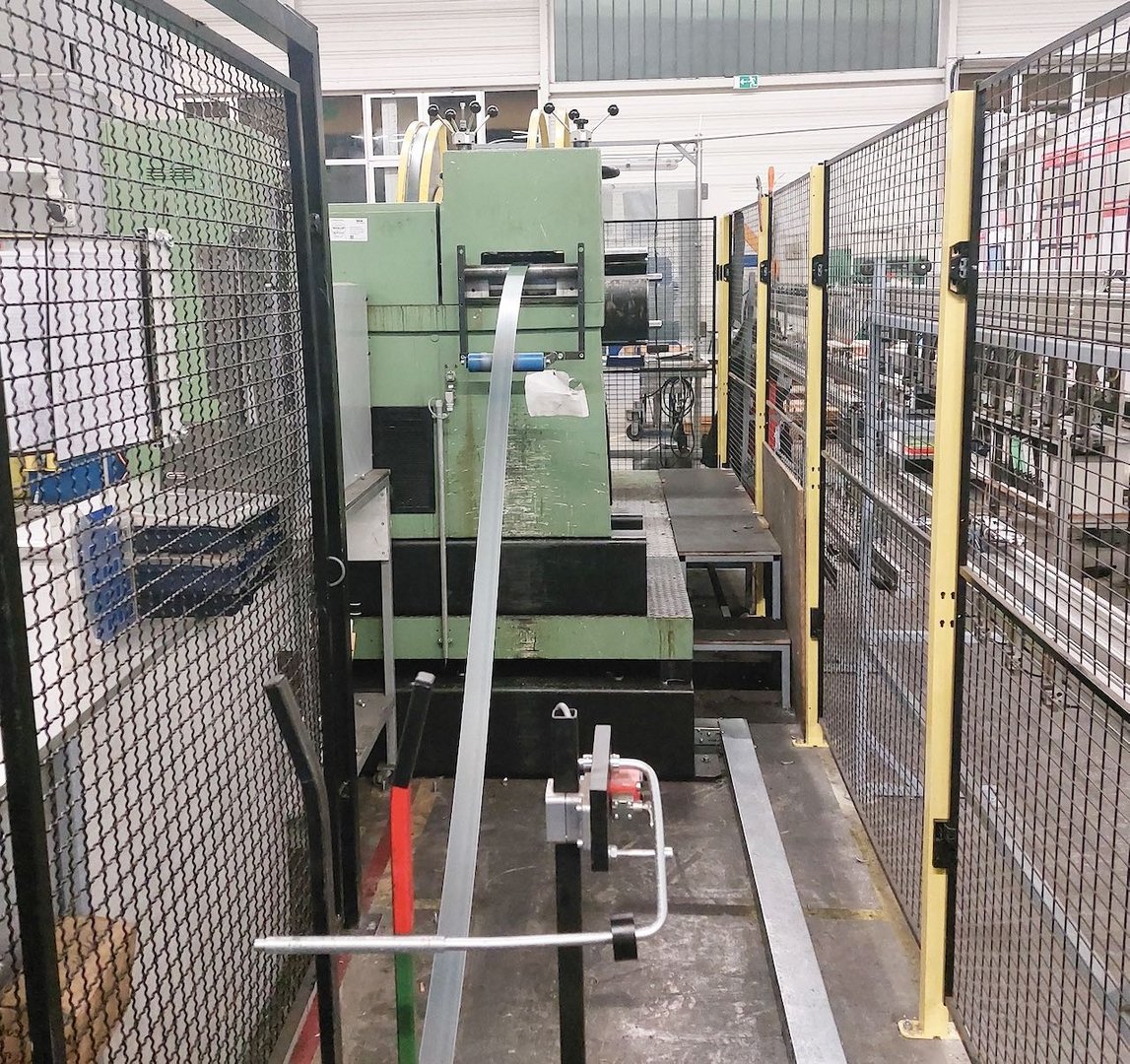

  • Leveller / Straightener Material width : 260 mm
  • Number of levelling rolls: 19 pcs.
  • Diameter of the levelling rolls: 18 mm
  • Material thickness: 0,3 - 3 mm
  • Feeding speed: 0 - 60 m / min
  • Required power: 4,5 kW
  • Weight of machine approx.: 3 ton
  • Dimensions L x W x H: 3.600 x 1.800 x 1.850 mm
  • - Decoiler axial movable
  • - pneumatic brake
  • - loop regulation with sensor
  • - drive shafts have a circulatory oil lubrication
  • - elektro-motor dispersion
  • SIEMENS SIMOREG PLC
  • Feeding line was completely overhauled in 2018.
  • Direction from RIGHT to LEFT
