MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • Star
  • Model:

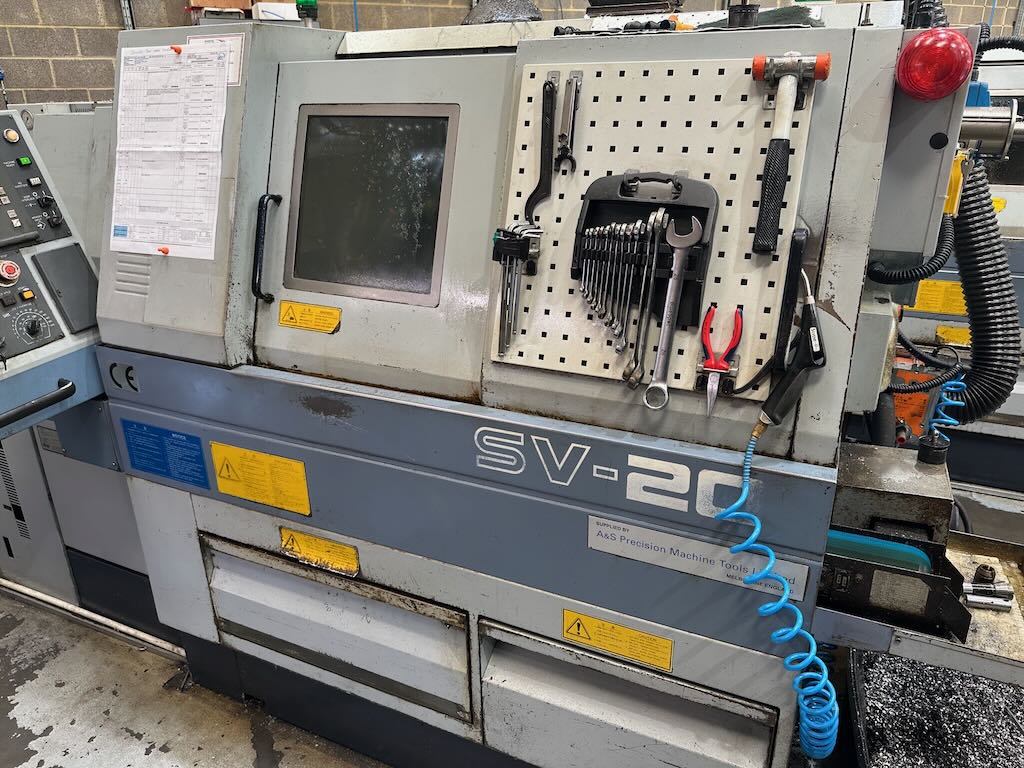

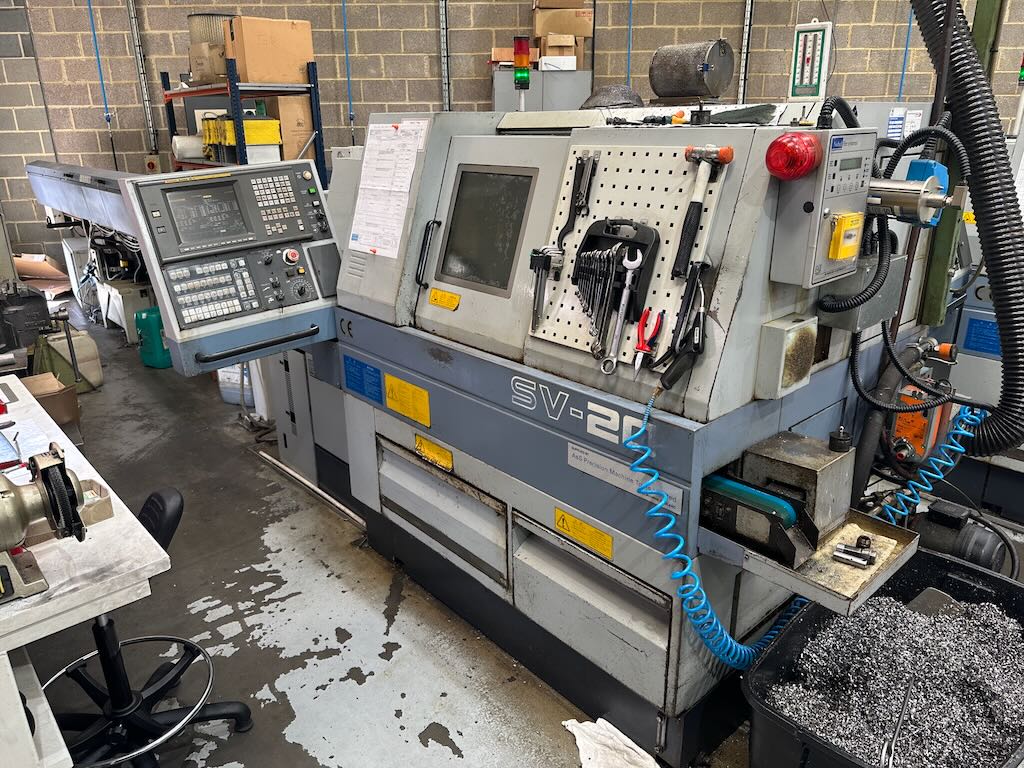

  • Star SV20 CNC Lathe
  • Condition:
  • 1
  • YOM:
  • NA
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • N/A

DESCRIPTION

Max Diameter: 20mm.
Standard Stroke: 205mm.
Max Drilling Capacity: 14mm Diameter.
Max Tapping Capability: m10 x p1.5.
Max Die Cutting Capability: m10 x p1.5.
Max Driven Drilling Capability: 8mm Diameter.
Max Driven Tapping Capability: m6 x p1.0.
Max Milling Capability: 10mm Diameter.
Max Slotting Capability: 2mm x 6mm (W x D) 50mm Cutter Diameter.
Main Spindle Min. Indexing Angle: 0.01 Degrees.
Main Spindle Rotation Speed: 10,000 RPM.
Main Spindle Motor: 3.7kW.
Power Driven Att. Spindle Speed: 6,000 RPM (GANG TYPE) 5,750RPM (TURRET TYPE).
Power Driven ATT Drive Motor: 0.5kW (GANG TYPE) 2.8kW (TURRET TYPE).

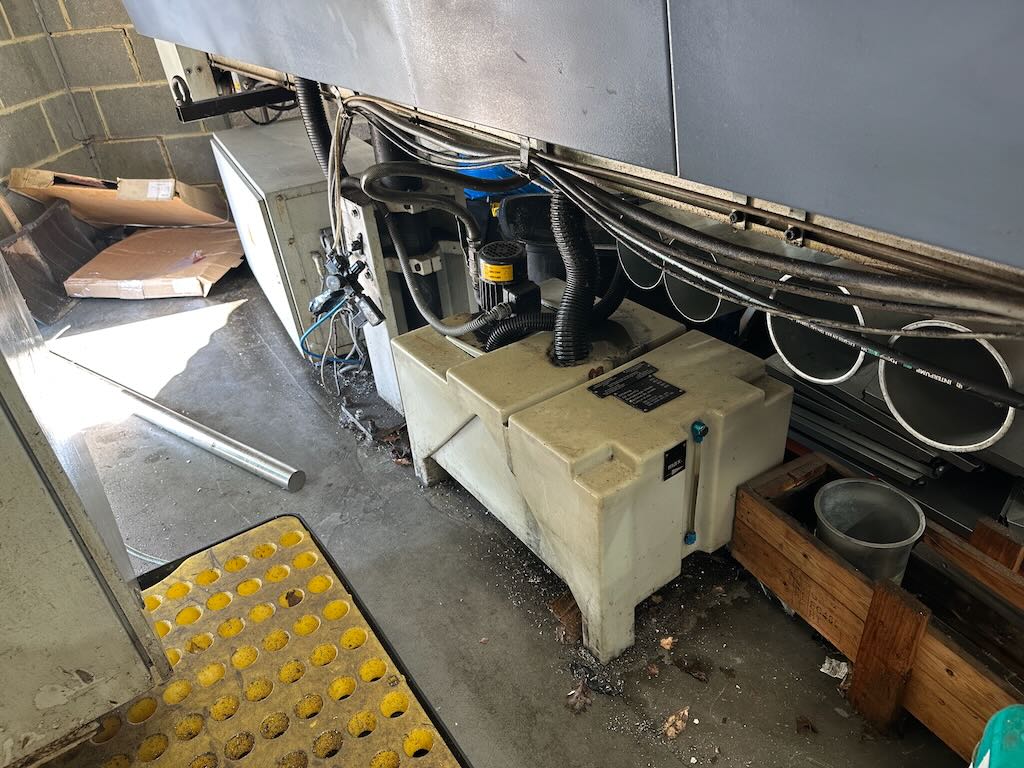

Coolant Tank Capacity: 170L.
Power Consumption: 9.0KVA.
Dimensions: 2670mm x 1375mm x 1660mm (L x W x H).
