Manufacturer
AVM Angelini Tornio
Type

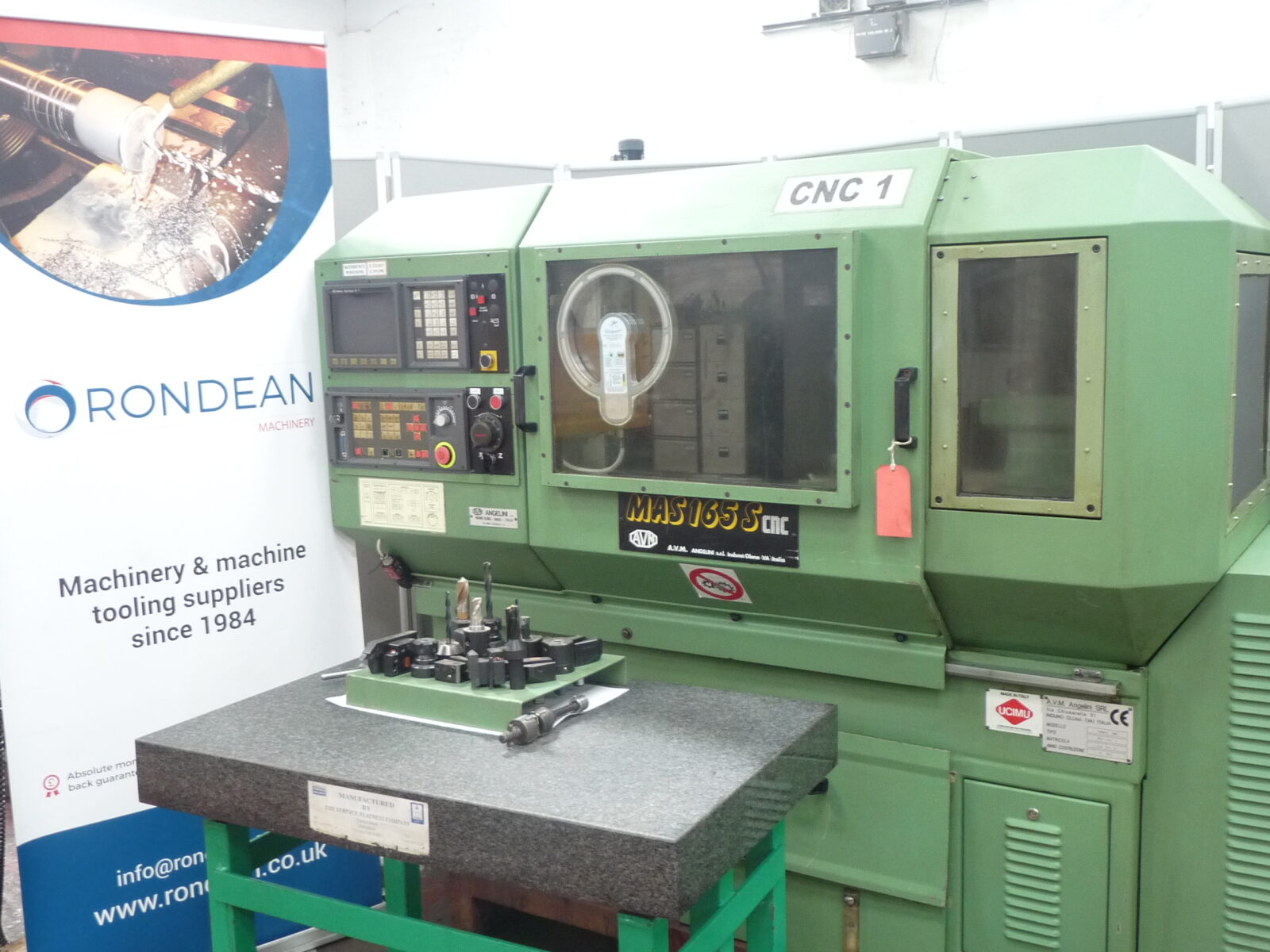

CNC Centre Lathe
Model
MAS 165S
Capacity
780mm Between Centres
26-465mm working area from chuck to turret
123mm centre height
100mm max chuck opening
Features

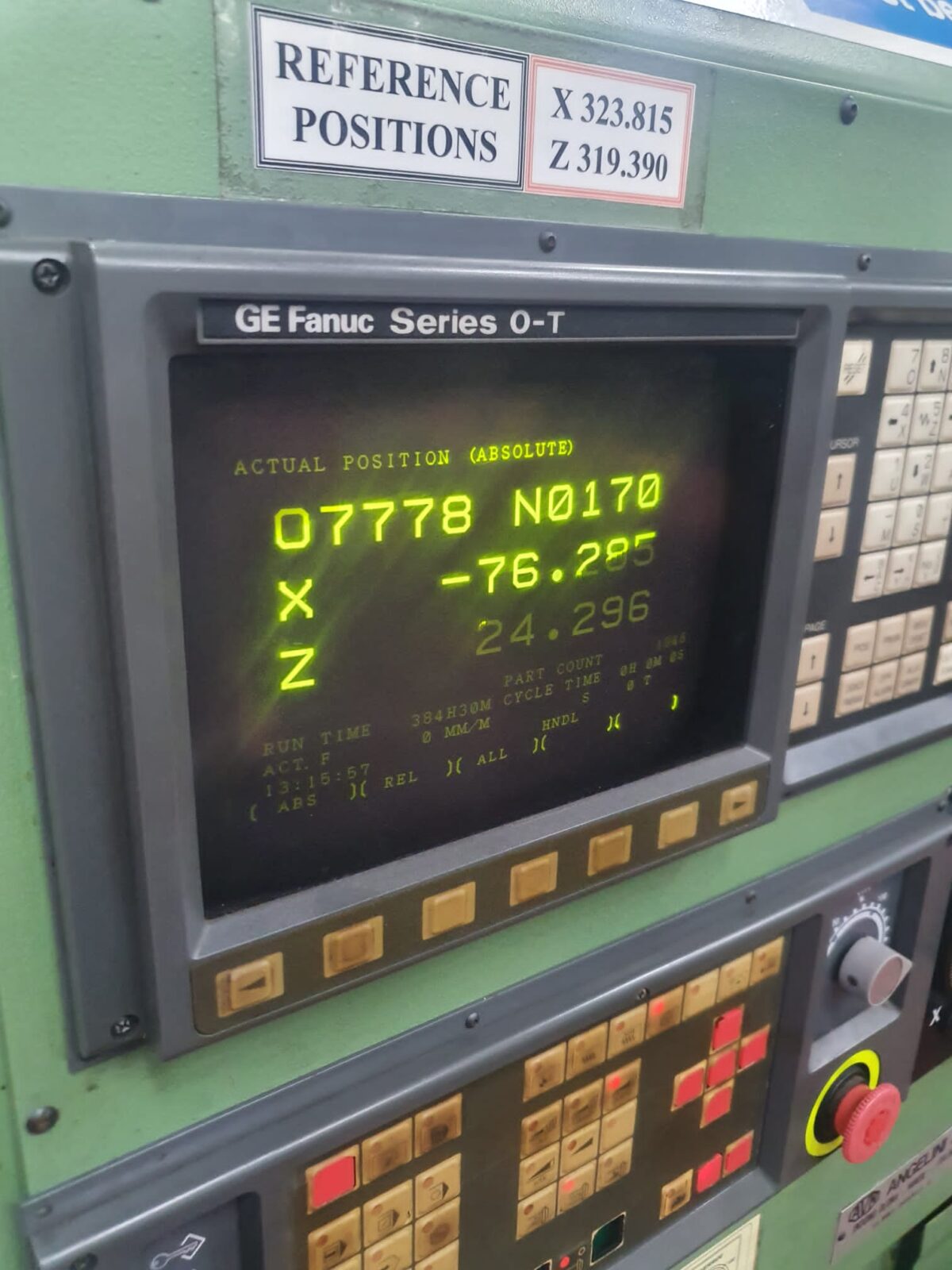

GE FANUC Series 0-T Control

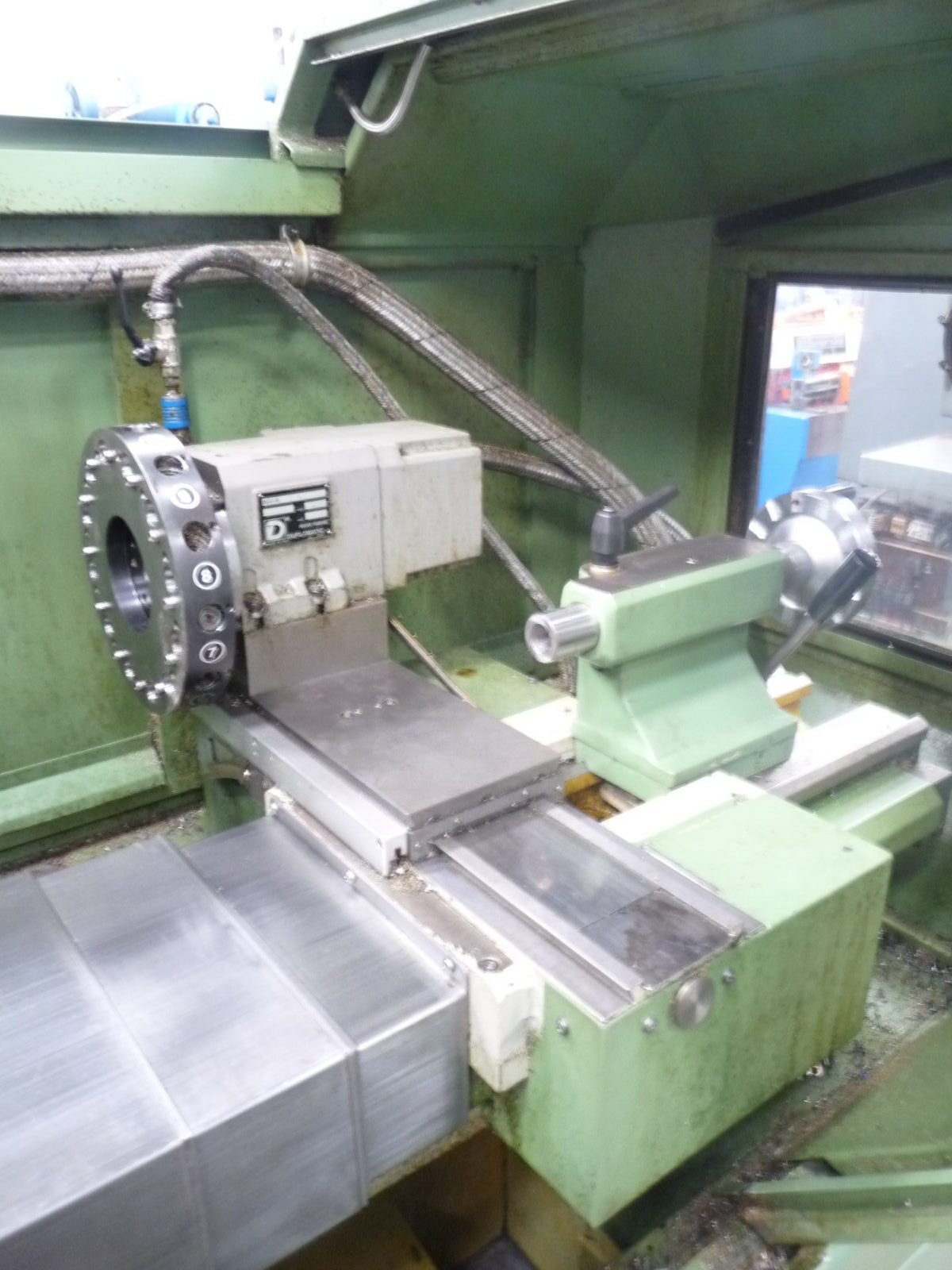

12 Station Turret
Supplied with various tool holders and tooling
Instruction manual
Power
3 Phase Electric’s 5.5kW 36 amps
Safe lifting and handling
We supply lifting and moving instructions. We also loan our specialist lifting equipment where required.
Delivery Options
To suit your needs, call us for a quote.
Max cutting diameter 350mm. Max cutting length 385mm. 3 jaw chuck 250mm. Swing over bed 500mm. Bar capacity 65mm. Coolant Tank Vol 150L. Travels X/Z 195/430. Spindle power 15/11.
This range offers youMultiple Machine Options forHigh Precision TurningHigh Efficiency OutputEfficient Chip EvacuationMore Rigidity and Thermal StabilityLarger X Axis TravelsThese machines are the latest technology available, highly versatile and we ...
Year of Manufacture: NewCentre distance (mm): 4000Max swing over bed (mm): 800Max swing over cross slide (mm): 510Spindle bore (mm): 380R.P.M.: 10-350kW: 22.5Volts: 400VCycles: 50
