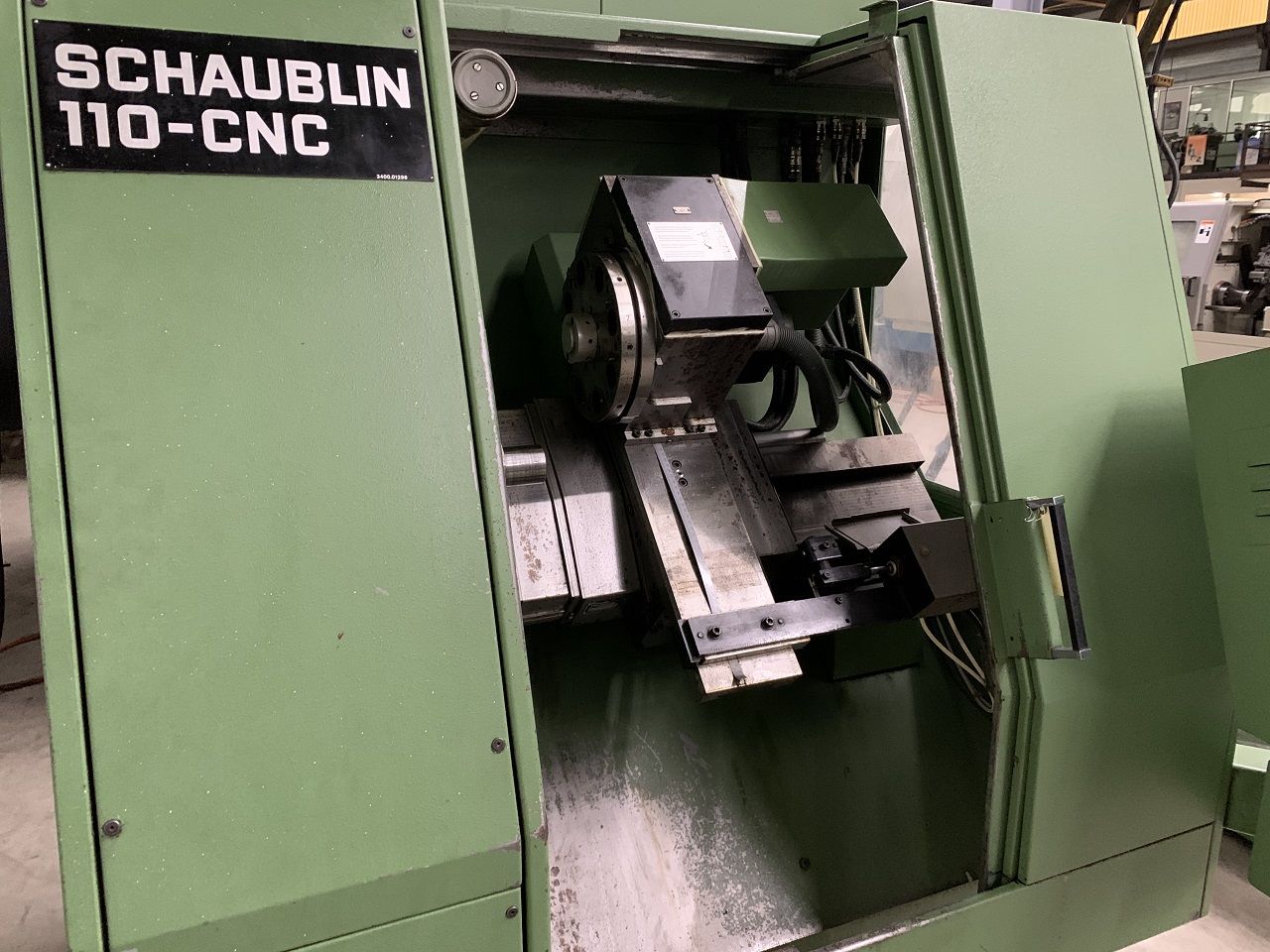

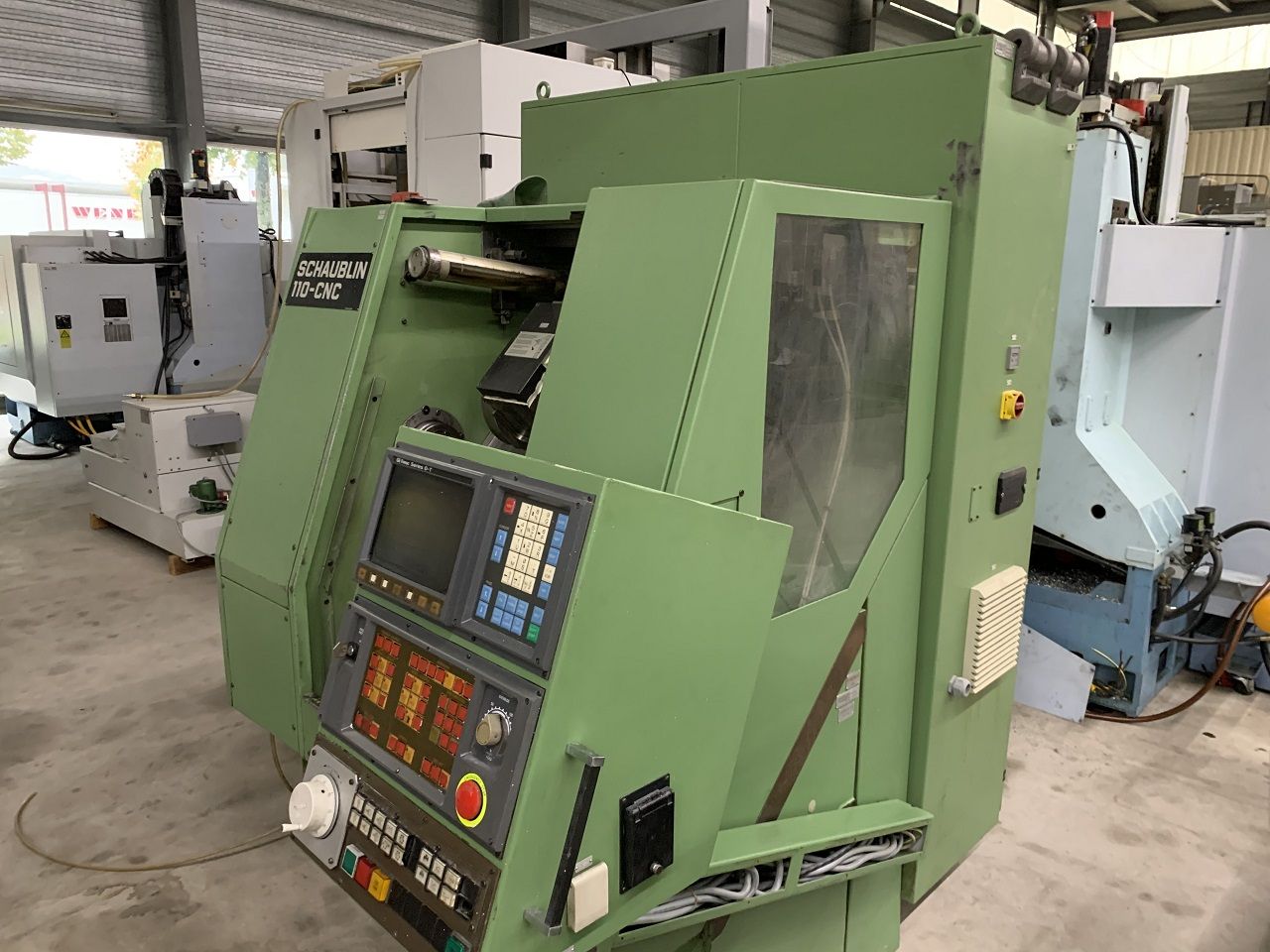

MACHINE INFORMATION AND SPECIFICATION

  • Manufacturer:
  • SCHAUBLIN
  • Model:
  • SCHAUBLIN TYPE 110 CNC
  • Condition:
  • Used
  • YOM:
  • N/A
  • Control:
  • CNC Control
  • Price:
  • POA
  • Country:
  • Switzerland Switzerland

DESCRIPTION

  • INFORMATION
  • Manufacturing origin : Switzerland
  • Voltage : 380/50/3
  • Netweight : see below
  • Custom position : 8458.11 20
  • TECHNICAL DATA
  • Capacities
  • Maximum swing over the carriage : 115 mm
  • Maximum turning length (as per equipment) : 215-245 mm
  • Headstock 110-39.000
  • Spindle nose : ISO A2-3
  • Spindle for SCHAUBLIN collets : W20 W25 B32
  • Maximum throughbore, diameter : 14.5 – 19 – 24 mm
  • Clamping cylinder for collets and chucks, axial clamping
  • force at 5 bars : 750 1150 daN
  • Headstock 110-37.000 (option)
  • Spindlenose : ISO A2-4
  • Spindle for SCHAUBLIN collets : F38 / B32
  • Maximum throughbore, diameter : 32 – 24 mm
  • Clamping cylinder for collets and chucks,
  • axial clamping force at 5 bars : 1150 daN
  • Headstock 110-35.000 (option)
  • Spindle nose : ISO A2-5
  • Spindle for SCHAUBLIN collets : F38 / B32
  • Maximum throughbore, diameter : 42 – 36 mm
  • Clamping cylinder for collets and chucks, axial clamping
  • force at 5 bars : 1150 daN
  • Spindle drive
  • AC motor, rated power at 100% / 50% duty factor : 5,5 / 7 kW
  • Maximum torque at 100% / 50% duty factor : 30 / 40 Nm
  • Spindle speeds, stepless :
  • – headstocks A2-3 110-39.000 and A2-4 110-37.000 : 30-6000 rpm
  • – headstock A2-5 110-35.000 : 30-5000 rpm
  • Option (only for headstock with A2-3 spindle nose : 110-39.000) : 30-8000 rpm
  • Carriage
  • Longitudinal stroke (Z-axis) : 295 mm
  • Transverse stroke (X-axis) : 220 mm
  • Resolution, Z-axis :
  • with Siemens CNC : 0.001 mm
  • with Fanuc CNC : 0.0001 mm
  • Resolution, X-axis (over radius),
  • with Siemens CNC : 0.0005 mm
  • with Fanuc CNC : 0.00005 mm
  • Programmable movement increment, Z- X-axes,
  • with Siemens CNC : 0.001 / 0.0005 mm
  • with Fanuc CNC : 0.0001 / 0.00005 mm
  • Turret
  • Number of tool stations : 8
  • Turret for fixed and rotating tools, max nr. of rotating tools : 8
  • Max nr. of tools of the radial type : 4
  • Tool station bore diameters : 0 – 5000 rpm
  • Max power in intermittent service : 0.75 kW
  • Fixed tools section : 12×12 mm
  • Feeds
  • Working feeds, Z- / X-axes, stepless : 0-5000 mm/min
  • Rapid feeds, Z- / X-axes : 10 / 60 m/min
  • Feed pressure at 100% duty factor, Z-axis : 400 daN
  • Feed pressure at 100% duty factor, X-axis : 250 daN
  • Electric / pneumatic consumption
  • Power absorbtion : 18 kVA
  • Nominal current : 40 A
  • Air pressure required : 5 bars
  • Space requirements and weight
  • Overall dimensions : see sketch on page 4
  • Appr.weight of machine : 1350 kg

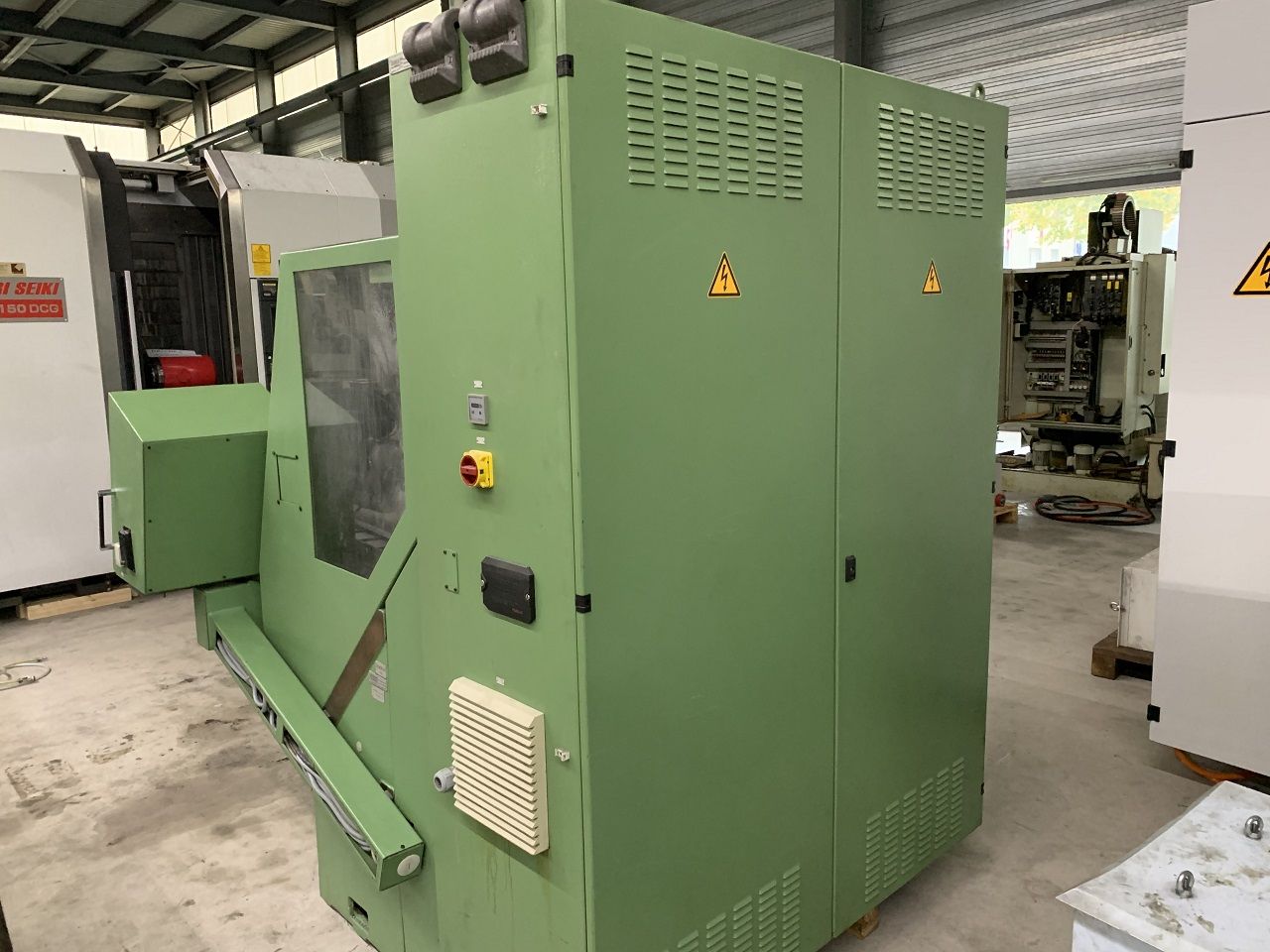

  • Appr.weight of electric cabinet : 250 kg

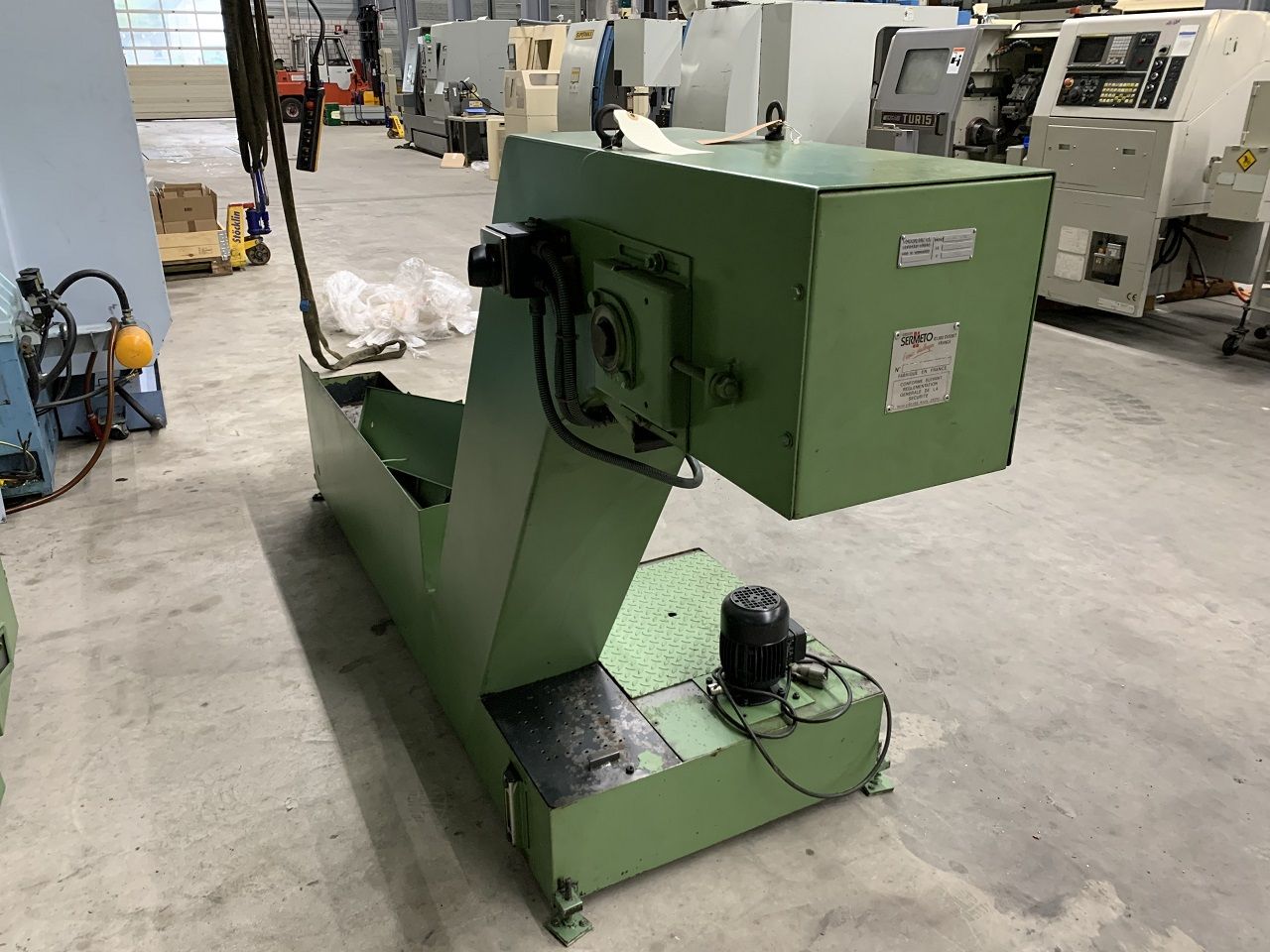

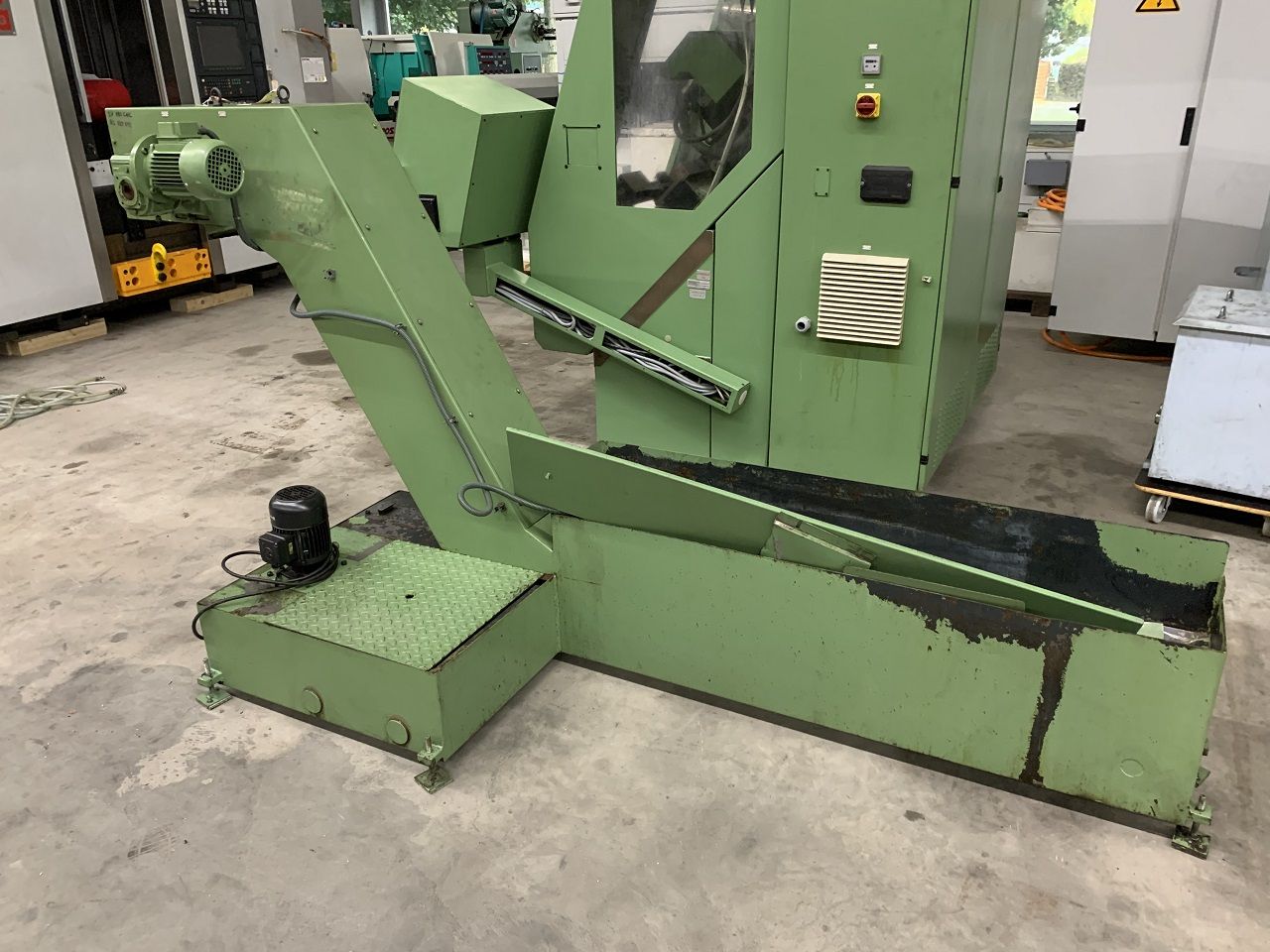

  • Appr.weight of chip conveyor : 340 kg
