MACHINE INFORMATION AND SPECIFICATION

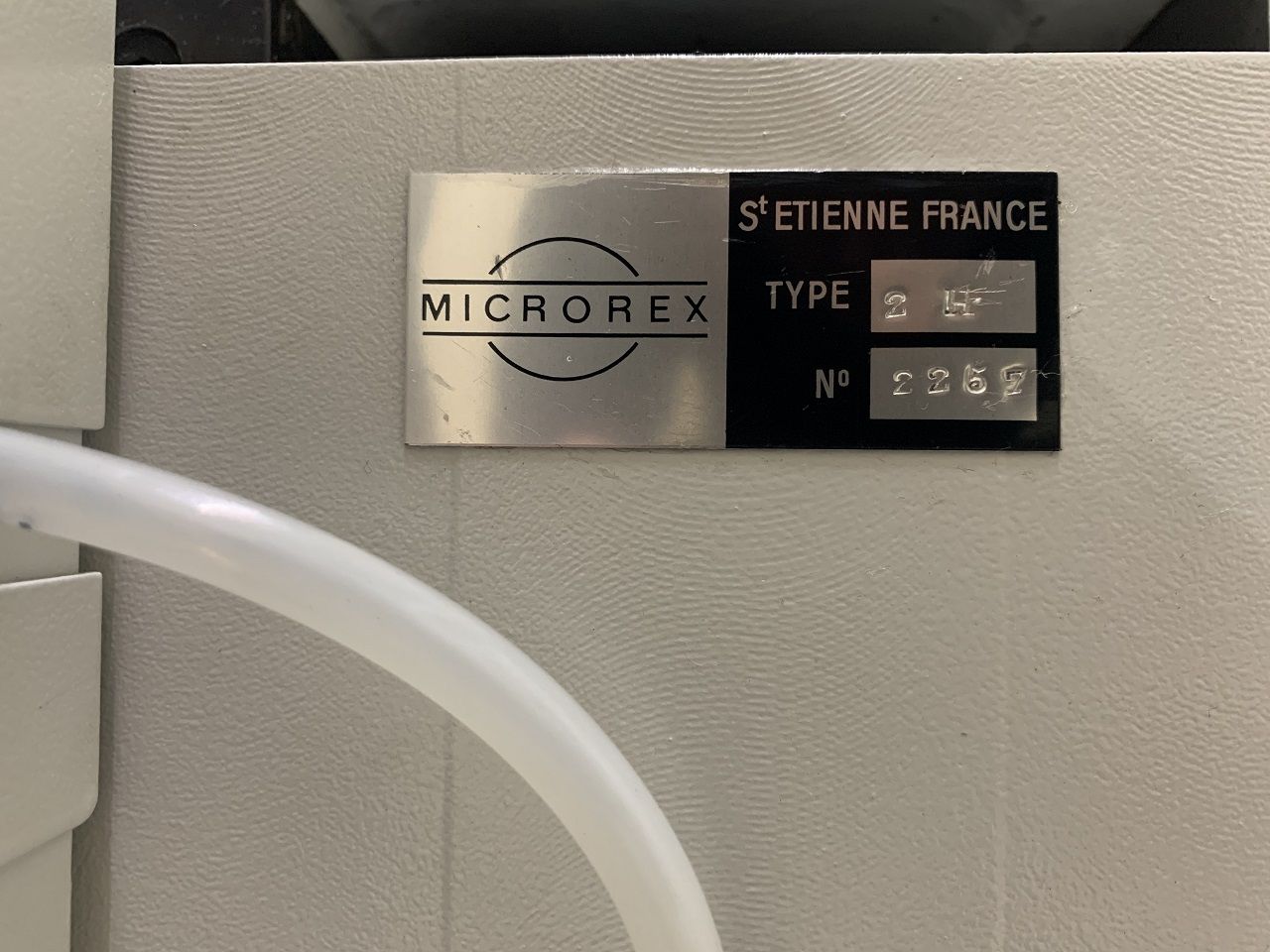

  • Manufacturer:
  • MICROREX
  • Model:

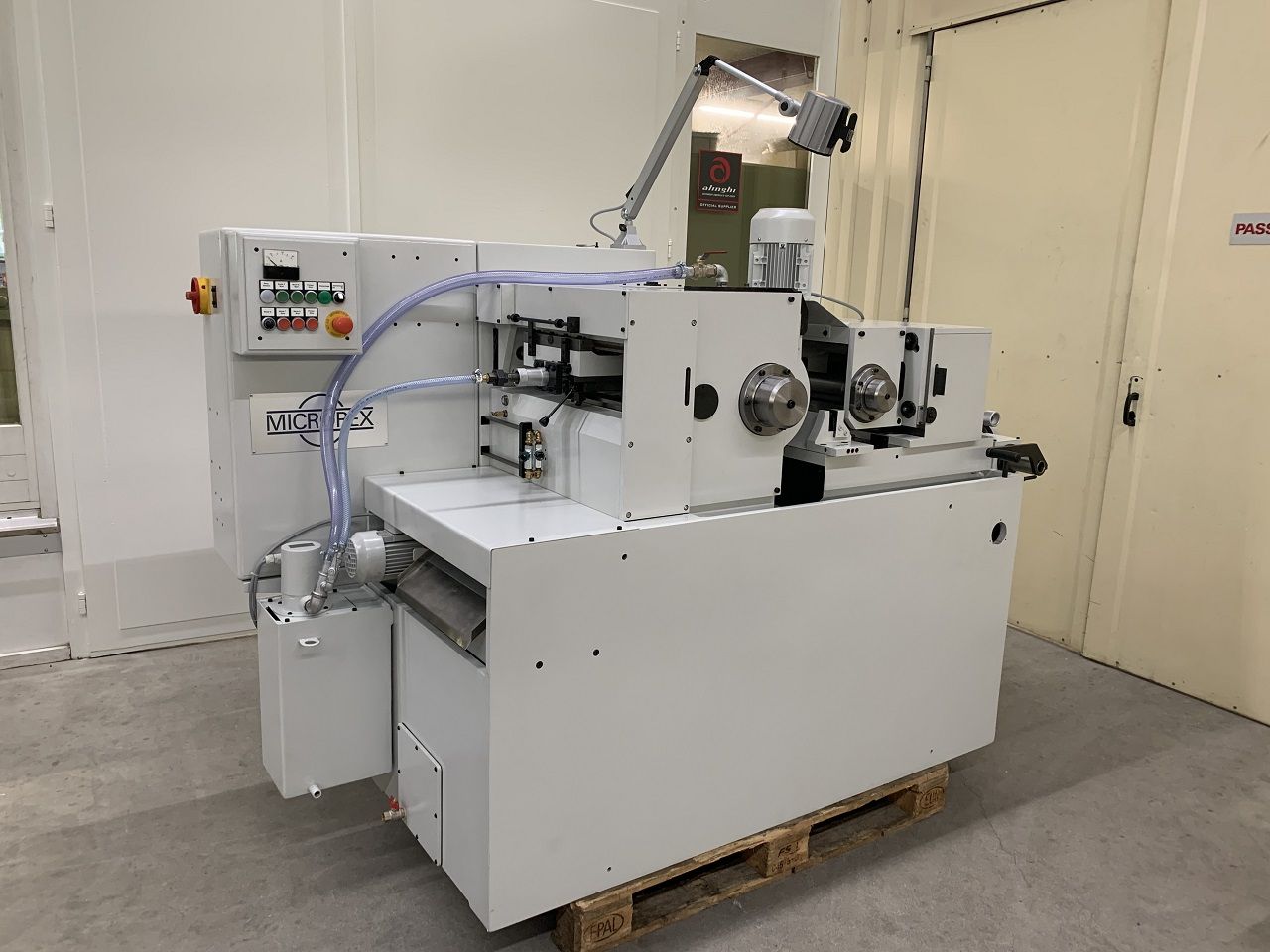

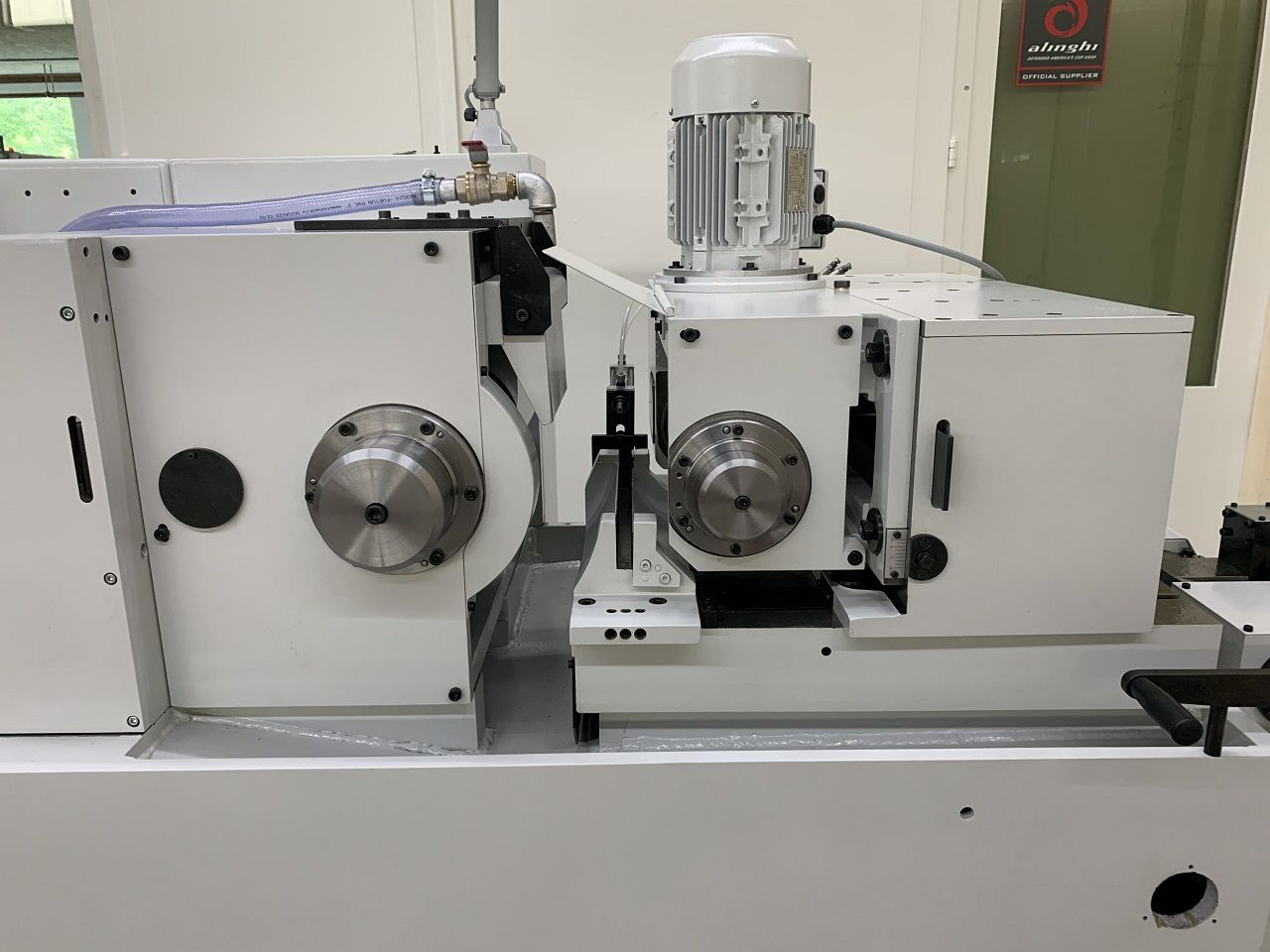

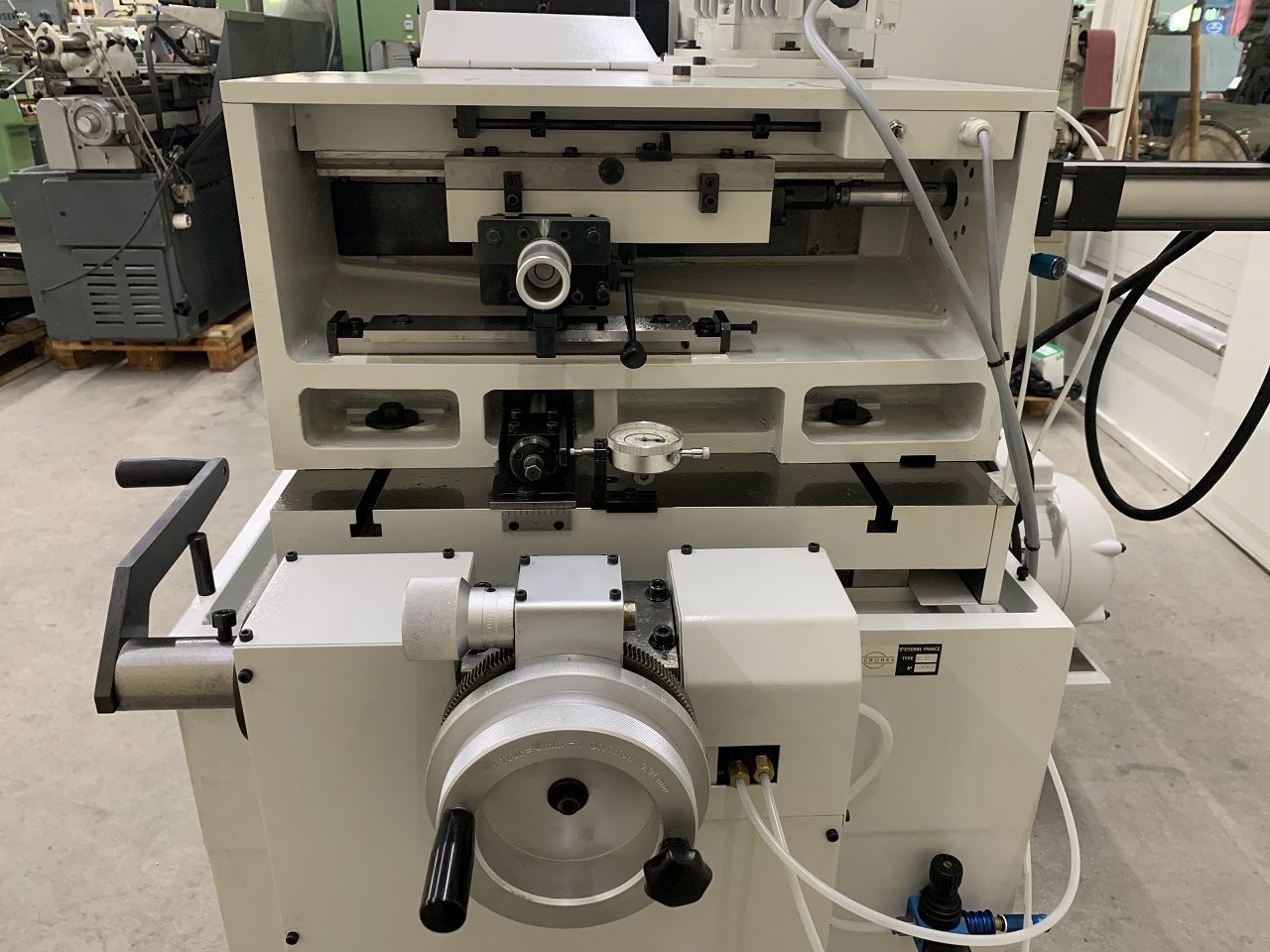

  • MICROREX TYPE 2H CENTERLESS GRINDING MACHINE
  • Condition:
  • Used
  • YOM:
  • N/A
  • Control:
  • NA
  • Price:
  • POA
  • Country:
  • Switzerland

DESCRIPTION



INFORMATION


  • Manufacturing origin: France
  • Voltage : 380/50/3
  • Netweight : 3000 kg
  • Custom position : 8460.29 20
  • Dimensions : 2400×1550 mm
  •
  • TECHNICAL DATA
  • Diameter capacity : 80 mm
  • : Type 2HA : 120 mm
  • Maximum infeed grinding length : 200 mm
  • Maximum throughfeed grinding length
  • (with normal-type guides) : 300 mm
  • Grinding wheel :
  • -diameter : 400 mm
  • -maximum width : 200 mm
  • -bore : 203.2 mm
  • Driving wheel :
  • -diameter : 254 mm
  • -width : 200 mm
  • -bore : 127 mm

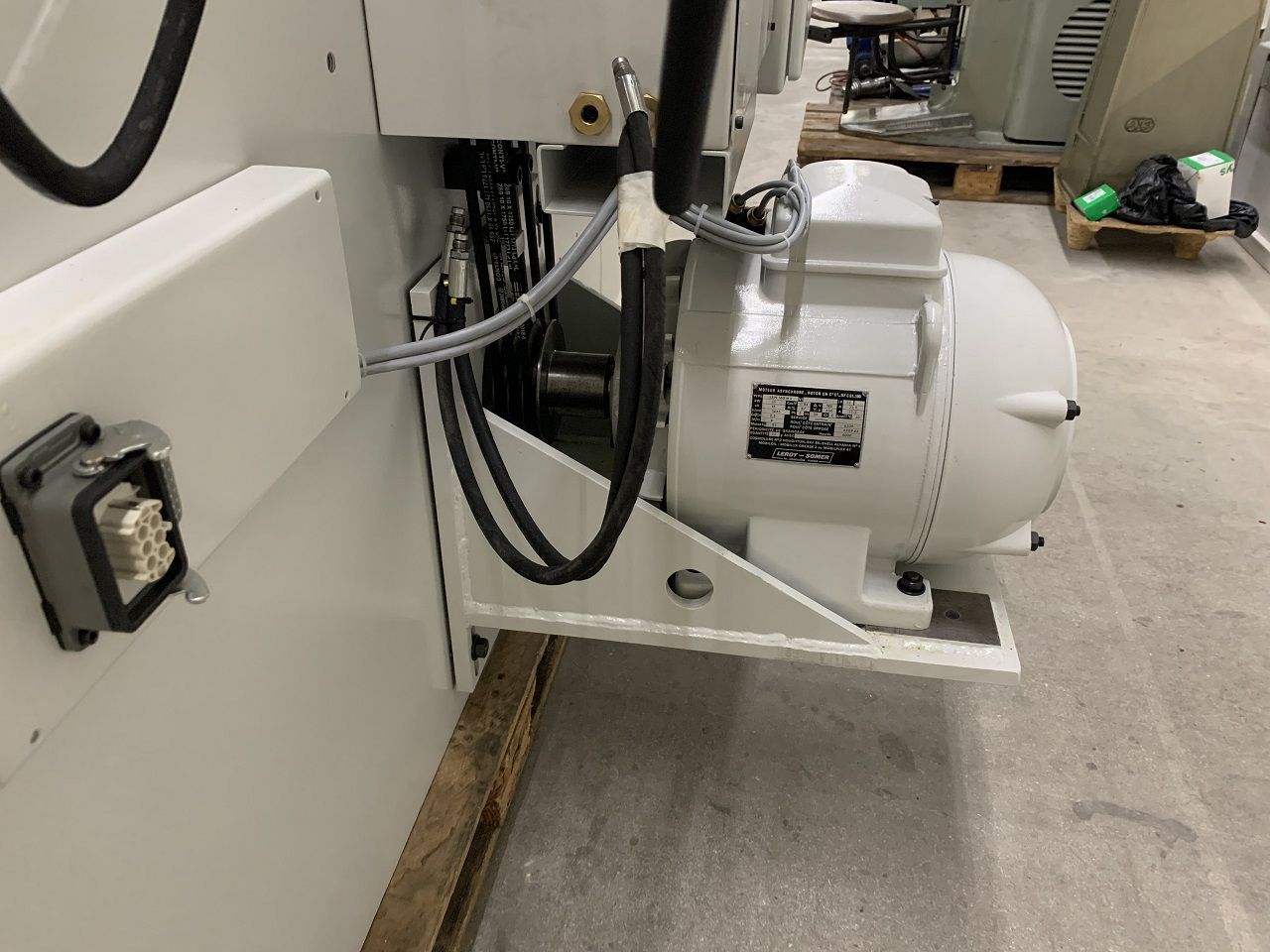

  • Main drive motor : 11-22 kW
  • Driving wheel motor : 1,1 kW
  • Driving wheel speed : 10 – 200 U/Min

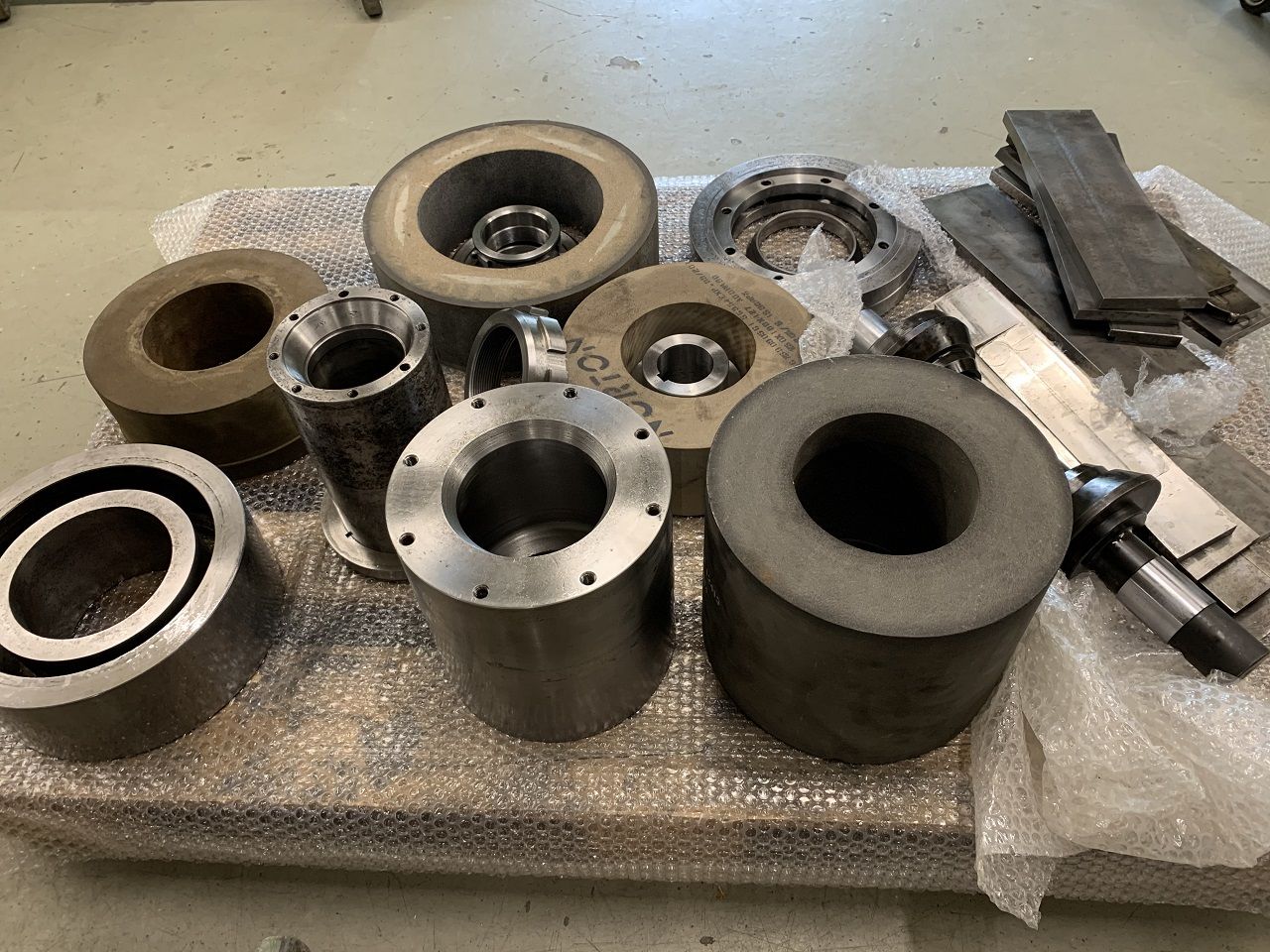

  • Standard accessories :
  • 1 flange with grinding wheel
  • 1 flange with driving wheel

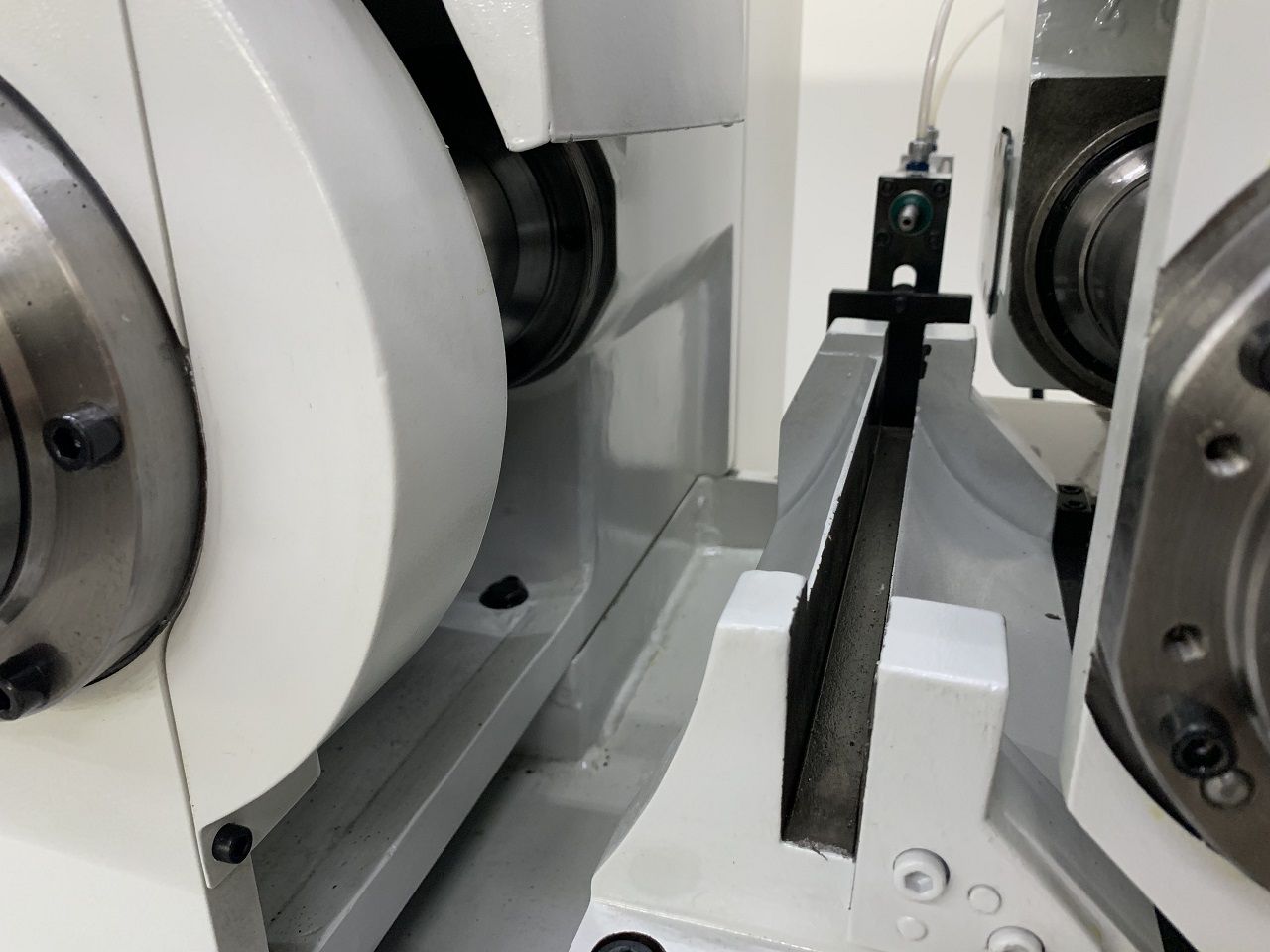

  • 1 workpiece support bridge
  • 1 set of shims for workpiece support

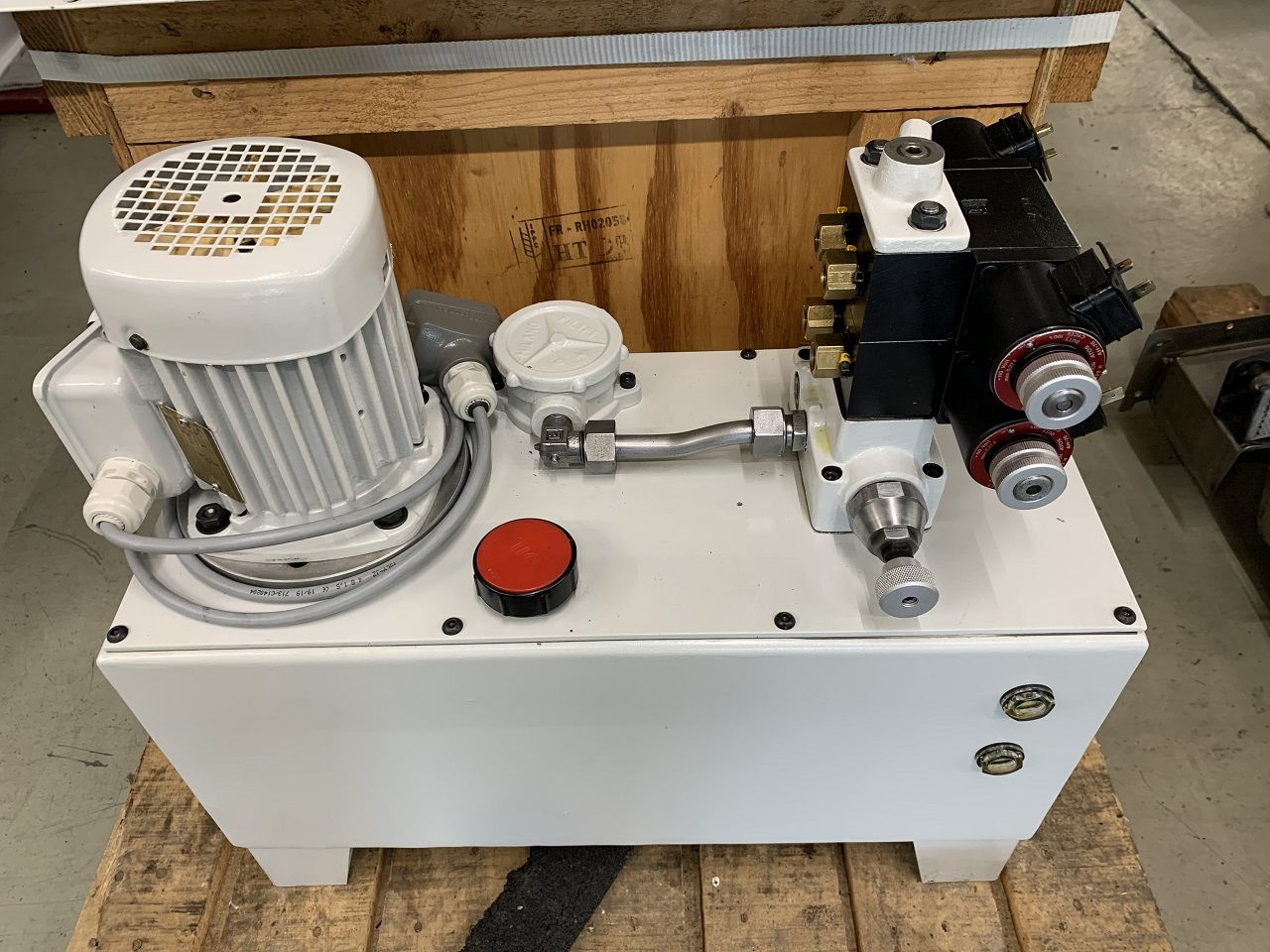

  • -Hydraulic dressing and trueing device for grinding and driving wheels
  • -Variable speed drive of driving wheel

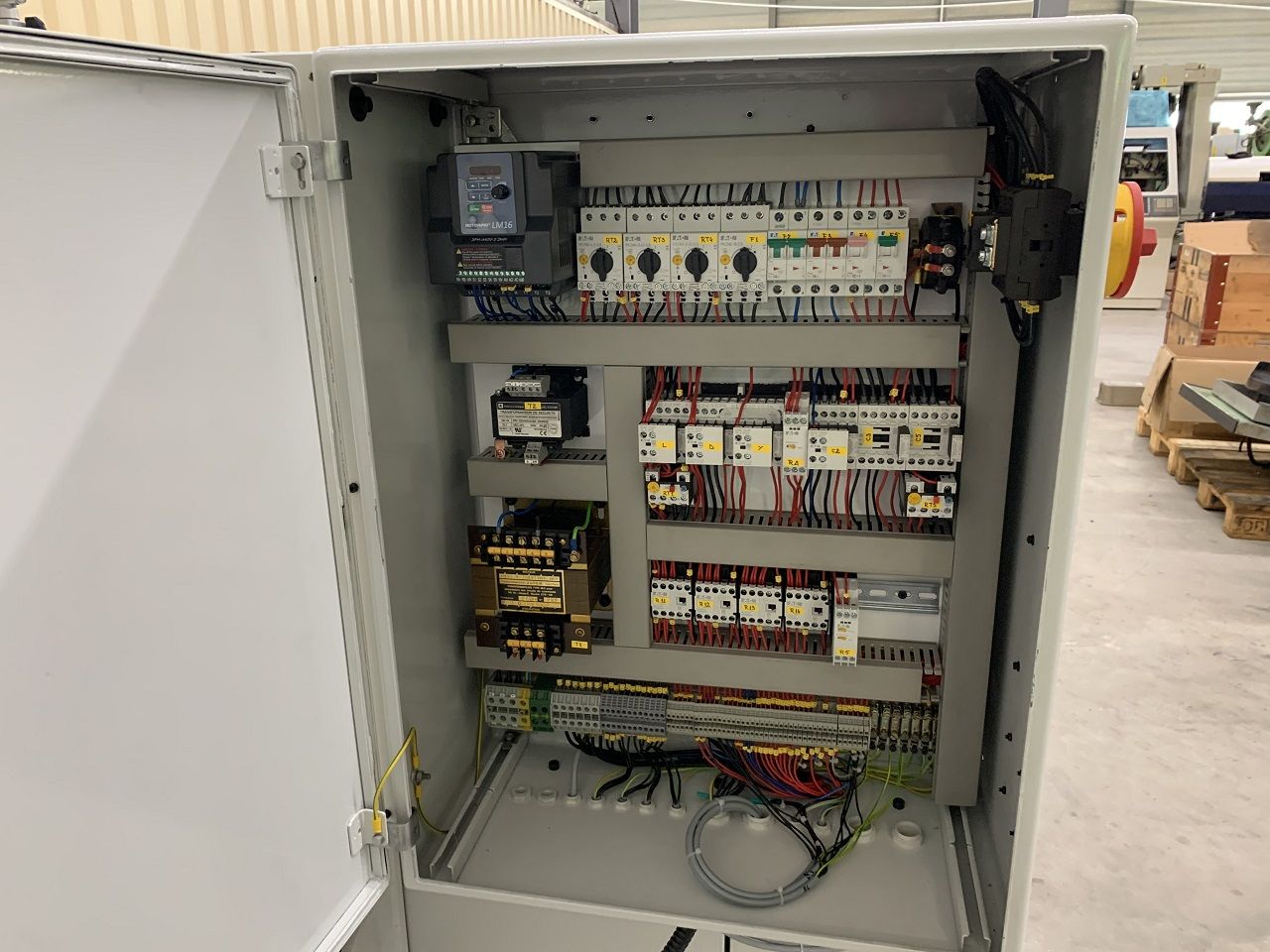

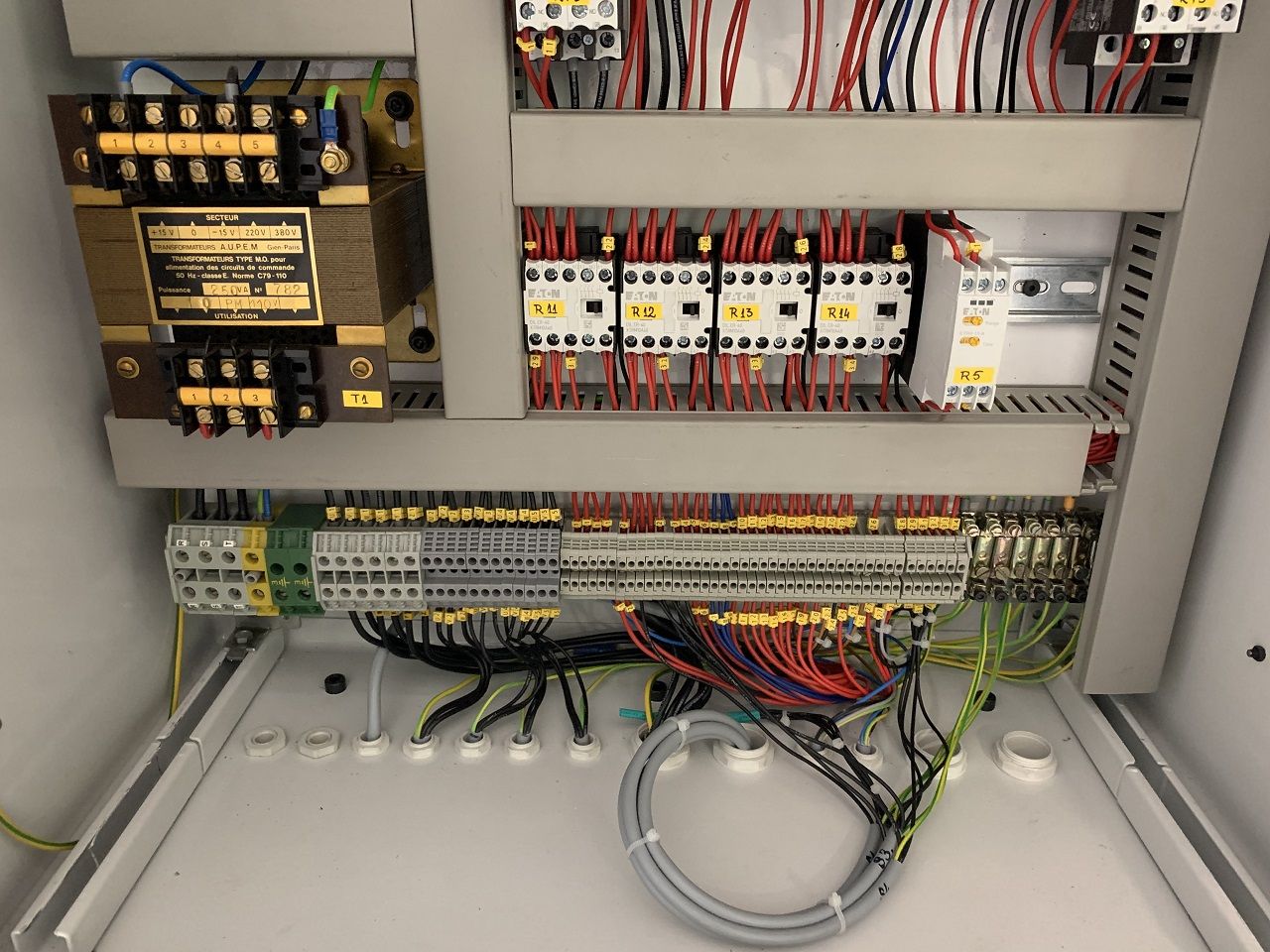

  • -Electrical equipment for 3×380 v, 50 Hz
  • -Main drive motor, 11 kW
  • -Ammeter for main drive motor
  • Starter keys and operating manual
.
