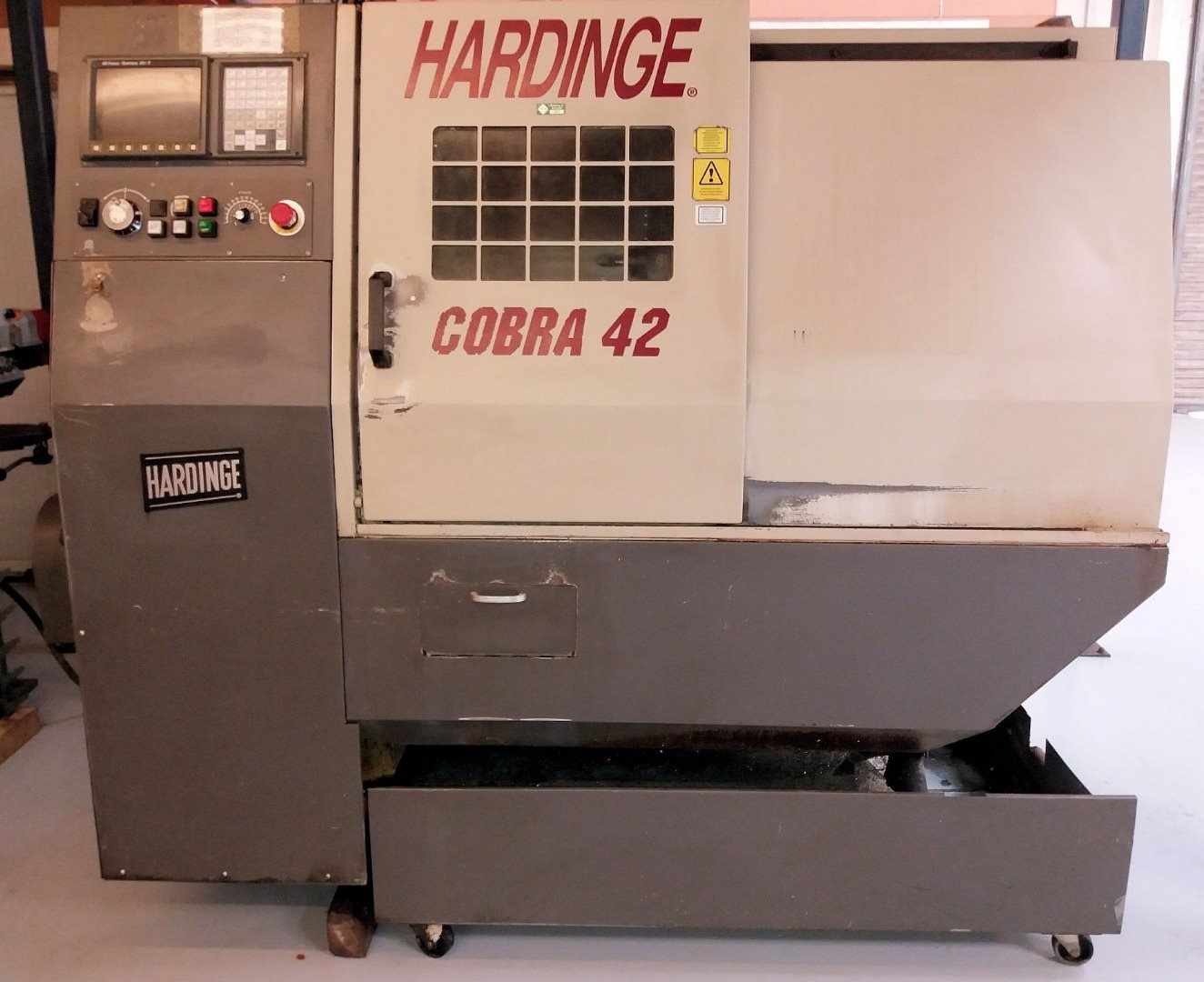

Name of Machine: Hardinge Cobra 42 YOM: 2004 Stock Number: clu/0168 Specification:
Model: Cobra 42 Control: Fanuc 21-T Max cutting: Diameter 209mm, length 355mm Bar capacity: 42mm vis a 16C collet style spindle Spindle speed: 5000 rpm Tool size: VDI 30 Turret position: 12 station Accessories: parts catcher Hydrafeed 3M Barfeed Model 1HY S/No. 9398 Condition: Used Location Fishponds, Bristol Price: POA Shipping Details: A VAT invoice will be supplied within 48 hours of the sale end date. Delivery off loading and siting are all available with this machine at extra cost.
Maximum swing over bed 2000mm. Swing over cross slide 1680mm. Distance between centres 5000 mm. No. of spindle speed (24) Spindle speeds (3 ranges) A range 0.8 – 4 rpm. B range 5 – 25 rpm. C range 31.5 – 160 rpm. Speed ranges A&B are pinion d...
Swing over bed 400mm.Swing over cross slide 246mm. Height of centres 195mm. Distance between centres 1270mm. Spindle nose D1 – 6 Camlock. Taper in spindle nose bush No 4 MT. Spindle bore 54mm. Spindle speeds 14 – 2500 rpm (Inf.var.) Maximum spi...
